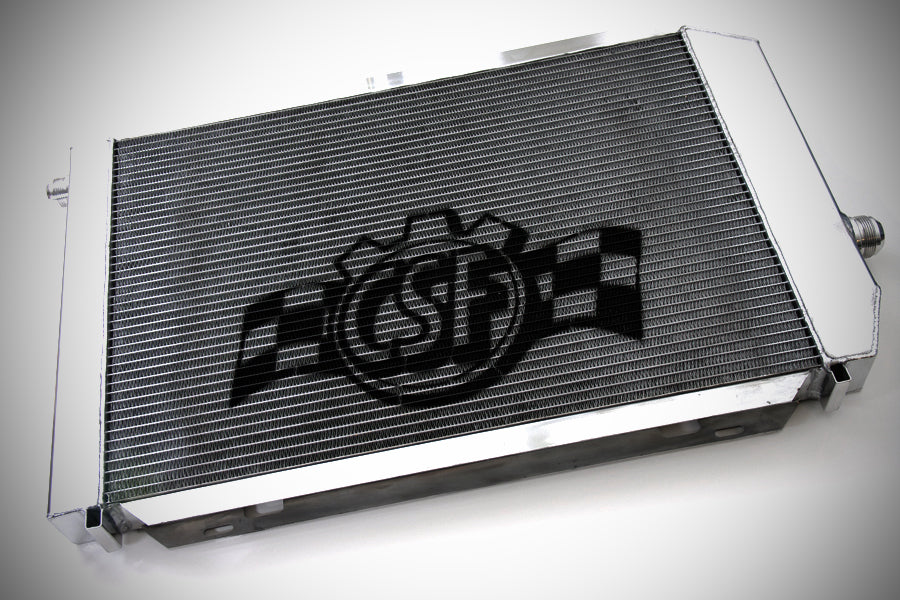

CSF R-1 Triple-Pass "Ultimate Motorsports" Competition Radiator

The CSF R-1 Triple-Pass "Ultimate Motorsports" Competition Radiator represents the pinnacle of professional-grade cooling technology, meticulously engineered to meet the rigorous demands of high-performance motorsports applications. Extensively track tested and validated under the most challenging driving conditions by elite professional racing teams, this radiator sets a new standard for reliability, efficiency, and durability in competitive environments.

Manufactured by CSF, a leader in advanced cooling solutions, the R-1 Competition Radiator benefits from comprehensive laboratory evaluations conducted in state-of-the-art facilities. These tests include wind tunnel assessments, vibration analysis, thermal cycling, and burst pressure evaluations, ensuring that every unit delivers consistent performance under extreme stress. This rigorous development process guarantees that the radiator not only meets but exceeds industry standards for thermal management in motorsport vehicles.

One of the defining features of the CSF R-1 is its innovative Triple-Pass flow design. This configuration allows coolant to traverse the radiator core three times before exiting, significantly reducing outlet temperatures and enhancing overall cooling efficiency. This multi-pass system is particularly advantageous in high-heat scenarios typical of competitive racing, where maintaining optimal engine temperatures is critical for performance and longevity.

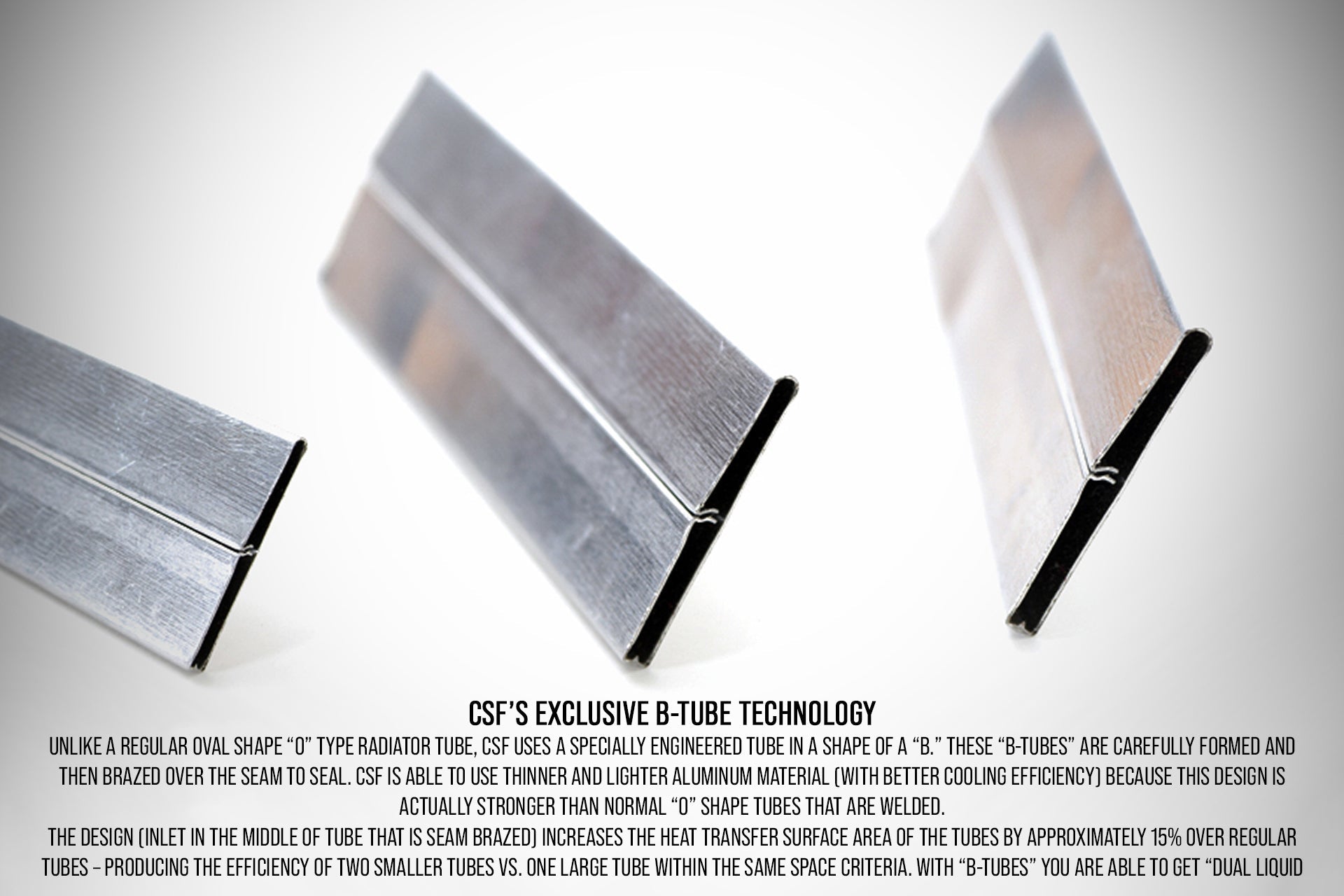

The radiator core itself is a 2-row, 52mm ultra high-performance assembly, incorporating CSF’s proprietary B-Tube technology. Unlike conventional oval-shaped "O" tubes, the B-Tubes are precision-engineered with a distinctive "B" shape that is seam-brazed for superior strength and durability. This design enables the use of thinner, lighter aluminum material without compromising structural integrity, resulting in improved heat transfer capabilities. Specifically, the B-Tube configuration increases the heat transfer surface area by approximately 15% compared to standard tubes, effectively delivering the cooling efficiency of two smaller tubes within the same spatial constraints.

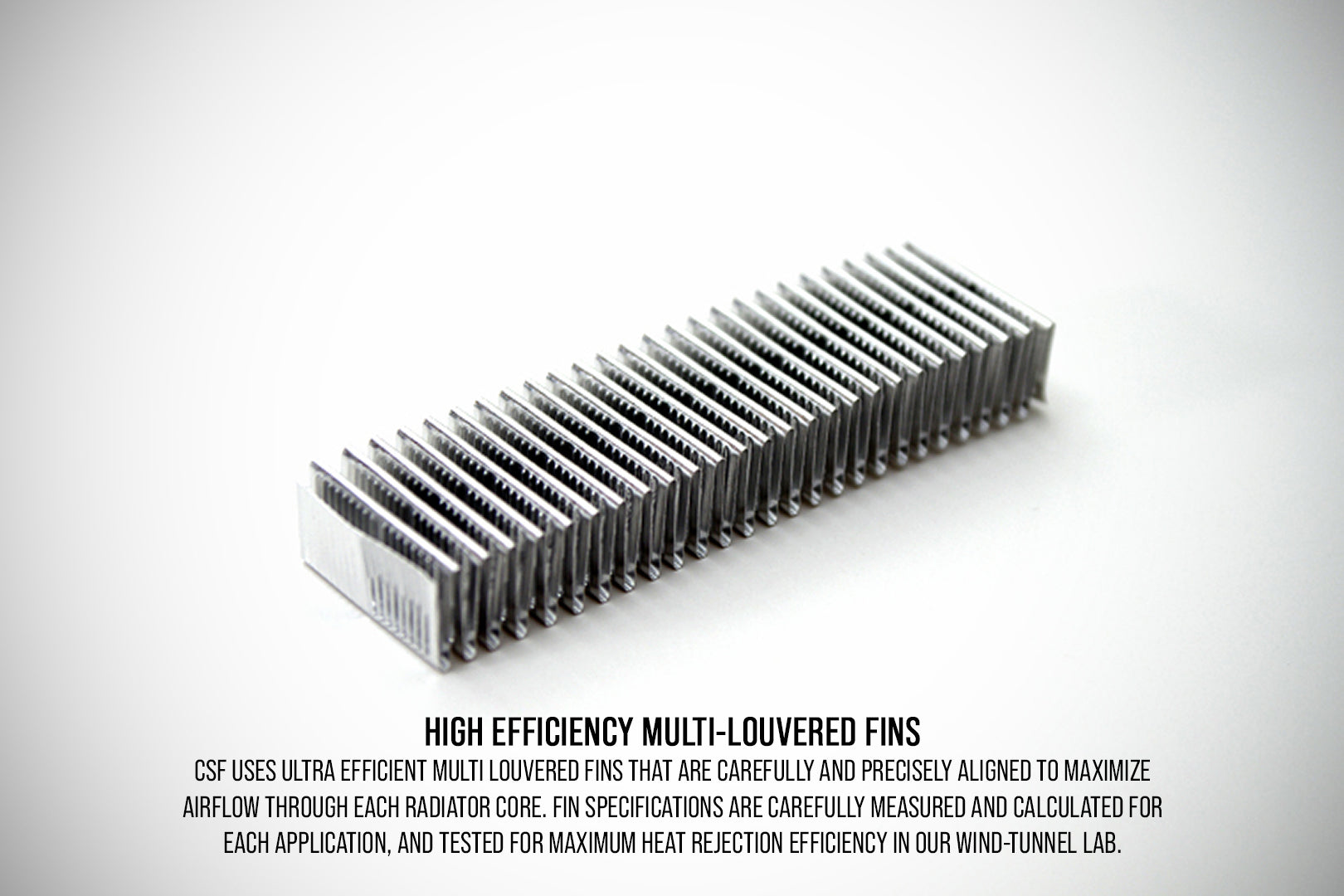

Moreover, the B-Tube design facilitates dual liquid laminar flow, optimizing coolant movement through the core for enhanced thermal dissipation. Complementing this, CSF employs ultra-efficient multi-louvered fins that are meticulously aligned to maximize airflow through the radiator. Each fin’s specifications are carefully calculated and validated through wind tunnel testing to ensure peak heat rejection performance, making the radiator exceptionally effective in dissipating heat even under the most demanding conditions.

Key Features

• CNC Machined Mounting Brackets for precise and secure installation
• 100% All Aluminum TIG-Welded Construction ensuring lightweight durability and corrosion resistance
• -AN Fittings compatible with high-performance fluid systems
• True "Drop-in" Fit requiring no modifications for seamless installation
• Smooth Satin Finish enhancing aesthetic appeal and surface protection
• Black Powder-Coated Core designed to improve thermal rejection efficiency

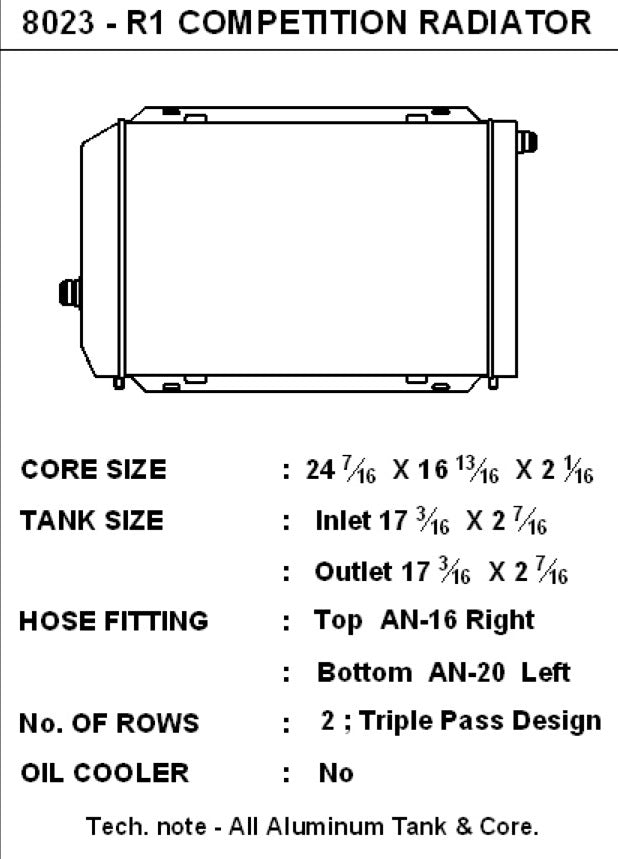

• Dimensions: 29.3"L x 19.1"H x 2.55"W (excluding fittings) for versatile compatibility
• Universal Fit allowing multiple mounting configurations to accommodate various vehicle setups
• Optimized for V-Mount turbocharged configurations, supporting advanced forced induction systems
• Triple-Pass Flow Configuration delivering the lowest possible outlet temperatures by maximizing coolant contact time
• 2-Row 52mm Ultra High-Performance Core engineered for superior heat exchange
• 8mm Tall Multi-Louvered Fins with exclusive B-Tube Technology for enhanced airflow and cooling capacity
• Proven track performance endorsed by Formula Drift Champion Michael Essa
• 2-Year Limited Warranty providing peace of mind and assurance of quality
• Individually Leak Tested to guarantee reliability and integrity
• Subjected to rigorous testing protocols including burst pressure, thermal cycling, vibration, and salt spray exposure to ensure long-term durability

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) extends a comprehensive warranty on its High-Performance Cooling Systems to the original purchaser under normal use and service conditions. This warranty underscores CSF’s commitment to quality and customer satisfaction. For detailed terms and conditions, please visit our Warranty Page.

SKU# 8023 Warranty Term: 2 years

In summary, the CSF R-1 Triple-Pass "Ultimate Motorsports" Competition Radiator is a meticulously engineered cooling solution designed for professionals and enthusiasts who demand uncompromising performance. Its advanced design features, rigorous testing, and universal adaptability make it an ideal choice for a wide range of motorsport applications, ensuring optimal engine temperatures and reliable operation under the most strenuous conditions.
