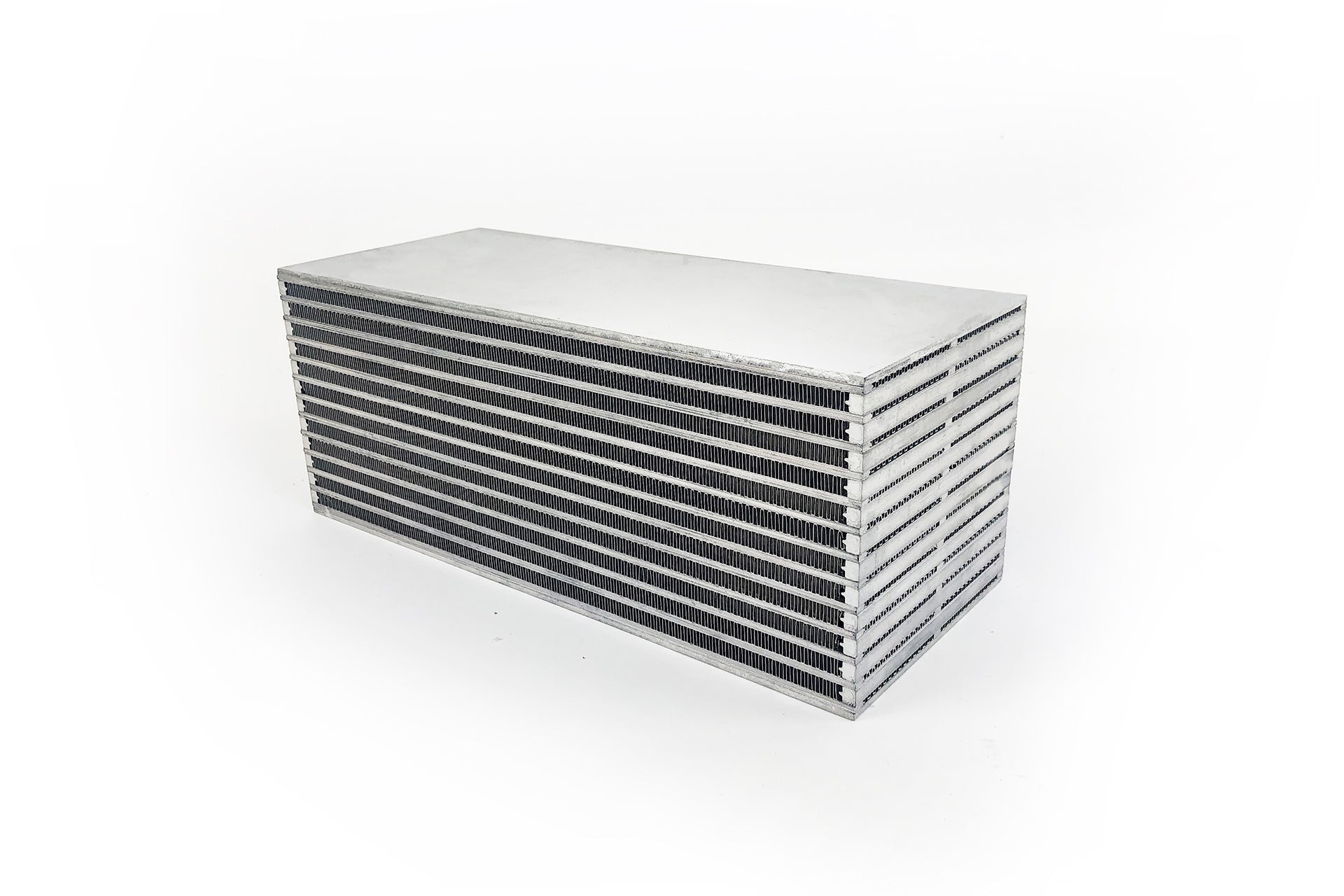

CSF Air-to-Water Bar & Plate Intercooler Core 12L x 5H x 5W

The CSF Air-to-Water Bar & Plate Intercooler Core, measuring 12" x 5" x 5" (305mm x 123mm x 125mm), represents a pinnacle of engineering excellence within the high-performance cooling systems sector. Designed to meet the rigorous demands of modern tuning and performance applications, this intercooler core is rated to handle up to 1000 WHP, making it an ideal choice for custom intercooler builds requiring superior heat dissipation and reliability under extreme conditions.

Manufactured by CSF, a brand synonymous with quality and precision, this intercooler core is constructed using a heavy-duty bar and plate design that ensures structural integrity and optimal thermal efficiency. Each unit undergoes meticulous hand assembly within a controlled clean room environment, utilizing specialized jigs and fixtures to guarantee a perfectly straight core. The assembly process is conducted with gloves to maintain a pristine surface, facilitating future welding operations and ensuring exceptional brazing quality.

One of the defining features of this intercooler core is its multi-louvered, high-precision staggered fin design, applied to both the ambient and pressure sides of the core. This design maximizes heat transfer efficiency, enabling the intercooler to perform consistently even under high boost pressures. To further ensure durability and reliability, each core is subjected to rigorous pressure testing at 120psi, confirming its capability to withstand demanding boost levels without compromise.

The brazing process is executed in CSF’s state-of-the-art digital vacuum brazing ovens, with a total of 12 ovens dedicated to maintaining consistent quality across all production batches. This advanced brazing technique not only enhances the core’s strength but also contributes to its long-term durability in high-stress environments.

Features

• Heavy-Duty Bar & Plate Intercooler Core construction for enhanced durability and performance
• Pressure tested at 120psi to ensure maximum reliability in extreme boost applications
• Hand-built using precision jigs and fixtures for a perfectly straight core, facilitating ease of welding
• Manufactured in a clean room environment with glove use to guarantee proper brazing and a clean surface for future welding

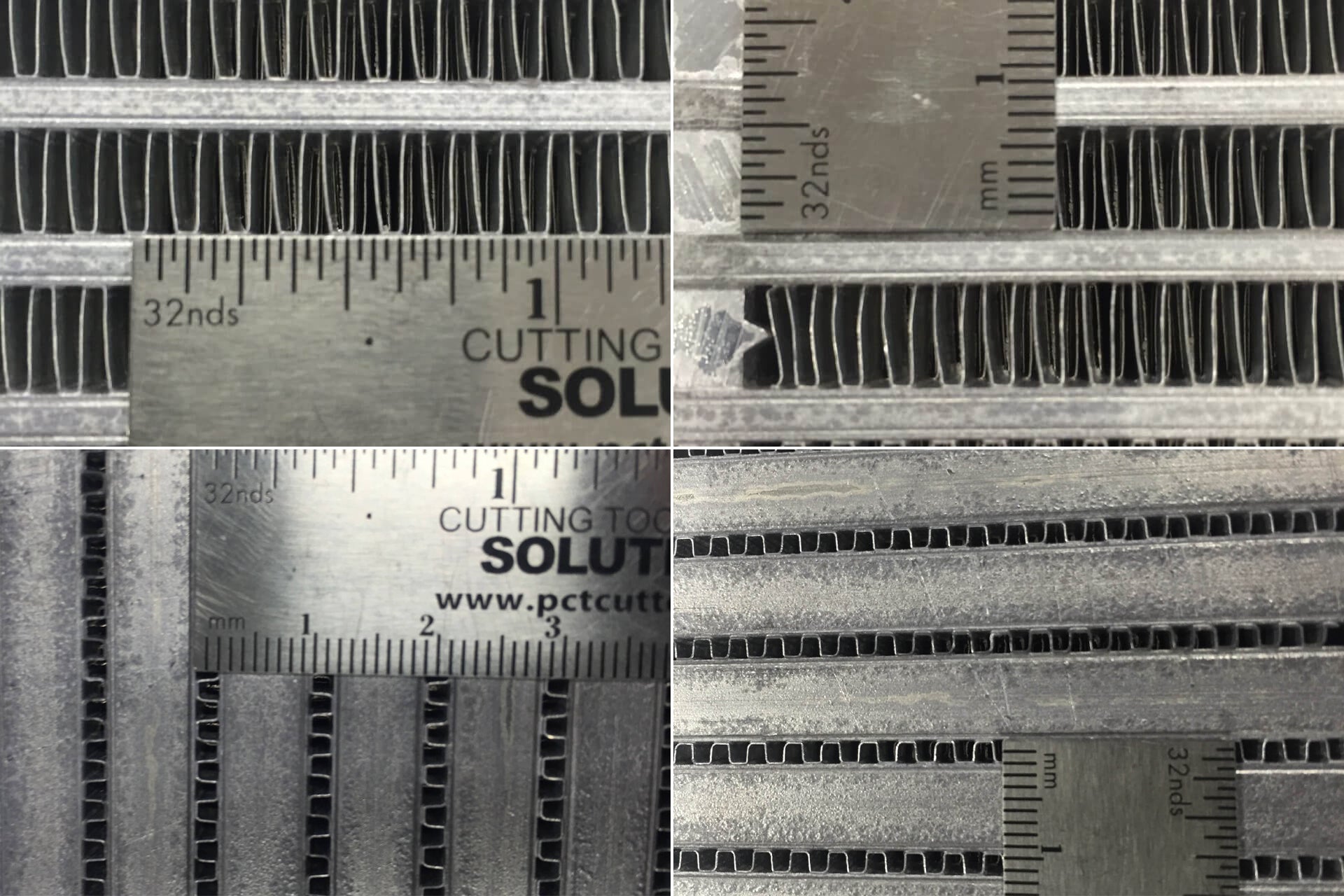

• Multi-louvered, high-precision staggered fin design on both ambient and pressure sides for superior heat transfer
• Batch brazed in CSF’s advanced digital vacuum brazing ovens, ensuring consistent quality
• Strict quality control protocols including individual pressure testing for each core
• Individually boxed and protected to ensure secure transport through single-piece mail services
• Dimensions: 12"x5"x5" (305mm x 123mm x 125mm)
• Rated for up to 1000 horsepower
• Air-to-Water cooling system design

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) stands behind the quality and performance of its products. The CSF High-Performance Cooling Systems, including this intercooler core, are warranted to the original purchaser under normal use and service conditions. This warranty reflects CSF’s commitment to reliability and customer satisfaction. For comprehensive warranty details, please visit our Warranty Page.

SKU# 8084 Warranty Term: 2 years
