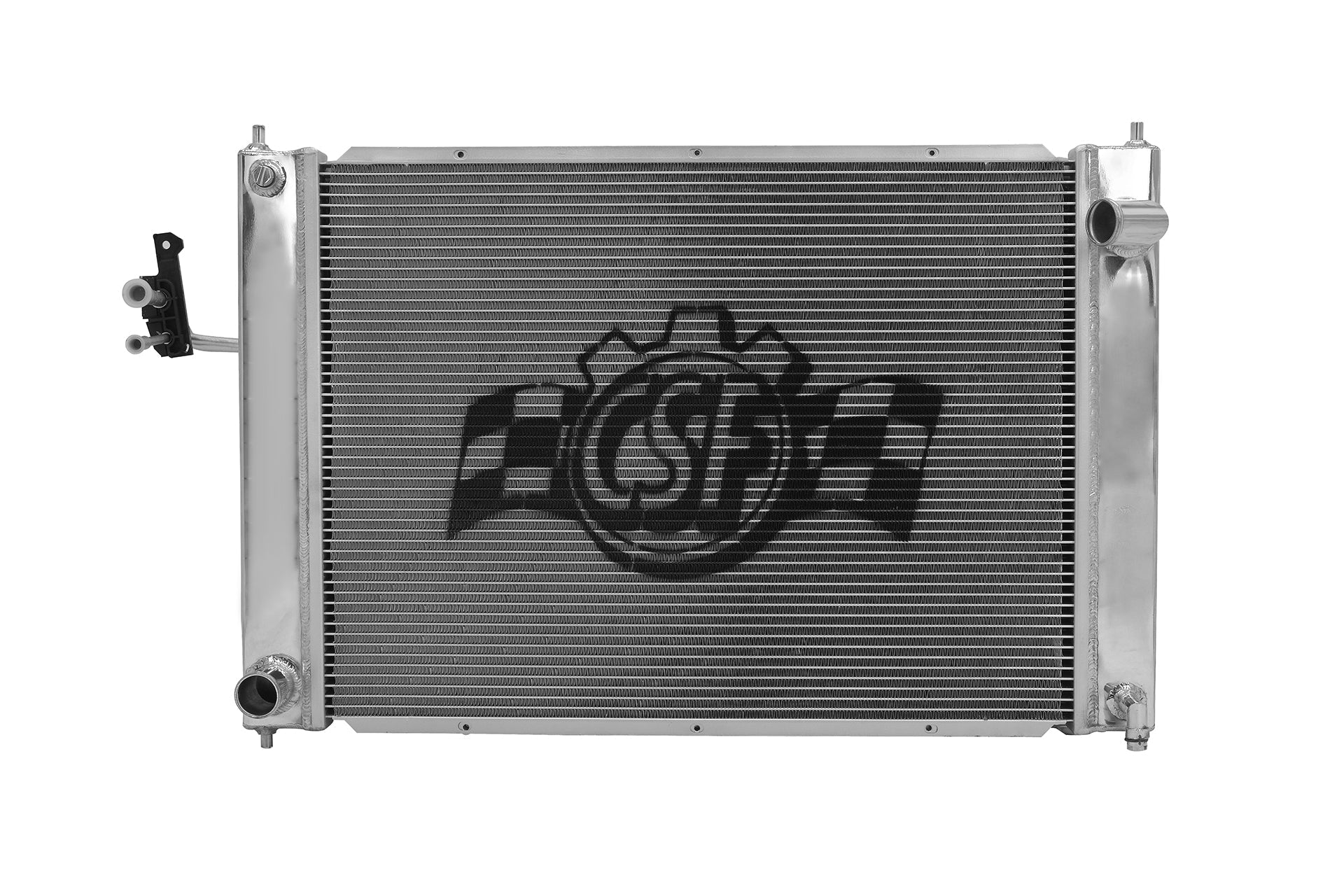

CSF 09-20 Nissan 370Z / 08-13 Infiniti G37 (MT) Triple-Pass Radiator + AC Condenser

With over five decades of dedicated expertise in radiator manufacturing, CSF stands as a leader in delivering superior cooling solutions for high-performance vehicles. The CSF 09-20 Nissan 370Z / 08-13 Infiniti G37 (MT) Triple-Pass Radiator + AC Condenser is engineered to meet the rigorous demands of both street driving and competitive motorsports environments. This product exemplifies CSF’s commitment to quality, reliability, and precision engineering, ensuring your vehicle operates at optimal temperatures even under the most challenging conditions.

The hallmark of this radiator is its innovative Triple-Pass Flow Structure, a design that directs coolant through the radiator core three times before exiting. This mechanism significantly reduces outlet temperatures, providing enhanced cooling efficiency that is critical for high horsepower builds and race vehicles. The radiator’s 2-Row 42mm core incorporates CSF’s exclusive B-Tube Technology, a distinctive feature that sets it apart from conventional radiators.

Unlike traditional oval-shaped “O” tubes, CSF’s B-Tubes are meticulously engineered in a “B” shape and brazed over the seam to create an exceptionally strong and lightweight structure. This design allows the use of thinner aluminum material without compromising durability, resulting in improved cooling performance. The B-Tube’s unique inlet positioned in the middle of the tube increases the heat transfer surface area by approximately 15% compared to standard tubes, effectively doubling the heat dissipation capacity within the same spatial constraints. This dual liquid laminar flow enhances thermal efficiency, making the radiator highly effective in managing engine temperatures.

Complementing the advanced tube design, CSF employs ultra-efficient multi-louvered fins that are precisely aligned to maximize airflow through the radiator core. The fin specifications have been carefully calculated and tested in CSF’s wind-tunnel laboratory to ensure maximum heat rejection efficiency. This meticulous attention to detail guarantees that the radiator performs reliably under both everyday and high-stress conditions.

Installation is streamlined with a true “Drop-in Fit” design, requiring no modifications to your vehicle. The radiator includes CNC-machined and welded OE-style brackets that provide exceptional durability and secure mounting. Additionally, the inlet and outlet connections are engineered to match original equipment manufacturer (OEM) specifications, allowing seamless reuse of OEM hoses or compatible aftermarket components. This ensures a straightforward installation process and maintains the integrity of your vehicle’s cooling system.

Key Features

• 2-Row 42mm Core (Dual Core) featuring CSF’s proprietary B-Tube Technology for enhanced strength and cooling efficiency
• Ultra-efficient fin design with 6.5mm fin height and multi-louvered configuration to maximize surface area contact and airflow

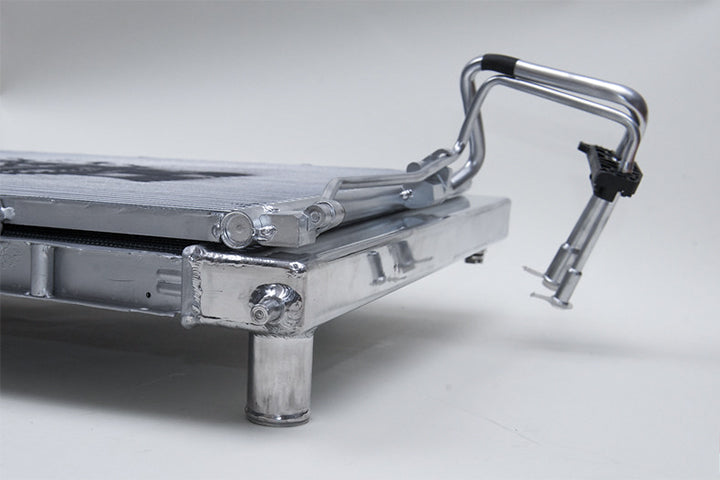

• CNC-machined “Quick-Connect” inlet and outlet connections for precise fitment and ease of installation
• CNC-machined brackets and fittings crafted for superior durability and exact OEM compatibility
• All-aluminum race-style drain plug designed for longevity and ease of maintenance
• Smooth satin finish that provides corrosion resistance and a professional appearance
• “Drop-in Fit” design requiring no modifications, compatible with all OEM attaching components including quick connect hoses, AC condenser, mounting brackets, and fan shroud

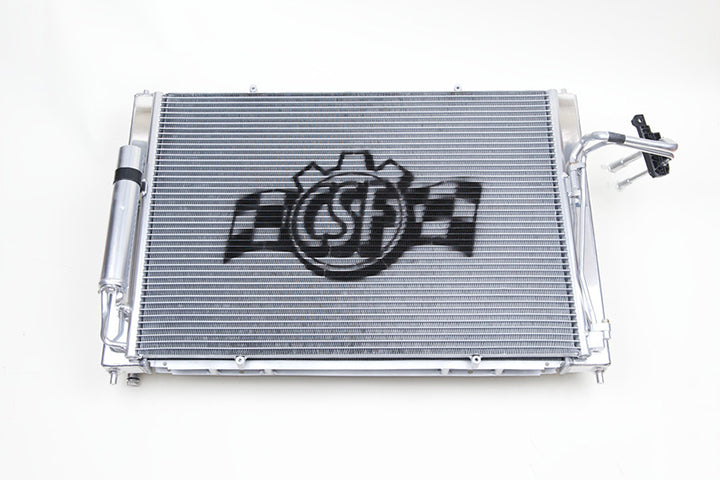

• Includes both the radiator and AC condenser for a comprehensive cooling solution
• Advanced Triple-Pass radiator design for optimal coolant flow and temperature control

Applications

OEM Part Numbers

• Nissan: 21410 JK20B
• Nissan: 21410-JK20B
• Nissan: 21410JK20B
• Nissan: 21400 JU40B
• Nissan: 21400-JU40B
• Nissan: 21400JU40B
• Infiniti: 21410 JK20B
• Infiniti: 21410-JK20B
• Infiniti: 21410JK20B

Warranty

Cooling Systems and Flexibles, Inc. (CSF) guarantees the quality and performance of its High-Performance Cooling Systems under normal use and service to the original purchaser of the vehicle in which the product was installed. This warranty reflects CSF’s confidence in the durability and reliability of its products, ensuring peace of mind for professional and enthusiast users alike. For comprehensive warranty details, please visit our Warranty Page.

SKU# 7012T Warranty Term: 2 years

In summary, the CSF 09-20 Nissan 370Z / 08-13 Infiniti G37 (MT) Triple-Pass Radiator + AC Condenser represents a pinnacle of engineering excellence and practical design. Its advanced cooling technology, combined with precision manufacturing and rigorous testing, makes it an indispensable component for maintaining optimal engine temperatures and enhancing vehicle performance. Whether for high-performance
