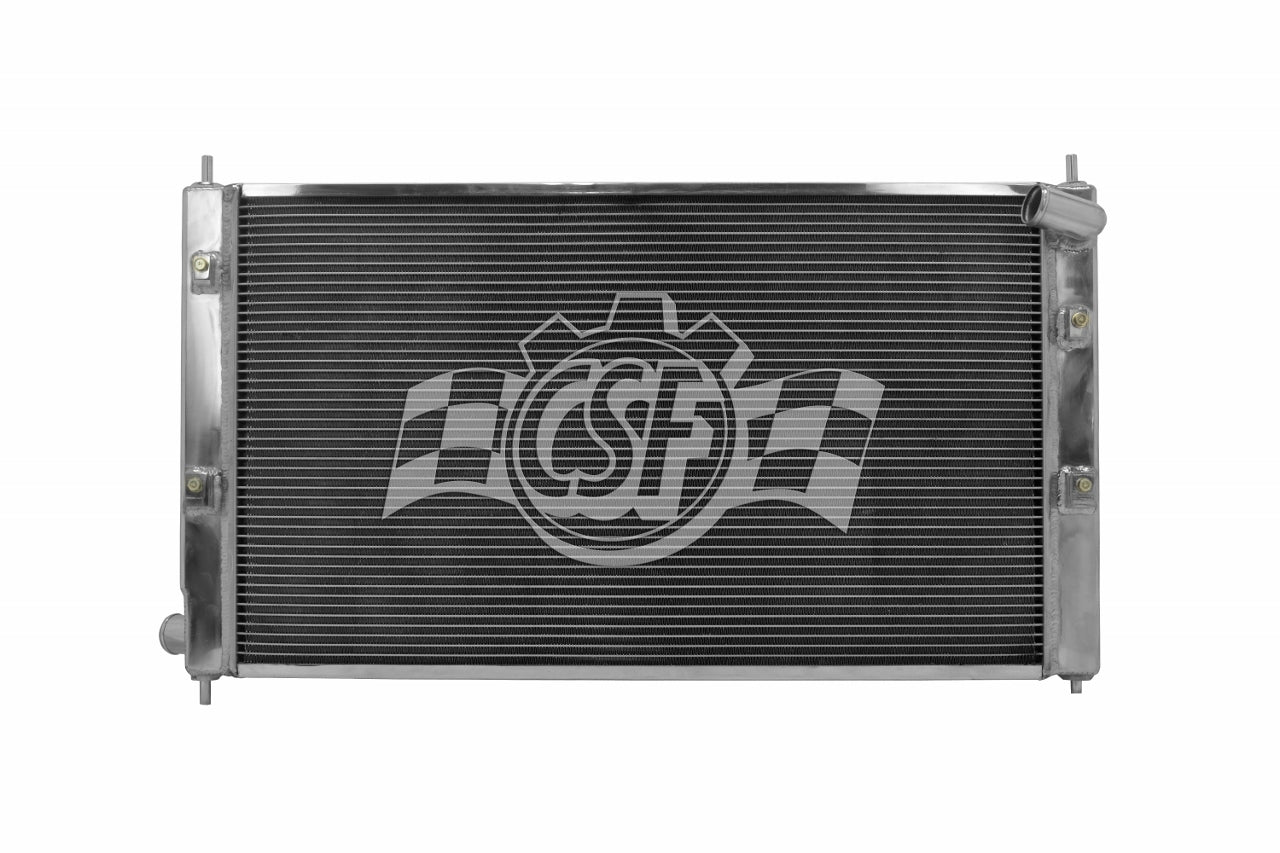

CSF 08-13 Mitsubishi Lancer Evo X & Ralliart (Manual & TC-SST) All-Aluminum Radiator

With over five decades of dedicated expertise in radiator manufacturing, CSF stands as a leader in delivering high-performance cooling solutions. The CSF 08-13 Mitsubishi Lancer Evo X & Ralliart (Manual & TC-SST) All-Aluminum Radiator exemplifies this commitment, providing superior engine cooling essential for maintaining optimal performance in both street and track environments. This radiator is engineered to meet the rigorous demands of high horsepower applications and motorsports, where enhanced cooling efficiency is critical.

At the heart of this radiator lies CSF’s proprietary B-Tube Technology, a significant advancement over conventional oval-shaped "O" type tubes. The innovative "B" shaped tubes are meticulously formed and seam-brazed, resulting in a structure that is not only stronger but also allows the use of thinner, lighter aluminum material. This design increases the heat transfer surface area by approximately 15% compared to traditional tubes, effectively delivering the cooling capacity of two smaller tubes within the same spatial footprint. The dual liquid laminar flow enabled by the B-tubes enhances thermal efficiency, ensuring superior heat dissipation under demanding conditions.

Complementing the B-Tube core, the radiator incorporates ultra-efficient multi-louvered fins with a 6.5mm fin height. These fins are precisely aligned to maximize airflow through the core, a result of rigorous measurement, calculation, and validation in CSF’s wind-tunnel laboratory. This meticulous engineering ensures optimal heat rejection, contributing to the radiator’s outstanding performance.

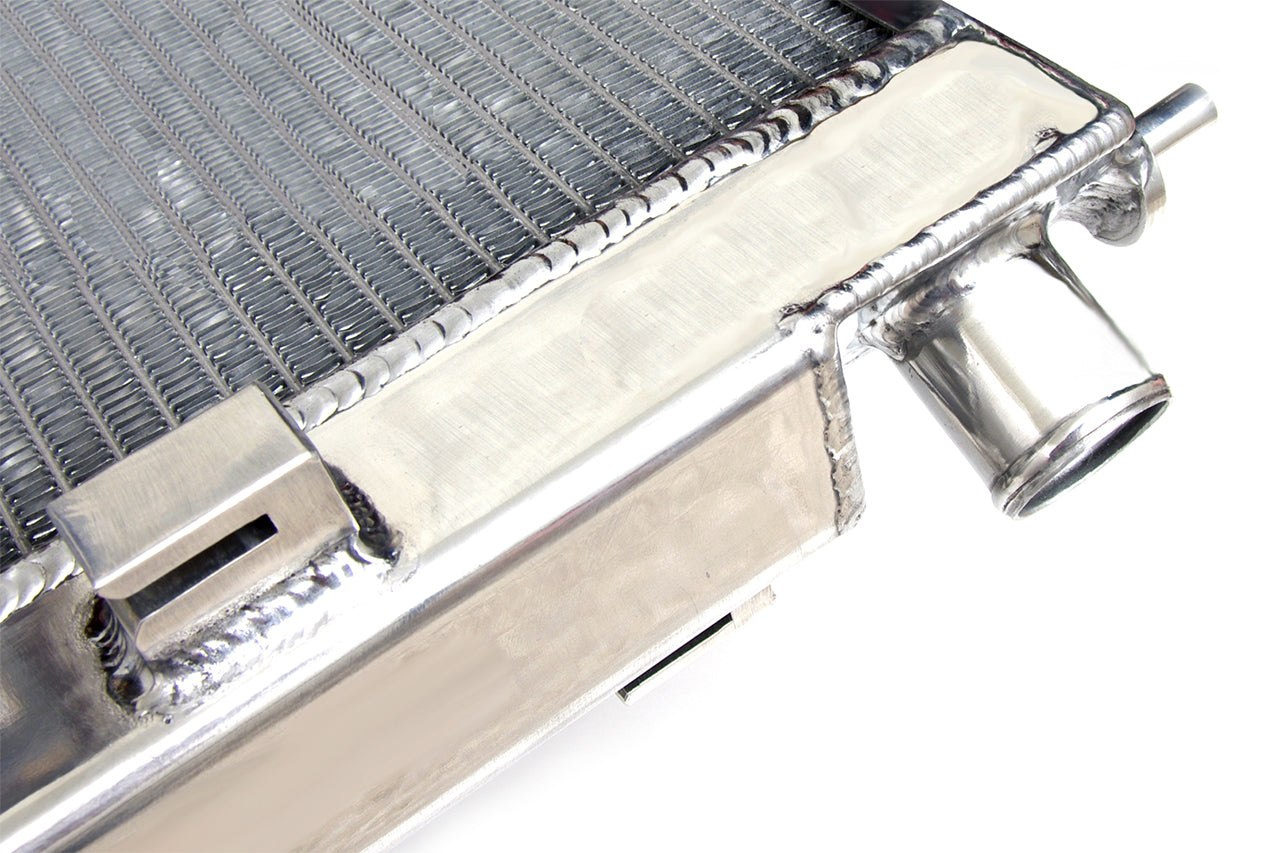

The CSF Evo X radiator is designed as a true "Drop-in fit" component, guaranteeing seamless installation without any modifications. All original equipment (OE) style brackets are CNC machined and welded to provide exceptional durability and a secure fit. The inlet and outlet connections are engineered to match OE specifications, allowing the reuse of OEM hoses or compatible aftermarket parts. This attention to detail facilitates straightforward integration with existing vehicle systems, including AC condensers, mounting brackets, and fan shrouds.

Features

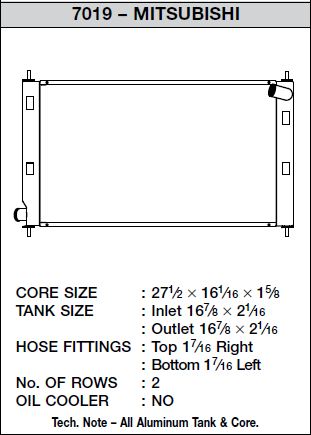

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
• Core Incorporates Ultra-Efficient Multi-Louvered Fins with 6.5mm Fin Height for Maximum Surface Area Contact
• CNC Machined "Quick-Connect" Inlet and Outlet Connections for Precise Fitment

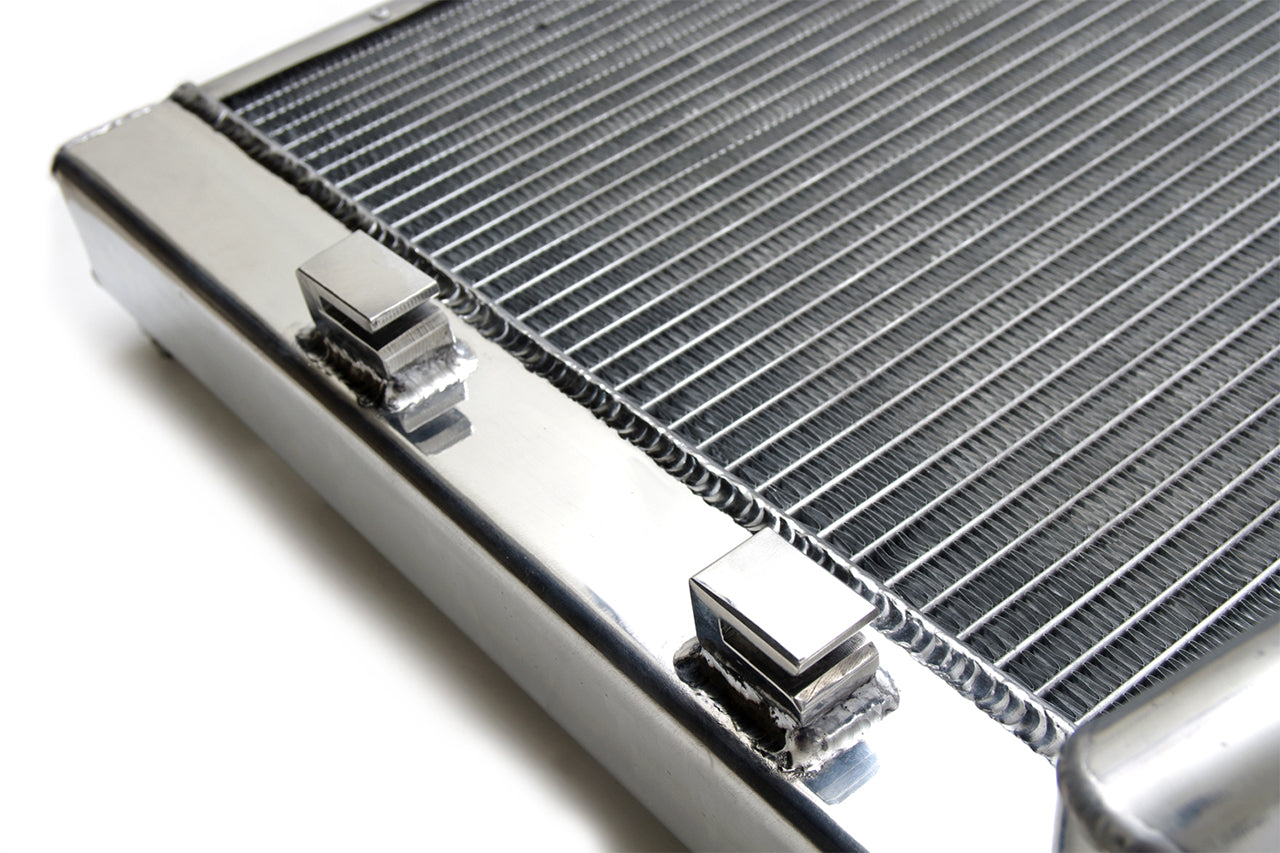

• CNC Machined Brackets and Fittings Ensuring Superior Durability and Fit
• All-Aluminum Race Style Drain Plug for Enhanced Reliability
• Smooth Satin Finish Providing a Professional Appearance
• "Drop-in Fit" Design Requiring No Modifications, Compatible with OEM Components Including Quick Connect Hoses, AC Condenser, Mounting Brackets, and Fan Shroud

Applications

OEM Part Numbers

• Mitsubishi: MZ690912
• Mitsubishi: 1350A050

Warranty

Cooling Systems and Flexibles, Inc. (CSF) provides a comprehensive warranty on their High-Performance Cooling Systems under normal use and service conditions. This warranty extends to the original purchaser of the vehicle in which the product was initially installed, reflecting CSF’s confidence in the quality and reliability of their radiators. For detailed warranty information, please visit our Warranty Page.

SKU# 7019 Warranty Term: 2 years

In summary, the CSF 08-13 Mitsubishi Lancer Evo X & Ralliart All-Aluminum Radiator represents a pinnacle of engineering excellence, combining innovative design, precision manufacturing, and rigorous testing to deliver a product that meets the highest standards of performance and durability. Whether for daily driving or competitive motorsports, this radiator ensures your Evo X remains reliably cool, supporting sustained engine performance and longevity.
