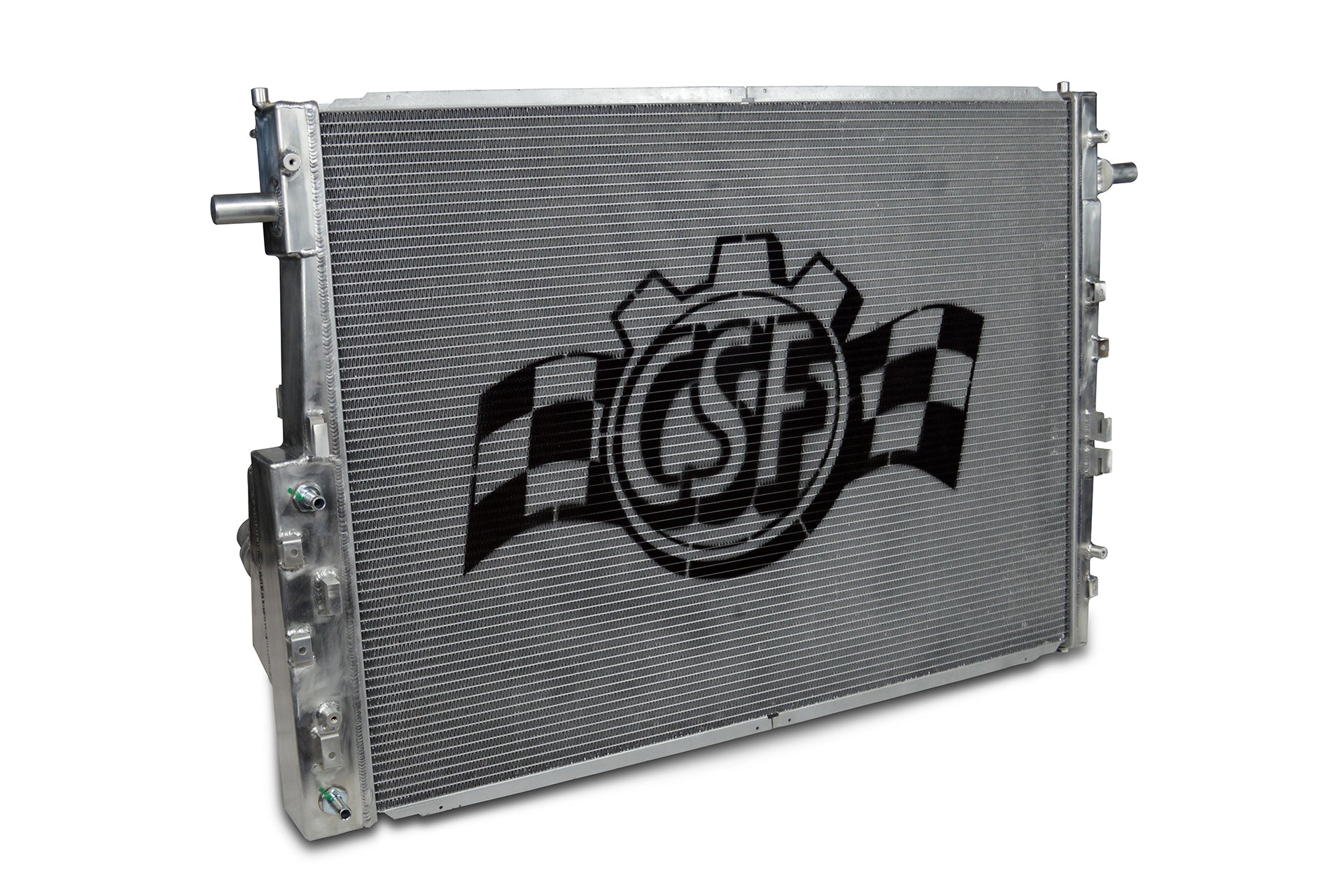

CSF 08-10 Ford Super Duty 6.4L Turbo Diesel All-Aluminum Radiator

With over five decades of expertise in radiator manufacturing, CSF stands as a benchmark for quality and innovation in engine cooling solutions. The CSF 08-10 Ford Super Duty 6.4L Turbo Diesel All-Aluminum Radiator exemplifies this legacy, offering a high-performance, heavy-duty cooling system engineered specifically for demanding applications. Whether navigating challenging off-road terrains, towing heavy loads, or enduring extended highway drives, this radiator ensures your Ford Super Duty operates at optimal temperatures, enhancing engine longevity and reliability.

At the core of this radiator’s superior performance is the advanced 2-Row 42mm core featuring CSF’s exclusive B-Tube Technology. Unlike conventional oval-shaped “O” tubes, CSF’s uniquely engineered “B” shaped tubes are seam-brazed to create a stronger, lighter, and more efficient cooling surface. This innovative design increases the heat transfer surface area by approximately 15% compared to traditional tubes, effectively delivering the cooling capacity equivalent to two smaller tubes within the same spatial constraints. The result is dual liquid laminar flow, which optimizes coolant movement and heat dissipation, critical for maintaining engine temperatures under heavy-duty conditions.

Complementing the B-Tube core, CSF employs ultra-efficient multi-louvered fins precisely aligned to maximize airflow through the radiator. Each fin’s height and louver design—measured at 6.5mm—are meticulously calculated and tested in CSF’s state-of-the-art wind-tunnel laboratory to ensure maximum heat rejection efficiency. This attention to detail guarantees that the radiator performs reliably even in the most extreme environments, whether on dusty trails or during sustained towing operations.

The CSF Super Duty radiator is engineered as a true “Drop-in fit” replacement, requiring no modifications for installation. This design philosophy ensures seamless integration with your vehicle’s existing systems, allowing the reuse of OEM hoses, AC condenser, mounting brackets, and fan shroud. All brackets and fittings are CNC machined and welded to exacting standards, providing exceptional durability and a precise fit that meets or exceeds OEM specifications. The inlet and outlet connections are also CNC machined to match original equipment, facilitating straightforward installation and compatibility with both OEM and aftermarket components.

Features

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology for Enhanced Cooling Efficiency
• Ultra-Efficient Multi-Louvered Fins with 6.5mm Fin Height Designed for Maximum Surface Area Contact and Airflow

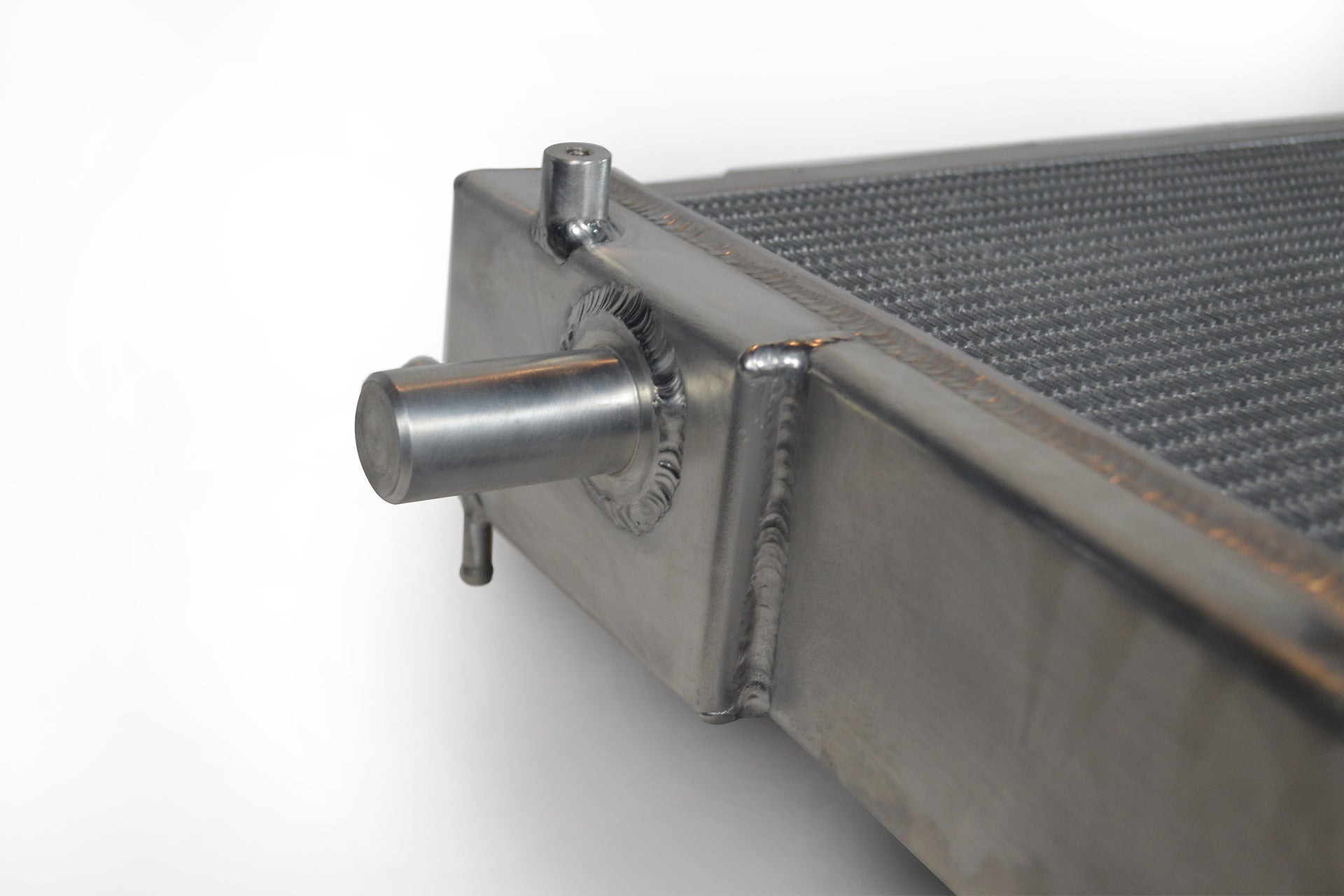

• CNC Machined "Quick-Connect" Inlet and Outlet Connections for Precise Fit and Ease of Installation
• Durable CNC Machined Brackets and Fittings Ensuring Long-Term Reliability and OEM-Level Fitment
• All-Aluminum Race Style Drain Plug for Robustness and Corrosion Resistance
• Smooth Satin Finish Providing a Professional Appearance and Additional Protection
• True "Drop-in Fit" Design Compatible with All OEM Components Including Quick Connect Hoses, AC Condenser, Mounting Brackets, and Fan Shroud

Applications

OEM Part Numbers

• Ford: 8C3Z 8009 B
• Ford: 8C3Z-8009-B
• Ford: 8C3Z8009B
• Ford: 8C3Z 8009 F
• Ford: 8C3Z-8009-F
• Ford: 8C3Z8009F

Warranty

Cooling Systems and Flexibles, Inc. (CSF) guarantees the performance and durability of its High-Performance Cooling Systems under normal use and service to the original purchaser of the vehicle in which the product was first installed. This commitment reflects CSF’s confidence in its engineering and manufacturing standards, ensuring peace of mind for professional and personal users alike. For comprehensive warranty details and terms, please visit our Warranty Page.

SKU# 7062 Warranty Term: 2 years
