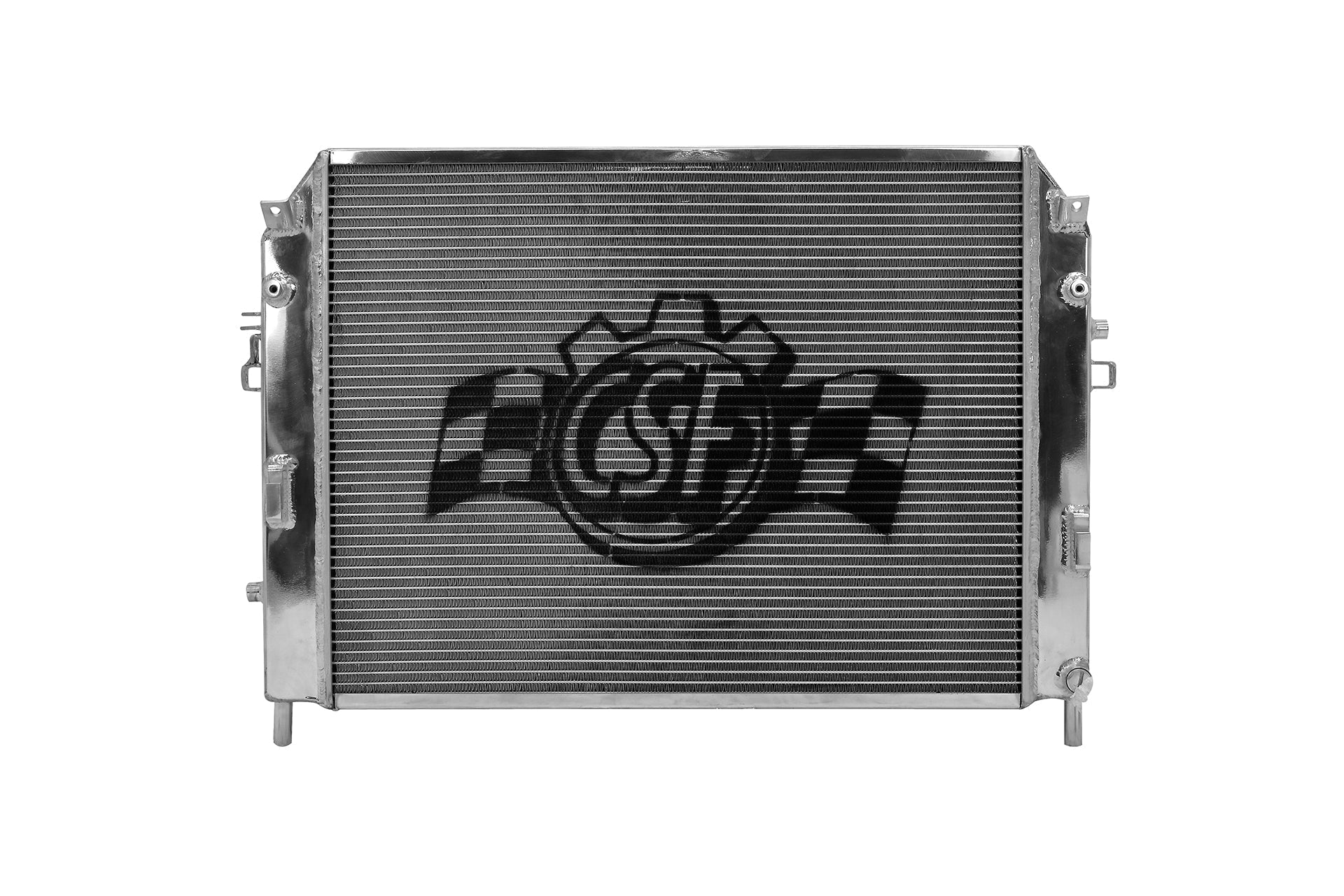

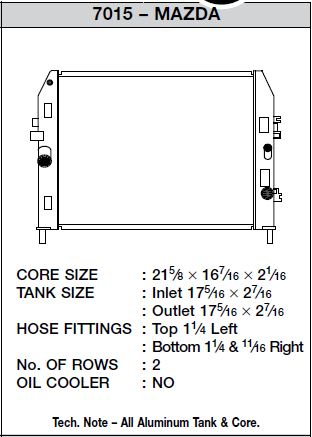

CSF 06-14 Mazda NC Miata High-Performance All-Aluminum Radiator

With over five decades of industry expertise, CSF stands as a leader in radiator manufacturing, delivering products that exemplify quality, durability, and superior cooling performance. The CSF 06-14 Mazda NC Miata High-Performance All-Aluminum Radiator is meticulously engineered to ensure optimal engine temperature regulation, whether on daily roads or demanding track conditions. This radiator is an essential upgrade for high horsepower builds and motorsport applications, where enhanced cooling efficiency is critical to maintaining engine reliability and performance.

At the core of this radiator lies a 2-Row 42mm core utilizing CSF’s proprietary B-Tube Technology. Unlike conventional oval-shaped "O" tubes, the B-Tube design features a unique "B" shape that is precision-formed and seam-brazed to maximize structural integrity while allowing the use of thinner, lighter aluminum. This innovative approach increases the heat transfer surface area by approximately 15% compared to standard tubes, effectively delivering the cooling capacity of two smaller tubes within the same spatial constraints. The dual liquid laminar flow enabled by the B-Tubes enhances coolant distribution, promoting more efficient heat dissipation and reducing the risk of hot spots within the core.

Complementing the advanced core design, the radiator incorporates ultra-efficient multi-louvered fins with a 6.5mm fin height. These fins are carefully aligned and engineered to maximize airflow through the radiator, optimizing heat exchange. Each fin specification is meticulously calculated and validated through rigorous wind-tunnel testing to ensure maximum heat rejection efficiency under real-world conditions. This attention to detail guarantees that the radiator performs reliably even under strenuous operating environments.

Installation is straightforward with the CSF NC Miata radiator’s true "Drop-in fit" design, requiring no modifications. All original equipment (OE) style brackets are CNC machined and welded to ensure exceptional durability and precise fitment. The inlet and outlet connections are also CNC machined to match OE specifications, allowing seamless integration with OEM hoses or aftermarket alternatives. This compatibility simplifies installation and maintenance, providing a professional-grade upgrade without complications.

Features

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined "Quick-Connect" Inlet/Outlet Connections for Precise Fit and Reliability
• CNC Machined Brackets and Fittings Offering Superior Fit and Long-Term Durability
• All-Aluminum Race Style Drain Plug for Enhanced Durability and Ease of Maintenance
• Smooth Satin Finish Providing Corrosion Resistance and Aesthetic Appeal
• "Drop-in Fit" Design Requiring No Modifications; Compatible with All OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets, and Fan Shroud

Applications

OEM Part Numbers

• Mazda: LFG2 15 200E
• Mazda: LFG2-15-200E
• Mazda: LFG215200E

Warranty

Cooling Systems and Flexibles, Inc. (CSF) guarantees the performance and quality of its High-Performance Cooling Systems under normal use and service to the original purchaser of the vehicle in which the product was initially installed. This warranty reflects CSF’s commitment to reliability and customer satisfaction. For comprehensive warranty details, please visit our Warranty Page.

SKU# 7015 Warranty Term: 2 years

The CSF 06-14 Mazda NC Miata High-Performance All-Aluminum Radiator represents a pinnacle of engineering excellence, combining innovative design, precision manufacturing, and rigorous testing to deliver a product that meets the highest standards of quality and performance. Its advanced cooling technology ensures your NC Miata operates within optimal temperature ranges, enhancing engine longevity and performance consistency. By choosing CSF, you invest in a radiator that is not only built to perform but also engineered to last, providing peace of mind for both everyday driving and competitive motorsport environments.
