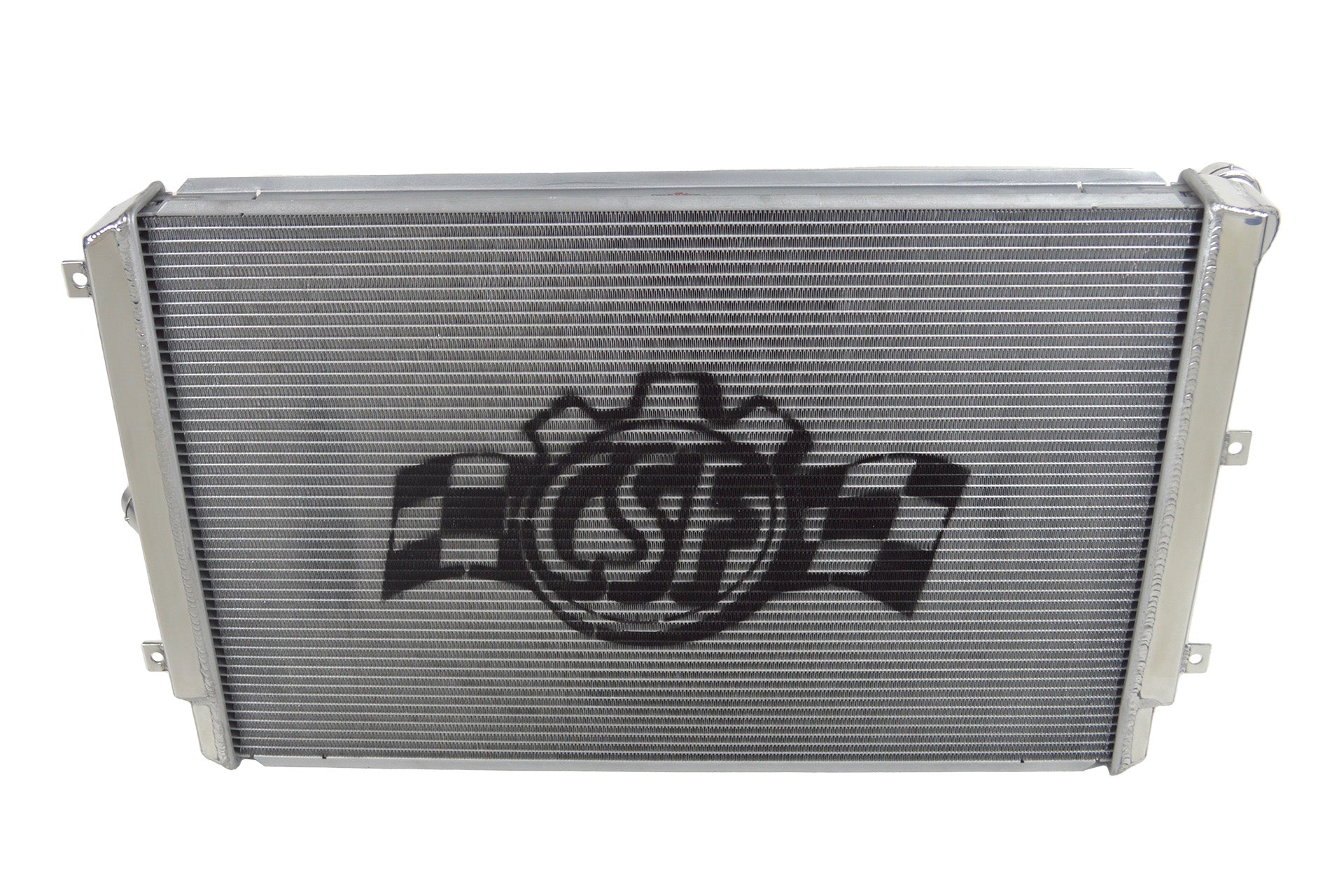

CSF 06-09 VW Golf / GTI / 99-06 Jetta / GLI High-Performance All-Aluminum Radiator

With over five decades of specialized expertise in radiator manufacturing, CSF stands as a benchmark in automotive cooling solutions. The CSF 06-09 VW Golf / GTI / 99-06 Jetta / GLI High-Performance All-Aluminum Radiator epitomizes this legacy, offering a meticulously engineered component designed to maintain optimal engine temperatures under demanding conditions. Whether for street use or competitive motorsports, this radiator delivers the enhanced cooling capacity essential for high horsepower applications and rigorous racing environments.

At the core of this radiator’s superior performance is CSF’s proprietary B-Tube Technology, a significant advancement over conventional oval “O” shaped tubes. The innovative “B” shaped tubes are precision-formed and seam-brazed, resulting in a structure that is not only stronger but also allows the use of thinner, lighter aluminum. This design increases the heat transfer surface area by approximately 15% compared to traditional tubes, effectively doubling the cooling efficiency within the same spatial constraints. The dual liquid laminar flow enabled by the B-Tubes ensures more uniform coolant distribution, thereby enhancing thermal dissipation and engine protection.

Complementing the B-Tube design are ultra-efficient multi-louvered fins, engineered with a 6.5mm fin height and precisely aligned to maximize airflow through the radiator core. Each fin configuration is rigorously tested in CSF’s wind-tunnel laboratory to achieve optimal heat rejection performance. This meticulous attention to detail ensures that the radiator performs reliably across diverse operating conditions, from daily driving to high-stress track scenarios.

The CSF radiator for MK4 VW models is engineered as a true “drop-in fit” replacement, facilitating straightforward installation without the need for modifications. All brackets are CNC machined and welded to exacting standards, guaranteeing exceptional durability and a secure fit. The inlet and outlet connections are designed to mirror original equipment specifications, allowing seamless compatibility with OEM hoses and aftermarket components alike. This ensures that vehicle owners can maintain the integrity of their cooling system while benefiting from the enhanced performance of a CSF radiator.

Features

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology for Superior Cooling Efficiency
• Core Equipped with Ultra-Efficient Multi-Louvered Fins, 6.5mm Fin Height, Optimized for Maximum Surface Area Contact

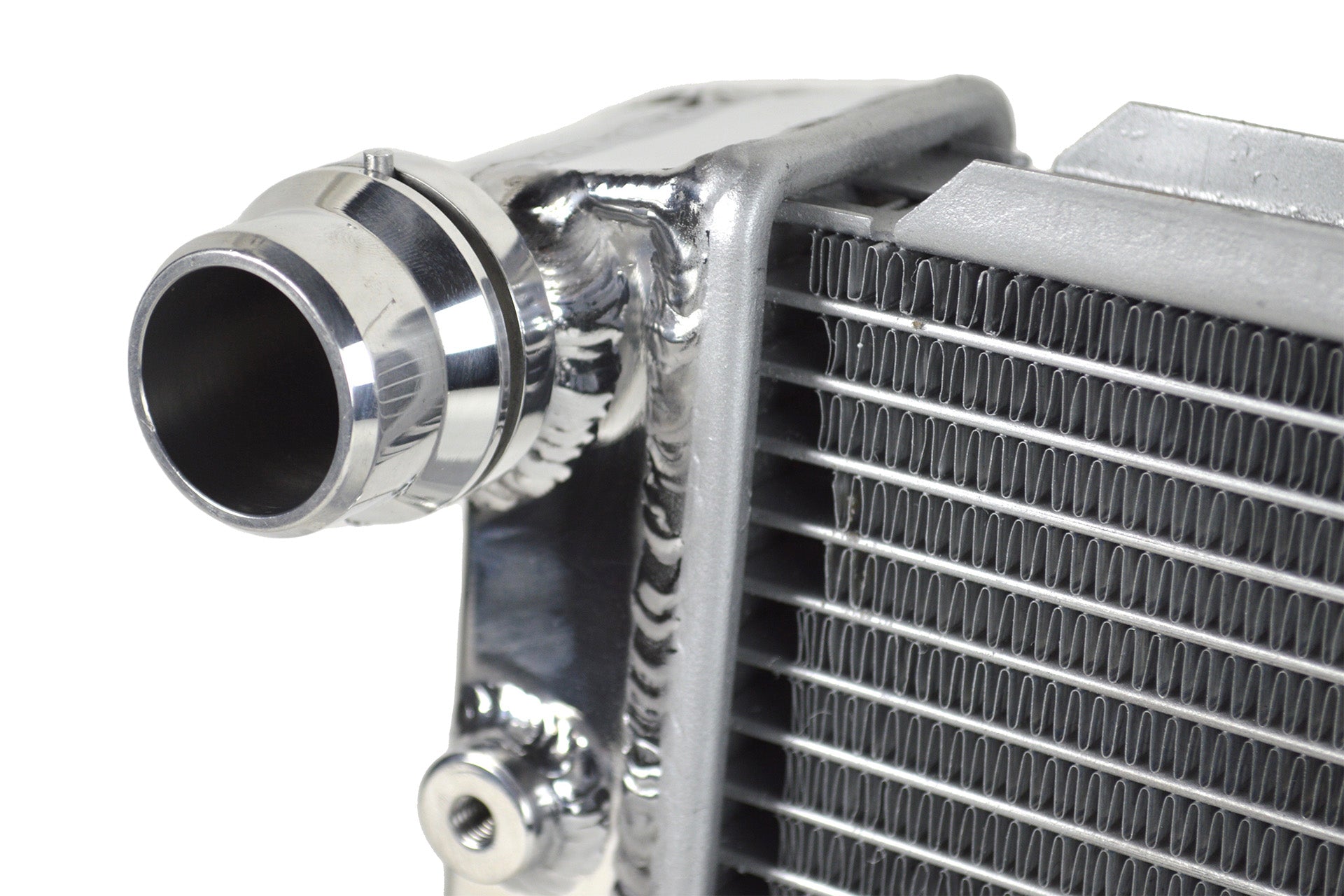

• CNC Machined "Quick-Connect" Inlet and Outlet Connections for Precision Fit and Easy Installation
• CNC Machined Brackets and Fittings Engineered for Durability and Exact OEM Compatibility
• All-Aluminum Race Style Drain Plug Enhancing Reliability and Maintenance
• Smooth Satin Finish Providing Corrosion Resistance and Aesthetic Appeal
• True "Drop-in Fit" Design Requiring No Modifications, Compatible with OEM Components Including Quick Connect Hoses, AC Condenser, Mounting Brackets, and Fan Shroud

Applications

OEM Part Numbers

• Volkswagen: 1K0 121 251 AB
• Volkswagen: 1K0-121-251-AB
• Volkswagen: 1K0121251AB
• Volkswagen: 1K0 121 251 BK
• Volkswagen: 1K0-121-251-BK
• Volkswagen: 1K0121251BK
• Volkswagen: 1K0 121 251 DM
• Volkswagen: 1K0-121-251-DM
• Volkswagen: 1K0121251DM
• Volkswagen: 1K0 121 251 EH
• Volkswagen: 1K0-121-251-EH
• Volkswagen: 1K0121251EH
• Volkswagen: 1K0 121 251 N
• Volkswagen: 1K0-121-251-N
• Volkswagen: 1K0121251N
