CANchecked MFD28 2.8" GEN 2 Air Vent Display Gauge For BMW F Series Vehicles

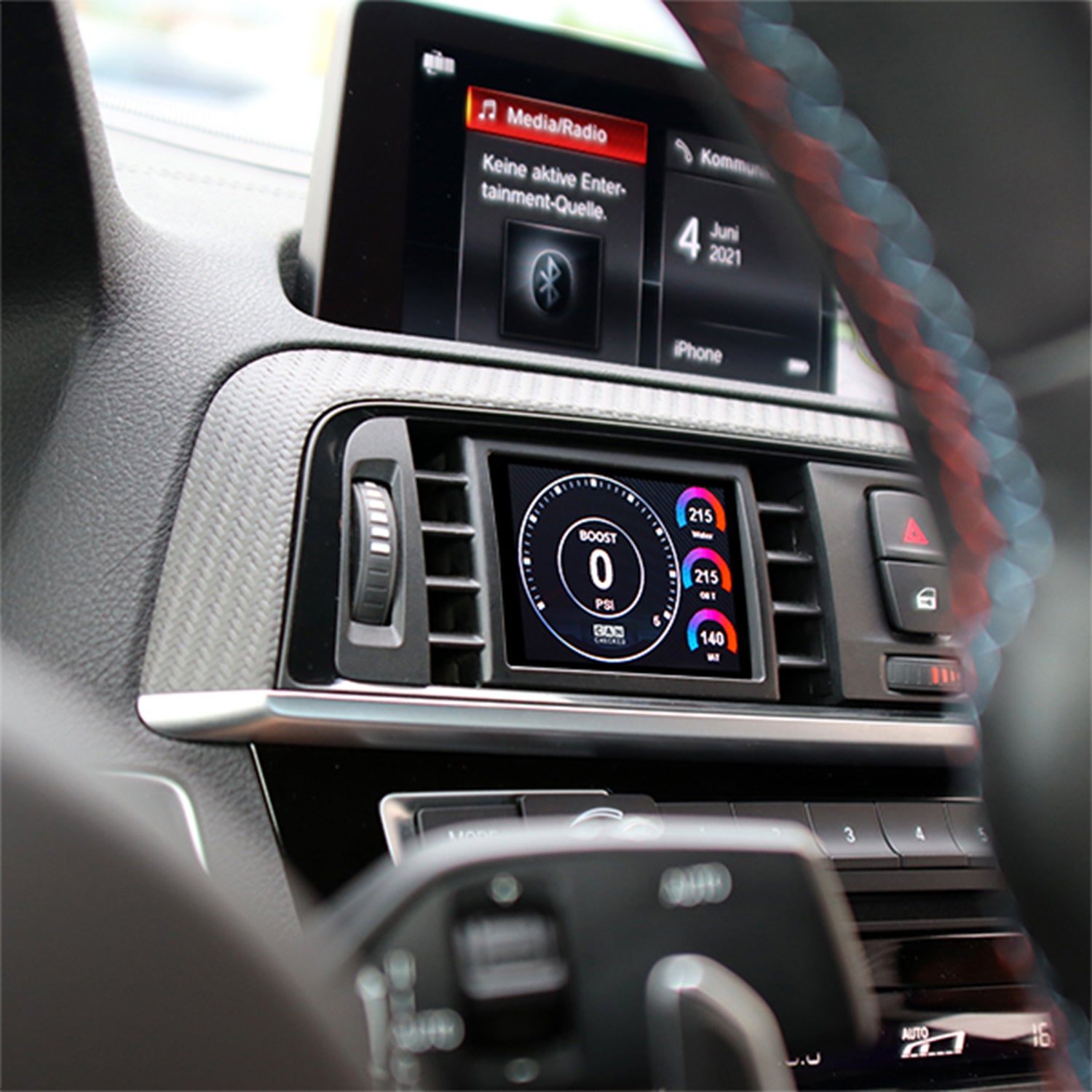

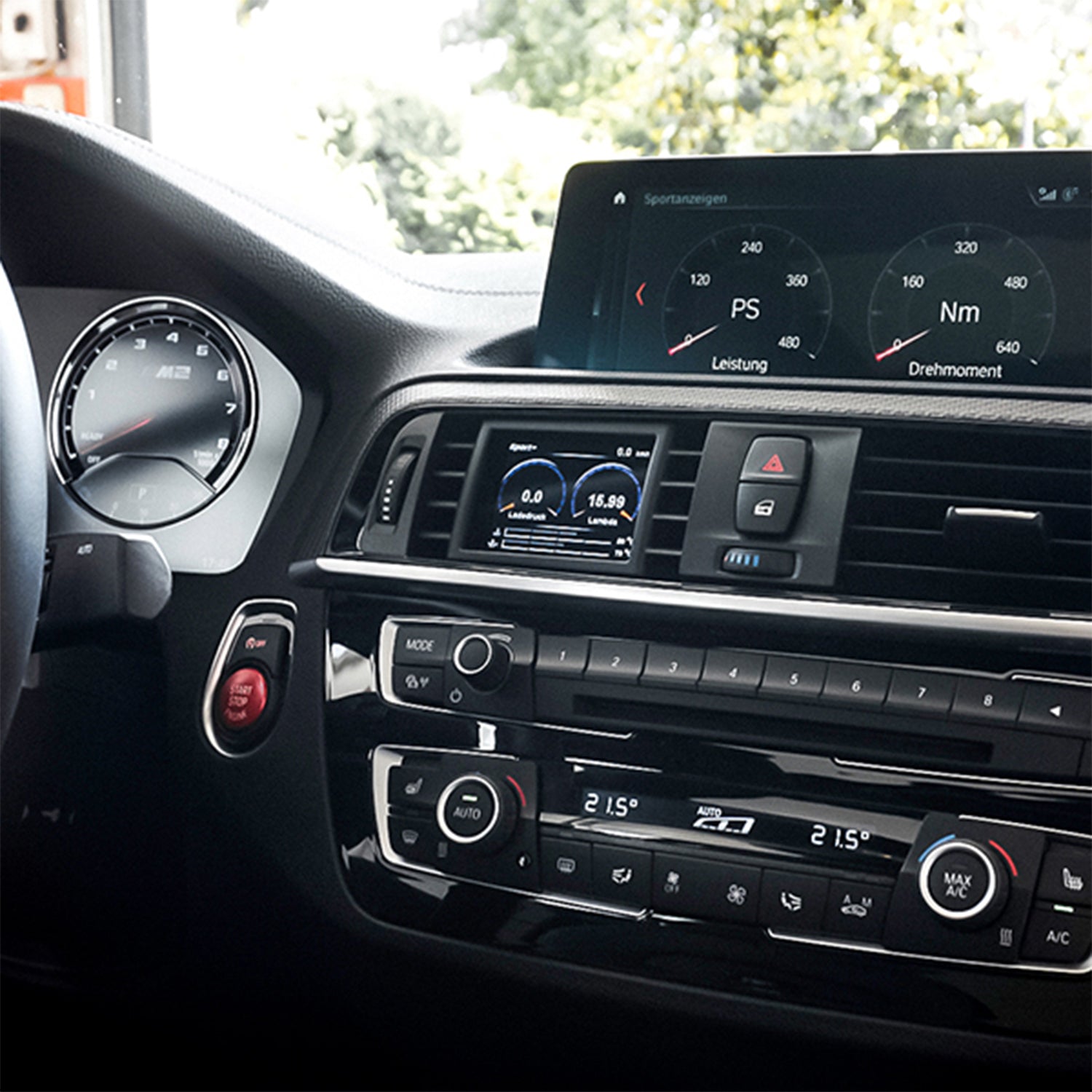

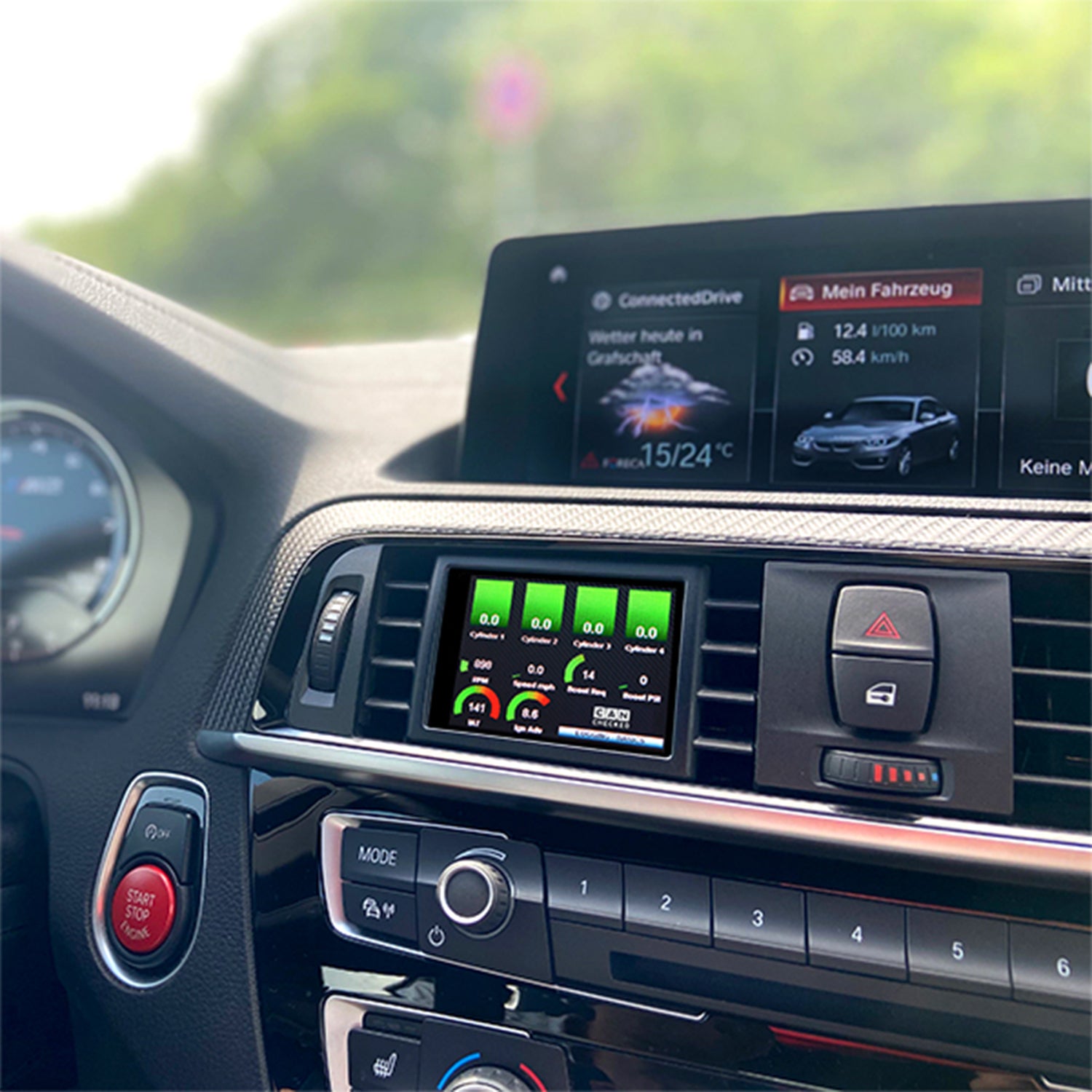

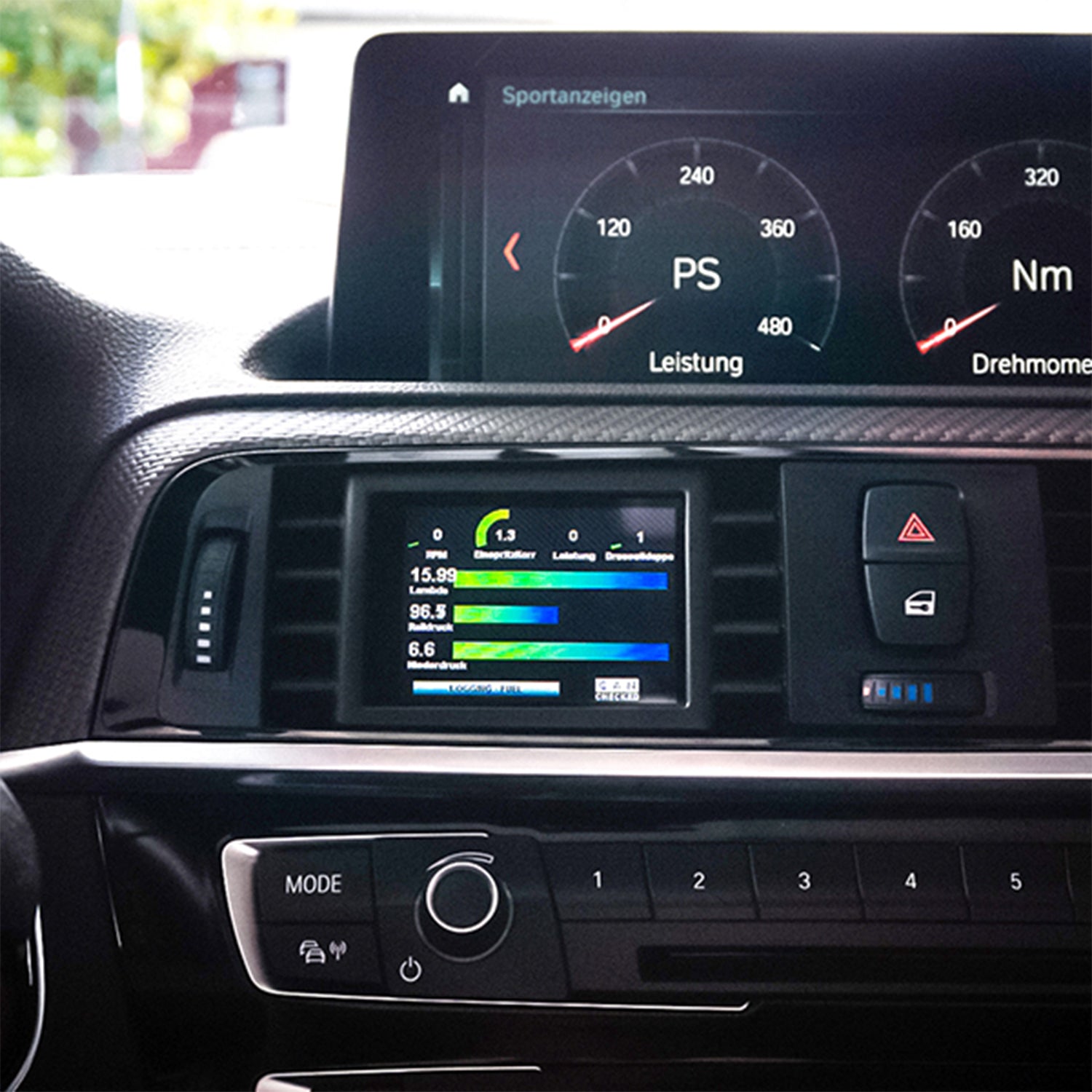

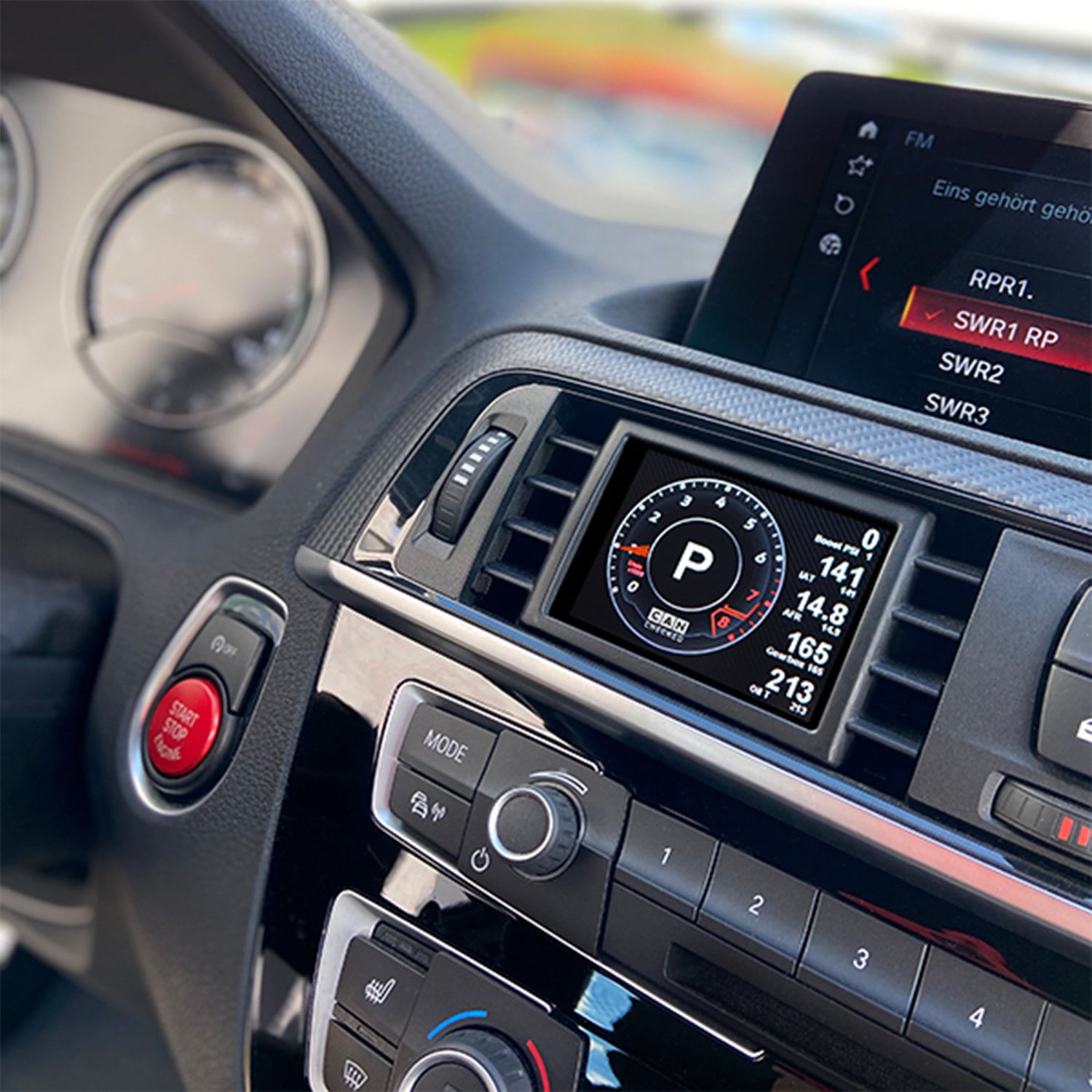

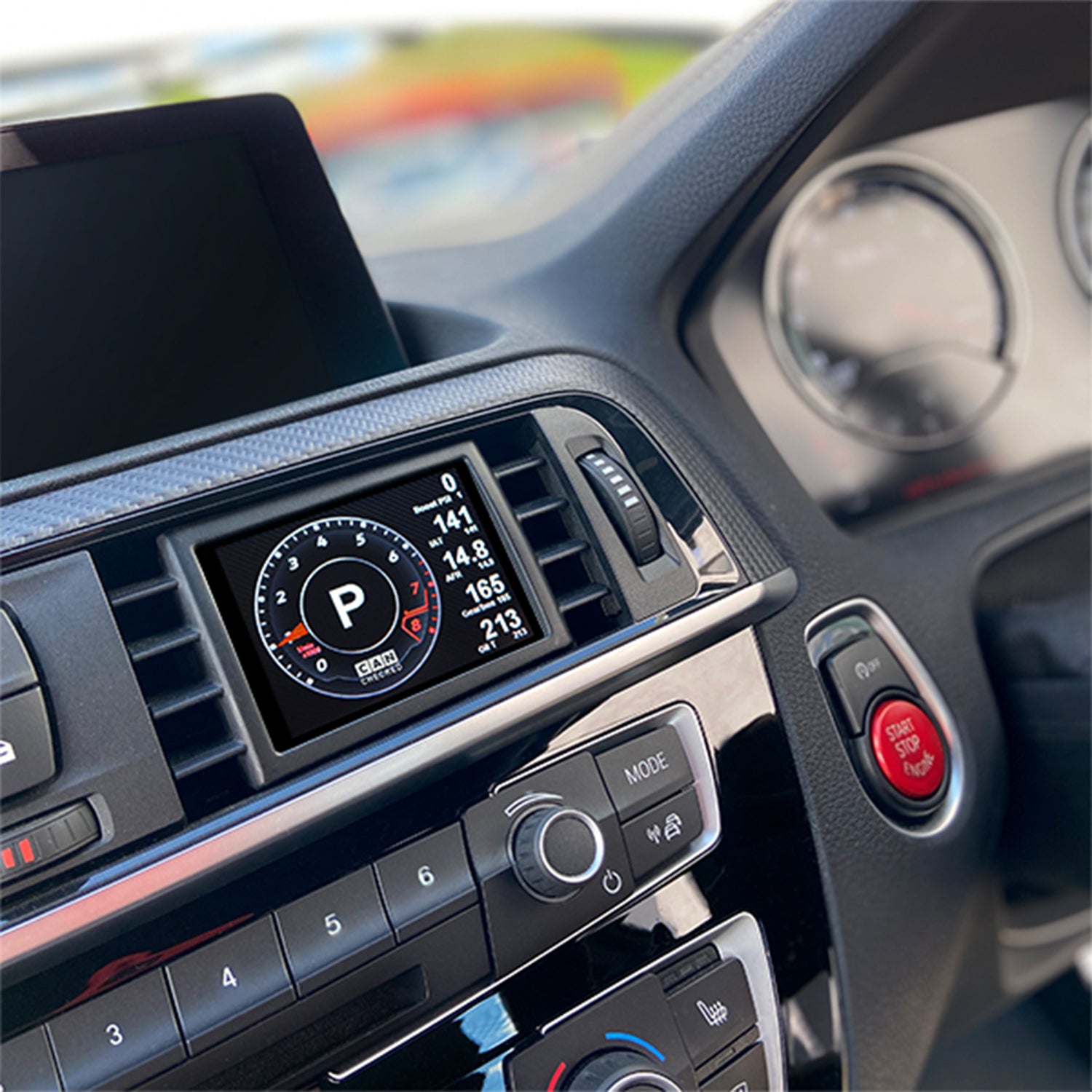

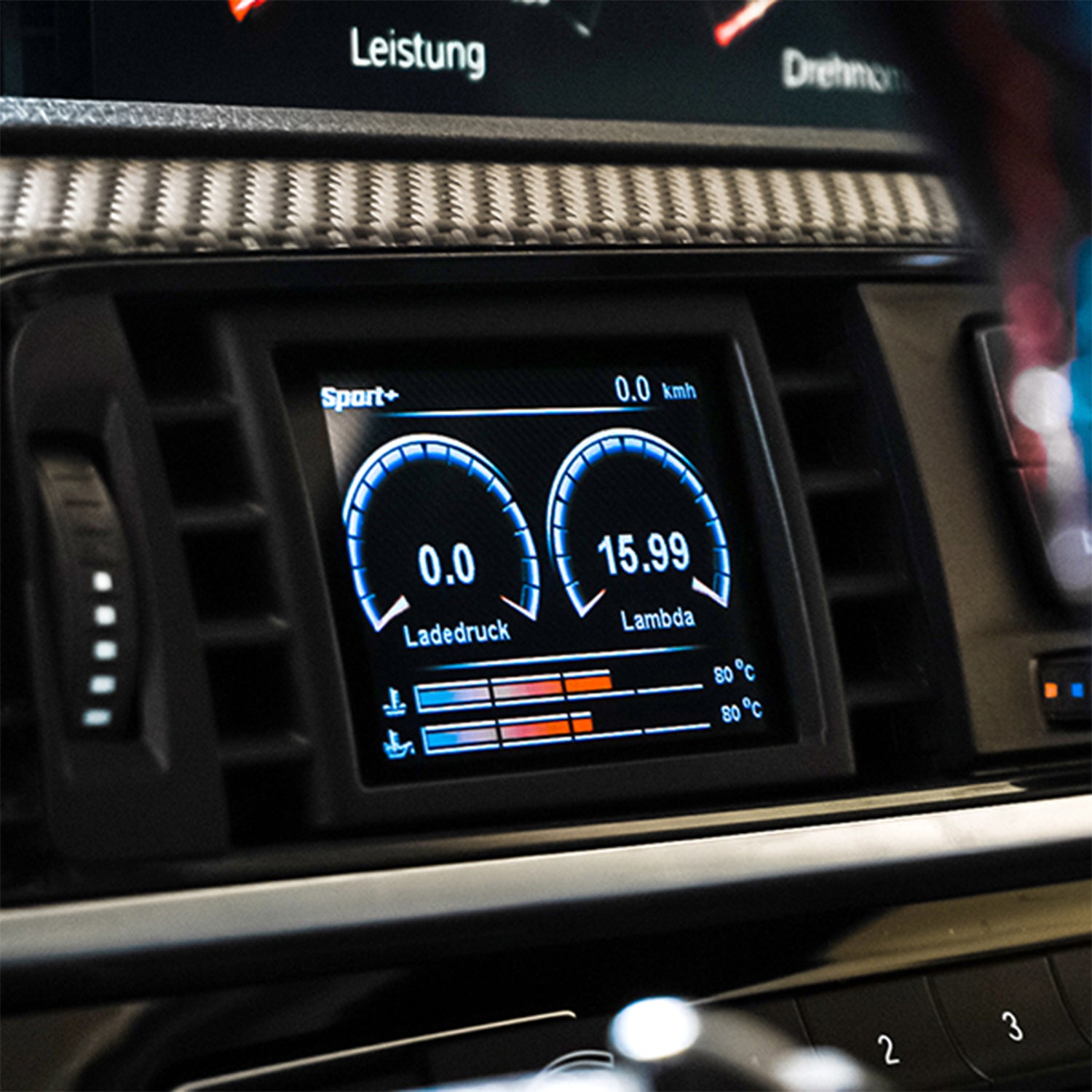

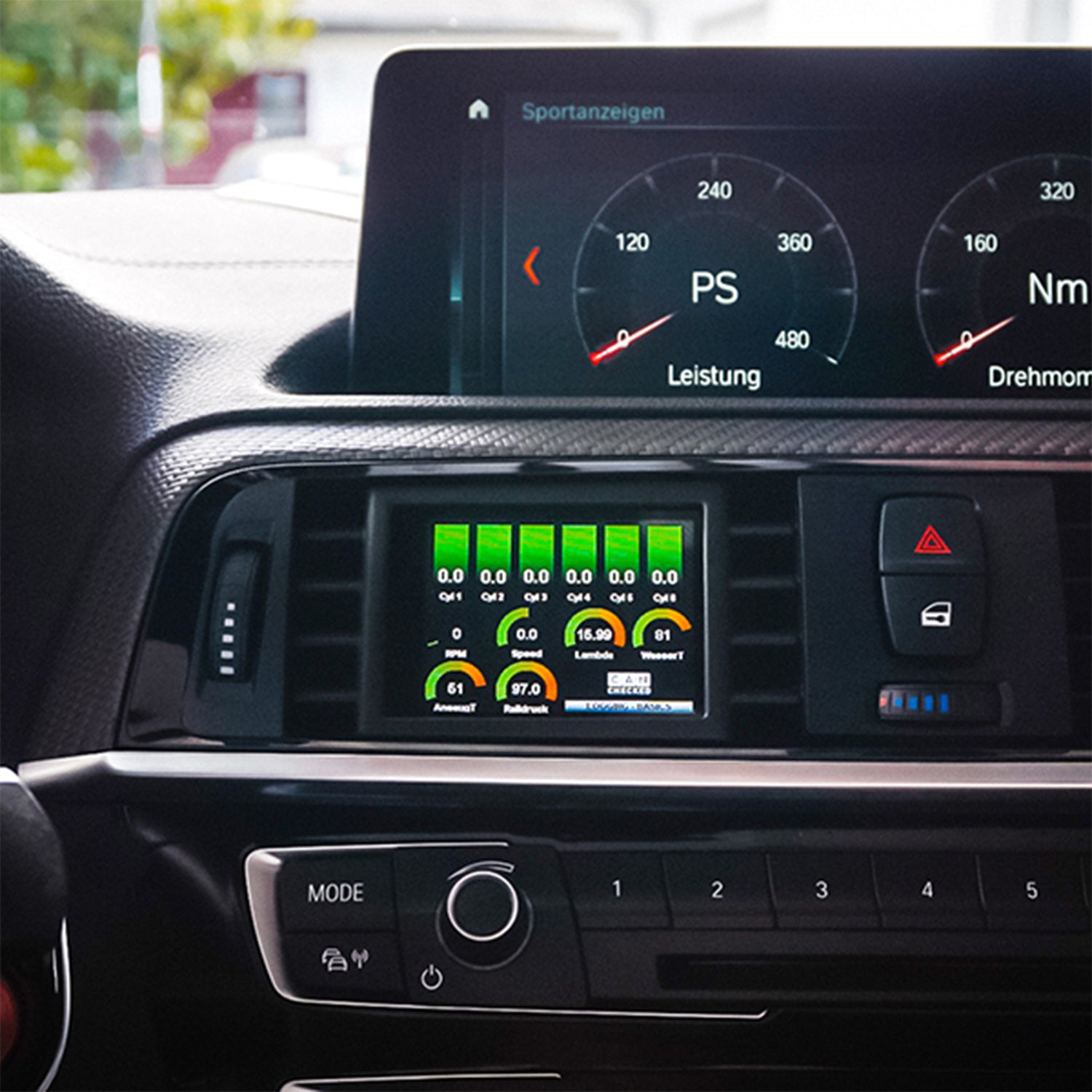

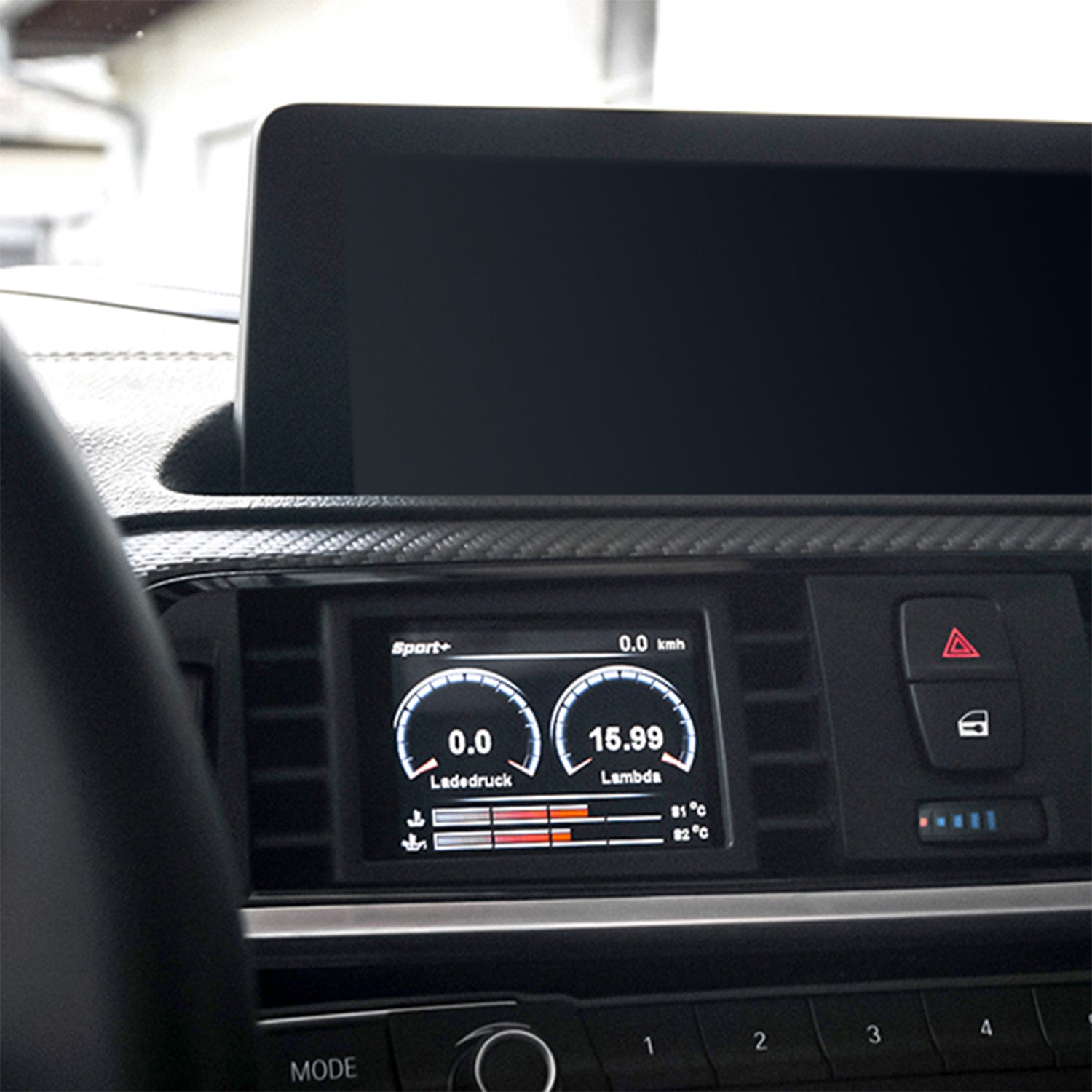

The new CANchecked GEN2 multifunction display provides you with in-depth vehicle information and fits seamlessly into your BMW F Series vehicle's air vent.

CANchecked displays, measuring devices, software and sensors enable the visual representation of important engine data such as oil temperature, boost pressure, lambda, exhaust gas temperature etc. This can be done either via CAN bus (depending on the ECU values) or via additional analogue sensors.

Compatible Vehicles

• BMW F20/F21 1 Series
• BMW F22/F23 2 Series
• BMW F30/F31/F34 3 Series
• BMW F32/F33/F36 4 Series
• BMW F80 M3
• BMW F82/F83 M4
• BMW F87 M2 (inc Competition)

The brand new second Generation (GEN 2) CANchecked displays offer:

• Improved graphics with better anti-aliasing
• Swipe instead of touch tip
• The widgets are more precisely adjustable
• New warning pop-up functions

What is CANchecked? CANchecked displays, gauges, software and sensors enable the visual display of important engine data, such as oil temperature, boost pressure, exhaust gas temperature etc… This can be done either via CAN Bus (depending on the ECU values) or via additional analog sensors.

Key Features:

• 2.8 inch capacitive touch display with vehicle specific bracket for the air vent
• Engine ECU values can be displayed (adapter cable in included)
• 8GB SD Card Memory
• Up to 10 freely configurable display pages
• Connection via the junction box in the footwell (see installation instructions)
• Two digital and four analog inputs for 0 – 5V sensors (for example oil pressure, fuel pressure, exhaust temperature (with adapter) and boost pressure)
• Optional shift light function
• Performance Meter (measures for example the time from 100-200 km/h)
• Individual minimum and maximum warning values
• Popup function when values exceed or fall below
• Screen brightness adjustable (dims automatically with vehicle displays)

Views:

• 10 pages to configure freely
• Up to 17 widgets per page

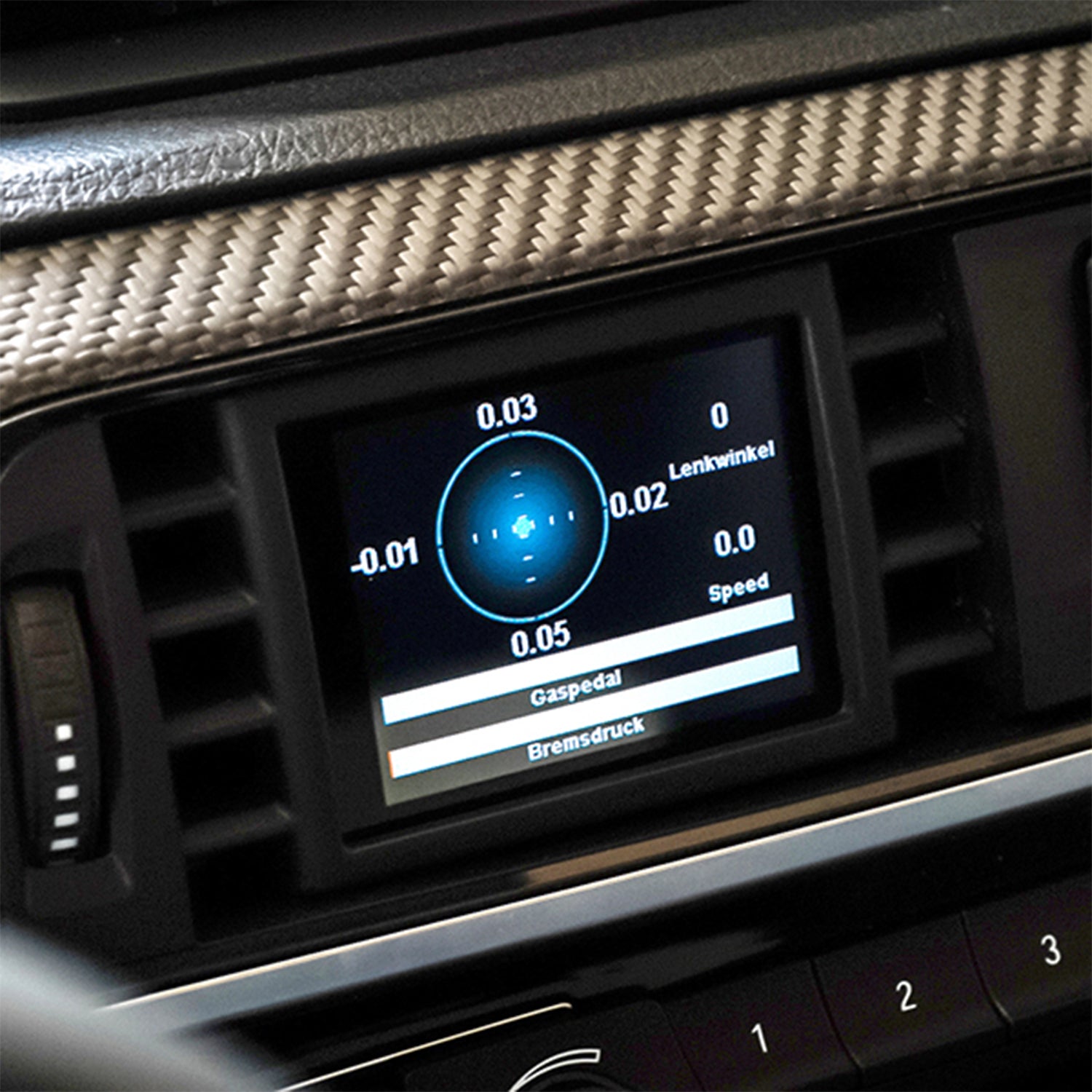

• 10 different widgets (digital number, bar, speed, single pointer, log, Tableswitch, picture (from SD card), number, circle display, Haldex) – Widgets via Drag’n’Drop movable and resizable
• Depending on the widgets color adjustment is possible

As an alternative, the online configurator DSS is available. Here the views can be configured via USB during operation.

Performance Monitor

• High-speed CAN integration gives you access to up to 128 vehicle sensors that you can view in real time. The 2.8″ touchscreen lets you swap sensors on the fly and set up custom ranges and alerts with DSS software.

Diagnostics

• Swipe down from any page to instantly diagnose the ECU fault memory. CANchecked can read, diagnose and clear the faults for the engine in plain text.

Data Logging

• Easy access to log on demand and save to the internal SD card.

Plug & Play Installation

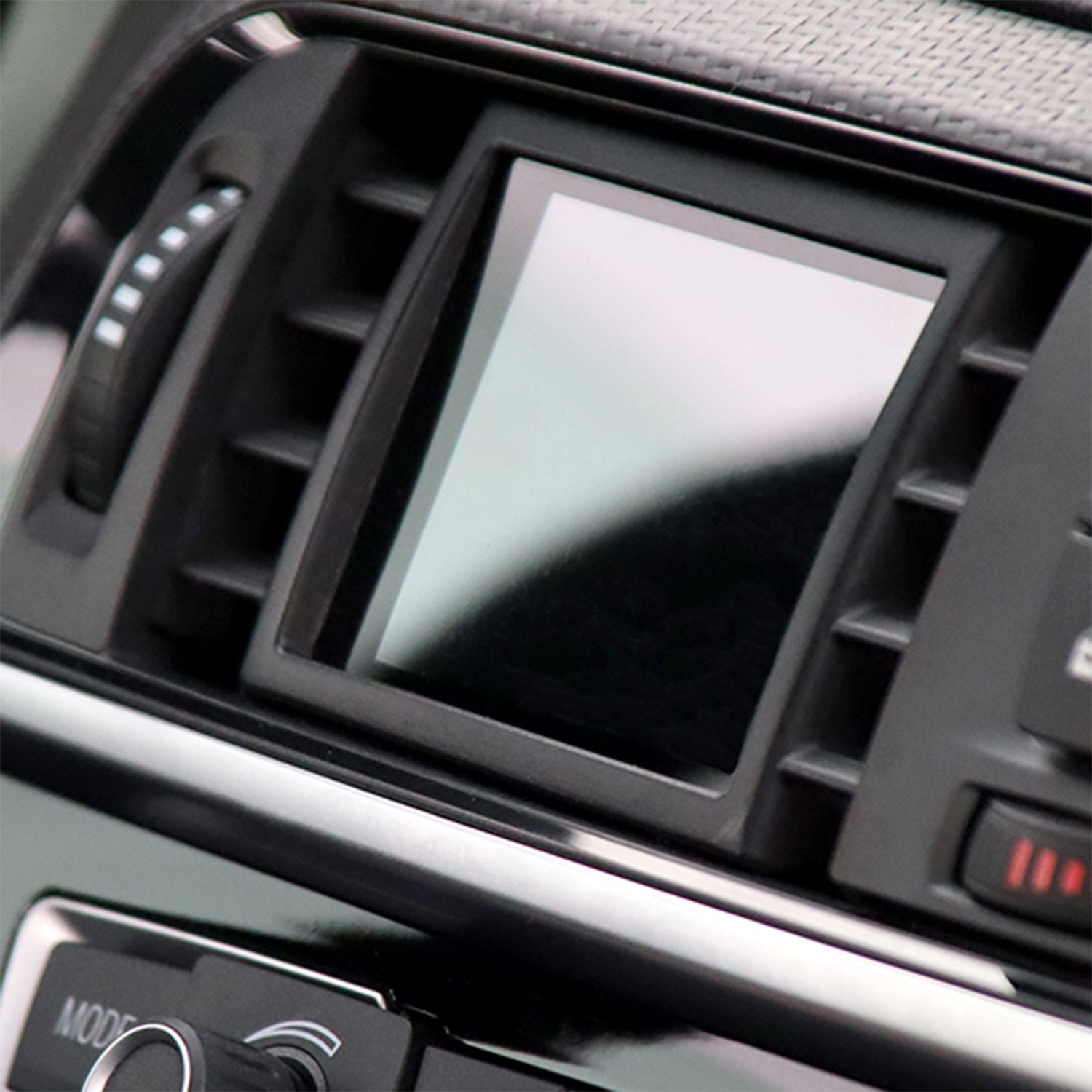

• CANchecked is precision designed and integrates perfectly with your vehicle’s interior and retains the functionality of your car’s vent.

Expandable Functionality

• 4 analog and 2 digital inputs allow monitoring of sensors and devices from other manufacturers. Future licenses under development will allow integration of Haldex all-wheel drive controls, water-methanol injection systems and ethanol fuel systems.

Customisable Screens

• CANchecked comes with six pre-installed dashboards. A total of ten display pages can be customized using the included software and library of widgets.

Your Data, The Way You Want It!

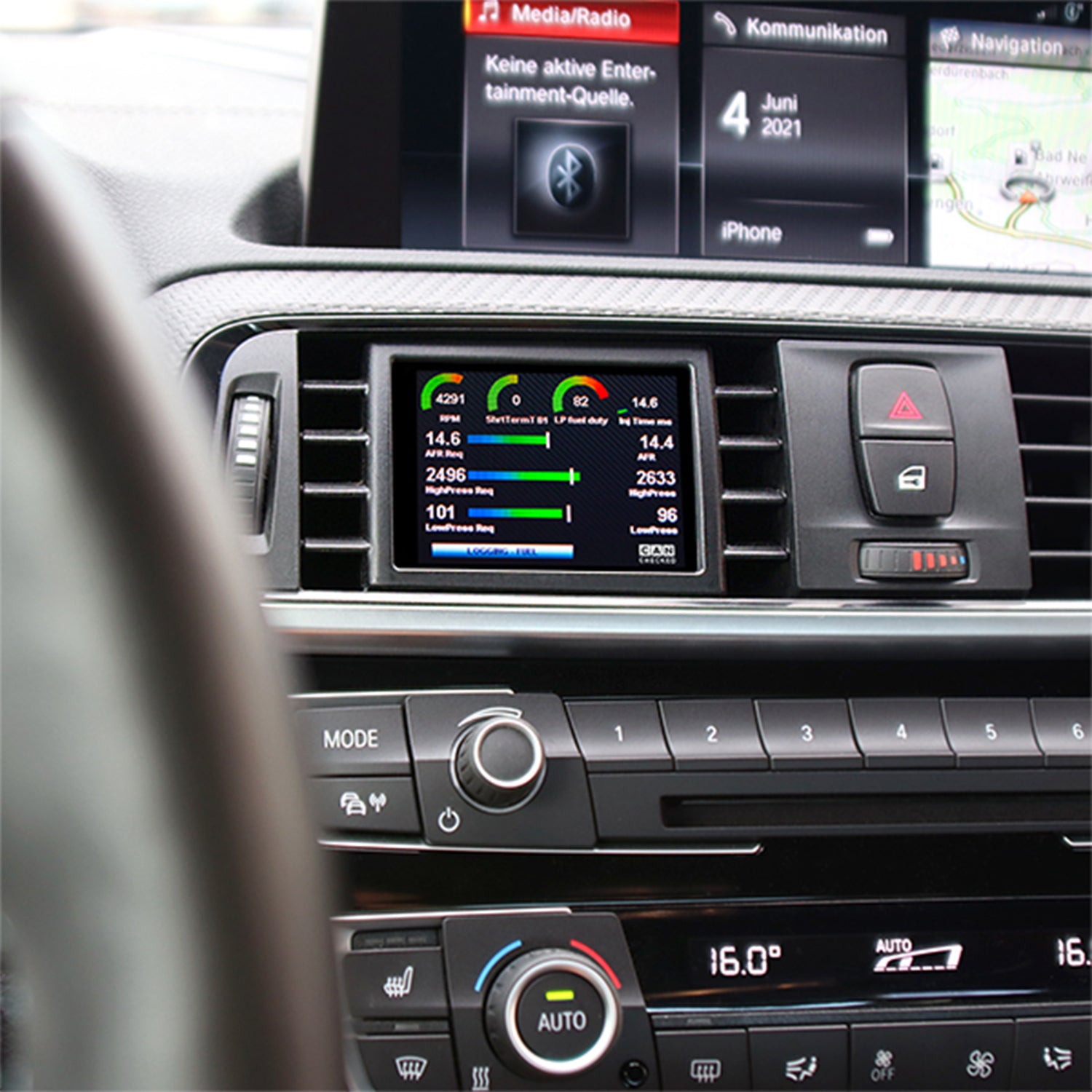

• CANchecked can display up to ten pages and has access to up to 128 sensors on your vehicle. Use the touchscreen to navigate between pages and select which sensor you want to view. Need more customization options? You can personalize your views by customizing the graphics, sensors, and widgets using the included DSS software. We’ve preloaded some examples onto your CANchecked display to help you get started.

CANchecked optional accessories:

• A wide range of sensors, like oil- and water temperature, boost pressure, oil- and fuel pressure, etc…
• Other vehicle-specific integrations

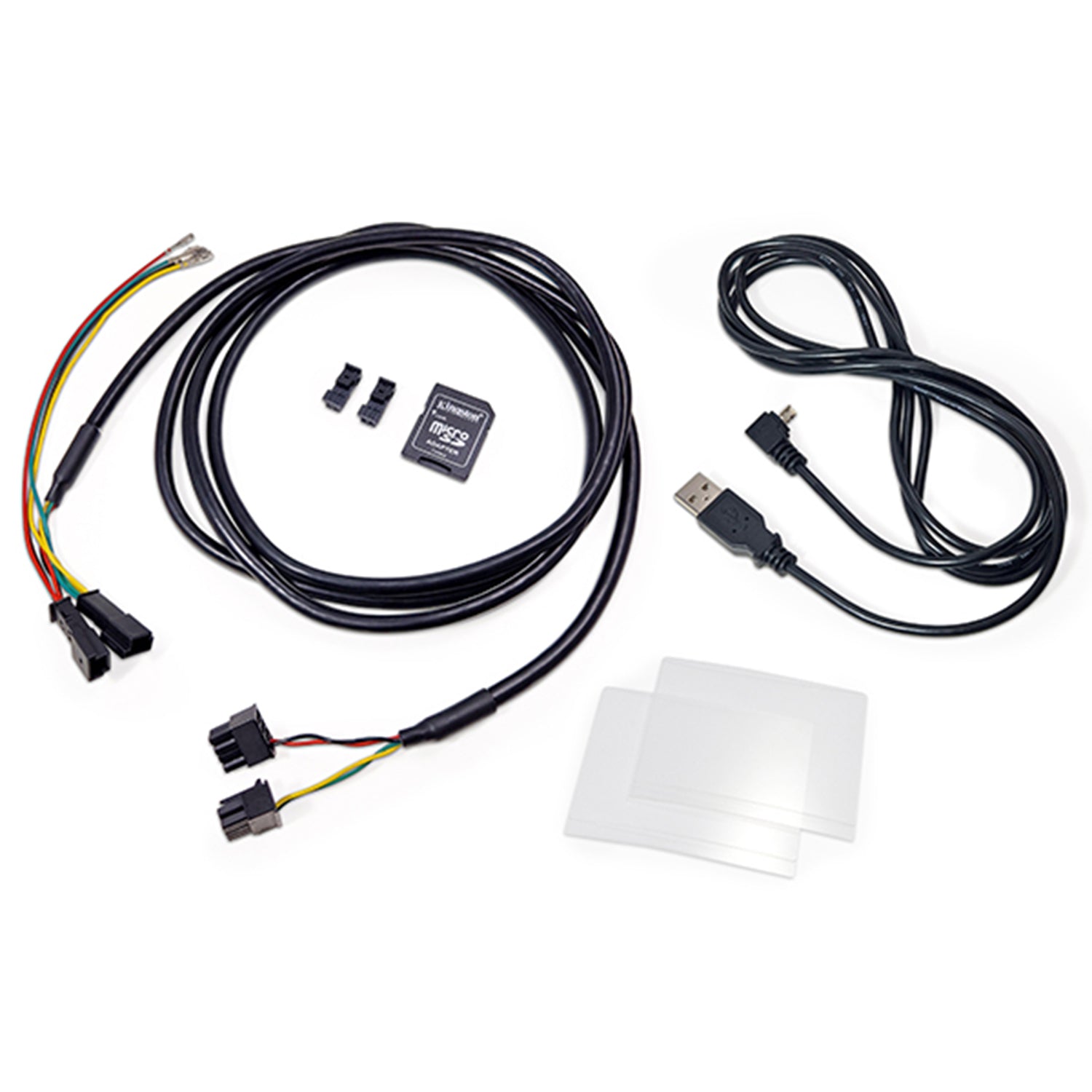

What’s in the box?

• CANchecked 2.8-inch display
• Vehicle specific bracket for vent pod
• Vehicle specific connection cablebr>- Fixing screws
• 8 GB micro SD card
• Micro SD Card Adpater
• Quickstart Guide

If available, installation manuals can be found on TurboZentrum or CANchecked website

The display can be custom configured via the website. The dbc-converter for the Can Bus protocol and the online configurator for the widgets, whereby this can also be set via the touch display.
The temperature range of the display is -10°C to 70°C.
12V are required as a voltage supply, 5V or 24V are optional possible.
