BMW S54 Stroker Kit 3.5L

Build your BMW S54B32 / S54 engines with the BMW S54 Stroker Kit 3.5L, to handle serious power and sustained high-RPM abuse. Engineered by 5150 AutoSport, this stroker kit is built to the standards demanded by high-performance and motorsport BMW builds.

Key Features

• Designed for BMW S54B32 / S54 engines
• Forged from high-strength, lightweight materials
• Engineered for maximum power and durability
• Precision-machined to exacting tolerances
• Suitable for naturally aspirated and forced-induction builds
• Rigorously tested motorsport-grade quality
• Available in multiple connecting rod selection options to suit your build
• Supplied by 5150 AutoSport, trusted by BMW enthusiasts worldwide

Product Details

5150 AutoSport 3.4L / 3.5L BMW S54 Stroker Kit – Maximize Displacement, Torque & RPM

BMW S54 Stroker Kit | 3.4L 3.5L Stroker Kit by 5150 AutoSport

Upgrade your BMW S54 engine with our 5150 AutoSport 3.4L / 3.5L BMW S54 Stroker Kit, engineered for more displacement, higher torque, and extreme high-RPM performance. Designed for track, drag, and endurance racing, this kit delivers unmatched reliability and power in high-horsepower applications.

At the heart of this BMW S54 Stroker Kit is the 5150 AutoSport 4340 Billet Steel Crankshaft, built for strength under extreme loads. Paired with CP-Carrillo Pro-Xtreme Forged Pistons and Pro-Xtreme Connecting Rods, this kit supports 9,600+ RPM capability when equipped with the right components. Whether pushing naturally aspirated power or forced induction, this setup has been track-proven and dyno-tested to deliver results.

5150 teams have applied this kit in Hill Climb, Road Racing, Endurance Racing, Rally, Time Attack, Drag Racing, Roll Racing, Drifting, and Street applications, all with powerful results.

Benefits of Stroking an Engine

- With higher displacement, your engine will produce greater power and torque, thanks to increased cylinder volume and improved air-fuel mixture combustion

- The longer stroke in the crankshaft increases the leverage on the connecting rods, resulting in increased torque output at lower RPMs

- Improved throttle response

- Increased horsepower

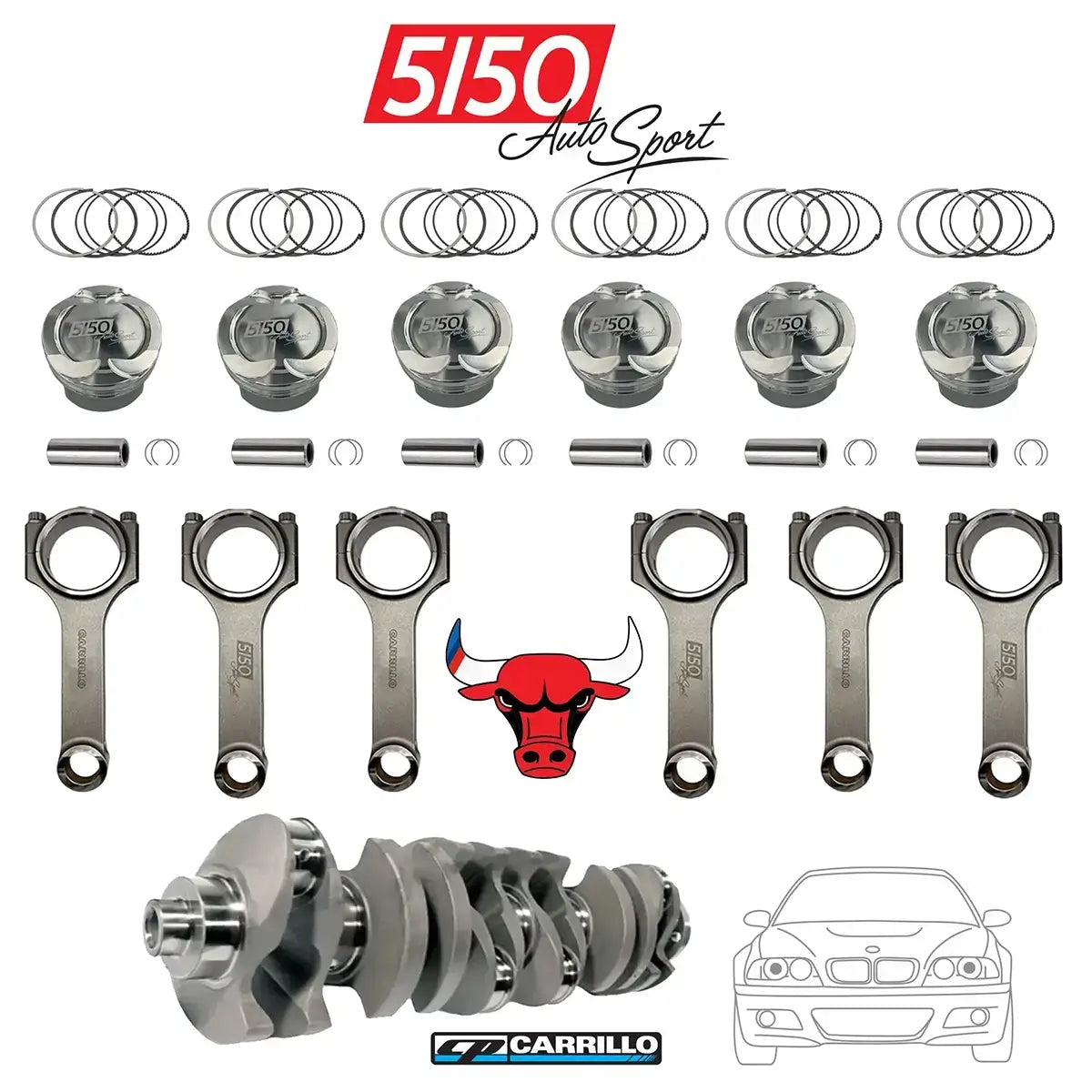

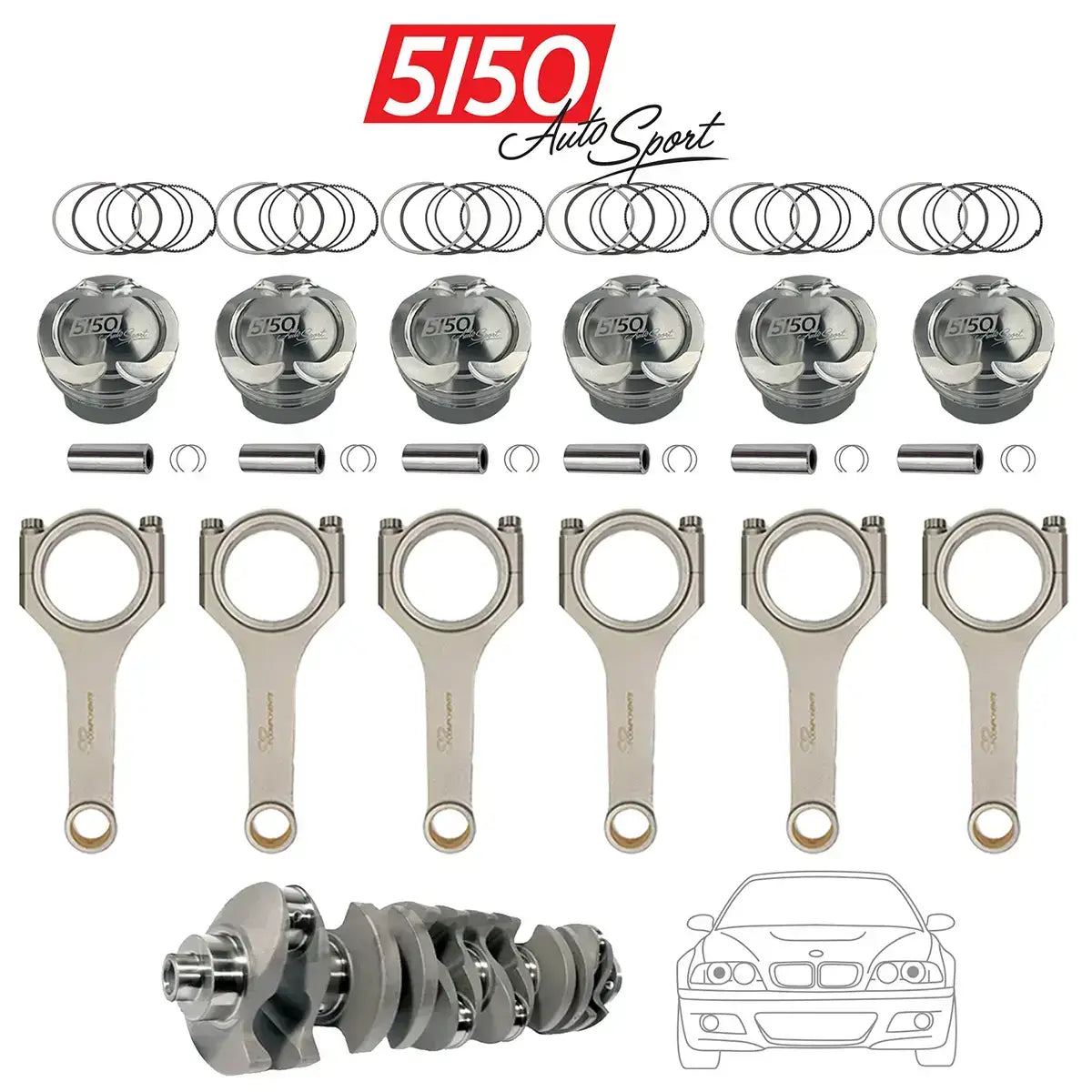

BMW S54 Stroker Kit Contents

- 5150 Autosport 4340 Billet Steel Crankshaft, 97mm Stroke

- Professionally turned, polished, and coated with anti-wear coating

- Fully balanced

- SP Components Connecting Rods (Rated for 1,000HP, 8500 RPM)

- Optional Upgrade to Carrillo Pro-Xtreme Connecting Rods (Rated for 2,000HP, 9500 RPM)

- CP-Carrillo Pro-Xtreme Forged Pistons

- CP-Carrillo Piston Wrist Pins

- CP-Carrillo Piston Rings

- CP-Carrillo Piston Wire Locks

Our BMW S54 Stroker Kit offers varying displacements, ranging from 3300 cc to 3500 cc, depending on the selected bore size:

84.5 mm bore size for 3270 cc displacement

85 mm bore size for 3303 cc displacement

85.5 mm bore size for 3342 cc displacement

86 mm bore size for 3381 cc displacement

86.5 mm bore size for 3420 cc displacement

87 mm bore size for 3460 cc displacement

87.5 mm bore size for 3500 cc displacement

Have more questions? Contact our engine build advisors to discuss your build.

Connecting Rod Selection Options

• SP Components
• CP-Carrillo

Compatibility

BMW S54 Models

• BMW E46 M3
• BMW Z3 M Roadster / Coupe
• BMW Z4 M Roadster / Coupe

Why Choose 5150 AutoSport?

• Purpose-built BMW performance engineering
• Components developed for high-power, real-world durability
• Trusted by serious BMW engine builders
• Specialist knowledge of forced-induction and high-RPM builds

Why Buy from R44 Performance?

R44 Performance supplies premium BMW performance and engine-building components trusted by enthusiasts worldwide.

• BMW specialists
• Genuine 5150 AutoSport products
• Fast UK & worldwide shipping
• Expert product support

Upgrade your BMW S54B32 / S54 build with the BMW S54 Stroker Kit 3.5L — available now from R44 Performance.
