BMW M52TU M54 Head Stud Thread Insert Kit

Strengthen the bottom end of your BMW M52TU / M54 engines with the BMW M52TU M54 Head Stud Thread Insert Kit, delivering far greater clamping force and sealing than the factory fasteners. Engineered by 5150 AutoSport, this head stud kit is built to the standards demanded by high-performance and motorsport BMW builds.

Key Features

• Designed for BMW M52TU / M54 engines
• Significantly increased clamping force over OEM fasteners
• Improved head gasket sealing and cylinder head clamping
• Ideal for stroker, supercharged and turbocharged builds
• Re-usable — superior to single-use OEM torque-to-yield bolts
• Manufactured from premium, specially heat-treated materials
• Available in multiple options options to suit your build
• Supplied by 5150 AutoSport, trusted by BMW enthusiasts worldwide

Product Details

The BMW M52TU M54 Head Stud Thread Insert Kit provides your machine shop everything needed to repair or upgrade the engine block threads on BMW M52TU and M54 engines. Designed for precision and durability, this kit allows you to restore damaged threads or prepare the block for oversized head studs for improved clamping strength.

Please note, this product does NOT include head studs.

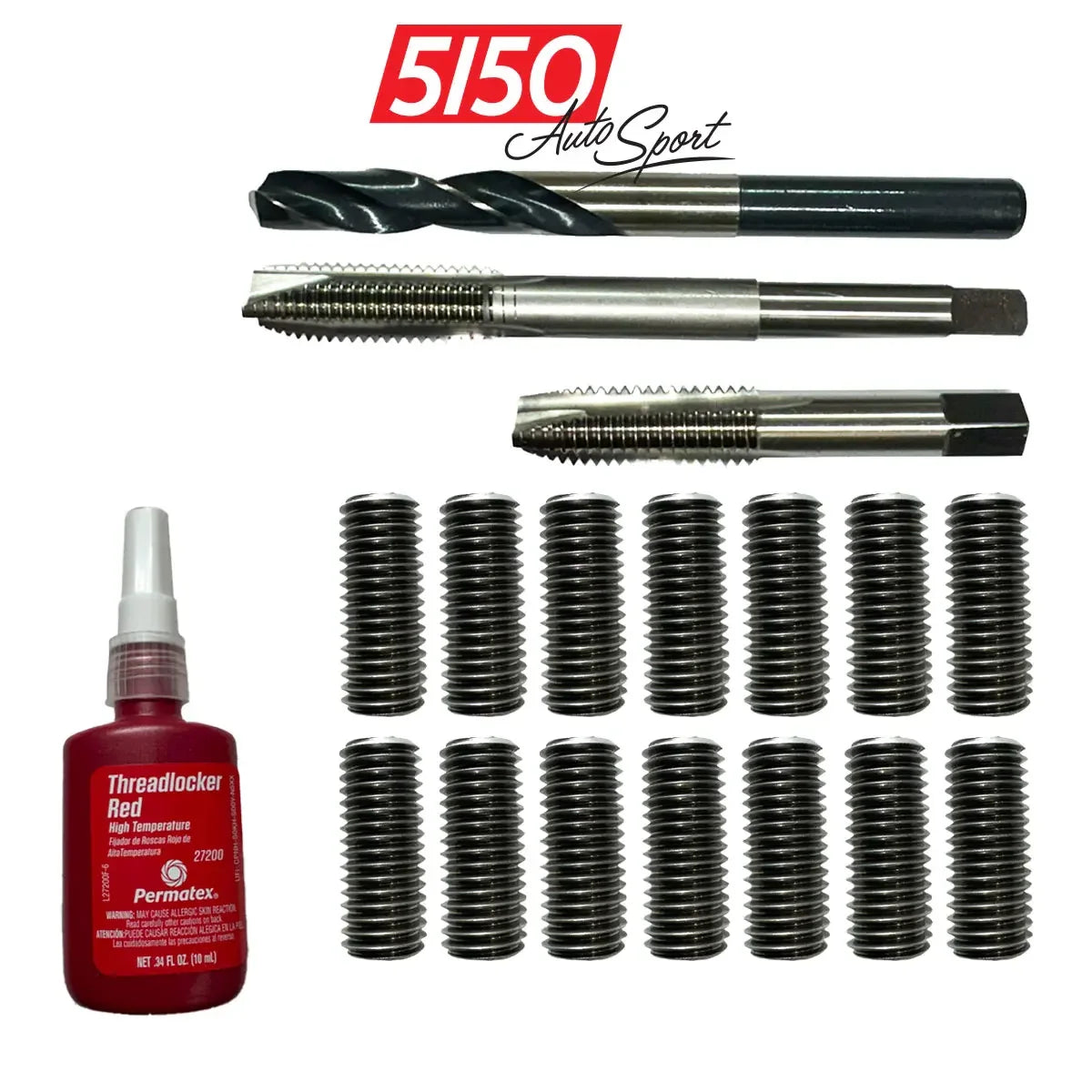

Each BMW M52TU M54 Head Stud Thread Insert Kit includes:

• (1) Specialized drill bit for proper thread preparation
• (1) High Speed Steel 3-Flute Tap
• (1) High Speed Steel Extended 3-Flute Tap

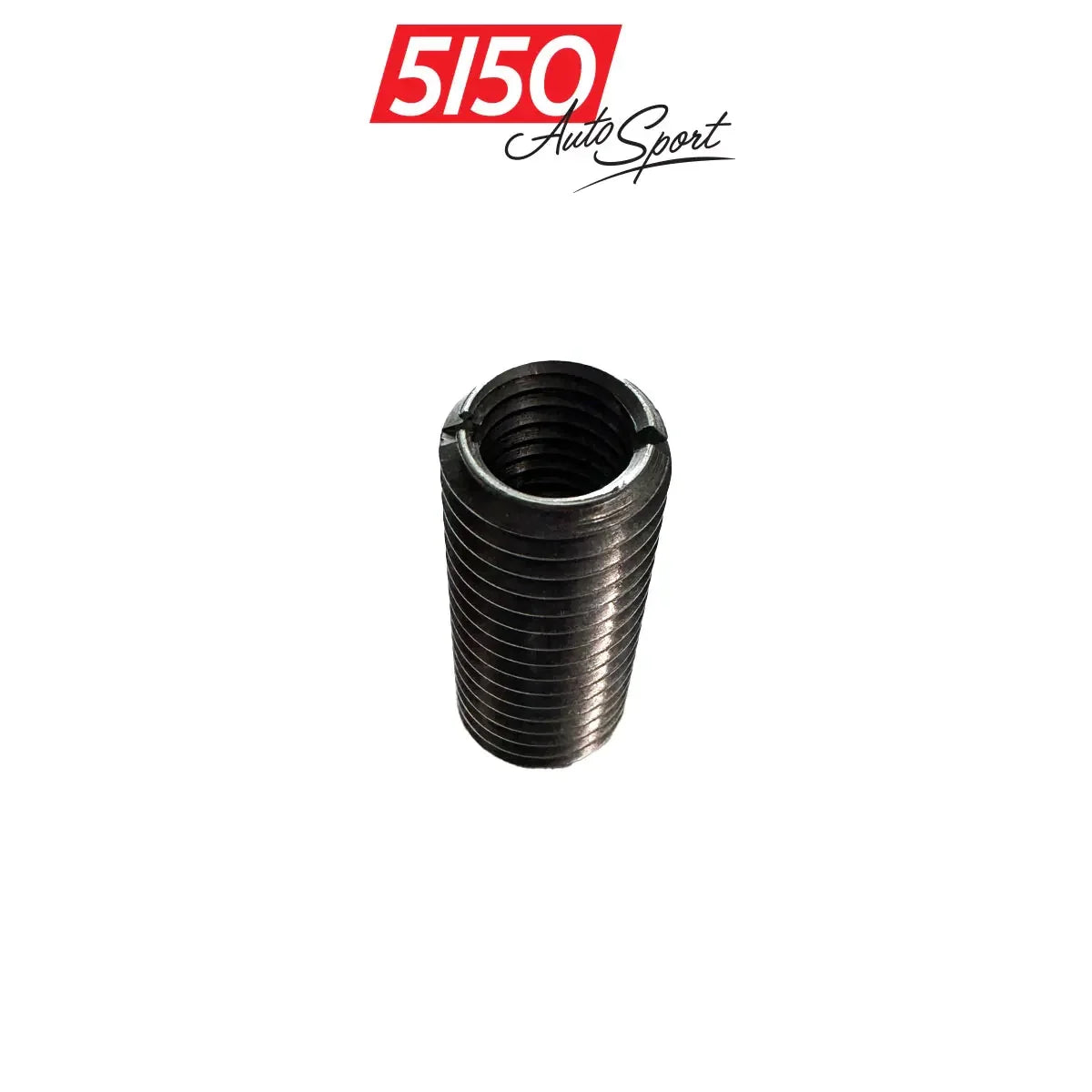

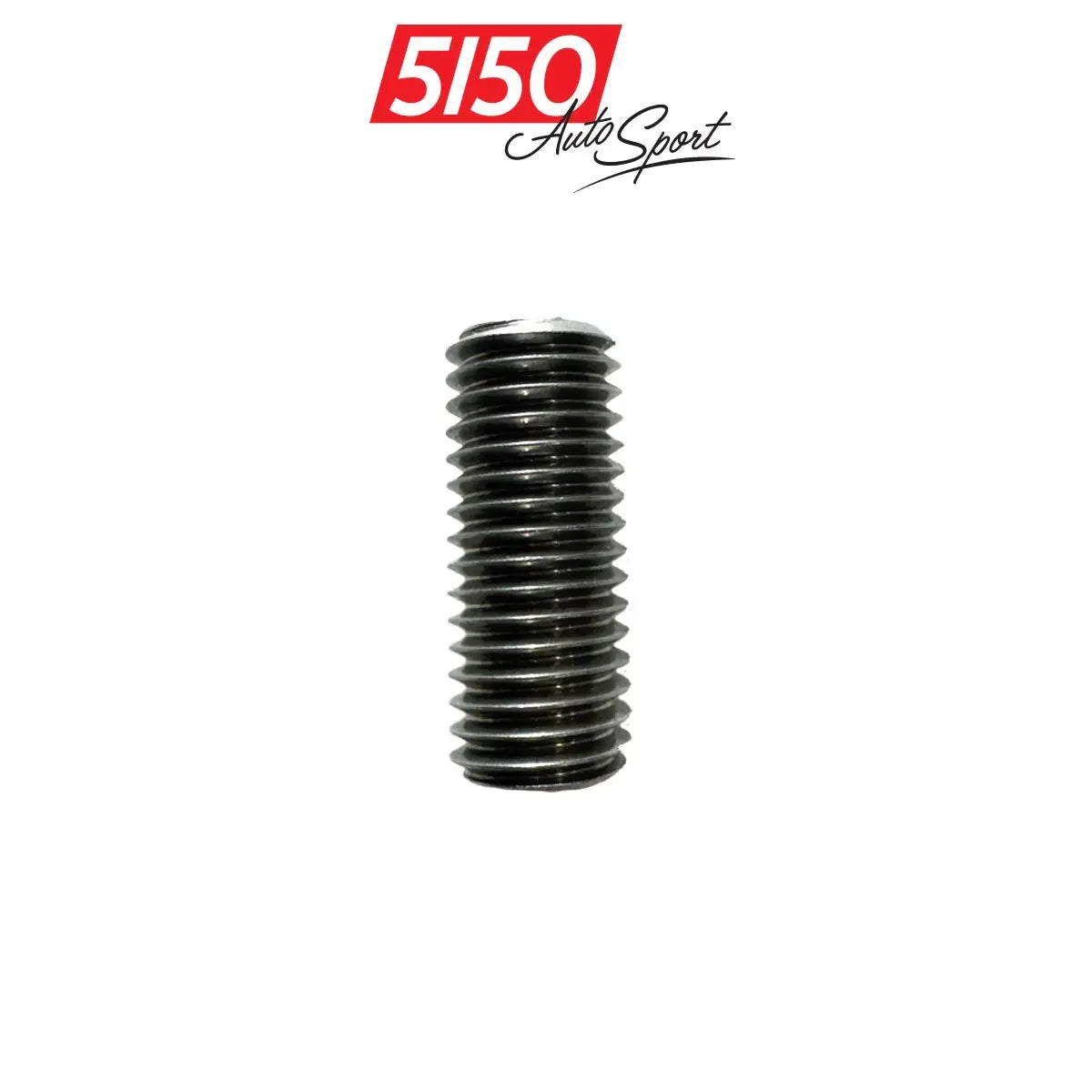

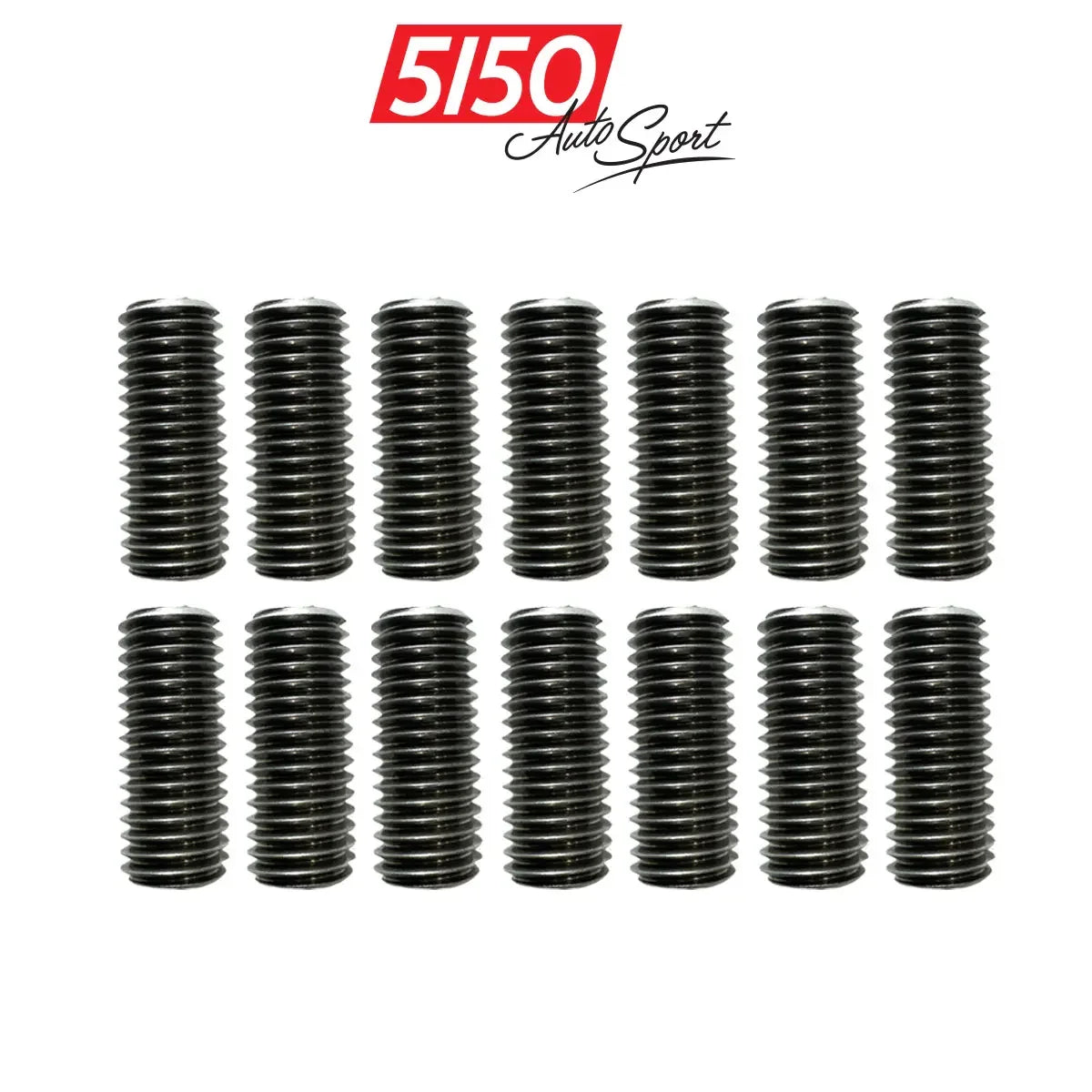

• (14) Precision stainless-steel thread inserts
• Red threadlocker

Available in 11mmor 12mm, this thread insert kit ensures a secure and permanent repair capable of withstanding extreme cylinder pressure and torque loads.

How these inserts work:

Our insert design supports the use of both factory head bolts and high-quality aftermarket ARP head studs. These fasteners use rolled threads, which are up to 20% stronger than cut threads, and are engineered to flex and return to shape as the engine heats and cools—maintaining consistent clamping pressure on the head gasket throughout every heat cycle.

Benefits of Installing Oversized Head Studs:

1. Repair Worn or Damaged Threads When an engine block’s head bolt holes become stripped or elongated from repeated torque cycles or overheating, a standard-size stud may no longer hold properly. By drilling and re-tapping the holes to a larger diameter and using oversized studs, you restore proper thread engagement and strength—often stronger than original.
2. Increase Clamping Force Oversized studs can have a larger shank diameter, which increases tensile strength and reduces stretch under high cylinder pressures. This is particularly beneficial for high-boost turbo where combustion pressures are extreme.
3. Reduce Head Gasket Failure Stronger or larger studs provide more uniform clamping across the cylinder head, which improves gasket sealing and minimizes the risk of head lift or gasket blowout.

Not all engine blocks are suitable for oversize head stud installation. Due to differences in casting thickness, core shift, and material distribution, some blocks may not have enough surrounding material to be safely machined for larger fasteners.

A skilled and experienced machinist must inspect the block and be confident in its integrity before performing any machining. Improper assessment or installation may result in cracking, coolant passage intrusion, or structural failure. All modifications are performed at the installer’s own risk.

Please Note: Installing oversized head studs requires precise machining; drilling and tapping the block must be completely straight and to the correct depth.

Options Options

• Inserts Only
• Complete Kit

Compatibility

BMW M52TU Models

• BMW E46 323i / 328i
• BMW E39 528i
• BMW Z3 2.5 / 2.8

BMW M54 Models

• BMW E46 325i / 330i
• BMW E39 525i / 530i
• BMW E60 525i / 530i
• BMW E83 X3
• BMW Z4 2.5i / 3.0i

Why Choose 5150 AutoSport?

• Purpose-built BMW performance engineering
• Components developed for high-power, real-world durability
• Trusted by serious BMW engine builders
• Specialist knowledge of forced-induction and high-RPM builds

Why Buy from R44 Performance?

R44 Performance supplies premium BMW performance and engine-building components trusted by enthusiasts worldwide.

• BMW specialists
• Genuine 5150 AutoSport products
• Fast UK & worldwide shipping
• Expert product support

Upgrade your BMW M52TU / M54 build with the BMW M52TU M54 Head Stud Thread Insert Kit — available now from R44 Performance.
