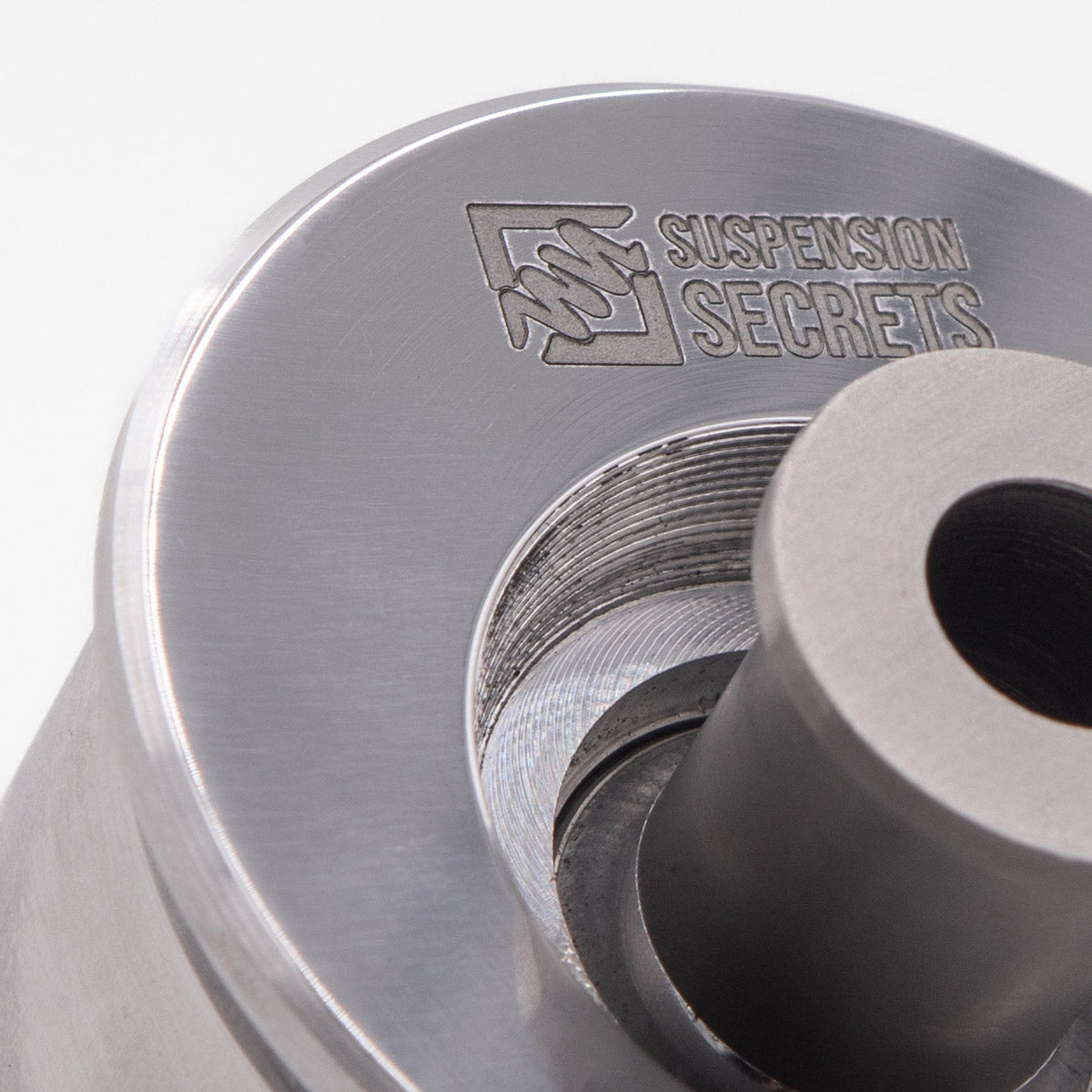

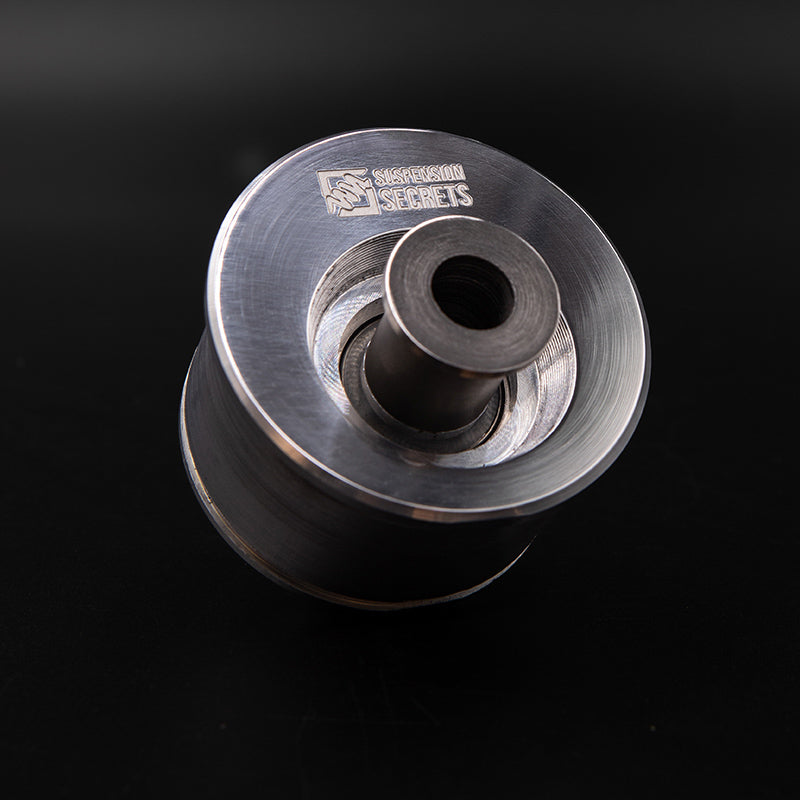

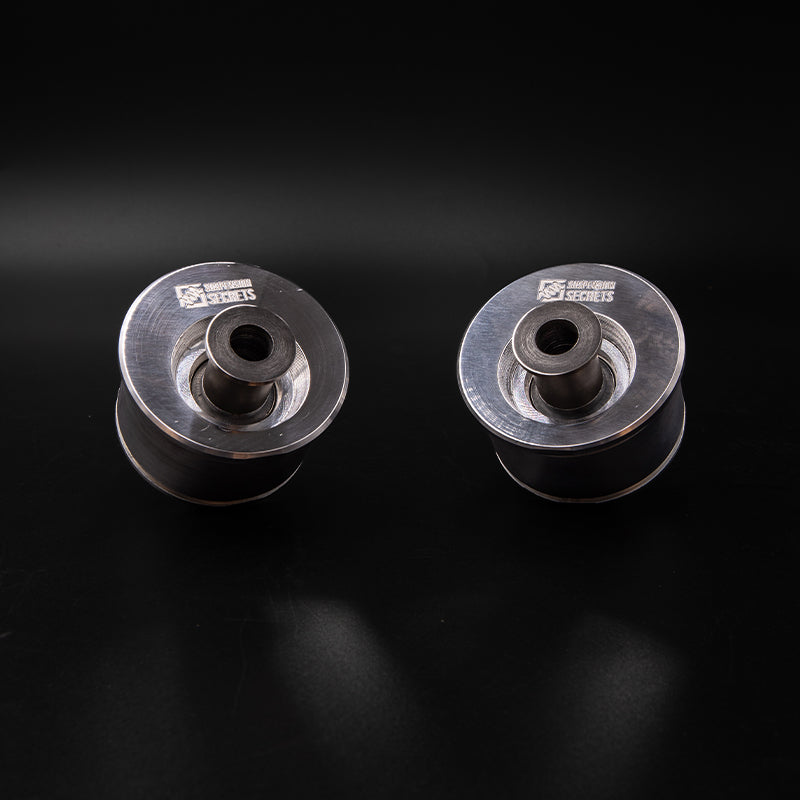

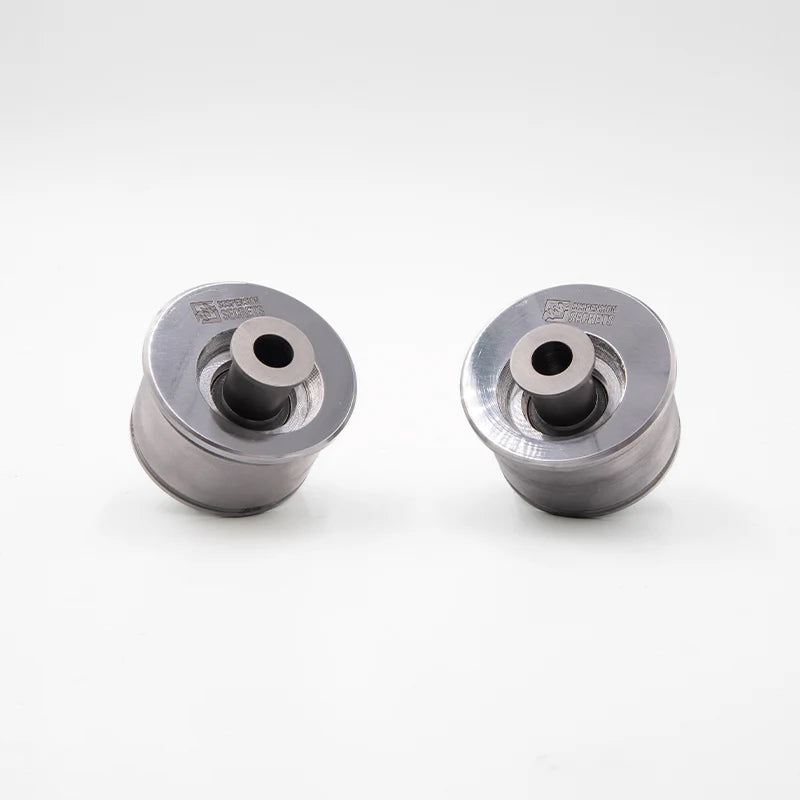

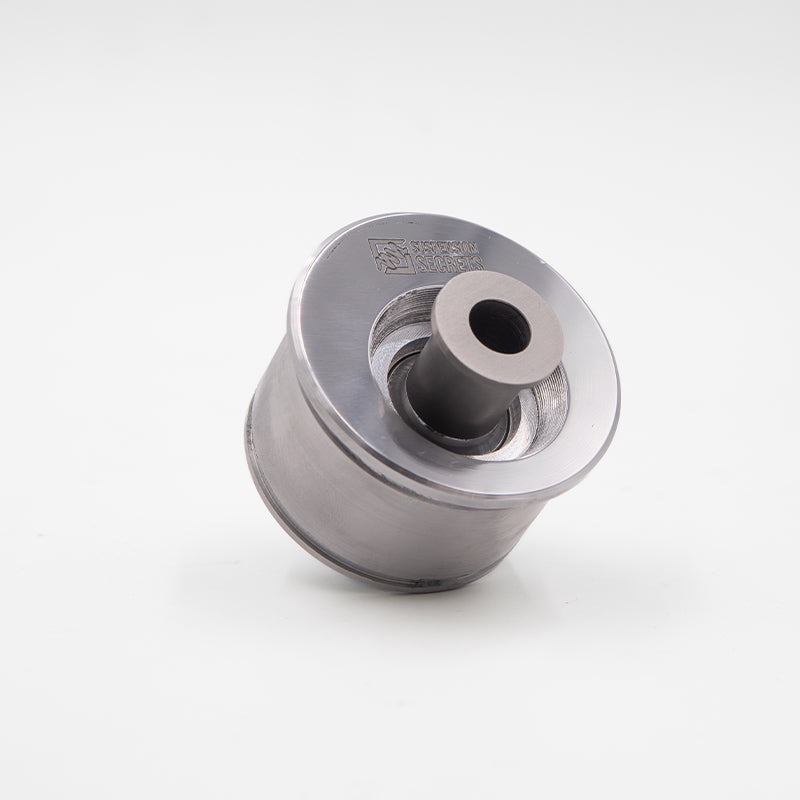

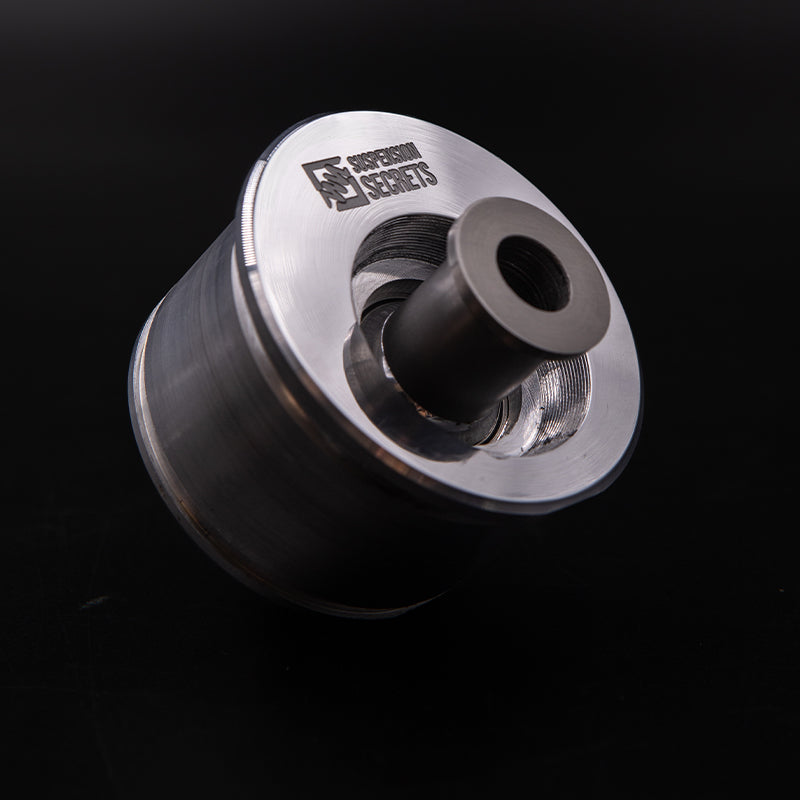

Suspension Secrets BMW F90 M5 Front Camber Bushes

Improve front-end grip, steering accuracy and suspension geometry on your BMW F90 M5 with the Suspension Secrets Front Offset Camber Bushes.

The factory F90 M5 front axle offers limited camber and adjustment. When the car is driven hard, this can contribute to understeer and excessive outer-edge tyre wear, particularly as cornering loads increase.

Suspension Secrets developed these offset solid camber bushes to address these limitations. They replace the soft, non-adjustable OEM rubber bushes in the front lower control arms and can be pressed into an offset position to introduce additional negative front camber.

Increasing negative camber allows the tyre to maintain a more effective contact patch during cornering, improving front-axle grip and reducing the tendency to overload the outside edge of the tyre. Replacing the compliant factory rubber bushes also reduces unwanted movement in the lower control arms, resulting in more precise steering response and greater stability under heavy braking.

For F90 M5 owners looking to improve the chassis for fast road or track use, these bushes address two important areas with a single upgrade: front suspension geometry and control arm compliance.

Key Features

• Developed specifically for the BMW F90 M5

• Offset design increases front negative camber

• Replaces the soft factory lower control arm bushes

• Improves front-axle grip during cornering

• Helps significantly reduce understeer

• Improves steering accuracy and feedback

• Reduces unwanted lower control arm movement

• Improves stability under heavy braking

• Helps reduce outer-edge tyre wear during hard driving

• Improves mid-corner front-end grip

• Ideal for fast road and track-focused F90 M5s

• Developed by Suspension Secrets

Why Does The BMW F90 M5 Need More Front Camber?

The BMW F90 M5 is an extremely capable performance saloon, but its factory suspension geometry has to accommodate far more than outright cornering performance.

BMW's standard alignment is designed around everyday road use, tyre longevity, refinement and predictable behaviour for a wide range of drivers and conditions.

For owners who regularly drive their M5 hard, however, the limited factory front camber can become a restriction.

As the vehicle corners, load transfers towards the outside tyres. Without sufficient negative camber, the outside front tyre can roll towards its outer shoulder rather than maintaining an optimum contact patch against the road.

This can contribute to:

• Front-end understeer

• Reduced mid-corner grip

• Excessive outer shoulder tyre wear

• Less precise turn-in

• Reduced steering feedback

Increasing negative camber helps address these characteristics by improving the tyre's orientation relative to the road when the suspension is loaded through a corner.

Increased Negative Camber

The Suspension Secrets bushes use an offset design to reposition the lower control arm relative to its original mounting point.

When installed in the appropriate orientation, this changes the front suspension geometry and introduces additional negative camber.

Unlike the original bush, which provides no meaningful adjustment for this purpose, the offset design gives the installer the ability to alter the control arm position during installation.

The result is a more performance-focused front alignment with greater potential front-end grip.

Reduce F90 M5 Understeer

One of the primary objectives of these camber bushes is to reduce understeer.

The F90 M5 combines significant power, vehicle mass and tyre width. During aggressive cornering, getting the most from the front tyres is critical to achieving a balanced chassis.

By increasing negative camber, the outside front tyre can maintain a better contact patch as cornering load builds. This allows it to generate more lateral grip before beginning to slide.

For the driver, this can translate into a front end that feels more willing to turn, provides greater confidence through longer corners and is less prone to pushing wide when driven hard.

Improve Outer-Edge Tyre Wear

Aggressive driving with insufficient negative camber can cause the outside shoulders of the front tyres to work disproportionately hard.

This is particularly noticeable on heavy, powerful vehicles used regularly for fast road driving or track days.

Increasing front negative camber can help distribute cornering loads more effectively across the tyre, reducing the tendency to repeatedly overload the outer edge.

For track-driven F90 M5s in particular, this can help make better use of the available front tyre rather than wearing the outer shoulder prematurely.

Tyre wear will ultimately depend on the complete alignment, tyre pressures, driving style and vehicle setup.

Replace The Soft Factory Rubber Bushes

Camber adjustment is only one part of this upgrade.

The standard F90 M5 front lower control arm bushes are manufactured from rubber, which is deliberately compliant to help isolate noise and vibration during everyday driving.

Under heavy cornering and braking loads, however, that compliance allows the control arm to move relative to its mounting point.

This movement can cause the suspension geometry to change dynamically under load, contributing to less precise steering and a degree of vagueness through the front axle.

Suspension Secrets' solid offset bushes substantially reduce this unwanted movement.

Sharper Steering Response

Reducing compliance within the front lower control arm mounting allows steering inputs to be transmitted more directly through the suspension.

For the driver, this can provide:

• More immediate steering response

• Improved front-end feedback

• Greater accuracy when positioning the car

• More consistent suspension geometry under load

• Increased confidence during fast direction changes

Combined with the additional negative camber, the bushes provide a more focused connection between the steering, suspension and front tyres.

Improved Stability Under Heavy Braking

The factory rubber bushes don't only deform during cornering. Significant loads are also transmitted through the front control arms when braking hard.

Reducing bush deflection helps keep the suspension geometry more stable as those loads increase.

This can make the front axle feel more composed under heavy braking, particularly when braking from high speed or transitioning from braking into corner entry.

For F90 M5s used on track, this additional control can be particularly useful when repeatedly braking hard into corners.

An Ideal F90 M5 Fast Road & Track Upgrade

These Suspension Secrets camber bushes are particularly well suited to F90 M5 owners who want to improve chassis performance without immediately moving to more extensive suspension modifications.

They are especially relevant for cars used for:

• Fast road driving

• Track days

• Performance alignment setups

• Cars experiencing excessive outer-front tyre wear

• Drivers looking to reduce front-end understeer

• More focused suspension builds

They can also form part of a wider geometry setup alongside suitable suspension components, tyres and a performance alignment.

Professional Installation & Alignment Required

The original lower control arm bushes need to be removed and the Suspension Secrets replacements pressed into the control arms in the appropriate offset orientation.

Correct positioning is essential because the orientation of the offset bush determines the resulting suspension geometry.

Professional installation by a BMW suspension specialist is therefore strongly recommended.

A four-wheel alignment should also be carried out after installation so the resulting camber, toe and overall geometry can be measured and adjusted appropriately.

For cars intended for fast road or track use, the alignment can then be configured around the vehicle's intended purpose.

Compatibility

Designed for:

• BMW F90 M5

• BMW F90 M5 Competition

Ideal for standard and modified vehicles where additional front negative camber and reduced control arm compliance are required.

Product Specifications

Manufacturer: Suspension Secrets
Product: Front Offset Camber Bushes
Vehicle: BMW F90 M5
Position: Front Axle
Location: Front Lower Control Arms
Design: Offset Solid Bush
Purpose: Increase Negative Camber / Reduce Suspension Compliance
Installation: Press-Fit
Alignment Required After Installation: Yes
Recommended Use: Fast Road / Track

What Difference Will You Notice?

The most noticeable improvements should be apparent when the F90 M5 is being driven hard enough to load the front tyres and suspension.

Compared with the factory setup, the increased negative camber and reduced bush compliance are designed to deliver:

• Stronger front-end grip through corners

• Reduced tendency towards understeer

• More precise turn-in

• Improved steering feedback

• Greater mid-corner confidence

• More stable behaviour under hard braking

• Better management of outer-edge front tyre wear

Rather than simply making the suspension stiffer, these bushes target the geometry and unwanted movement of the front axle, addressing two of the factors that can limit the F90 M5 when driven hard.

Why Choose Suspension Secrets?

Suspension Secrets specialises in suspension geometry and chassis upgrades designed to address specific weaknesses in performance vehicles.

These F90 M5 Front Offset Camber Bushes have been developed specifically to tackle the limitations of the factory front axle: insufficient negative camber, limited adjustment and excessive movement from the original rubber lower control arm bushes.

For drivers looking for a more focused F90 M5 chassis, the result is an upgrade designed around measurable changes to the suspension rather than simply lowering or stiffening the car.
