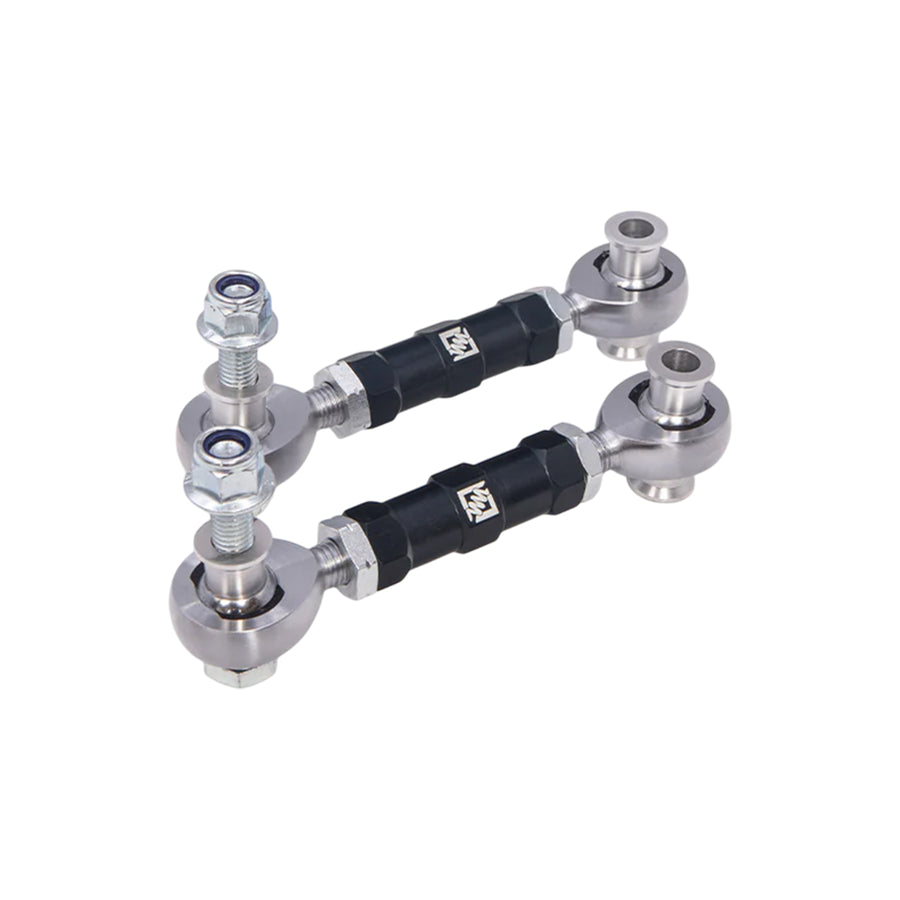

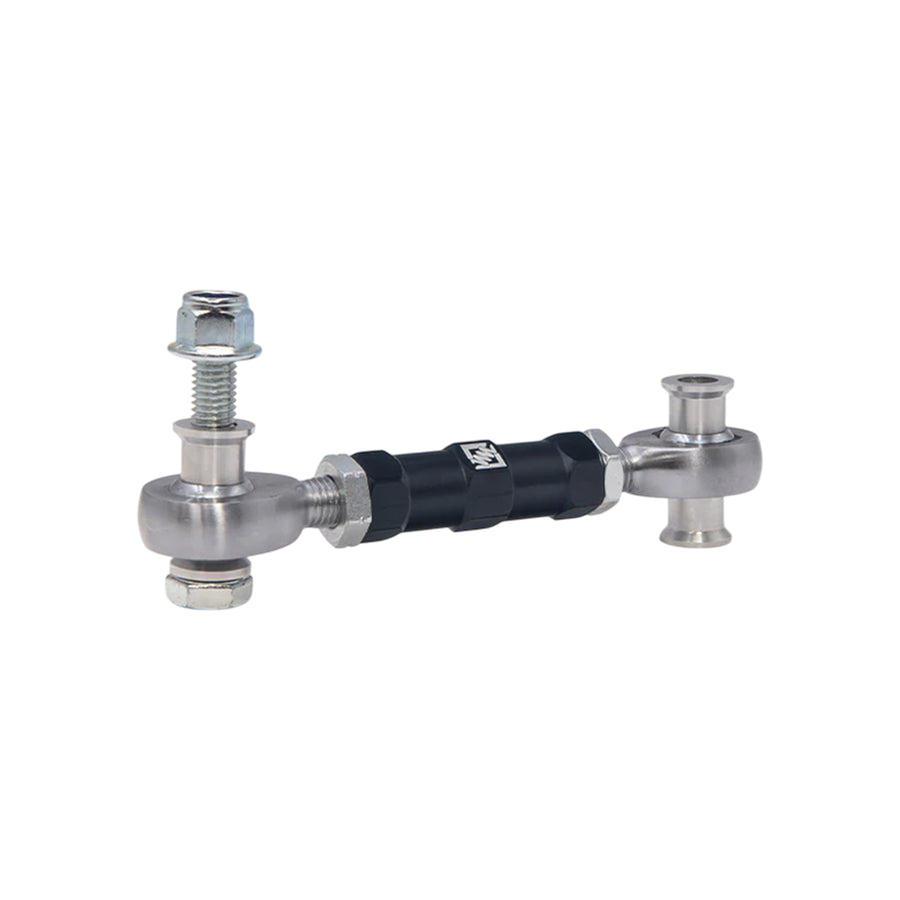

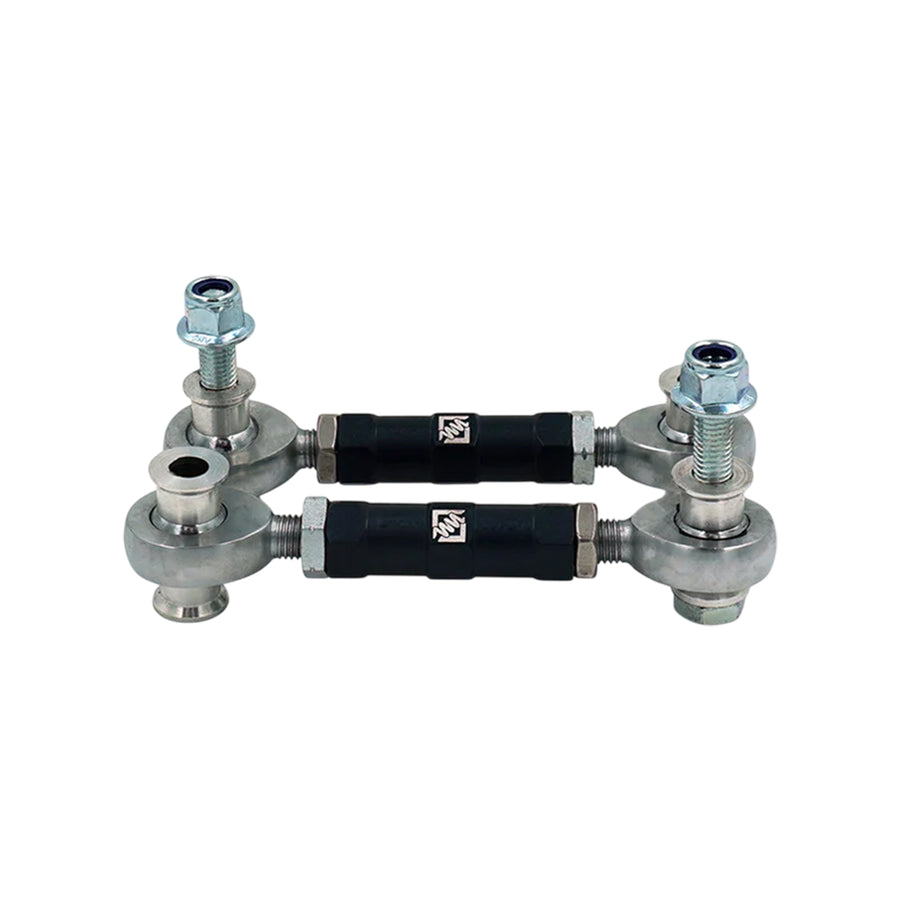

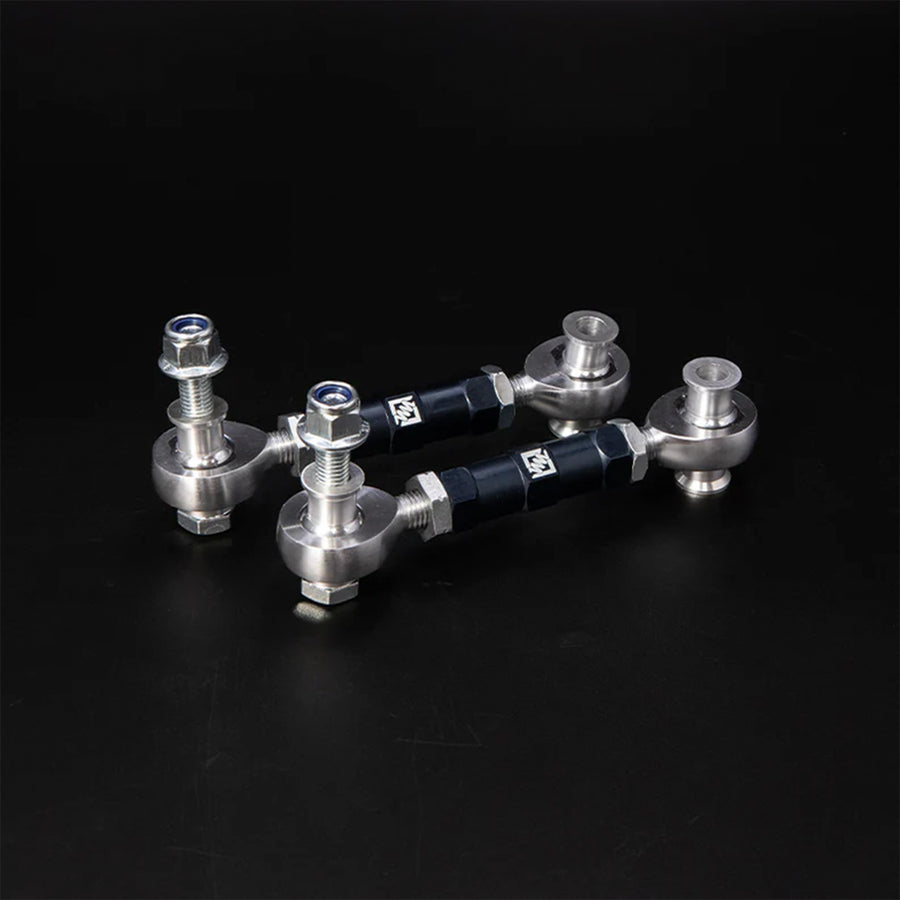

Suspension Secrets BMW M3/M4 Adjustable Rear Drop Links / End Links (F80/F82/F83)

These BMW F80 M3 and F82 M4 rear adjustable suspension drop links / end links from Suspension Secrets are a great upgrade if you have lowered your BMW. After lowering your BMW, the anti-roll bar is pulled upwards into the chassis as geometry of the drop links mounted to the wheel hub assembly and the anti-roll bar is changed.

As a result, the anti-roll bar can end up colliding with the chassis or the suspension arms. With the Suspension Secrets adjustable rear drop links installed, the lengths of the drop links can be readjusted in order to sit the anti-roll bar back into its optimum position. Another added benefit of installing these adjustable rear drop links is when corner weighting your car after installing coilovers. During corner weighting, the ride height at each of the four corners will be slightly different. This difference can lead to the anti-roll bar being uneven. This unevenness will create tension in the anti-roll bar, which will make your car’s handling very uneven and unpredictable between left and right corners. The adjustable drop links allow you remove the tension from the anti-roll bar, helping the car to handle far more predictably.

The bodies of the drop links are CNC milled from aircraft-grade billet aluminium, which is both strong and very light, making it ideal for a high performance load-bearing application such as this. In the interest of longevity and performance over the lifespan of a product, Suspension Secrets decided to make the securing nuts, adjuster and rose joints out of stainless steel. Stainless steel is corrosion resistant and gives the longevity and reliability required for road or race use. These adjustable rear drop links are also designed with easy access in mind. The drop links can be accessed from within the wheel arch without having to remove any wheels. The locking nuts have also been designed to be easily tightened with a simple 17mm spanner, instead of requiring a bespoke BMW tool. The adjuster nut on the adjustable rear drop links is easily accessed, and allows you to make quick setup adjustments in the garage or at the circuit.

PRODUCT SPECIFICATION

- Designed and Manufactured in the UK
- High Quality Motorsport Fluo Rose Joints
- Manufactured from Aircraft-Grade Materials
- Stainless Steel Lock Nuts
- Aircraft Grade Billet Aluminium Body
- Lightweight and Strong

COMPATIBILITY

- BMW F80 M3 Saloon (2014-2019)
- BMW F82 M4 Coupe (2014-2020)
- BMW F83 M4 Convertible (2014-2020)
