Motiv Motorsport ReFlex+ Advanced I/O Integration - Universal (Inline-6)

The Motiv Motorsport ReFlex+ Advanced I/O Integration Kit for Inline-6 engines is a comprehensive control solution designed for high-performance builds that demand precision, flexibility, and seamless integration. Combining the ReFlex+ Control Unit with the ReFlex Main Injector Harness (Inline-6), this kit delivers advanced fuel, sensor, and auxiliary control capabilities typically reserved for high-end standalone ECUs—at a far more accessible level.

At its core, the ReFlex+ is far more than an auxiliary injector controller. Built around multiple patented technologies, it functions as a powerful I/O and control hub capable of operating in standalone configurations or integrating deeply with modern BMW and Toyota Supra ECUs via CAN Bus. Whether you’re running additional port injection, flex fuel, advanced sensor monitoring, or controlling aftermarket components, the ReFlex+ provides the accuracy and configurability required for serious performance applications.

What’s Included

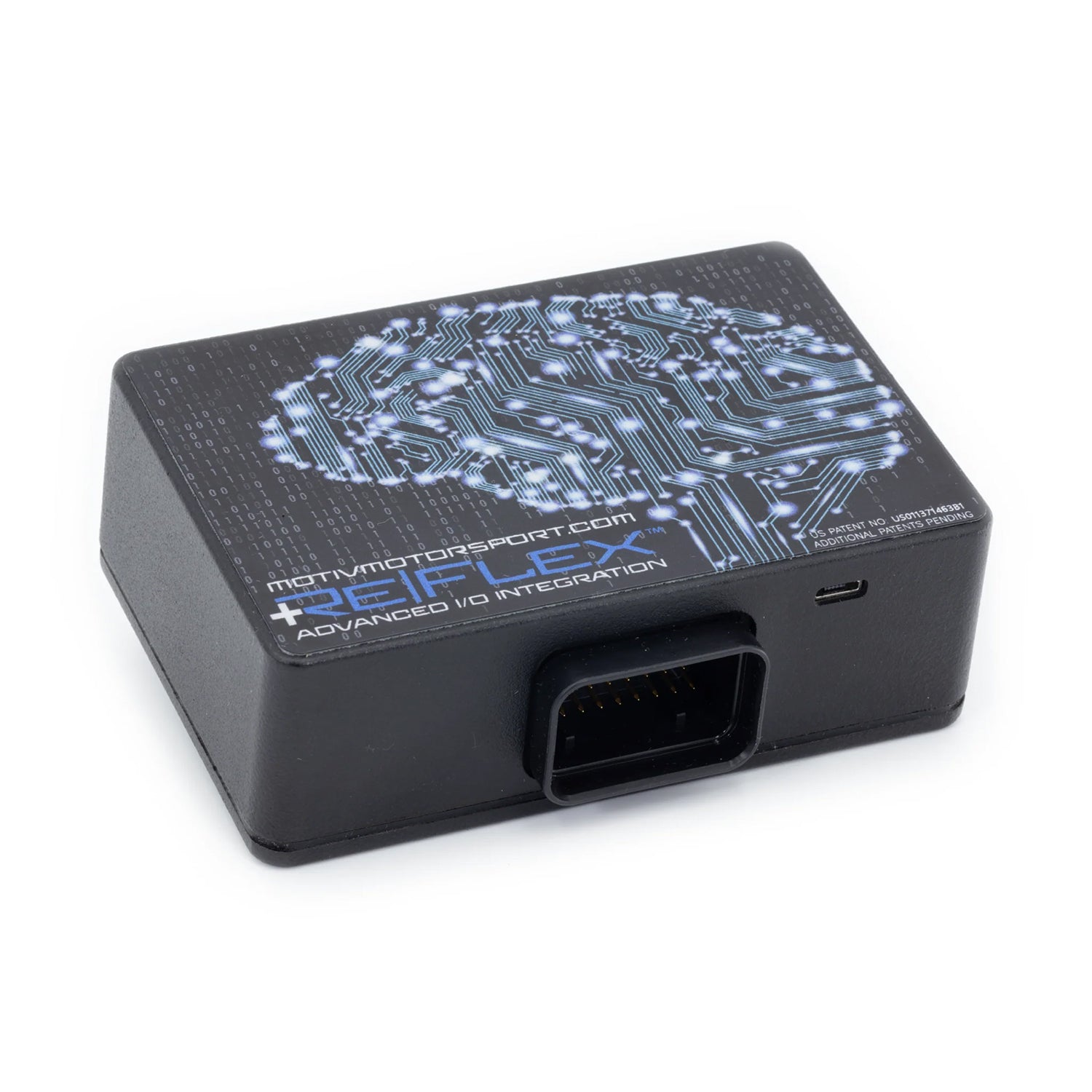

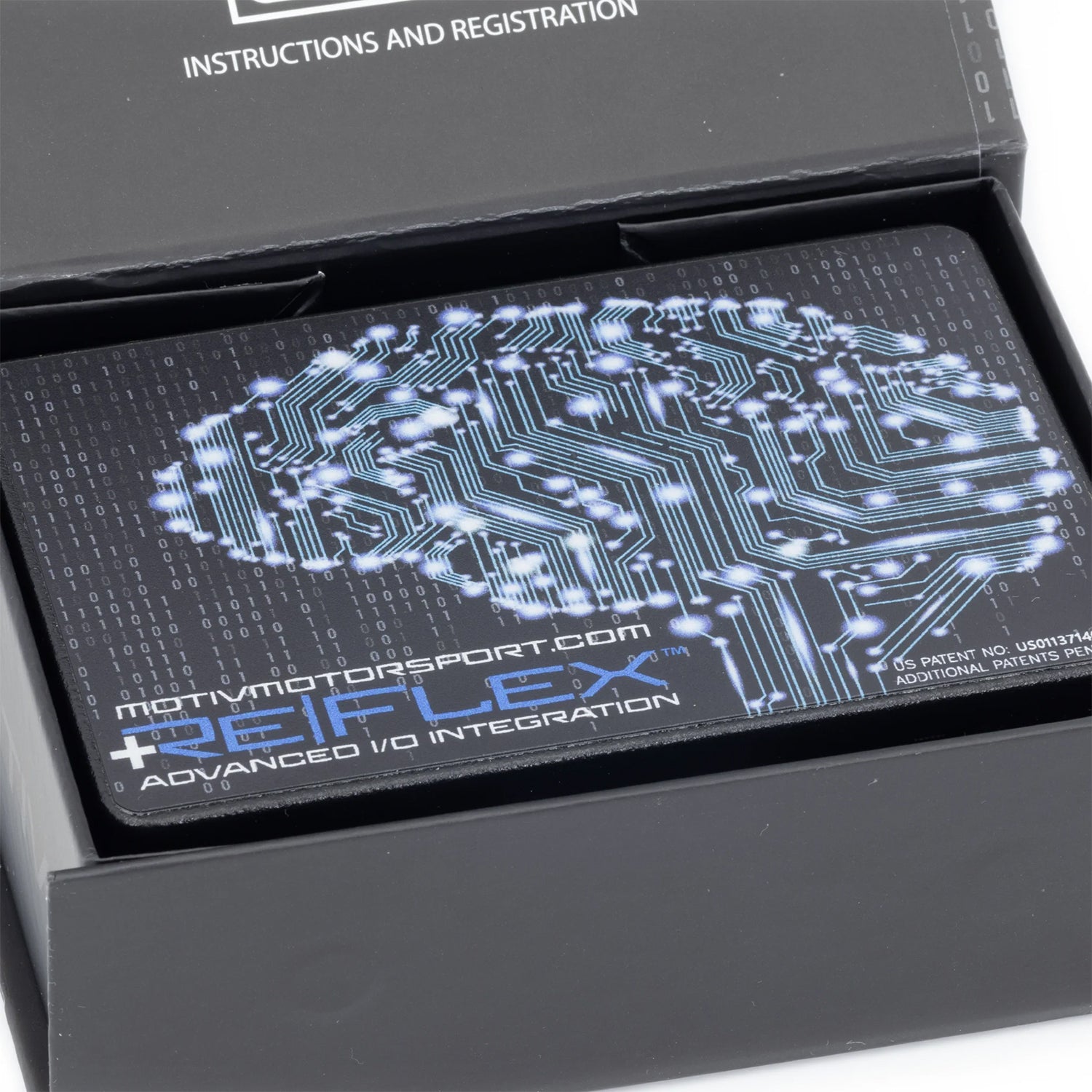

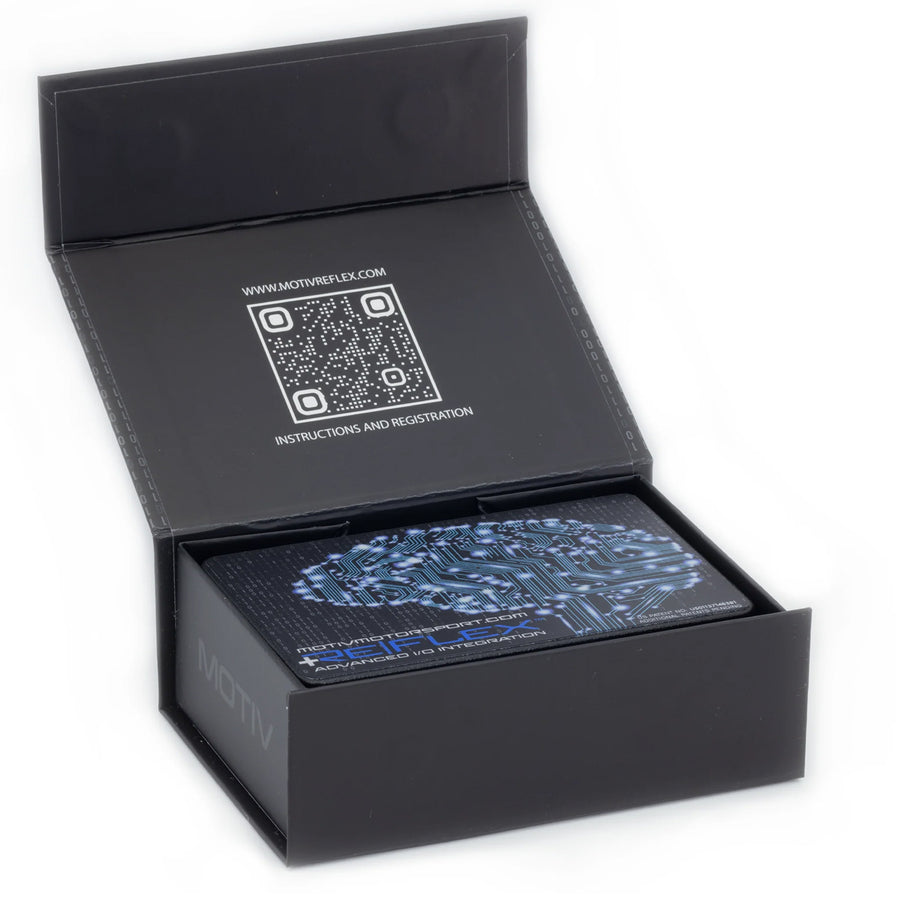

• Motiv Motorsport ReFlex+ Control Unit (BMW G Series & Toyota Supra compatible)

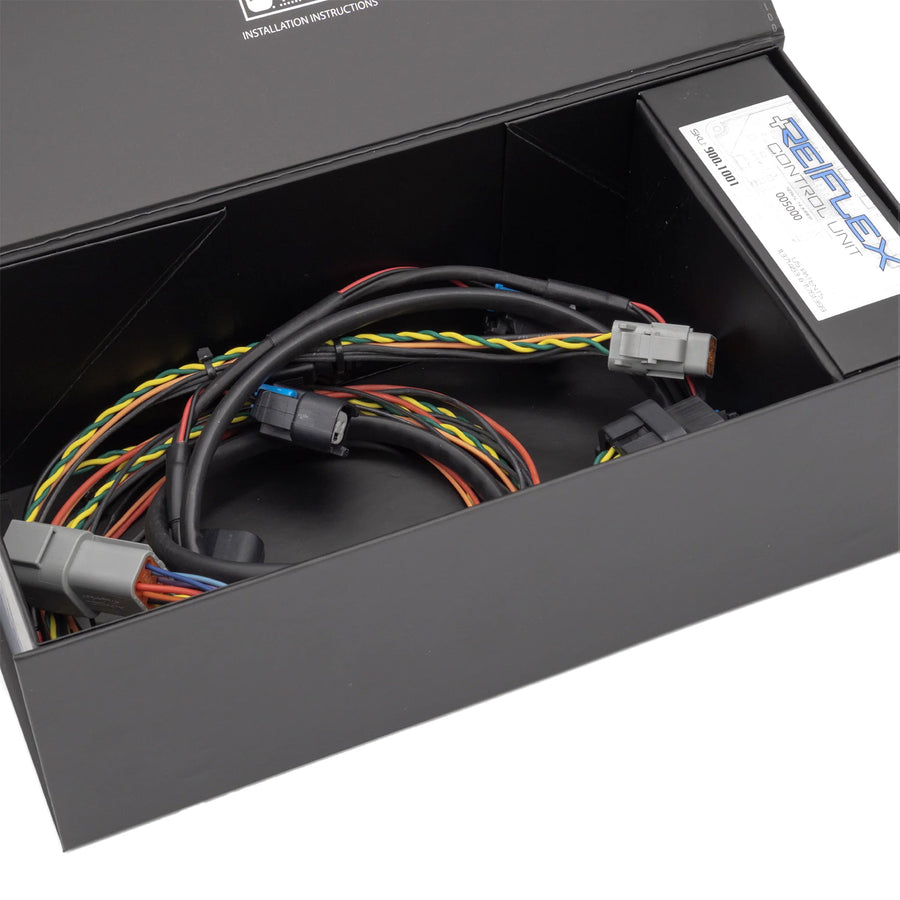

• Motiv Motorsport ReFlex Main Injector Harness – Inline-6

This combination forms the foundation of a complete ReFlex system, ready to interface with vehicle-specific installation harnesses and external sensors.

Advanced Control Strategies

The ReFlex+ supports multiple operating modes, allowing it to adapt to a wide range of tuning approaches:

• Standalone Mode – No CAN Bus communication required

• Integrated CAN Bus Mode – Compatible with MHD, EcuTek, MG Flasher, BM3, and other platforms capable of sending or receiving CAN messages

• Advanced CAN Bus Mode – Full, deep integration with EcuTek and MHD+

This flexibility allows the factory ECU to directly command ReFlex+ functions while retaining advanced safety strategies and OEM-level control logic.

Precision Sequential Port Injection & Beyond

Originally developed to modernise port fuel injection systems, the ReFlex+ delivers true sequential injection, ensuring fuel is injected at the optimal point in the engine cycle. Compared to traditional batch-fire controllers, this improves efficiency, consistency, and reliability—especially in high-output or ethanol-based setups.

Beyond fueling, the ReFlex+ operates as a complete advanced I/O controller, capable of managing sensors, actuators, and auxiliary systems with exceptional precision.

Inputs & Outputs

Inputs

• Sequential port injection support for up to 8 injectors with fault-sensing feedback

• 4× analogue inputs (0–5V and 4–20mA sensors)

• 2× frequency inputs (up to 20kHz)

• Dedicated flex fuel input for real-time ethanol content monitoring

• MAP, cam, and crank sensor inputs for accurate engine load and timing reference

Outputs

• 4× low-side auxiliary outputs (PWM or digital ground) for methanol injection, nitrous, boost control, fuel pumps, and more

• Multiple 12V switched outputs to power external components

OEM-Level Integration & Tuning Support

The ReFlex+ integrates directly with leading flash-tuning platforms, allowing the factory ECU to command auxiliary fueling and I/O functions. Built-in safety strategies help protect the engine and associated hardware under demanding conditions.

Configuration is handled via TunerPro RT, supporting both universal and vehicle-specific setups. Free starter maps and setup guides are available, with additional technical support provided directly by Motiv Motorsport.

Engine Compatibility

Designed for Inline-6 engines, including:

• BMW N54

• BMW N55

• BMW S55

• BMW B58

• BMW S58

• Toyota Supra (BMW-based platforms)
