MMX BMW Wheel Stud & Nut Kit (Set Of 20 Studs For MMX Kit Only)
IN STOCK WITH SUPPLIER. DESPATCH IN 3-5 DAYS.
Size
MMX BMW Wheel Stud & Nut Kit (Set Of 20 Studs For MMX Kit Only)
70mm single stud M14 x 1.25
R44 Performance HQ
Latif House, First Way, Wembley
Unit 4
London HA9 0JD
United Kingdom
Choose options
IN STOCK WITH SUPPLIER. DESPATCH IN 3-5 DAYS.
Size
IN STOCK WITH SUPPLIER. DESPATCH IN 3-5 DAYS.
Size
If you already have the MMX Performance Stud & Nut Kit, MMX also supply wheel studs and wheel nuts as replacements. These are ideal if you are adding spacers and want to change stud length, or if you are changing wheels that require either conical or ball seat lug nuts to be used.
These are all supplied as set of 20 pieces. Please note that these are only compatible with the MMX Stud and Nut Kit, not for any other applications. They apply for all cars with M14x1.25 nuts - from BMW F&G-Series and Mini F56 onwards.
(Wheel Nuts are also available)
PRODUCT SPECIFICATION

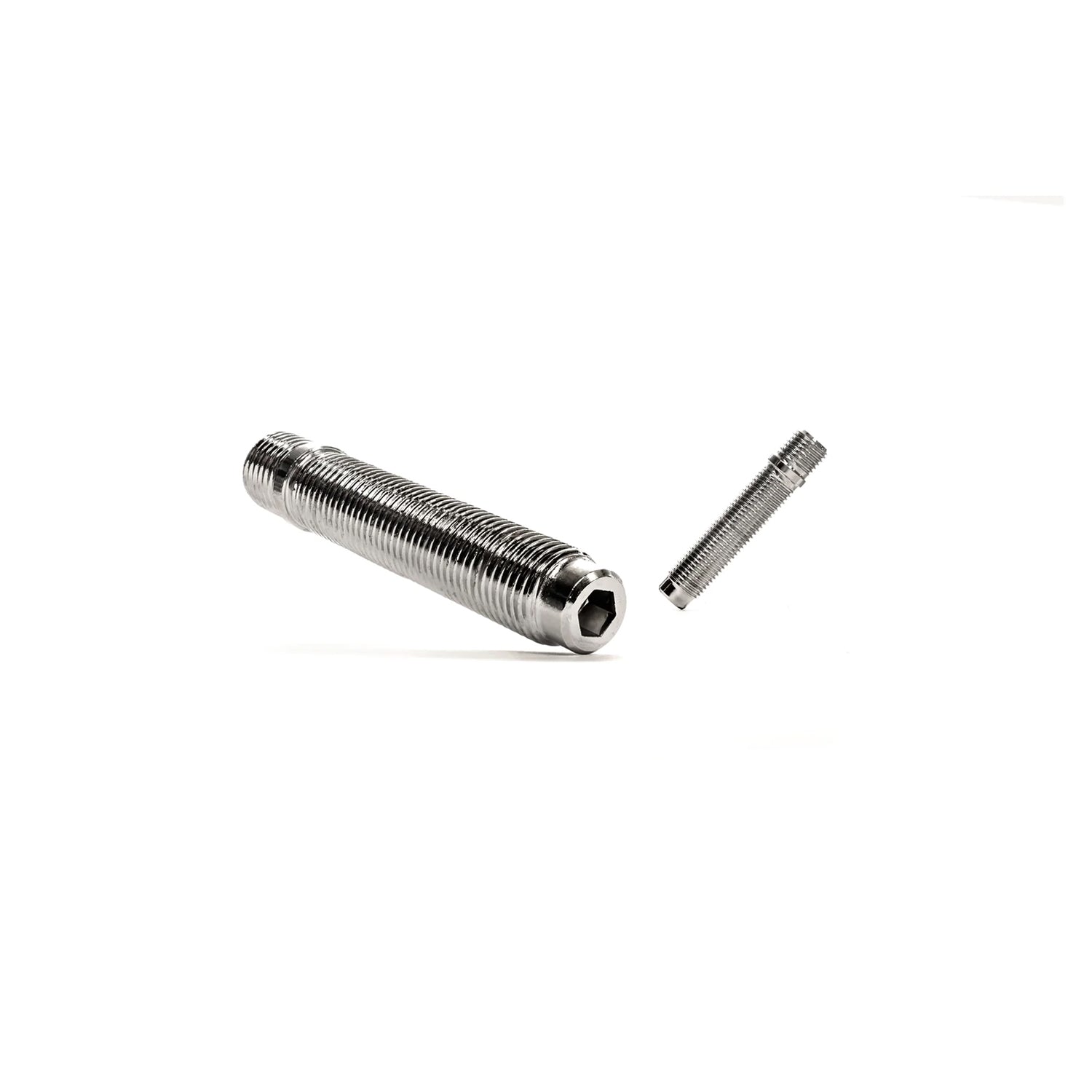

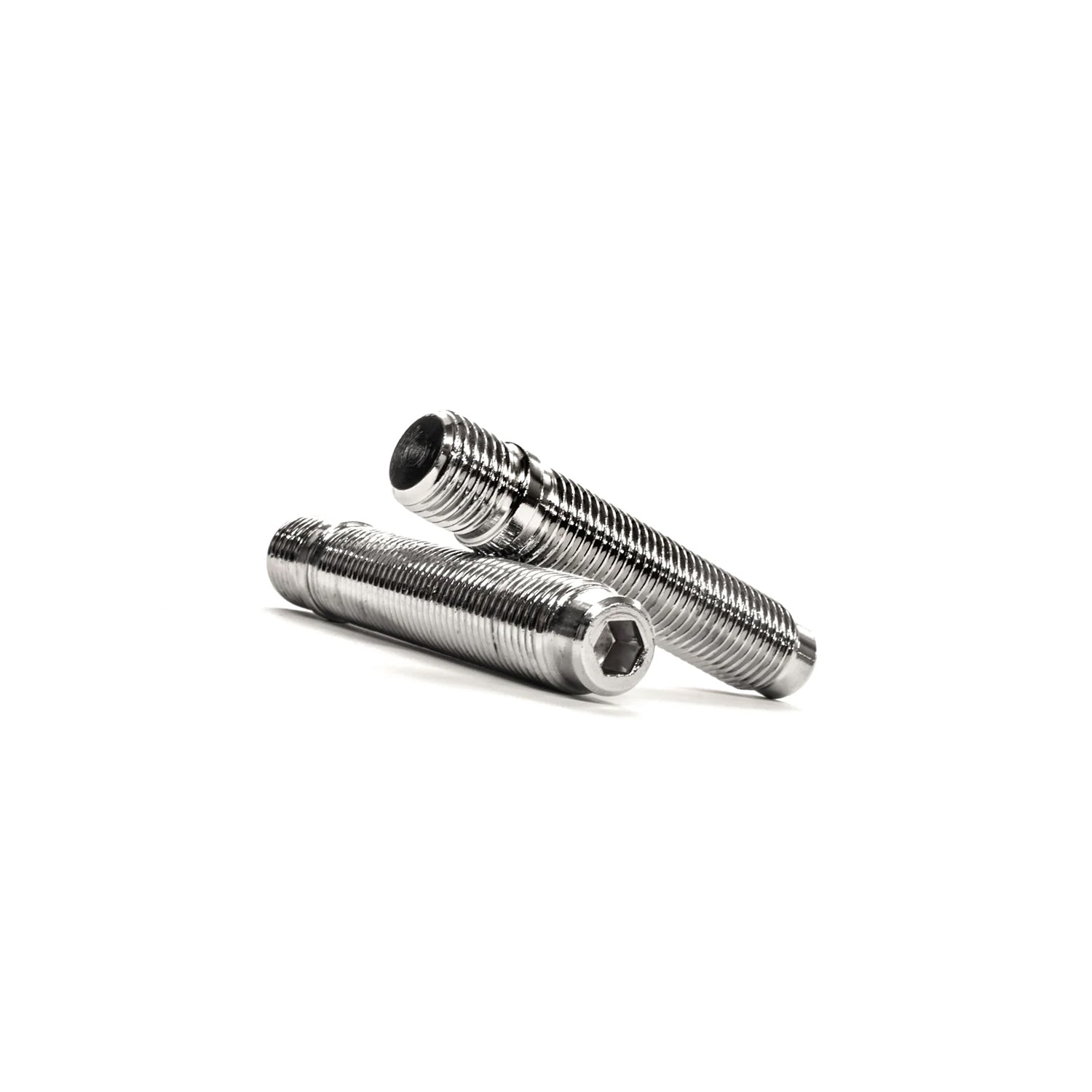

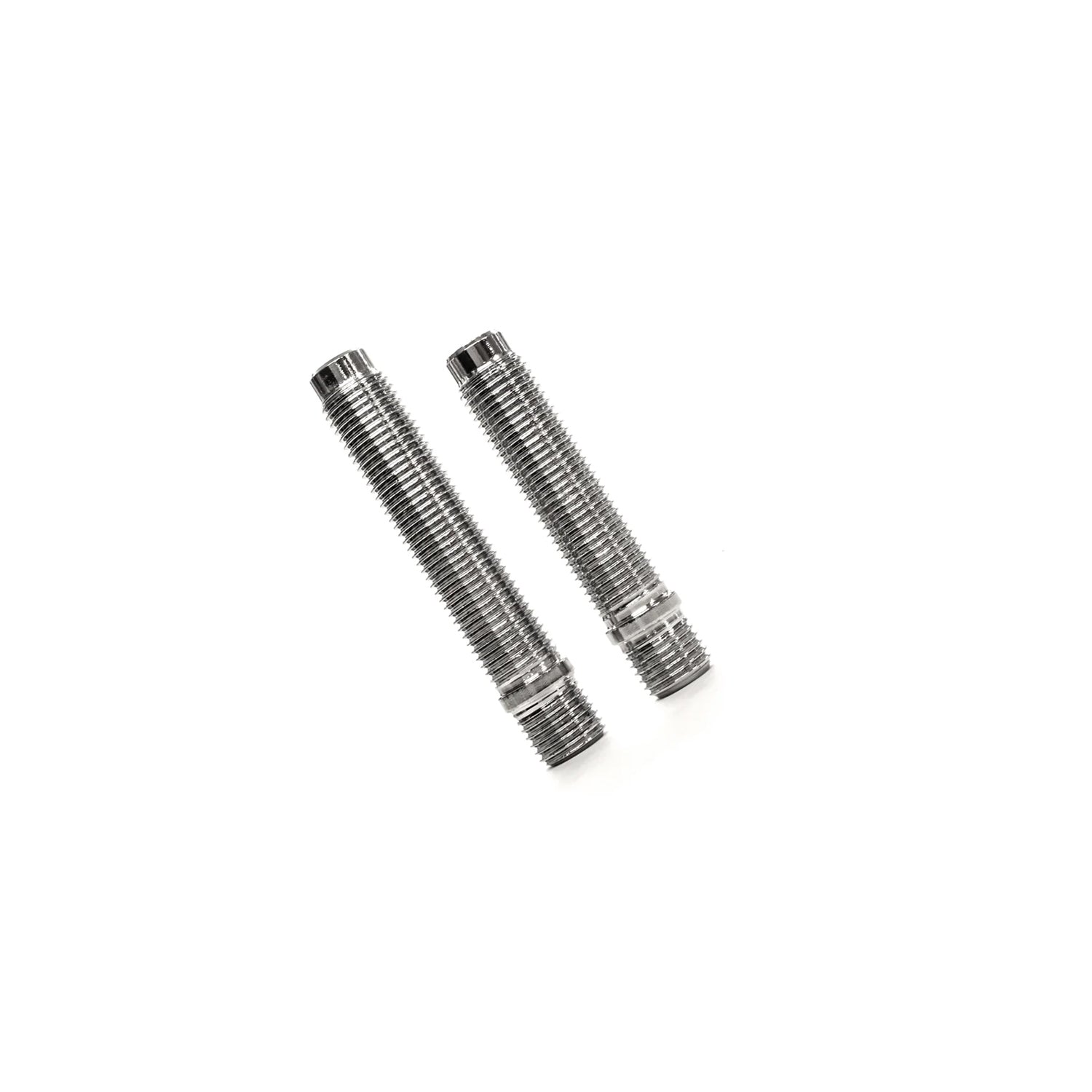

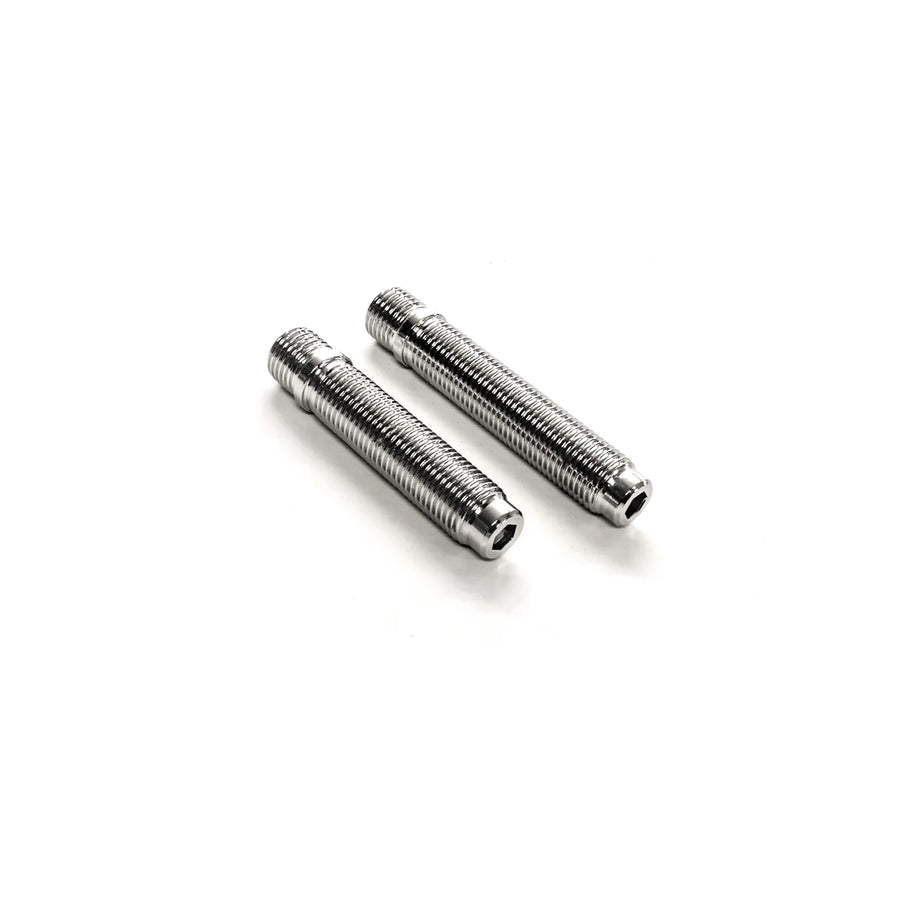

Two different stud lengths are available, depending on your fitment:
- 70mm Stud: No spacers, or up to 10mm spacer
- 80mm Stud: Spacers between 10mm to 20mm

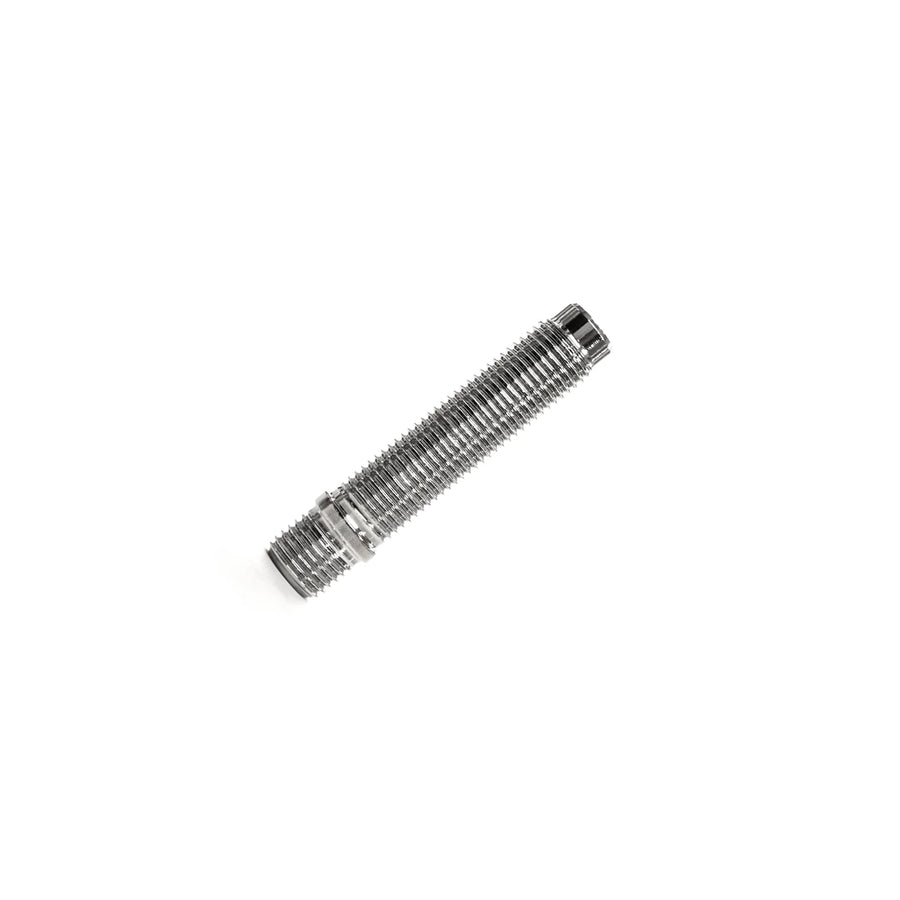

SHORTER 70mm STUDS |

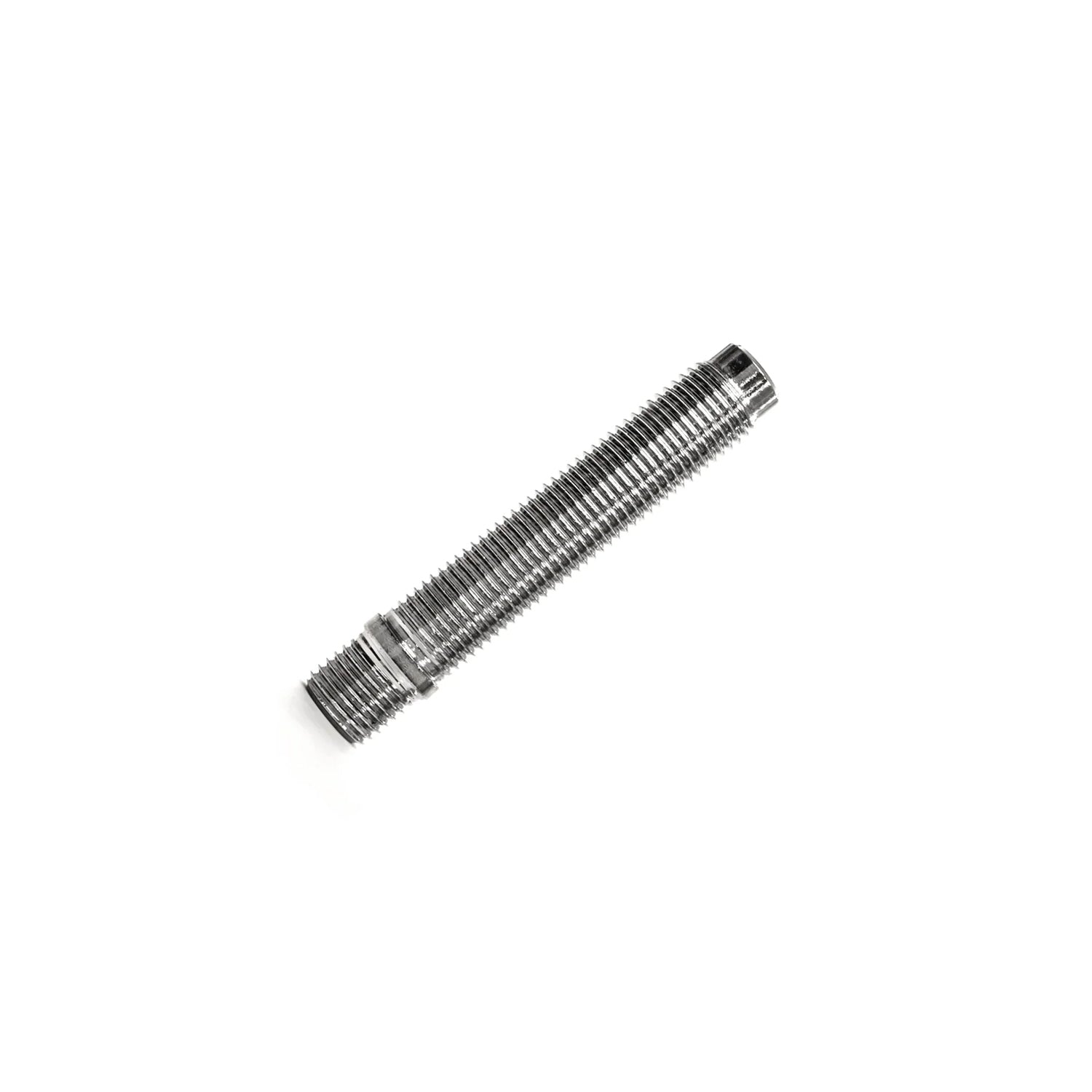

LONGER 80mm STUDS |
Thread length (Hub side): 13mm Thread length (Nut Side): 50mm Overall stud length: 70mm |
Thread length (Hub side): 13mm Thread length (Nut Side): 60 mm Overall stud length: 80mm |
FITTING INFORMATION
- Remove the wheels and clean the threads in the hub and the short ends of the new studs using a suitable solvent such as brake cleaner. Ensure the threads are totally free from dirt and grease.
- Before you fit the stud, check that the shank (the plain section between inner and outer threads) passes easily through the disc holes and you are not bottoming the stud on the brake disc.
- Coat the threads on the short end of the stud with a thin covering of Loctite Blue 2422 (high temp rated to 650°F - it’s important to use a high temperature-rated Loctite that exceeds hub temps).
- Using a 6mm Allen Key, screw the short end of the stud into the hub until you reach the shank.
- DO NOT OVERTIGHTEN THE STUD INTO THE HUB – TIGHTEN UP TO AROUND 30ft-lbs / 40Nm.
- Wait about three hours for the Loctite to go off fully and refit the wheels with the new nuts using 19mm socket. Lower the vehicle back onto the floor and torque the wheel nuts to the factory specification of the original lug bolts.
- Recheck the torque of the studs after 30 minutes of driving once the whole assembly has got hot.
