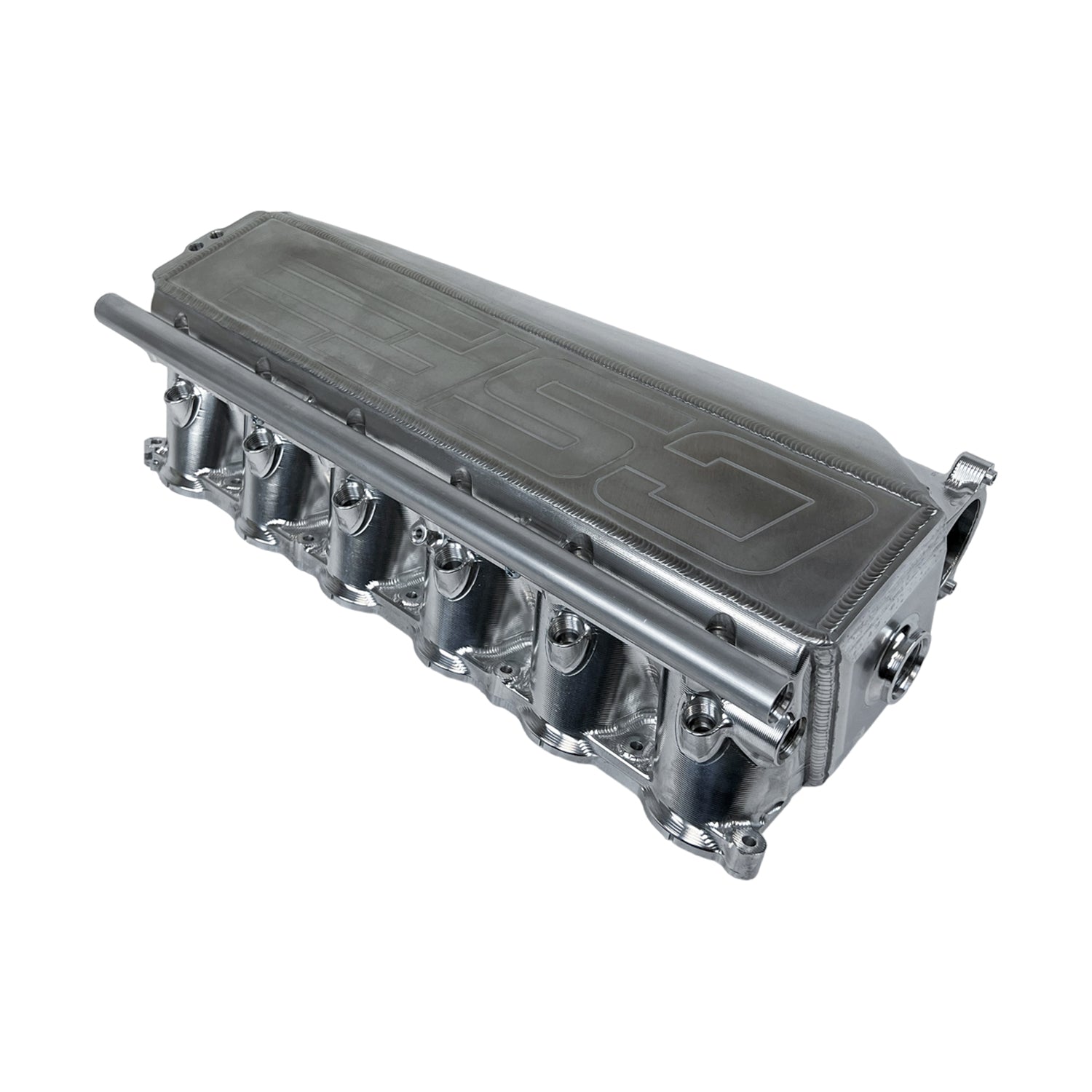

CSF Race X B58 Gen2 Charge Air Cooler Manifold (G20 M340i, G42 M240i, Toyota GR Supra & more)
AVAILABLE TO ORDER | DESPATCHES IN 3-4 WEEKS.
Select Finish
Choose options
AVAILABLE TO ORDER | DESPATCHES IN 3-4 WEEKS.
Select Finish
AVAILABLE TO ORDER | DESPATCHES IN 3-4 WEEKS.
Select Finish
Introducing the CSF Race X B58 Gen2 Charge Air Cooler Manifold, your ultimate performance upgrade for the BMW B58 engine. Crafted with precision and passion, this charge air cooler manifold is designed to maximise cooling efficiency, unleashing the full potential of your B58 engine.
Constructed from high-quality materials, the CSF Race X Charge Air Cooler Manifold ensures durability and reliability, even under the most demanding driving conditions. Experience improved heat dissipation and reduced intake temperatures, resulting in enhanced power output and throttle response. Say goodbye to heat soak and hello to consistent performance on the road or track.
With CSF's commitment to quality and performance, you can trust that the Race X Charge Air Cooler Manifold will exceed your expectations. Elevate your driving experience with CSF and experience the thrill of optimised performance with every drive.
PRODUCT SPECIFICATION
- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
- 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) – 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows
- Core can be setup for dual or single pass configuration

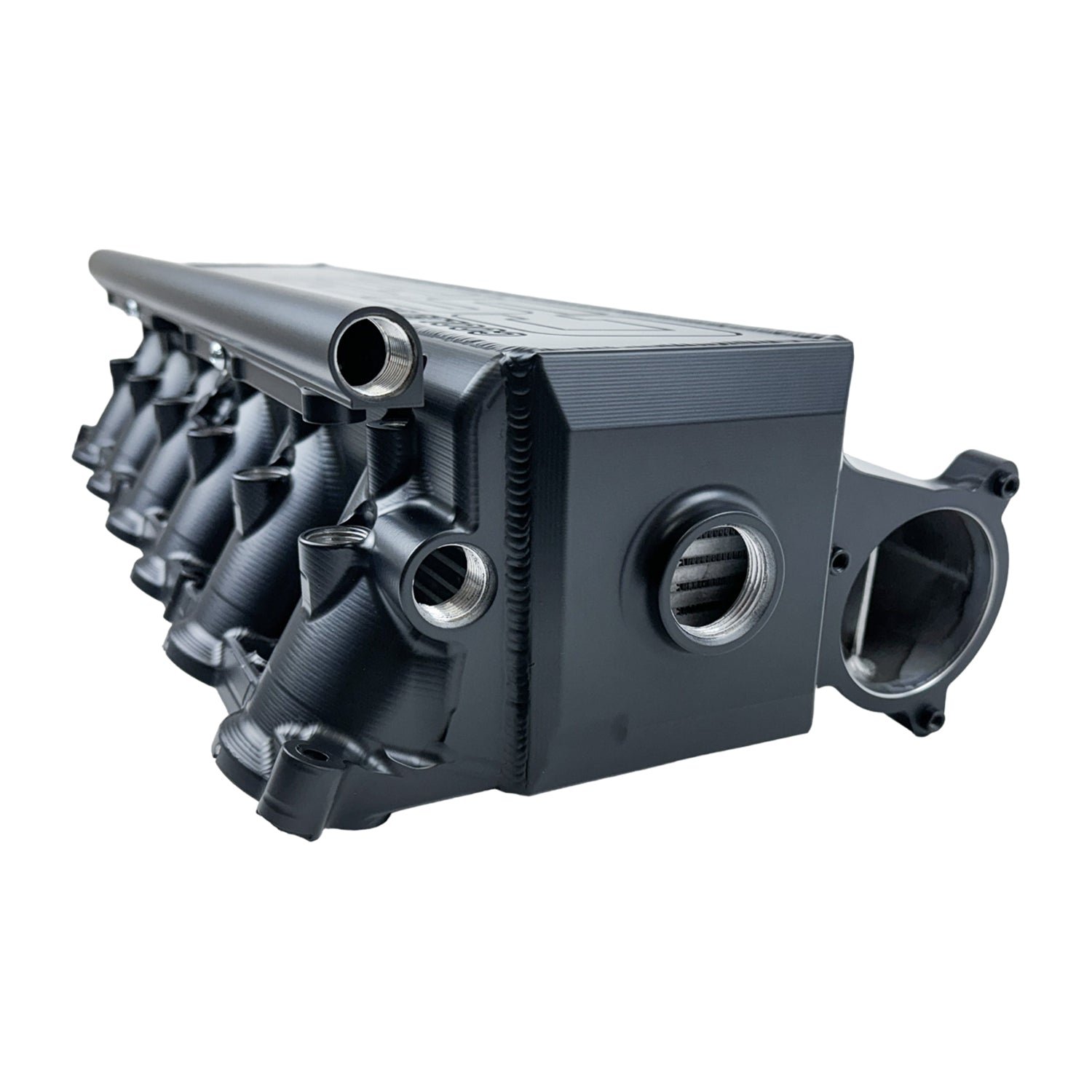

- The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Comes with CNC machined plug to use in dual-pass configuration
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)

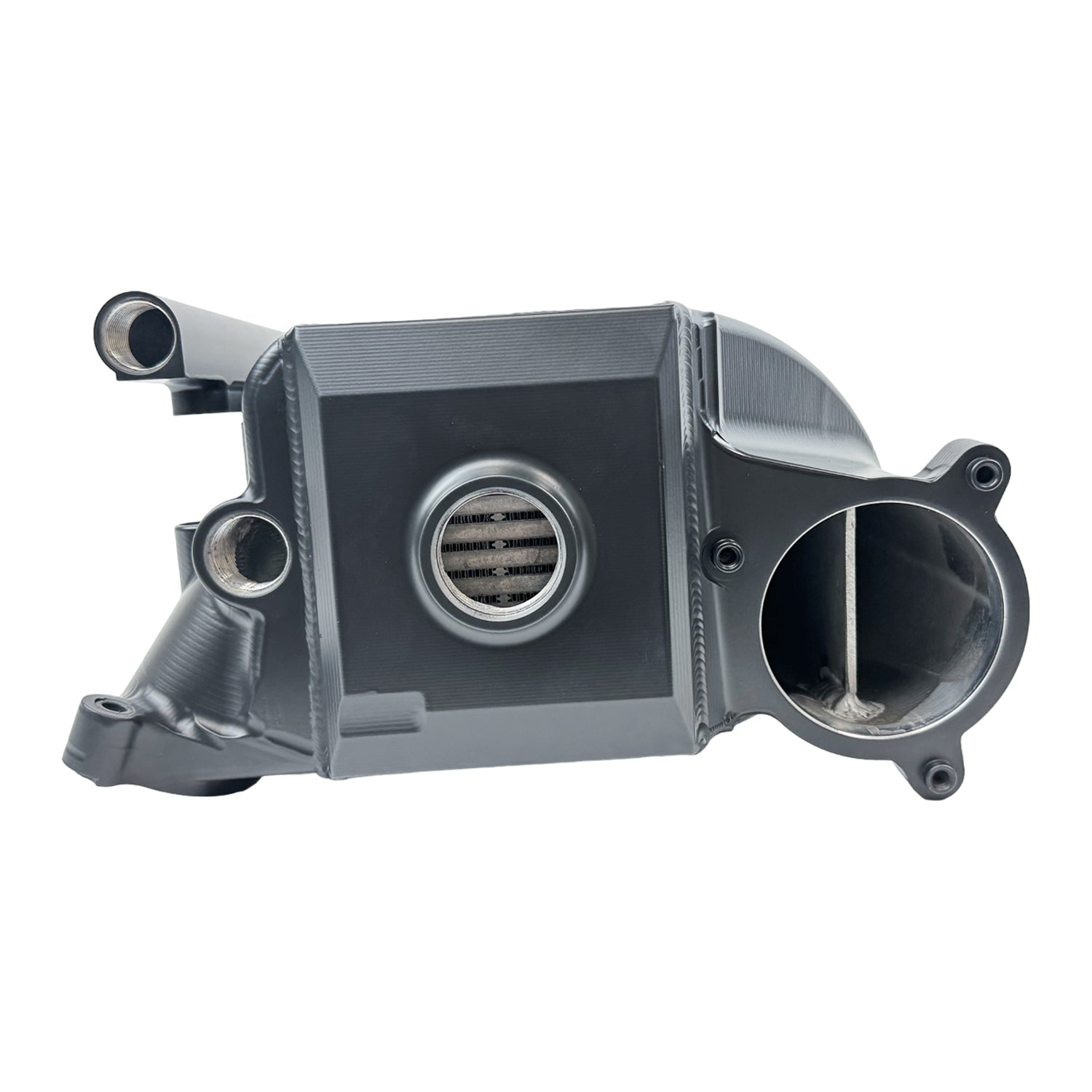

- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Improved slotted mounting holes on throttle body side for easier installation
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes

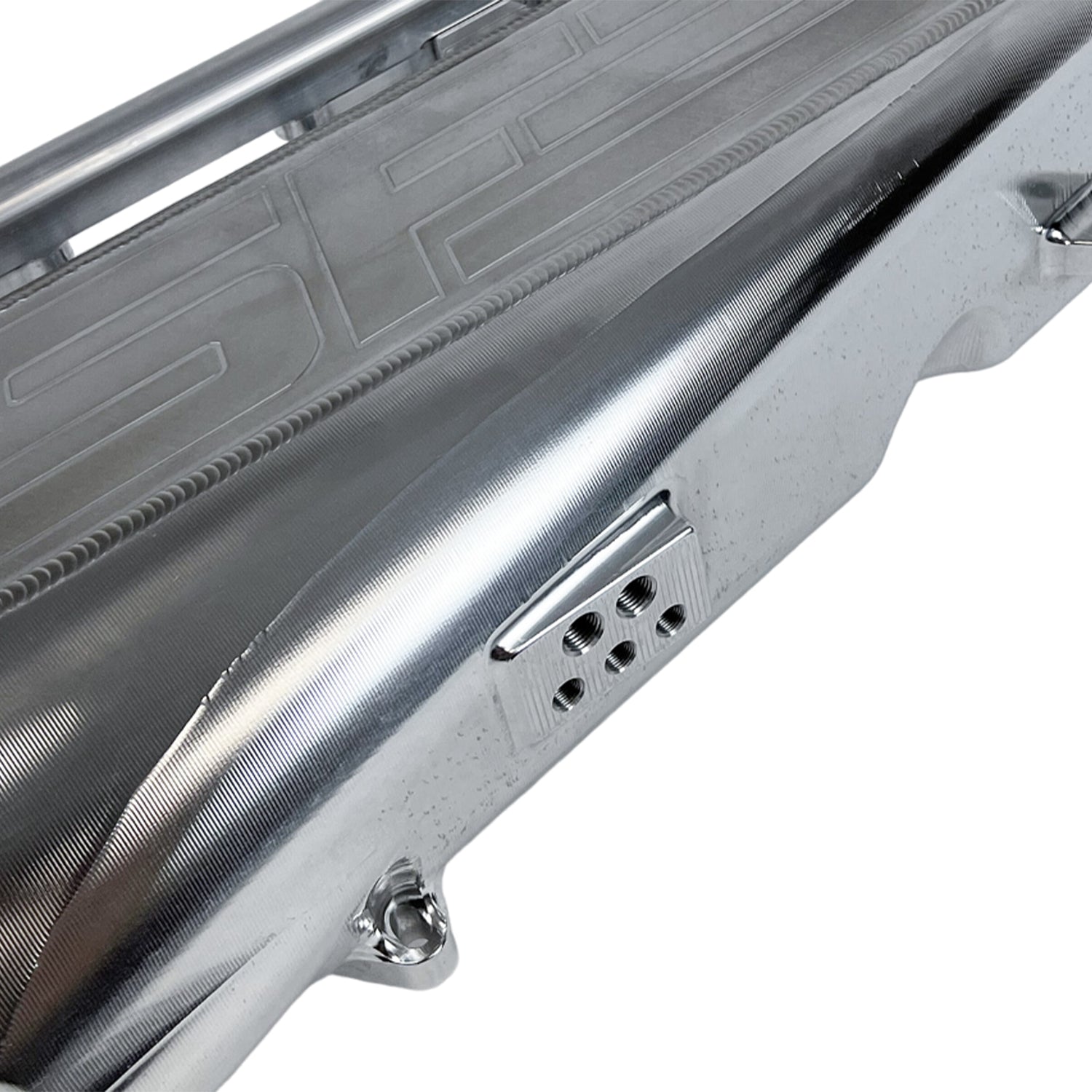

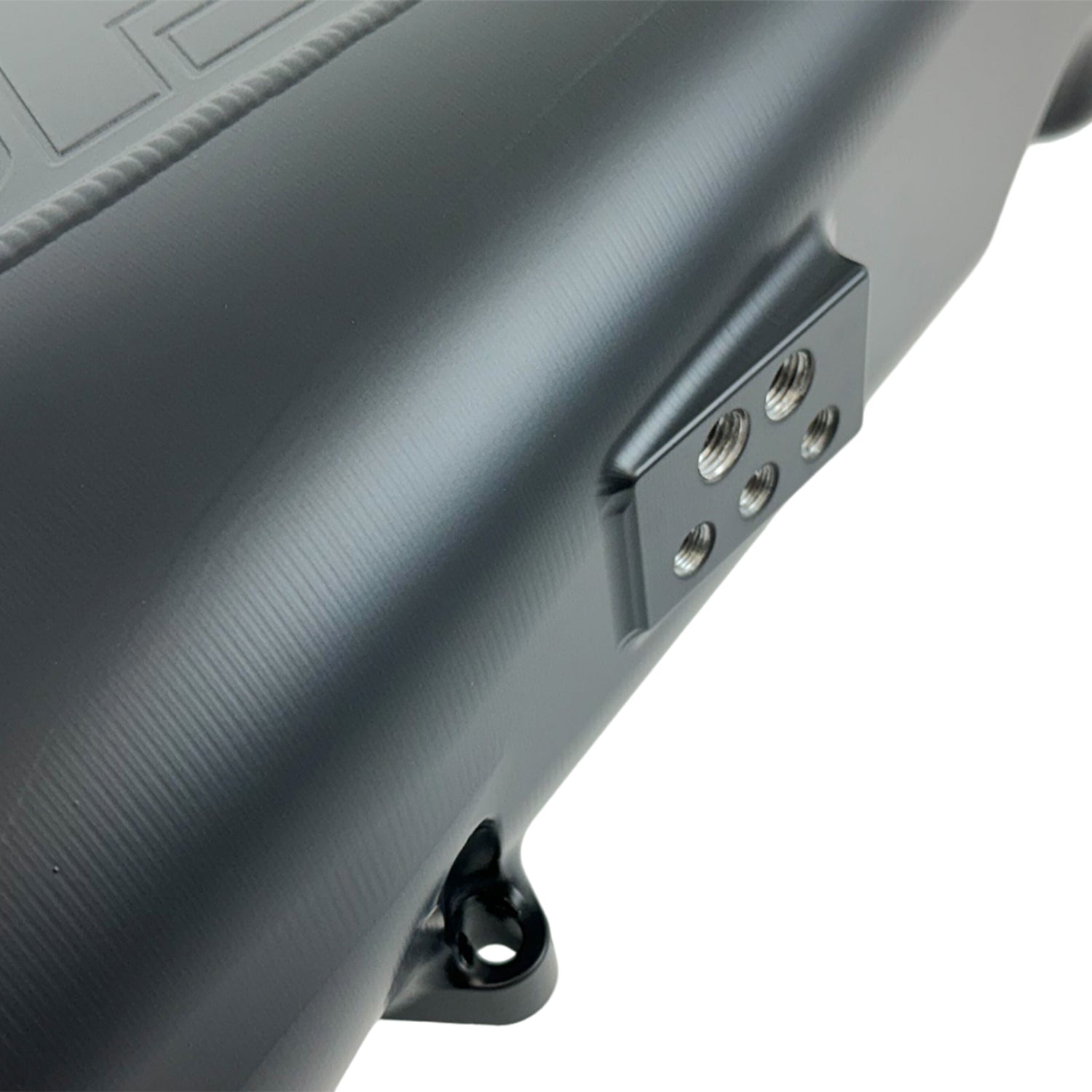

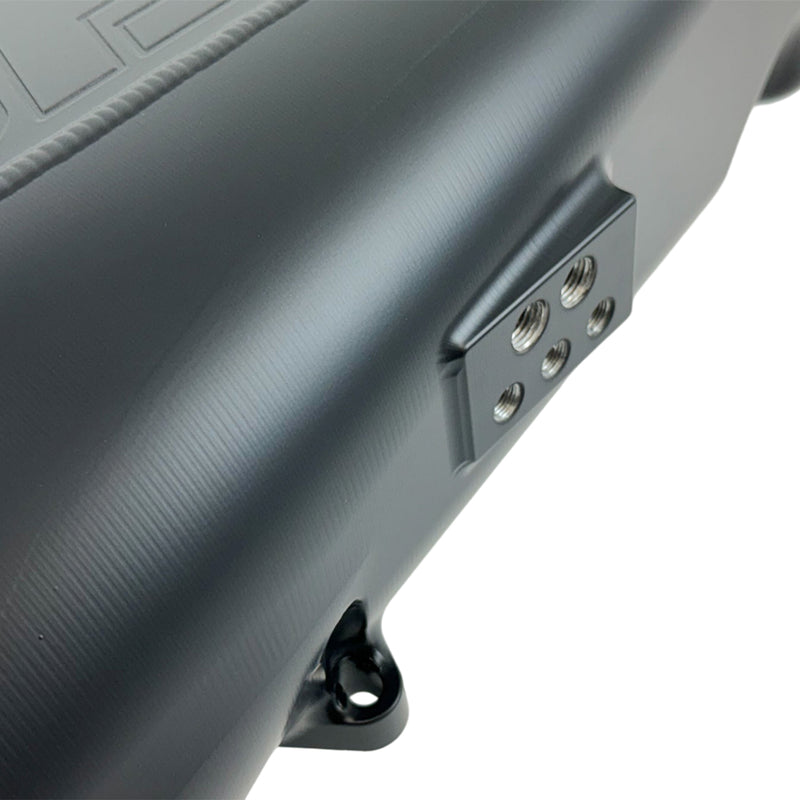

- Integrated Sensor Pad with Two 1/4″ and Three 1/8″ NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
- Included Fuel Rail for Top Feed Port Injection

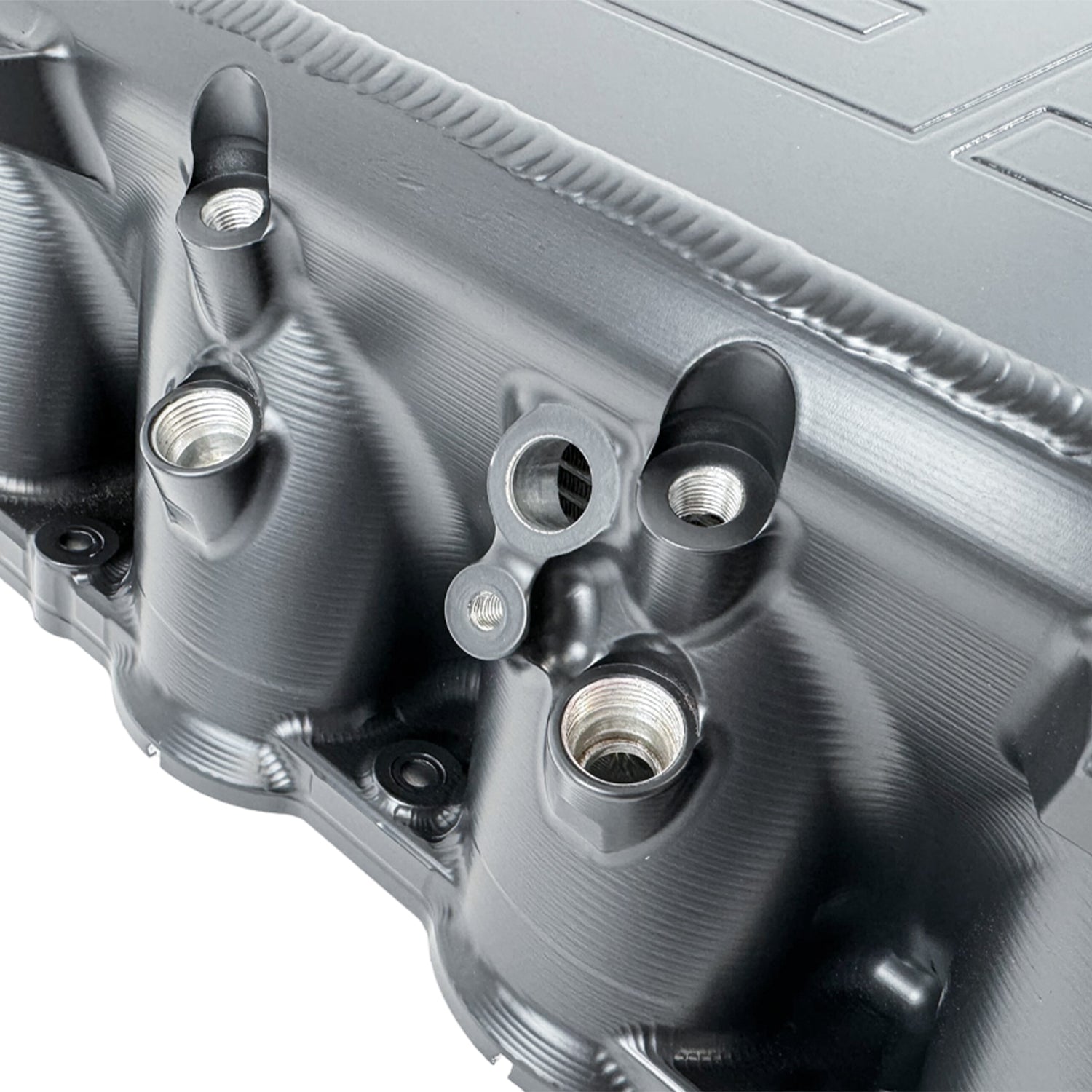

- Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
- Allows for Even Spray Distribution and Control for Maximum Performance
- Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
- Included KIYLEX Thermal Rejection Manifold Spacer*
- Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
- Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
- Proven to lower intake manifold temperatures by up to 15%
- Lowers Intake Air Temps (IATs)
- Some modifications to install – this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform

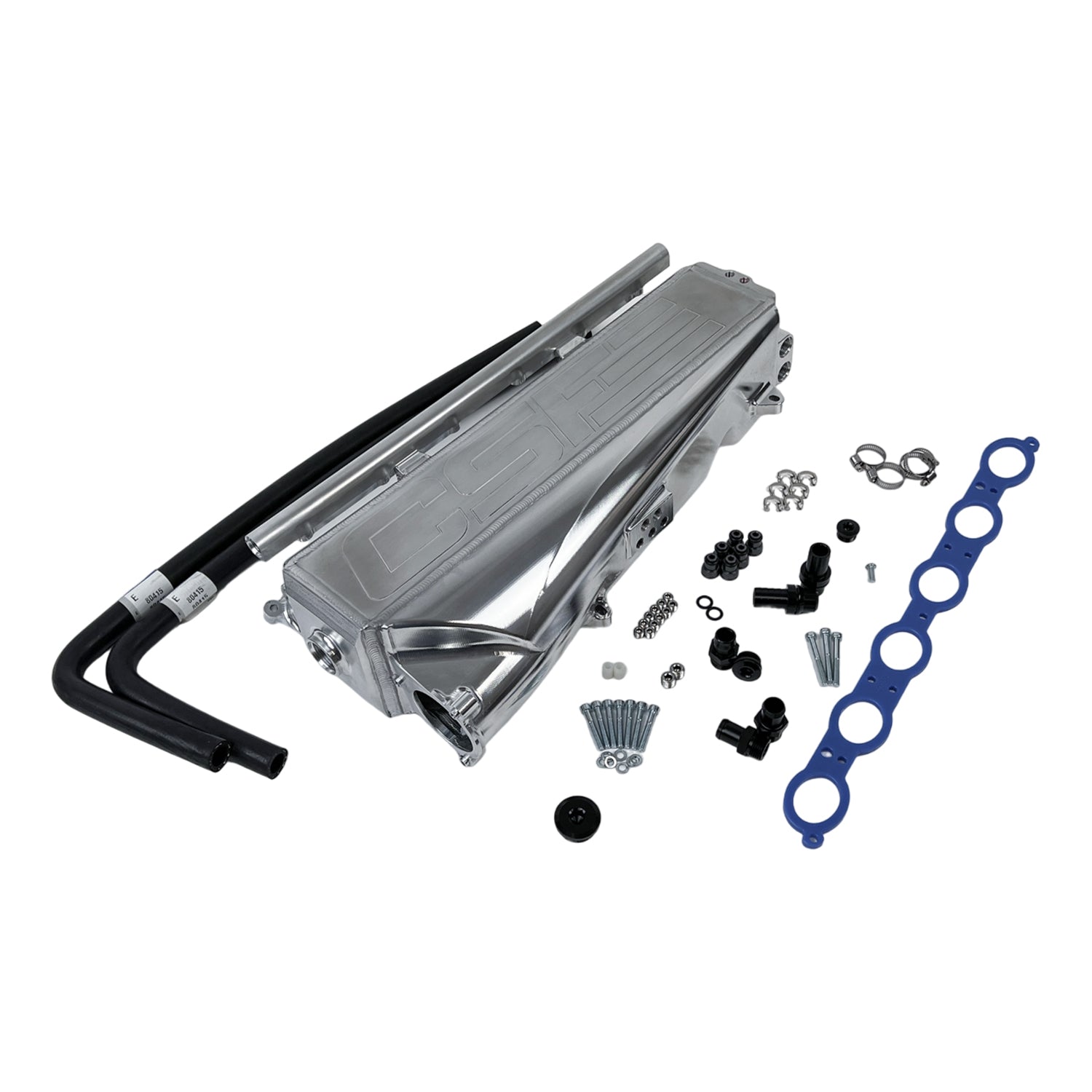

- Includes Hardware and Installation Kit with Picture Diagrams and Instructions

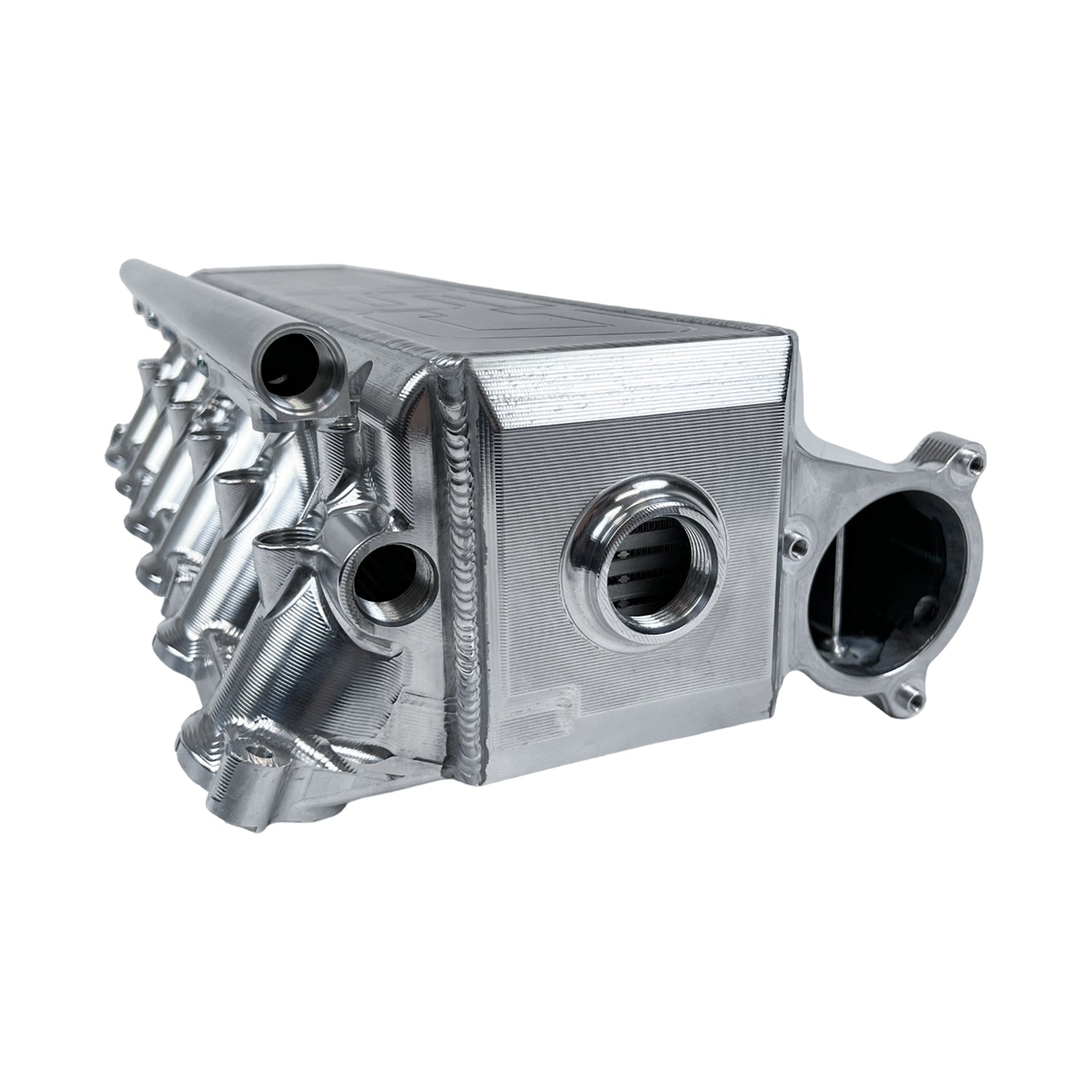

- Finish: Raw Billet – Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
COMPATIBILITY
- BMW G20/G21 M340i (2019+)
- BMW G22/G23/G26 M440i (2020+)
- BMW G42 M240i xDrive (2022+)
- BMW G30/G31 540i (2018+)
- BMW G32 630i/640i (2018+)
- BMW G14/G15/G16 840i (2018+)
- BMW G01 X3 M40i (2018+)
- BMW G02 X4 M40i (2018+)
- BMW G29 Z4 M40i (2018+)
- Toyota GR Supra (2018+)
