CSF B58 Gen1 Charge Air Cooler Manifold (F2X M140i, M240i, F3X 340i, 440i & more)
IN STOCK WITH SUPPLIER. DESPATCH IN 3-4 WEEKS.
Select Finish
CSF B58 Gen1 Charge Air Cooler Manifold (F2X M140i, M240i, F3X 340i, 440i & more)
Raw (Silver)
R44 Performance HQ
Latif House, First Way, Wembley
Unit 4
London HA9 0JD
United Kingdom
Choose options
IN STOCK WITH SUPPLIER. DESPATCH IN 3-4 WEEKS.
Select Finish
IN STOCK WITH SUPPLIER. DESPATCH IN 3-4 WEEKS.
Select Finish
Introducing the CSF B58 Gen1 Charge Air Cooler Manifold, your ultimate performance upgrade for the BMW B58 engine. Crafted with precision and passion, this charge air cooler manifold is designed to maximise cooling efficiency, unleashing the full potential of your B58 engine.
Constructed from high-quality materials, the CSF Charge Air Cooler Manifold ensures durability and reliability, even under the most demanding driving conditions. Experience improved heat dissipation and reduced intake temperatures, resulting in enhanced power output and throttle response. Say goodbye to heat soak and hello to consistent performance on the road or track.
With CSF's commitment to quality and performance, you can trust that the Charge Air Cooler Manifold will exceed your expectations. Elevate your driving experience with CSF and experience the thrill of optimised performance with every drive.
PRODUCT SPECIFICATION
- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
- Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
- Significantly Lower Pressure Drop Across the Core Compared to OEM
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Improved slotted mounting holes on throttle body side for easier installation.
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes – No Need to Uninstall Manifold Every Oil Change
- Counter Balanced Design for Optimized Airflow

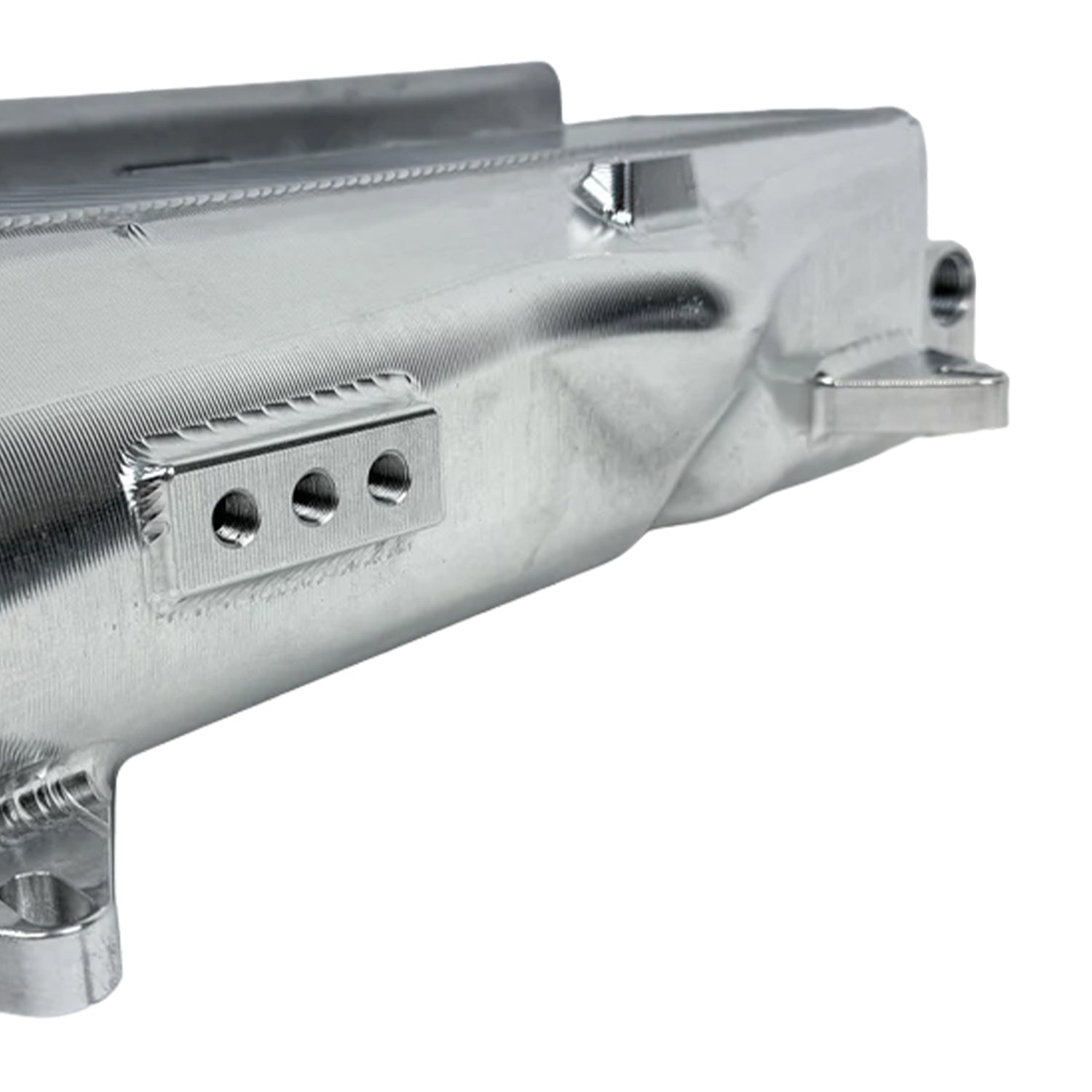

- Integrated Sensor Pad with Three 1/8″ NPT Ports to Measure Additional Parameters

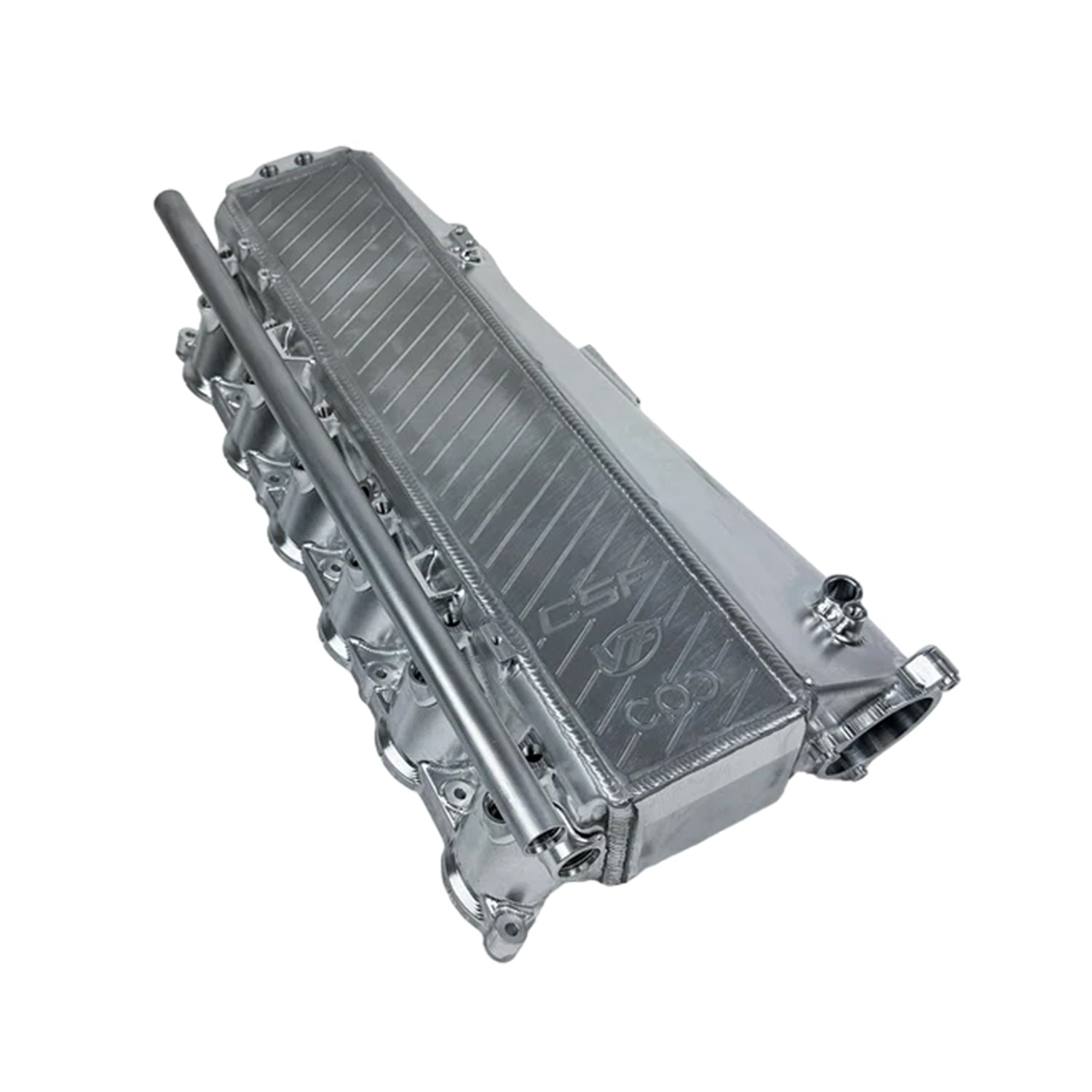

- Included Optional Fuel Rail for Top Feed Port Injection

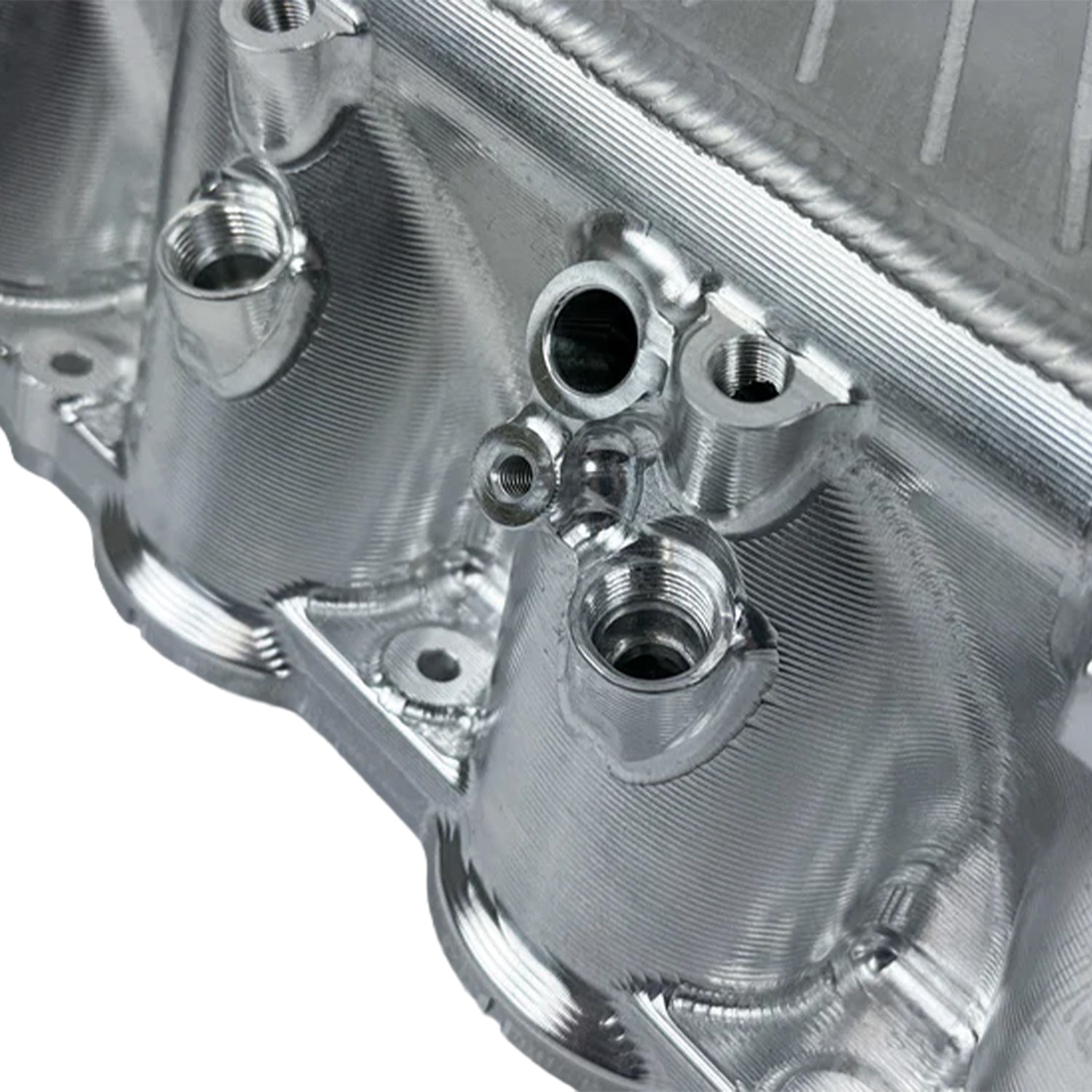

- Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
- Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
- Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection

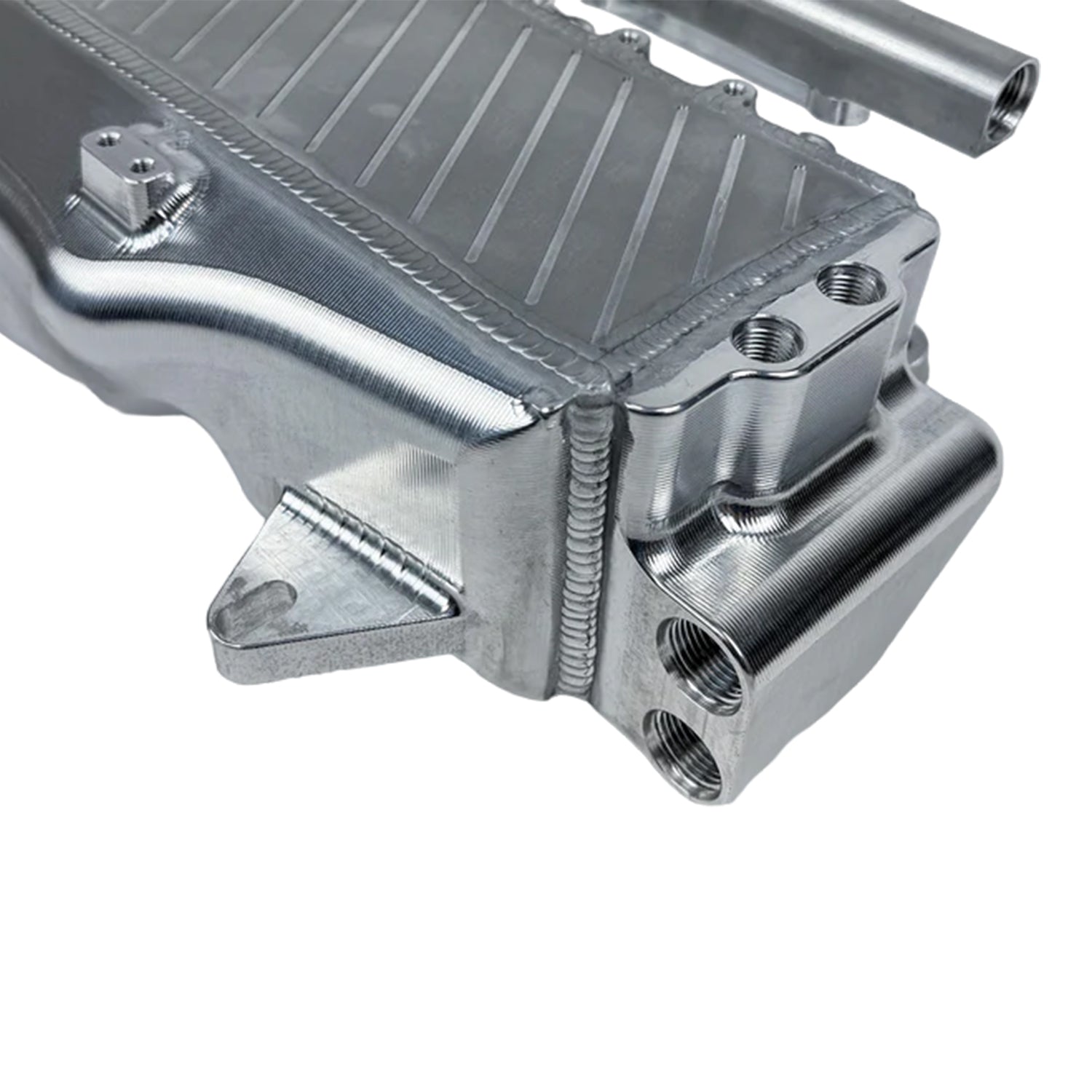

- Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
- Included KIYLEX Thermal Rejection Manifold Spacer*
- Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
- Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
- Proven to lower intake manifold temperatures by up to 15%
- Lowers Intake Air Temps (IATs)
- Plug-and-Play design, Requiring No Modifications to Install
- Includes Hardware and Installation Kit with Picture Diagrams Containing 32 Different Parts for Easy Installation
- Comes Finished in Raw Billet Aluminum – Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia

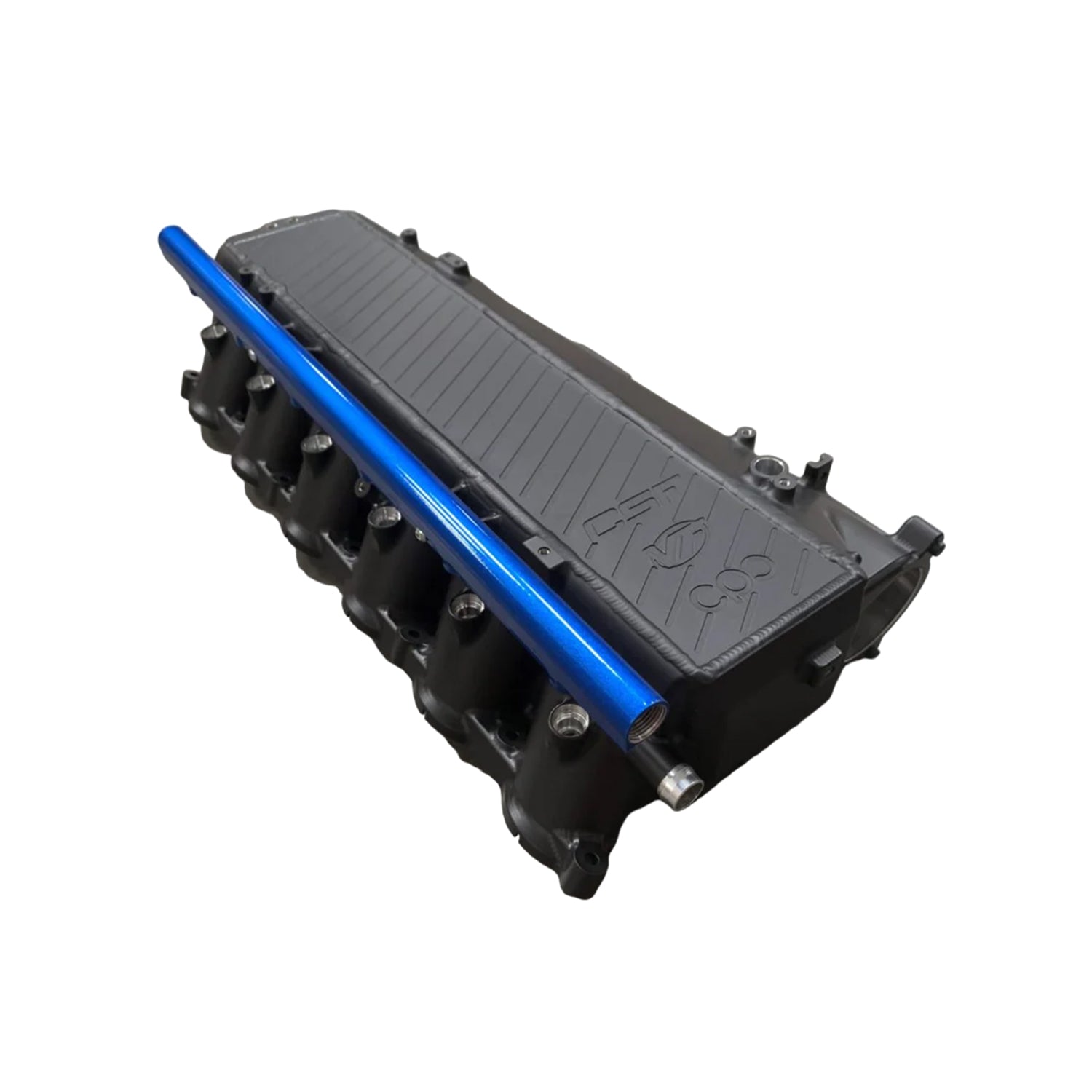

- Optional Powder-Coating and Thermal Rejection Finishes Available – CSF #8300C / #8300B
COMPATIBILITY
- BMW F20/F21 M140i
- BMW F22/F22 M240i
- BMW F3X 340i
- BMW F3X 440i
