CSF HP Bar & Plate Intercooler Core 22Lx14Hx4.5W - Vertical Flow / R35 GT-R Fitment

The CSF HP Bar & Plate Intercooler Core 22Lx14Hx4.5W - Vertical Flow / R35 GT-R Fitment represents a pinnacle of engineering excellence in the field of high-performance cooling solutions. Designed to meet and exceed the rigorous demands of professional tuners and performance enthusiasts, this intercooler core is meticulously crafted to ensure optimal thermal efficiency, durability, and reliability under extreme conditions.

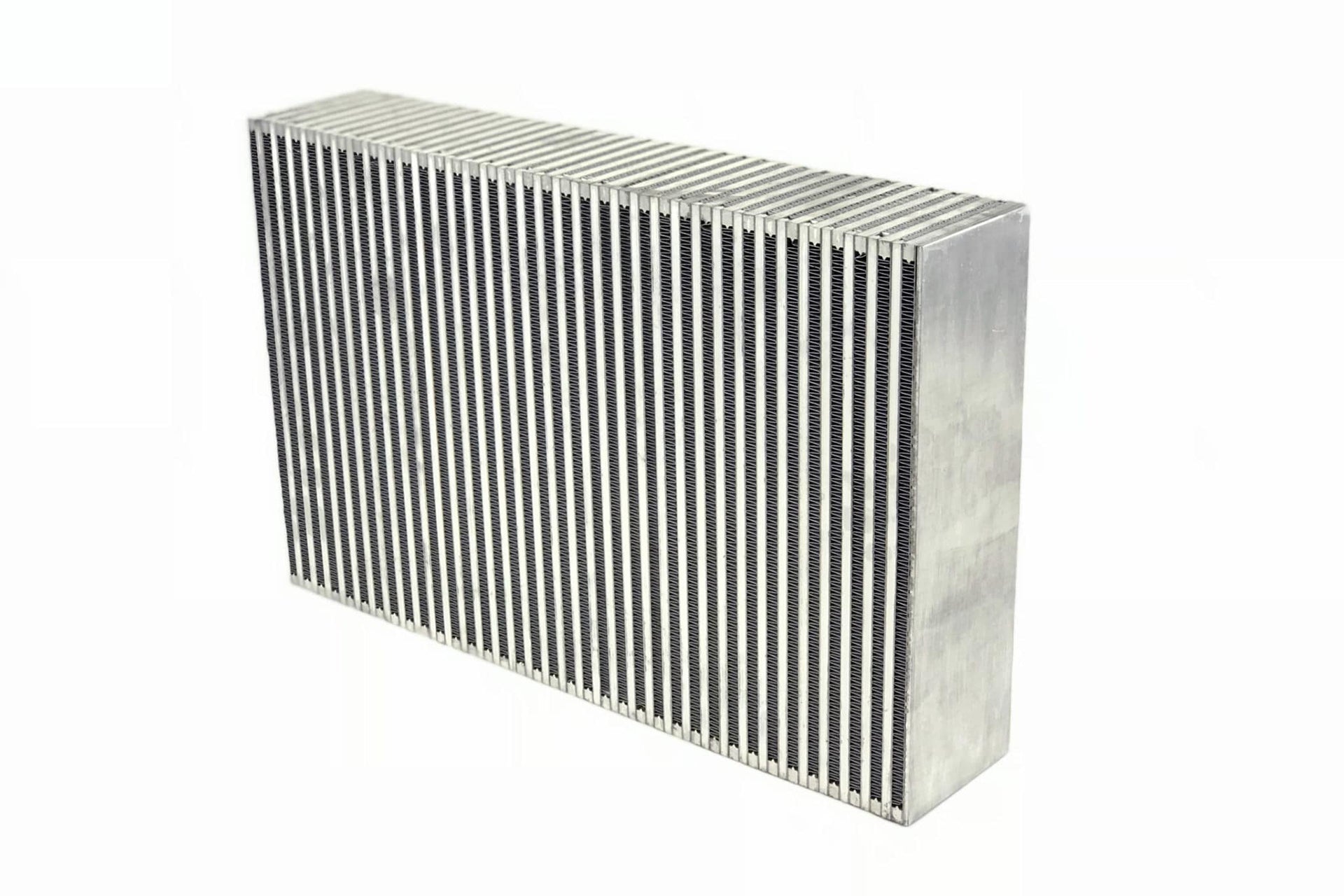

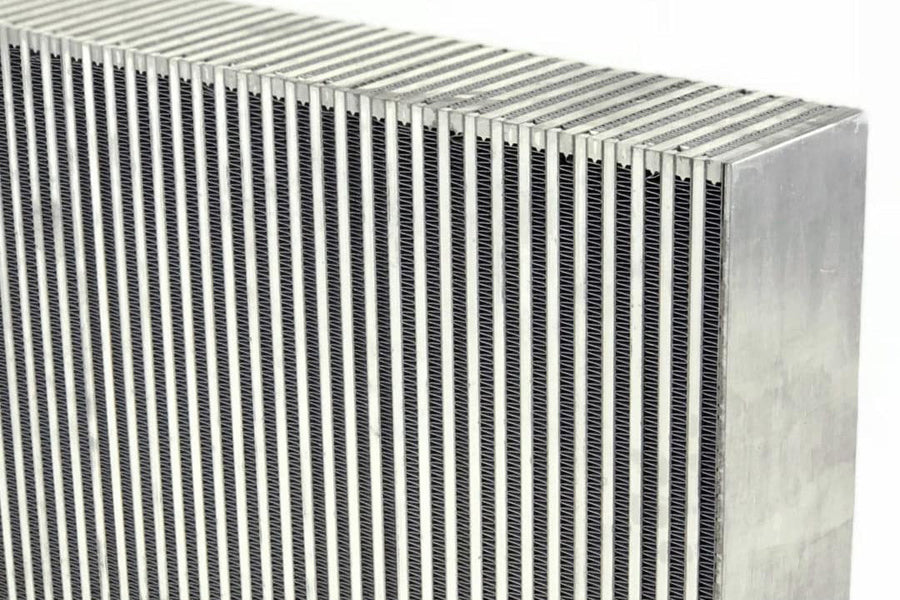

Measuring 22 inches in length, 14 inches in height, and 4.5 inches in width, this vertical flow core is specifically engineered to fit the Nissan R35 GT-R platform, making it an ideal choice for custom intercooler builds that require a robust and efficient cooling component. The core’s capacity to support up to 1500 wheel horsepower (WHP) underscores its suitability for high-boost applications, where maintaining low intake air temperatures is critical for engine performance and longevity.

At the heart of the CSF intercooler core’s superior performance is its heavy-duty bar and plate construction, a proven design that offers enhanced strength and improved heat dissipation compared to traditional tube and fin cores. This construction method ensures the core can withstand the high pressures and thermal stresses encountered in demanding automotive environments.

Each intercooler core undergoes rigorous quality assurance protocols, including a pressure test at 120 psi to verify its integrity and leak-free operation. This stringent testing guarantees that the core will perform reliably even under the most extreme boost pressures, providing peace of mind to installers and end-users alike.

The manufacturing process is equally meticulous. The core is hand-built using precision jigs and fixtures to ensure perfect straightness, which facilitates seamless welding during installation. Assembly takes place in a controlled clean room environment within the CSF factory, where technicians wear gloves to maintain a pristine surface condition. This attention to detail ensures proper brazing and a contamination-free core surface, essential for achieving a durable and high-quality weld.

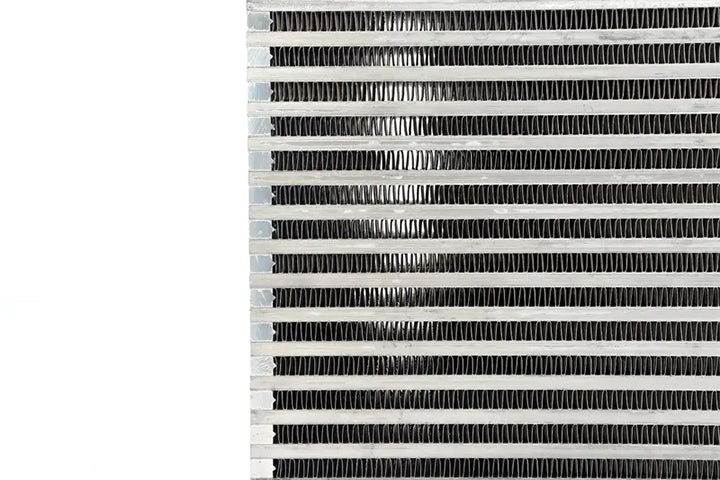

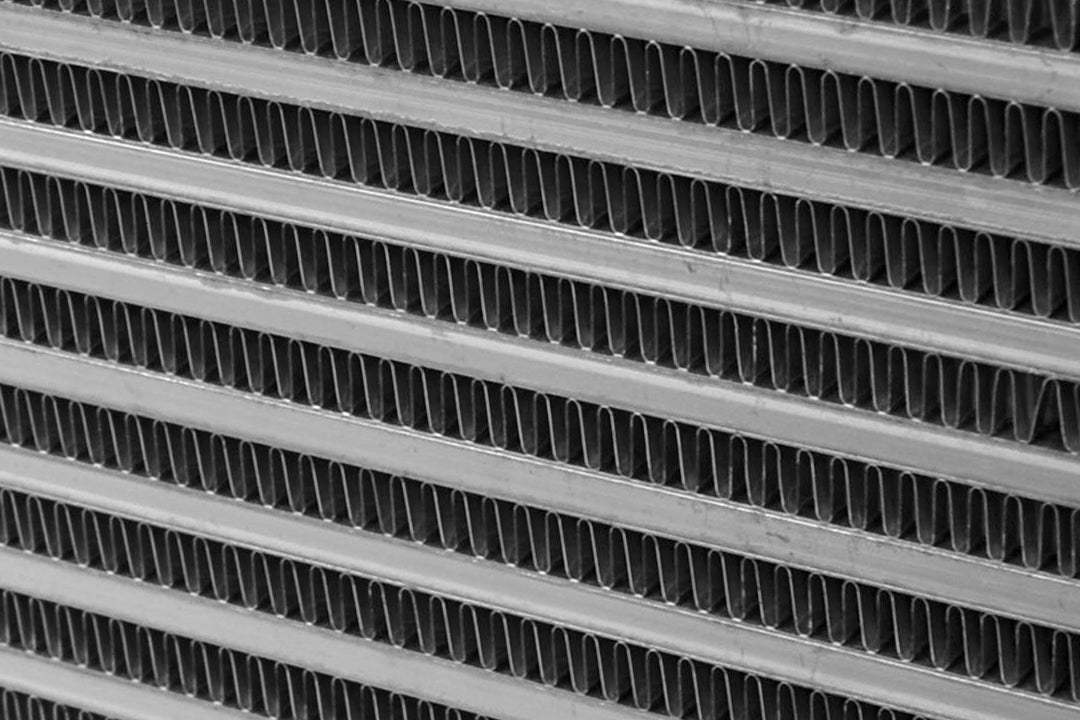

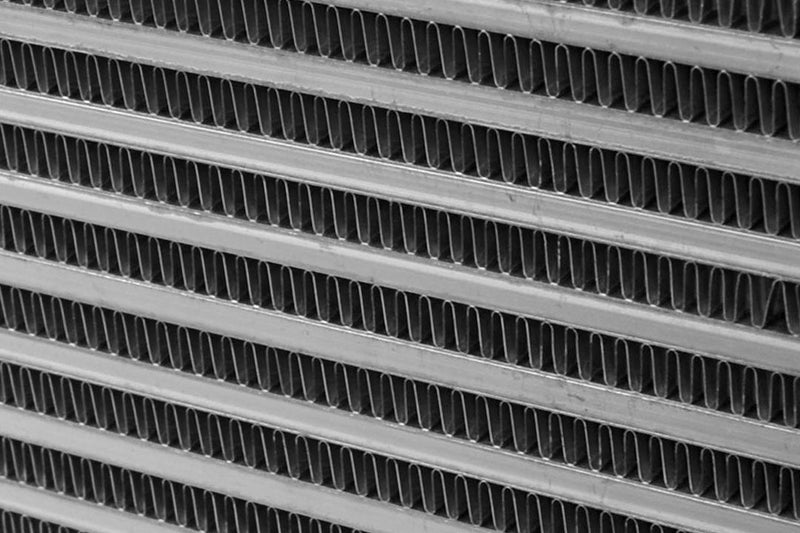

One of the key technological features of this intercooler core is its multi-louvered high precision staggered fin design, applied on both the ambient and pressure sides of the core. This design maximizes heat transfer efficiency by increasing the surface area and promoting turbulent airflow, which enhances cooling performance without compromising airflow resistance.

The core is batch brazed in CSF’s state-of-the-art digital vacuum brazing ovens—12 ovens in total—ensuring consistent and uniform brazing quality across every unit produced. This advanced brazing process contributes significantly to the core’s structural integrity and thermal conductivity.

Features

• Heavy-Duty Bar & Plate Intercooler Cores engineered for high strength and durability
• Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
• Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core to Facilitate Easy and Accurate Welding
• Manufactured by Hand in a Clean Room Using Gloves to Ensure Proper Brazing and a Clean Surface for Future Welding
• Multi-Louvered High Precision Staggered Fin Design on Both Ambient and Pressure Sides for Optimal Heat Transfer
• Batch Brazed in CSF’s Advanced Digital Vacuum Brazing Ovens (12 Ovens in Total) for Consistent Quality
• Strict Quality Control and Individual Pressure Testing to Guarantee Performance and Reliability
• Individually Boxed and Protected for Secure Transport via Single Piece Mail Services
• Dimensions: 22"x14"x4.5" (560mm x 355mm x 115mm)
• HP Rating: 1500 WHP
• Vertical Flow Design Specifically for Nissan R35 GT-R Fitment

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) stands behind the quality and durability of their high-performance cooling systems. Under normal use and service conditions, CSF warrants this product to the original purchaser of the vehicle in which it was initially installed. For comprehensive warranty details and terms, please visit the Warranty Page.

SKU# 8117 Warranty Term: 2 years

In summary, the CSF HP Bar & Plate Intercooler Core is a premium component engineered for enthusiasts and professionals who demand uncompromising performance and reliability. Its robust construction, precision manufacturing, and advanced heat transfer design make it an essential upgrade for any high-boost Nissan R35 GT-R or custom intercooler application. Trust CSF to deliver a product that meets the highest industry standards and supports your vehicle’s performance goals with confidence.
