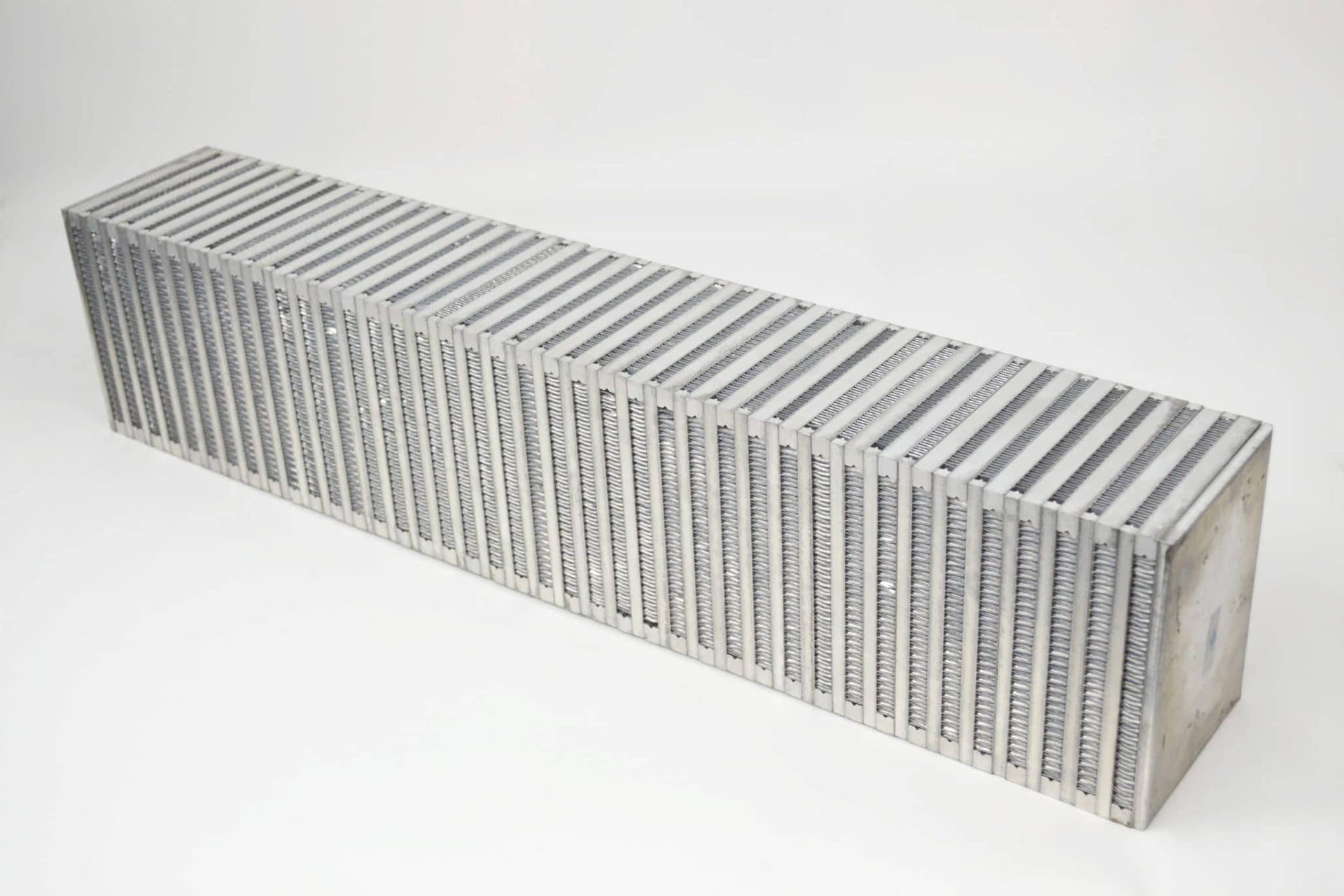

CSF High-Performance Bar & Plate Intercooler Core 27x6x4.5 - Vertical Flow

The CSF High-Performance Bar & Plate Intercooler Core measuring 27" x 6" x 4.5" with Vertical Flow design represents a pinnacle in intercooler technology, engineered to meet the demanding requirements of high-boost, high-horsepower applications. Trusted by leading tuning and performance specialists worldwide, this intercooler core is rated to support up to 1100 WHP, making it an ideal choice for custom builds requiring superior cooling efficiency and durability.

Each intercooler core undergoes rigorous pressure testing at 120psi to guarantee maximum reliability under extreme boost conditions. This ensures that the core maintains structural integrity and consistent performance even in the most challenging environments. The manufacturing process is meticulously controlled, with each unit hand-built using precision jigs and fixtures to achieve a perfectly straight core. This attention to detail facilitates straightforward welding and installation, enhancing both the quality and longevity of the final assembly.

Manufactured within a clean room environment at the CSF factory, the core is assembled using gloves to maintain a pristine surface, critical for proper brazing and subsequent welding processes. This meticulous approach ensures that every core meets stringent quality standards, reducing the risk of contamination and defects. The core features a multi-louvered, high-precision staggered fin design on both the ambient and pressure sides, optimizing heat transfer efficiency and contributing to superior intercooling performance.

The batch brazing process takes place in CSF’s state-of-the-art digital vacuum brazing ovens—12 ovens in total—ensuring uniform and robust brazing throughout the core. This advanced manufacturing technique enhances the core’s durability and thermal conductivity, critical for maintaining performance under sustained high temperatures and pressures. Each core is subjected to strict quality control protocols, including individual pressure testing, to verify its performance and reliability before packaging.

Features

• Heavy-Duty Bar & Plate Intercooler Cores engineered for high-performance applications
• Pressure Tested at 120psi to ensure maximum reliability in extreme boost scenarios

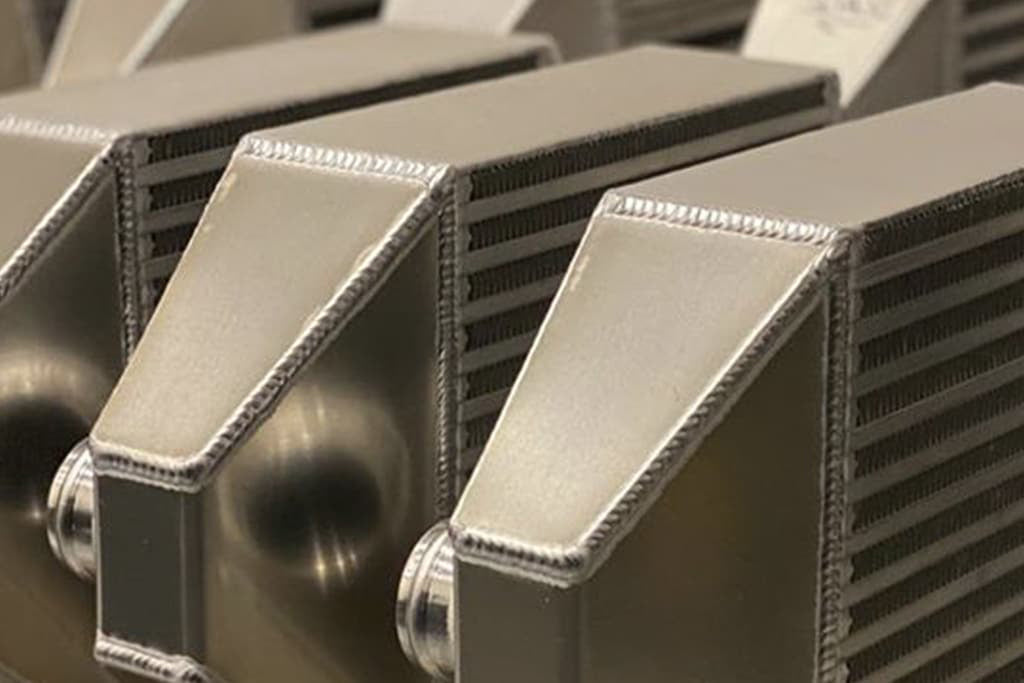

• Hand-Built Using Jigs & Fixtures for a perfectly straight core, facilitating easy welding and installation
• Manufactured in a Clean Room environment with glove use to guarantee proper brazing and a clean surface for future welding

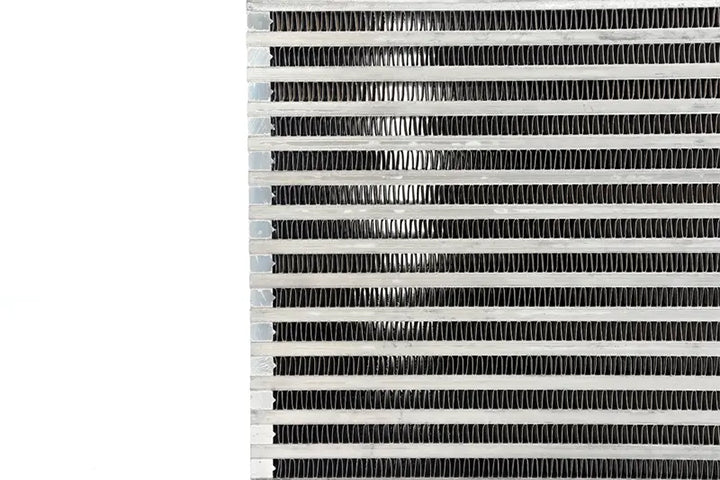

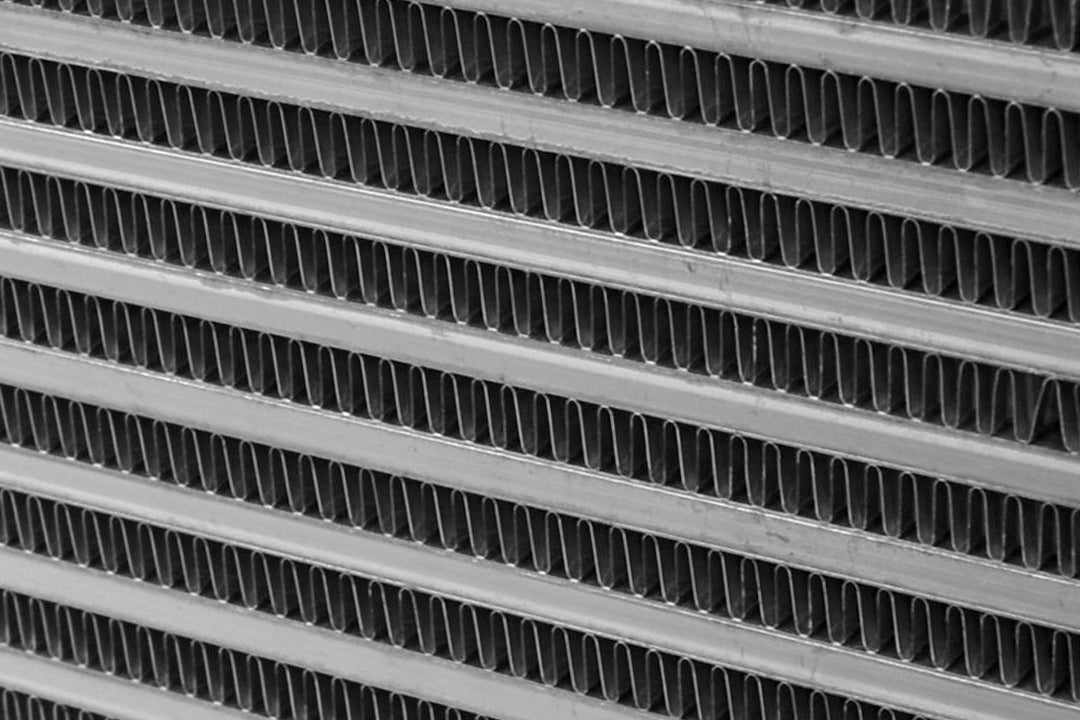

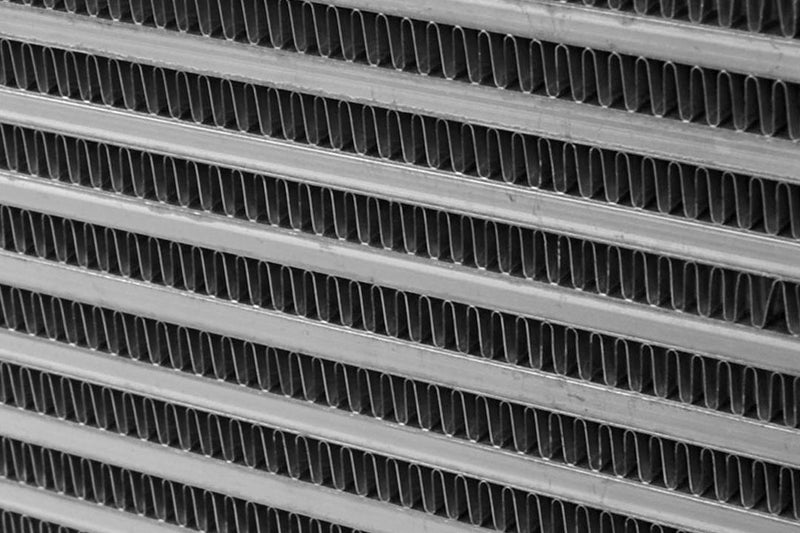

• Multi-Louvered High Precision Staggered Fin Design on both ambient and pressure sides for optimal heat transfer
• Batch Brazed in CSF’s advanced Digital Vacuum Brazing Ovens for superior structural integrity
• Strict Quality Control and Individual Pressure Testing to ensure consistent performance
• Individually Boxed and Protected for secure transport via single-piece mail services
• Dimensions: 27" x 6" x 4.5" (686mm x 152mm x 114mm)
• Horsepower Rating: 1100 WHP

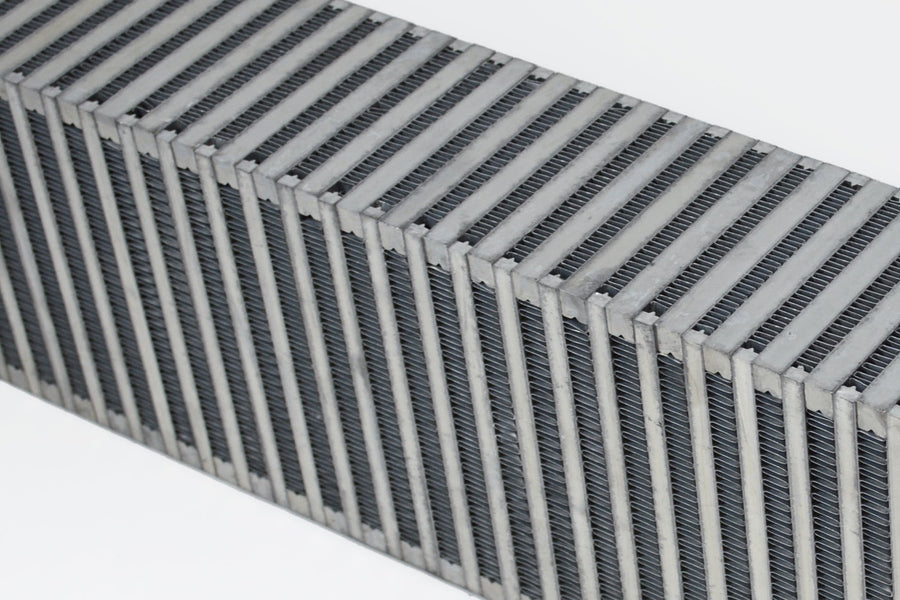

• Vertical Flow design for efficient coolant movement and heat dissipation

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) provides a warranty for its High-Performance Cooling Systems under normal use and service conditions to the original purchaser of the vehicle in which the product was initially installed. This warranty underscores CSF’s commitment to quality and customer satisfaction. For comprehensive warranty details, please visit our Warranty Page.

SKU# 8054 Warranty Term: 2 years
