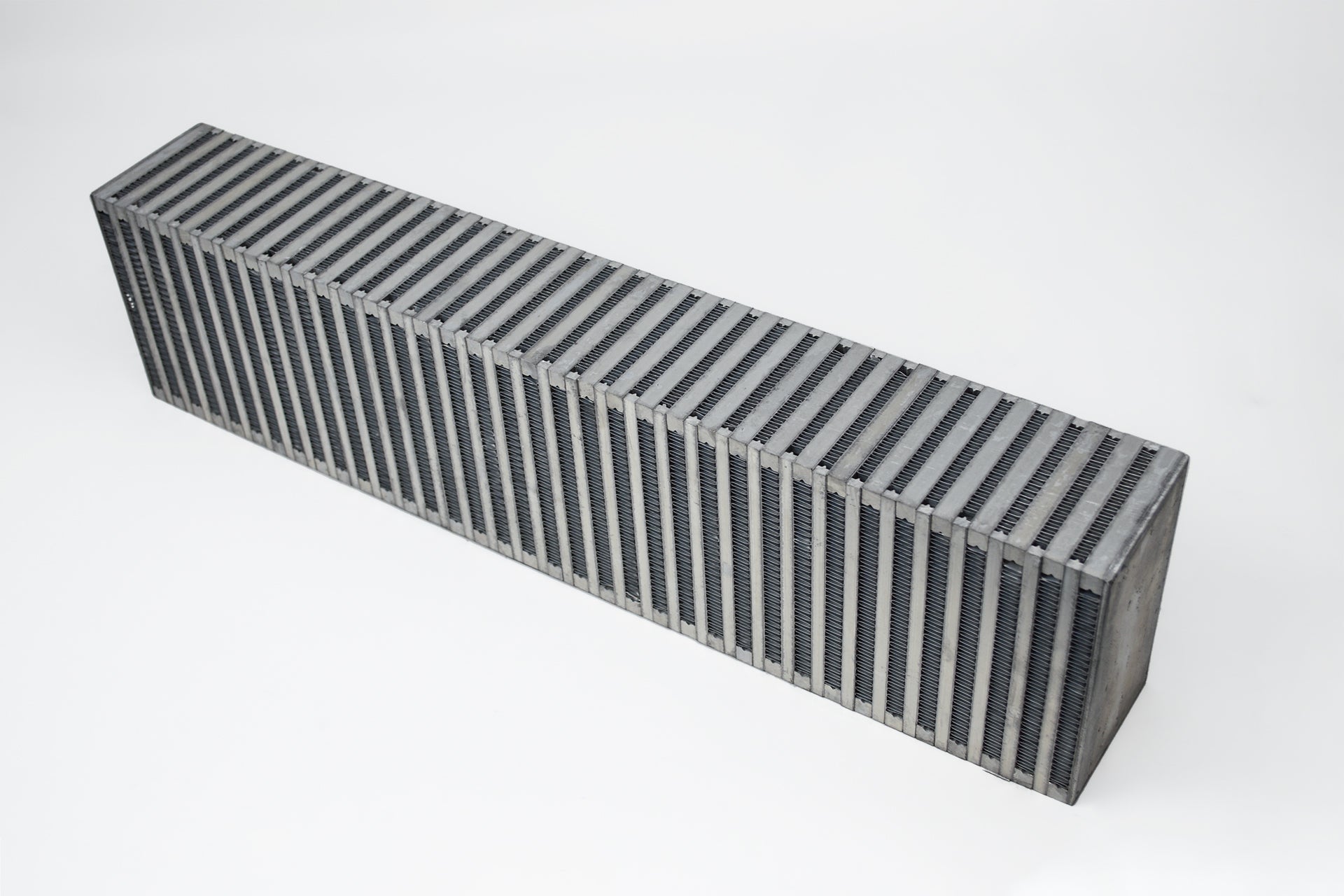

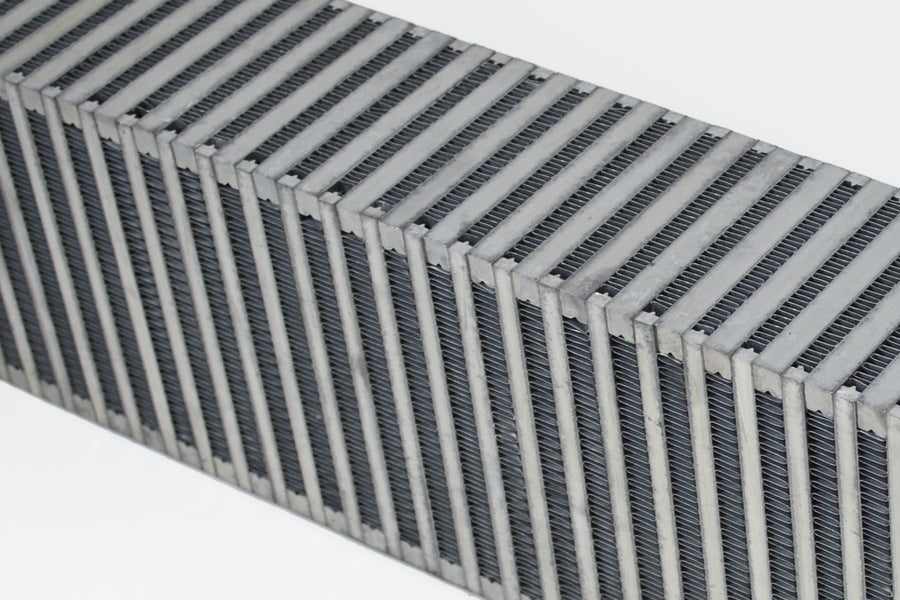

CSF High-Performance Bar & Plate Intercooler Core 24x6x3.5 - Vertical Flow

The CSF High-Performance Bar & Plate Intercooler Core, measuring 24" x 6" x 3.5" with a vertical flow design, represents a pinnacle of engineering precision and durability for demanding automotive applications. Trusted by leading tuning and performance specialists worldwide, this intercooler core is engineered to support up to 800 wheel horsepower (WHP), making it an ideal choice for custom high-performance intercooler builds where reliability and efficiency are paramount.

Each core undergoes rigorous pressure testing at 120 psi to ensure maximum durability and leak-free performance under extreme boost conditions. This stringent quality assurance process guarantees that the intercooler core maintains integrity even in the most challenging environments, providing peace of mind for professional builders and enthusiasts alike.

Manufactured with meticulous attention to detail, the core is hand-built within a controlled clean room environment at the CSF factory. Skilled technicians utilize specialized jigs and fixtures to achieve a perfectly straight core, facilitating seamless welding and installation. The use of gloves during assembly ensures that the brazing surfaces remain uncontaminated, promoting optimal bonding and longevity.

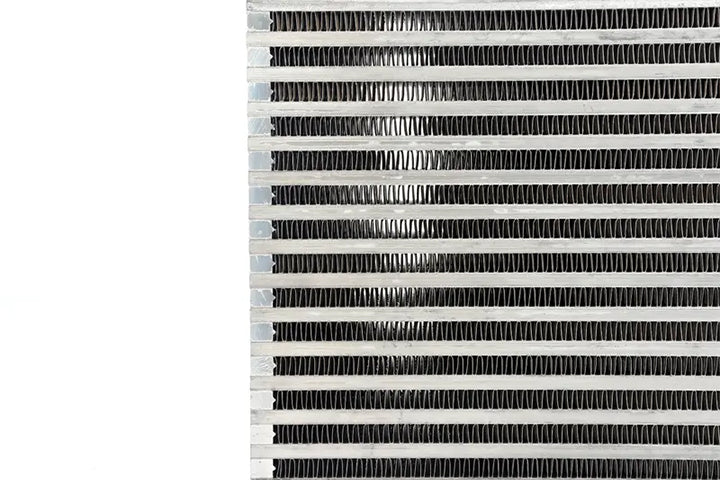

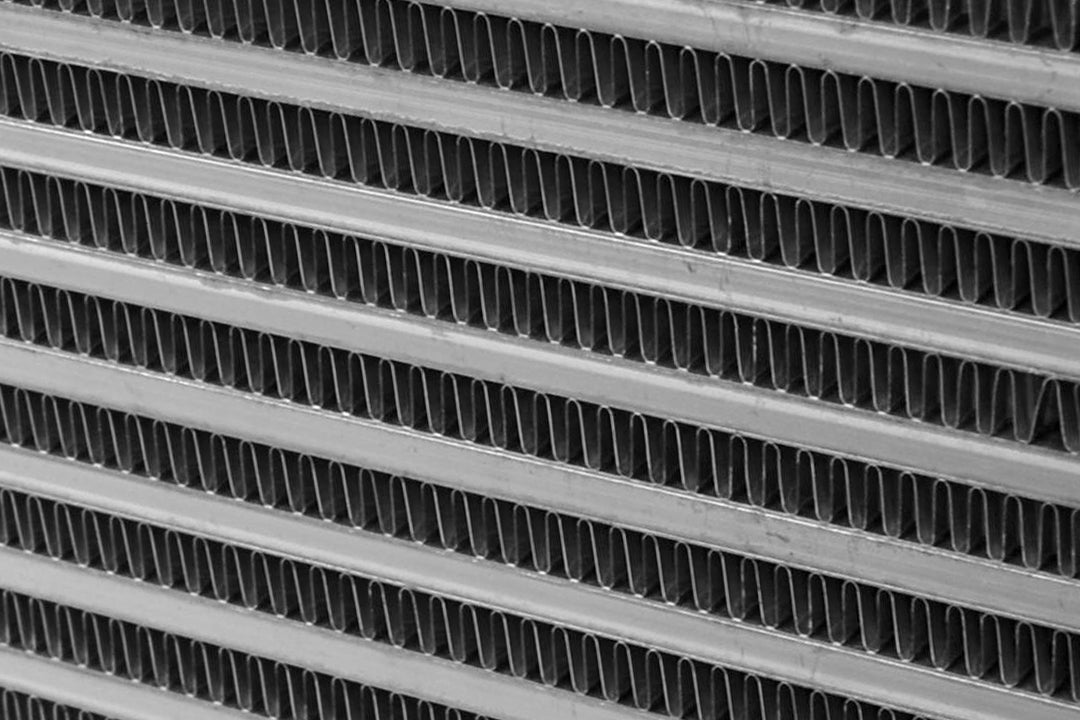

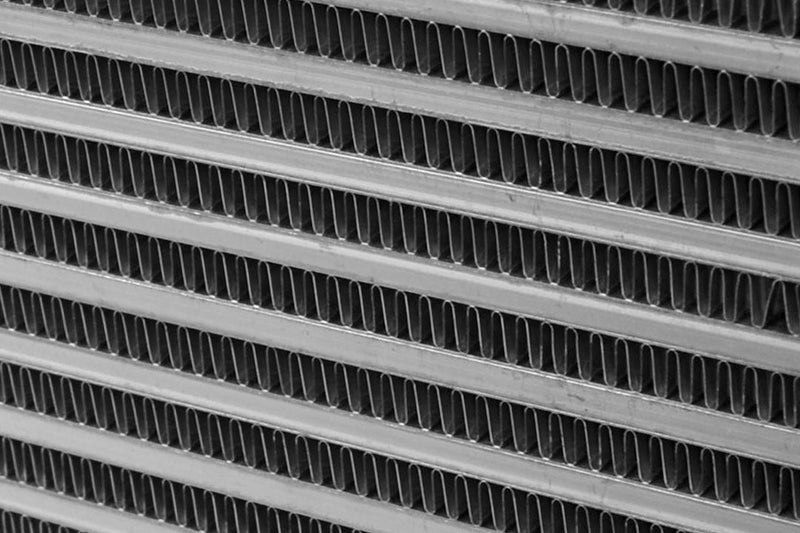

The core features a sophisticated multi-louvered, high-precision staggered fin design on both the ambient and pressure sides. This advanced fin configuration significantly enhances heat transfer efficiency, enabling superior cooling performance that supports sustained power output and engine reliability. The core is batch brazed in CSF’s state-of-the-art digital vacuum brazing ovens—12 ovens in total—ensuring uniform brazing quality and structural integrity throughout the entire production run.

Features

• Heavy-Duty Bar & Plate Construction for Enhanced Strength and Durability
• Pressure Tested at 120 psi to Guarantee Reliability in High-Boost Applications
• Hand-Built Using Precision Jigs & Fixtures for Perfect Core Alignment and Easy Welding
• Manufactured in a Clean Room Using Gloves to Ensure Proper Brazing and Clean Surfaces
• Multi-Louvered, High-Precision Staggered Fin Design on Both Ambient and Pressure Sides for Optimal Heat Transfer
• Batch Brazed in CSF’s Advanced Digital Vacuum Brazing Ovens for Consistent Quality
• Strict Quality Control Including Individual Pressure Testing for Each Core
• Individually Boxed and Securely Packaged for Safe Transport via Single Piece Mail Services
• Dimensions: 24" x 6" x 3.5" (610mm x 150mm x 90mm)
• Rated for 800 Wheel Horsepower (WHP)
• Vertical Flow Design for Efficient Airflow Management

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) provides a comprehensive warranty on its High-Performance Cooling Systems, covering the original purchaser under normal use and service conditions. This warranty underscores CSF’s commitment to product excellence and customer satisfaction. For detailed warranty information, please visit our Warranty Page.

SKU# 8053 Warranty Term: 2 years
