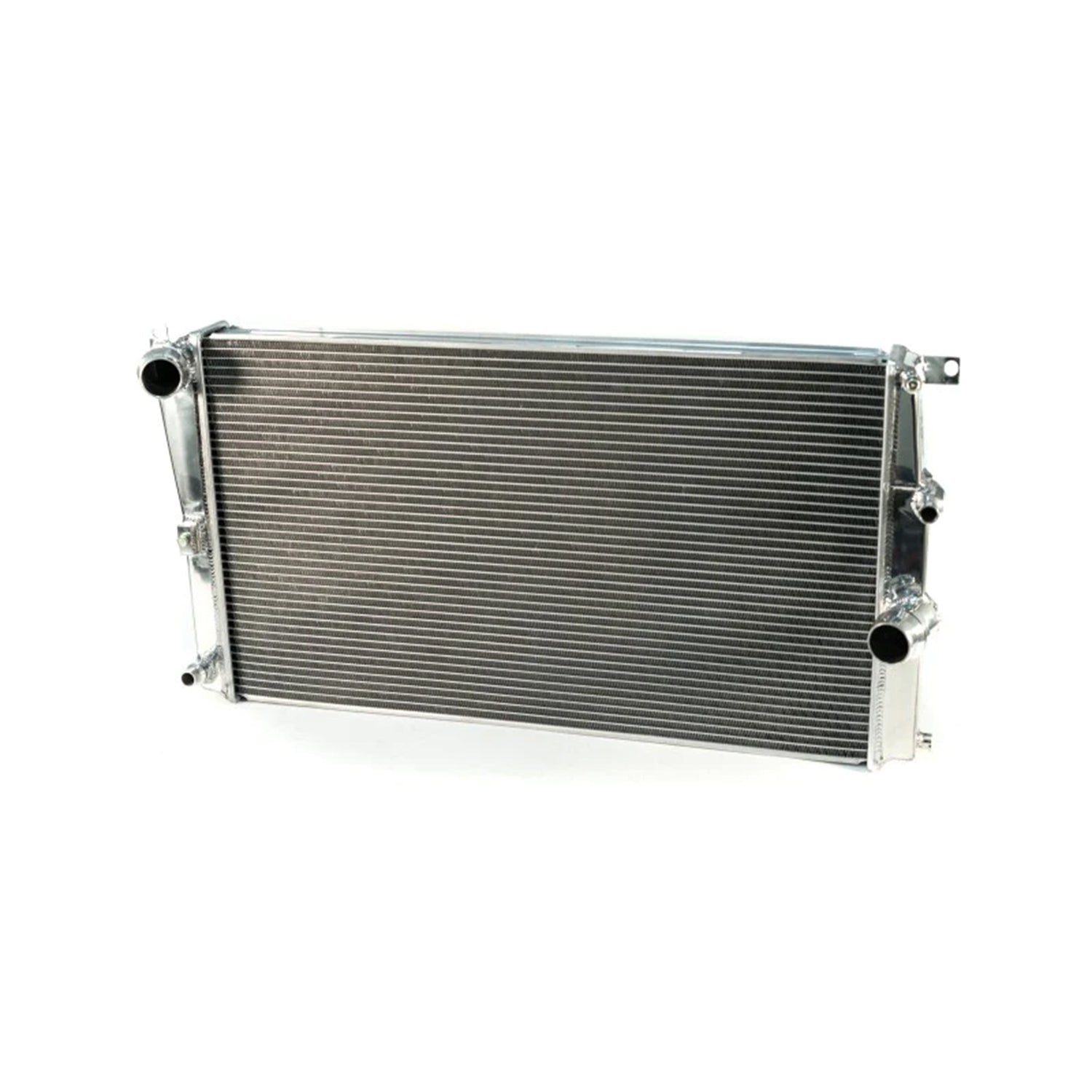

CSF High Performance Radiator for BMW N55 engine. Fitment includes BMW F87 M2. F20 M135i, F22 M235i, F30 335i and F32 435i. Keep temperatures consistently low and prevent heat soak from prolonged periods of fast driving.

FEATURES

- 2-row 42mm core (dual core) featuring CSF’s exclusive B-tube technology
- Core features an ultra-efficient fin with 6.5mm fin height and multi-louvered design for maximum surface area contact

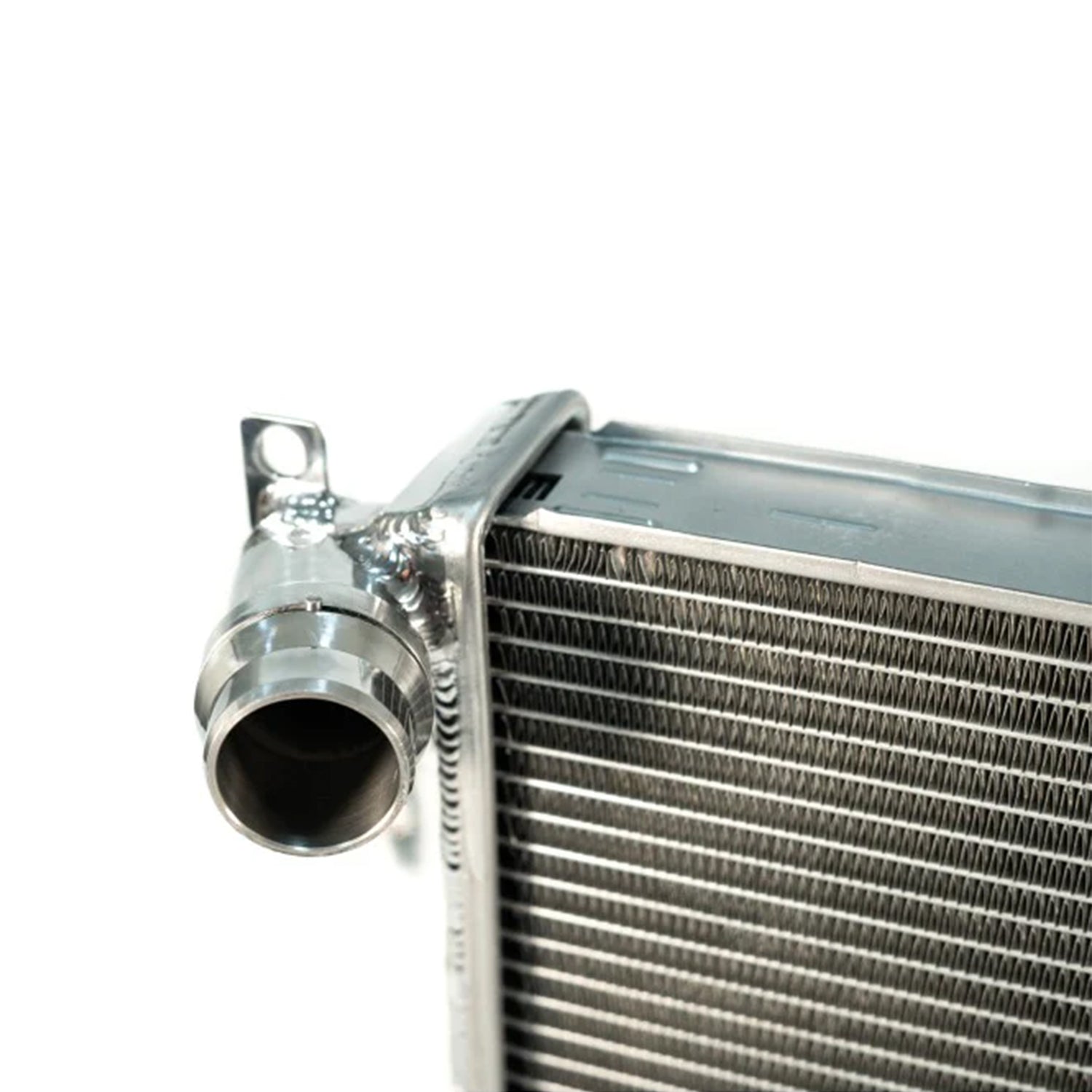

- CNC machined “quick-connect” inlet/outlet connections + all aux connections.

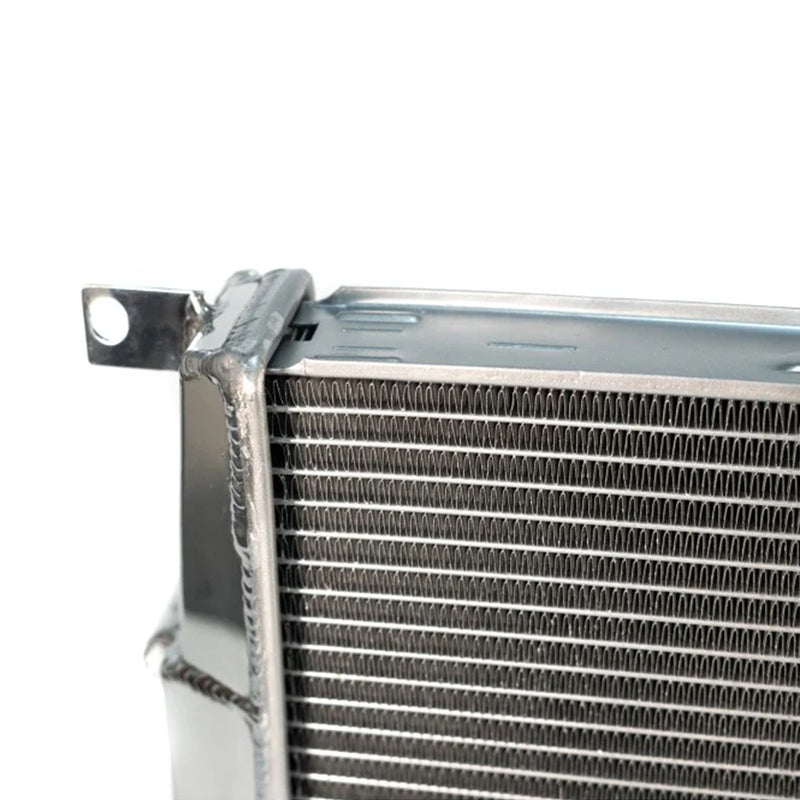

- CNC machined brackets and fittings for superb fit and durability
- All-aluminium race-style drain plug
- 1 hour “mirror finish” hand polish
- “Drop-in fit” requiring no modifications to install. Accepts all attaching OEM components including “quick-connect” hoses, AC condenser, mounting brackets, and fan shroud

Replaces OEM part: #17118672103

TECHNOLOGY

- “B-Tube” technology – Unlike a regular oval shape “O” type radiator tube, CSF uses a specially engineered tube in the shape of a “B”. These “B-tubes” are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminium material (better cooling efficiency) because this design is actually stronger than normal “O” shape tubes that are welded.
- The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes. You get the efficiency of 2 smaller tubes vs. 1 large tube with it the same space criteria. With “B-tubes” you are able to get “dual liquid laminar flow.”
- High-Efficiency Multi Louvered Fin – CSF uses ultra efficient multi louvred fins that are carefully and precisely aligned to maximise airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

CSF manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry-leading testing methods to maximise airflow and heat dissipation. These techniques allow CSF to stay ahead of the pack when it comes to radiator technology!

COMPATIBILITY

CSF-7078 High Performance Radiator fits the following vehicles:

- BMW F87 M2 N55 Coupe (2016-2018)
- BMW F20/F21 M135i Hatchback (2012-2016)
- BMW F22/F23 M235i Coupe (2014-2016)
- BMW F30/F31/F34 335i (2012-2016)
- BMW F32/F33/F36 435i (2012-2016)
