CSF
CSF B58 Gen2 Charge Air Cooler Manifold (G20 340i, G22 440i, G42 M240i & more)
IN STOCK WITH SUPPLIER. DESPATCH IN 3-4 WEEKS.
Select Finish
CSF B58 Gen2 Charge Air Cooler Manifold (G20 340i, G22 440i, G42 M240i & more)
Raw (Silver)
R44 Performance HQ
Latif House, First Way, Wembley
Unit 4
London HA9 0JD
United Kingdom
Choose options
IN STOCK WITH SUPPLIER. DESPATCH IN 3-4 WEEKS.
Select Finish
IN STOCK WITH SUPPLIER. DESPATCH IN 3-4 WEEKS.
Select Finish

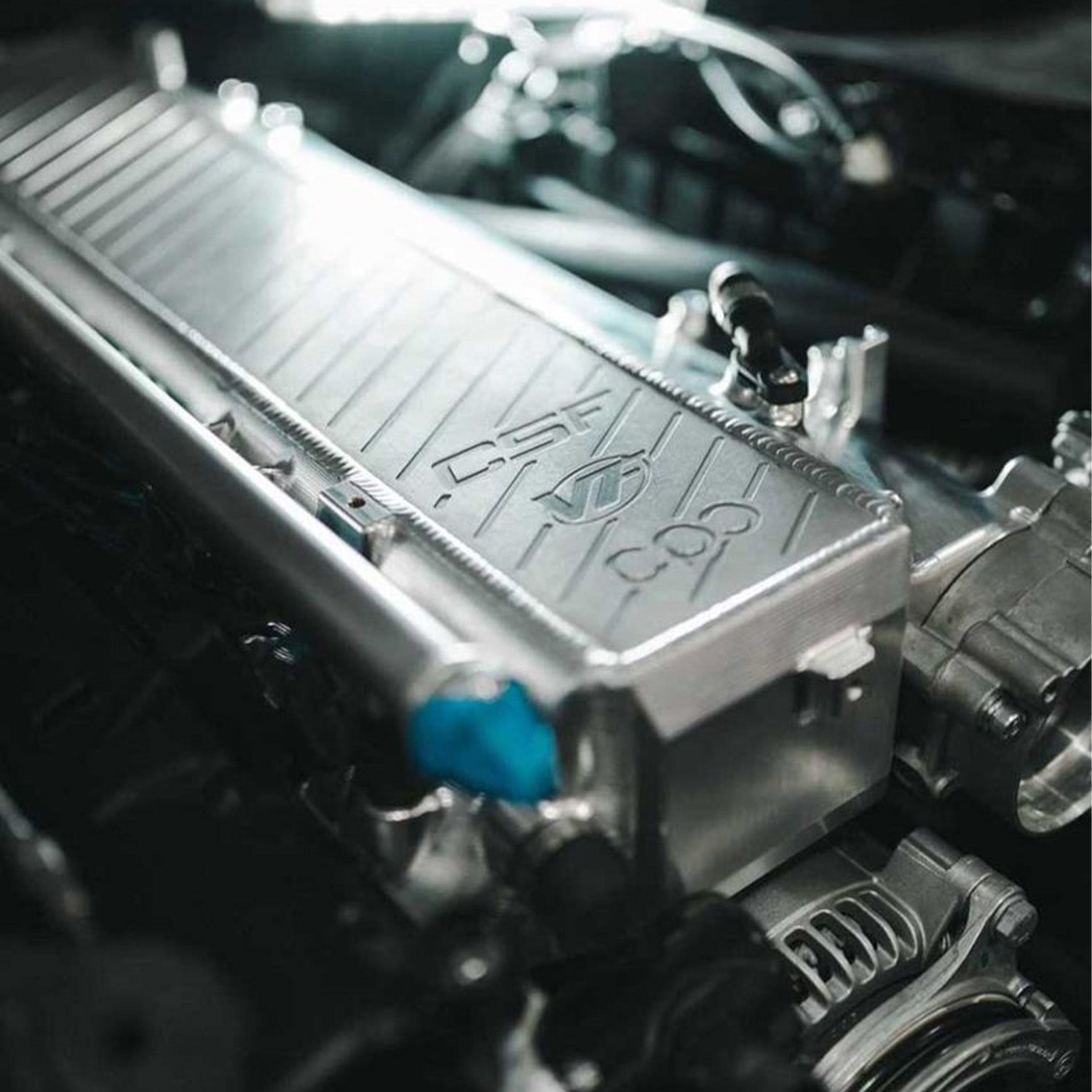

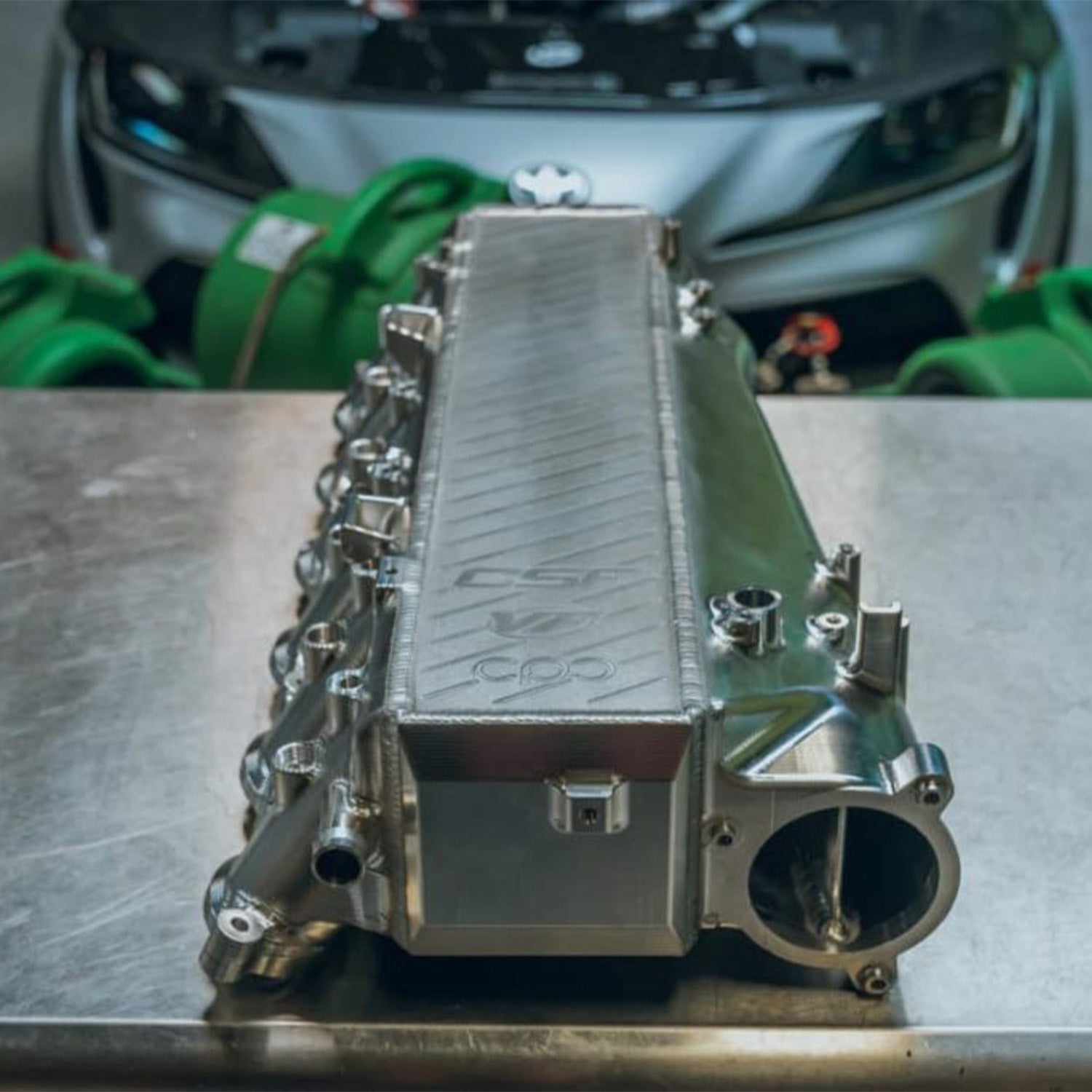

With over 1500 hours of design, development, machining, and testing, CSF, along with partners VF Engineering (USA) and Custom Plenum Creations (Australia), has now brought a state-of-the-art CNC machined, high-performance Charge-Air Cooler Manifold to the B58 platform (Mk5 Supra and BMW models). This product solves what has been commonly known as a weak link of an otherwise impressive new engine platform. With the larger and more efficient water-to-air intercooler performance, lower pressure drop across the system, included fuel rail, kit for top feed port injection, and several other industry-leading features, the CSF Super Manifold will allow B58 owners to maximize the performance of their vehicles and push the limits further than what has been previously possible with this new platform.
The newer 2nd gen B58 engine, found in the Mk5 Supra, has already been proven to be an incredible platform for performance enthusiasts - taking the performance and motorsports industry by storm in just a couple of years since its release. Customers are now pushing through the 1000whp mark on their B58-powered vehicles with the CSF manifold. The OEM water-cooled charge air cooler intake manifold for the B58 engine is adequate in cars with little or no modifications but starts to really show its weakness in cars with bolt-on mods, turbo upgrades, increased fueling (such as port injection), and performance tuning. The OEM intercooler system has also been known to suffer from heat soak in demanding racing conditions such as time attack, endurance racing, drag racing, drifting, and even spirited street driving. This can cause the car to pull timing out of the engine due to high intake air temperatures (IATs), and can cause "limp mode" once temperatures reach a certain threshold, as the vehicle's ECU attempts to protect the engine.

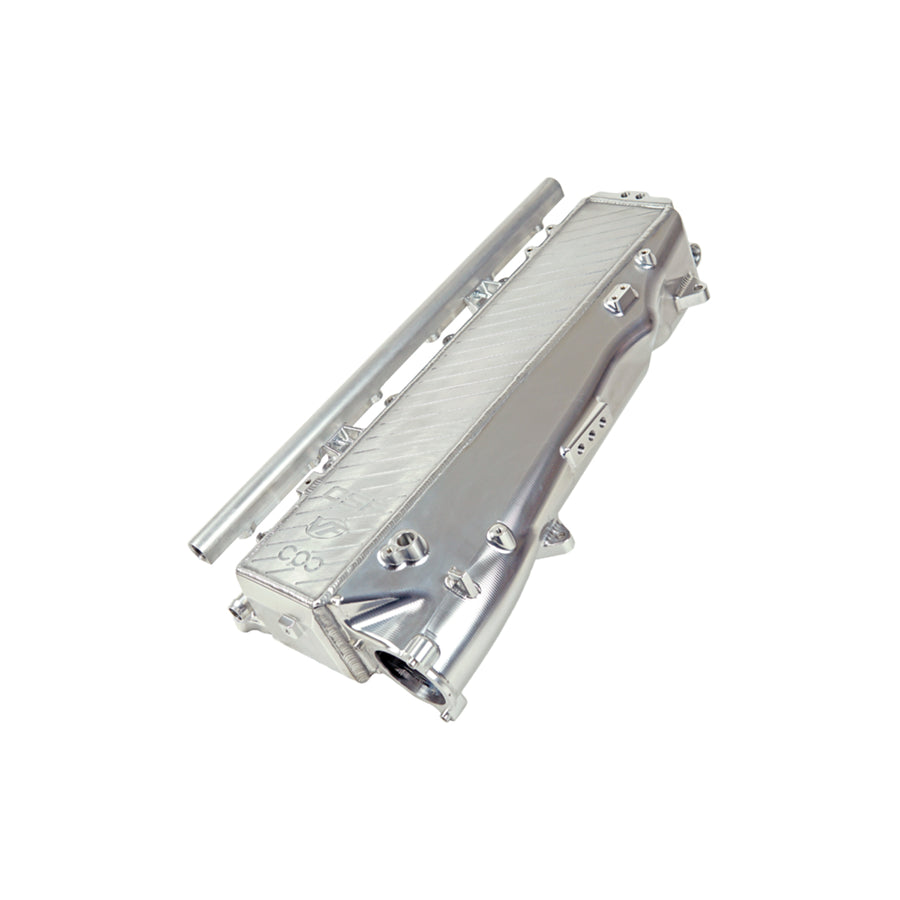

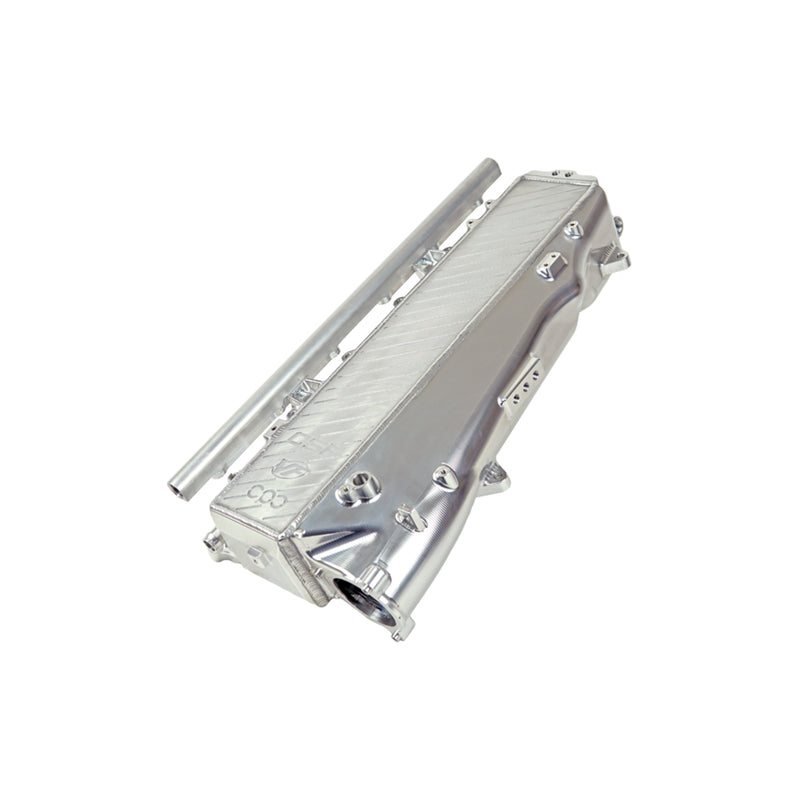

The CSF #8200 comes in a raw billet aluminum finish. Also available in Thermal Black Heat Dispersion (CSF #8200B) & custom colours/finishes (CSF #8200C).
Features
- Utilises a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
- Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
- Significantly Lower Pressure Drop Across the Core Compared to OEM
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)

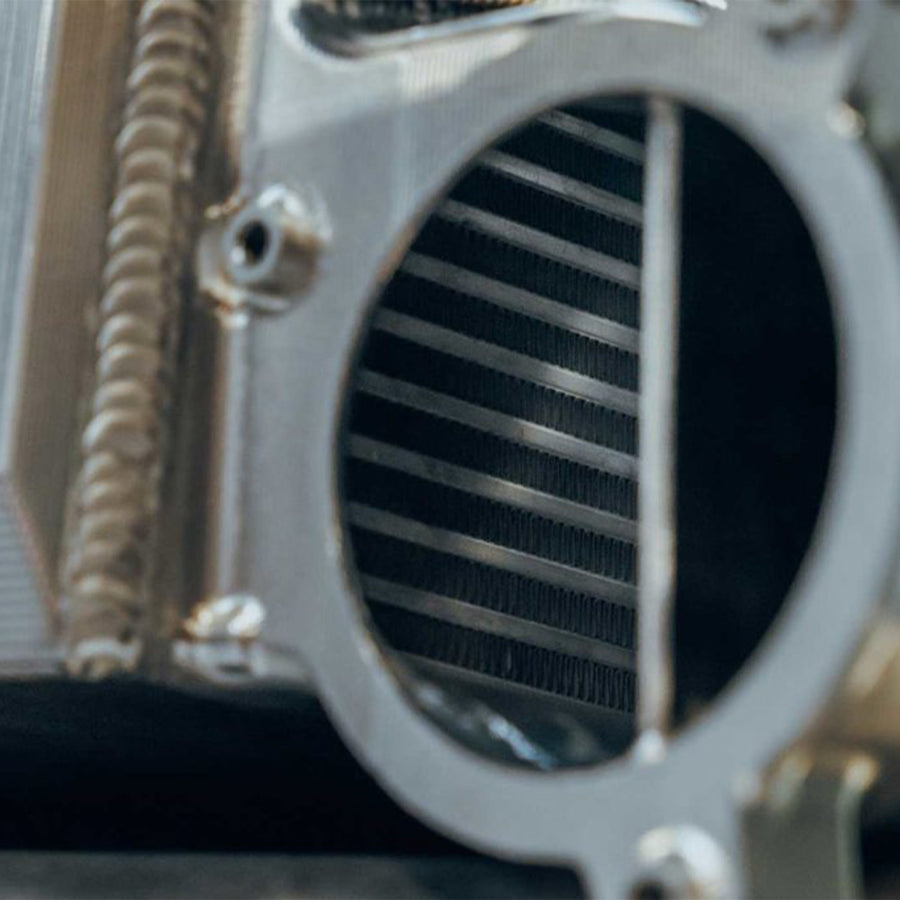

- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change
- Counter Balanced Design for Optimized Airflow

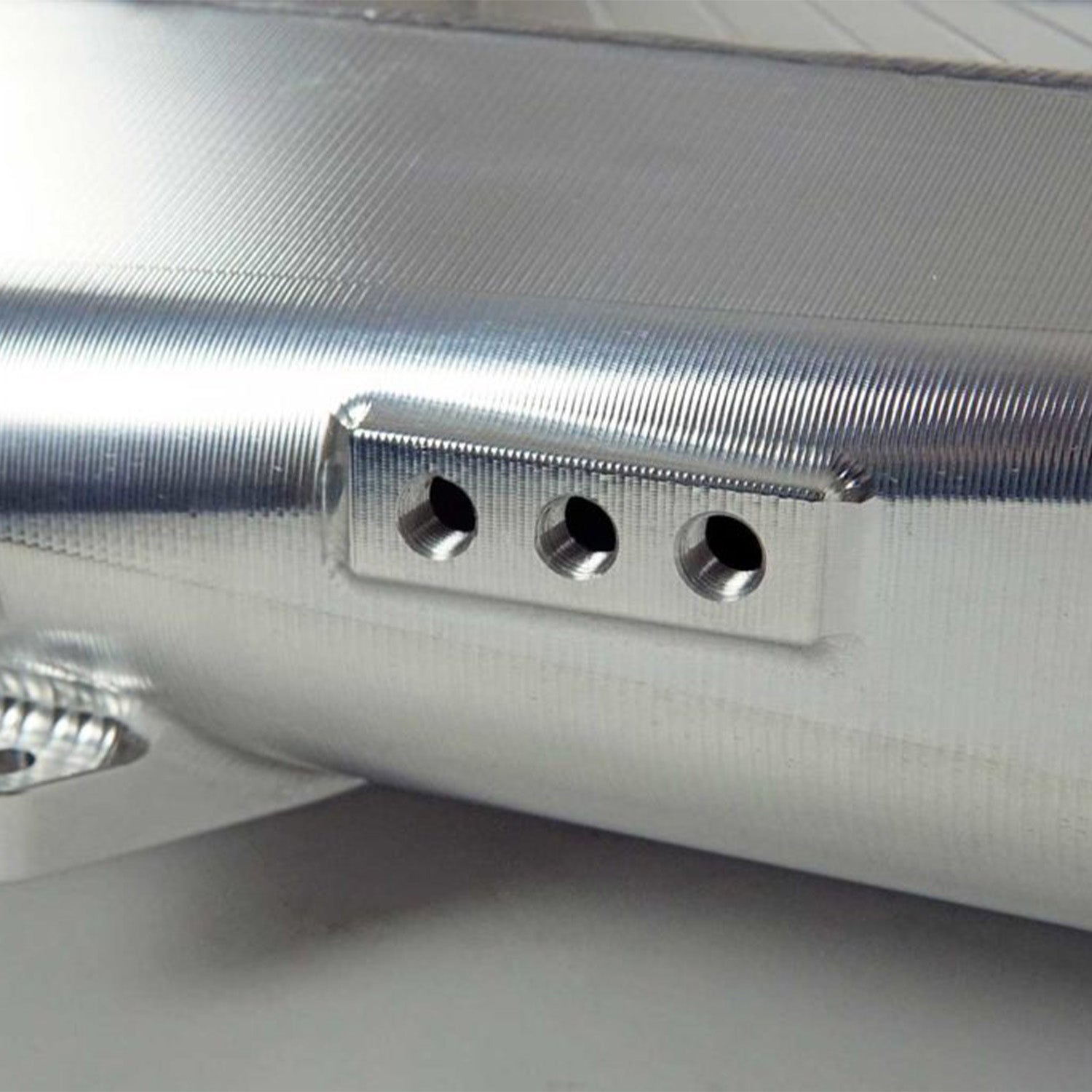

- Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters

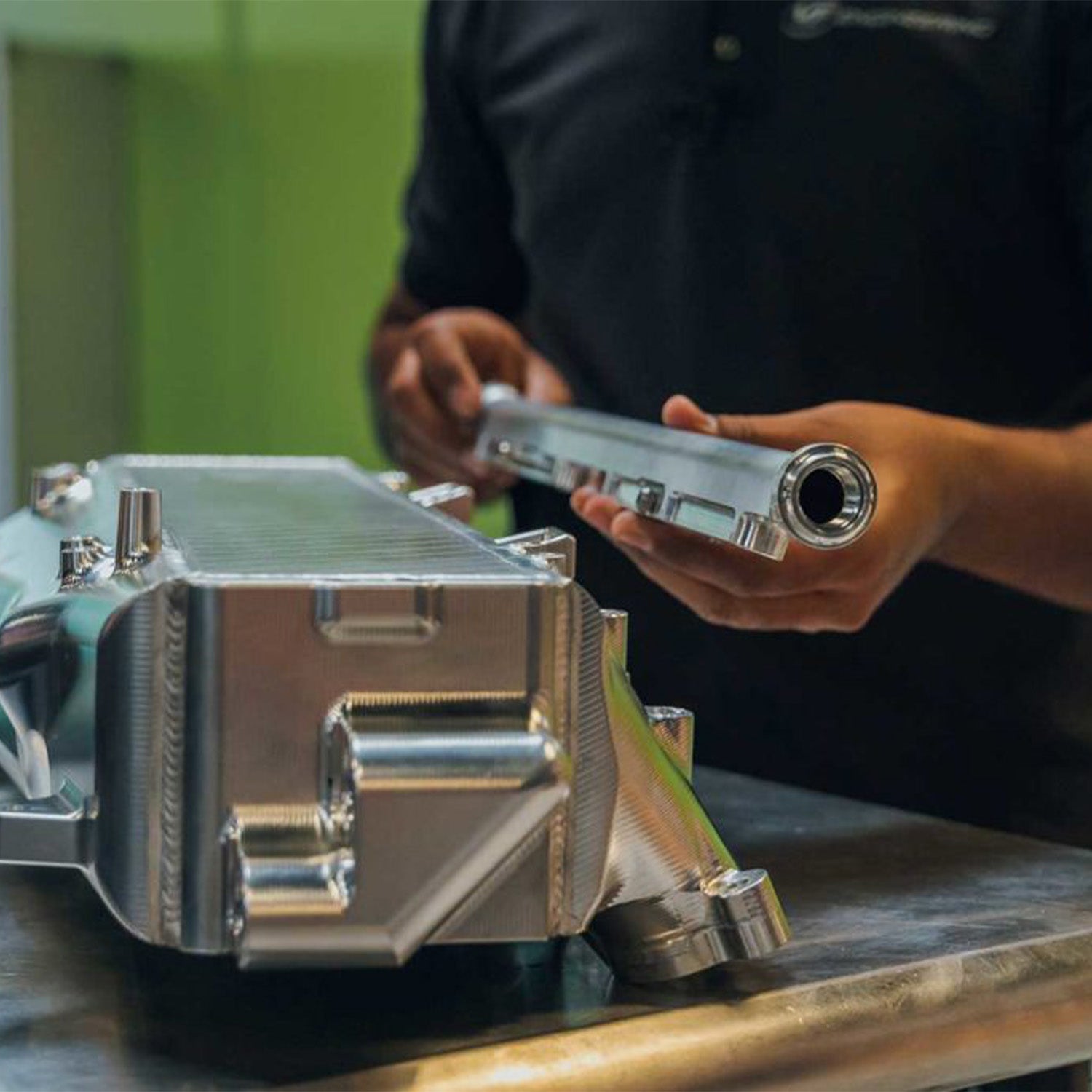

- Included Optional Fuel Rail for Top Feed Port Injection
- Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
- Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
- Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
- Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
- Plug-and-Play design, Requiring No Modifications to Install
- Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation
- Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)
- Comes Finished in Raw Billet Aluminum (available in custom finishes) - Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
- CSF pressure tests each #8200 / #8200C manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process.
The CSF manifold is not designed to operate above 60 PSI. Users who choose to operate their vehicle with the CSF manifold over 60 PSI do so at their own risk. Operation at these pressure levels will void the CSF Limited Warranty.
Compatible Vehicles
- 2020-2023 BMW G30 540i - Turbocharged 3.0L L6
- 2020-2023 BMW G30 540i xDrive - Turbocharged 3.0L L6
- 2018-2022 BMW G11 740i - Turbocharged 3.0L L6
- 2018-2022 BMW G11 740i xDrive - Turbocharged 3.0L L6
- 2020-2022 BMW G11 745e xDrive - Turbocharged 3.0L L6
- 2020-2024 BMW G1X 840i - Turbocharged 3.0L L6
- 2020-2024 BMW G1X 840i Gran Coupe - Turbocharged 3.0L L6
- 2020-2024 BMW G1X 840i xDrive - Turbocharged 3.0L L6
- 2020-2024 BMW G1X 840i xDrive Gran Coupe - Turbocharged 3.0L L6
- 2023+ BMW G42 M240i - Turbocharged 3.0L L6
- 2022+ BMW G42 M240i xDrive - Turbocharged 3.0L L6
- 2020-2024 BMW G2X M340i - Turbocharged 3.0L L6
- 2020-2024 BMW G2X M340i xDrive - Turbocharged 3.0L L6
- 2021-2024 BMW G2X M440i - Turbocharged 3.0L L6
- 2024+ BMW G2X M440i Gran Coupe - Turbocharged 3.0L L6
- 2021-2024 BMW G2X M440i xDrive - Turbocharged 3.0L L6
- 2022+ BMW G2X M440i xDrive Gran Coupe - Turbocharged 3.0L L6
- 2020-2024 BMW G01 X3 M40i - Turbocharged 3.0L L6
- 2020-2024 BMW G02 X4 M40i - Turbocharged 3.0L L6
- 2020-2024 BMW G05 X5 sDrive40i - Turbocharged 3.0L L6
- 2019-2024 BMW G05 X5 xDrive40i - Turbocharged 3.0L L6
- 2021-2023 BMW G05 X5 xDrive45e - Turbocharged 3.0L L6
- 2024+ BMW G05 X5 xDrive50e - Turbocharged 3.0L L6
- 2020-2021 BMW G06 X6 sDrive40i - Turbocharged 3.0L L6
- 2020-2024 BMW G06 X6 xDrive40i - Turbocharged 3.0L L6
- 2020-2024 BMW G07 X7 xDrive40i - Turbocharged 3.0L L6
- 2020-2024 BMW G29 Z4 M40i - Turbocharged 3.0L L6
- 2024+ Toyota GR Supra 45th Anniversary Edition - 3.0L L6
- 2023+ Toyota GR Supra A91-MT Edition - 3.0L L6
- 2023+ Toyota GR Supra Premium - 3.0L L6
- 2024+ Toyota GR Supra Premium 45th Anniversary Edition - 3.0L L6
- 2020-2022 Toyota GR Supra - Turbocharged 3.0L L6
- 2020-2024 Toyota GR Supra - 3.0L L6
OEM Part Numbers
- BMW: 11 61 8 647 977 *M240i Yes
- BMW: 11-61-8-647-977 *M240i Yes
- BMW: 11618647977 *M240i Yes
- Toyota: 17101 WAA01
- Toyota: 17101-WAA01
- Toyota: 17101WAA01
