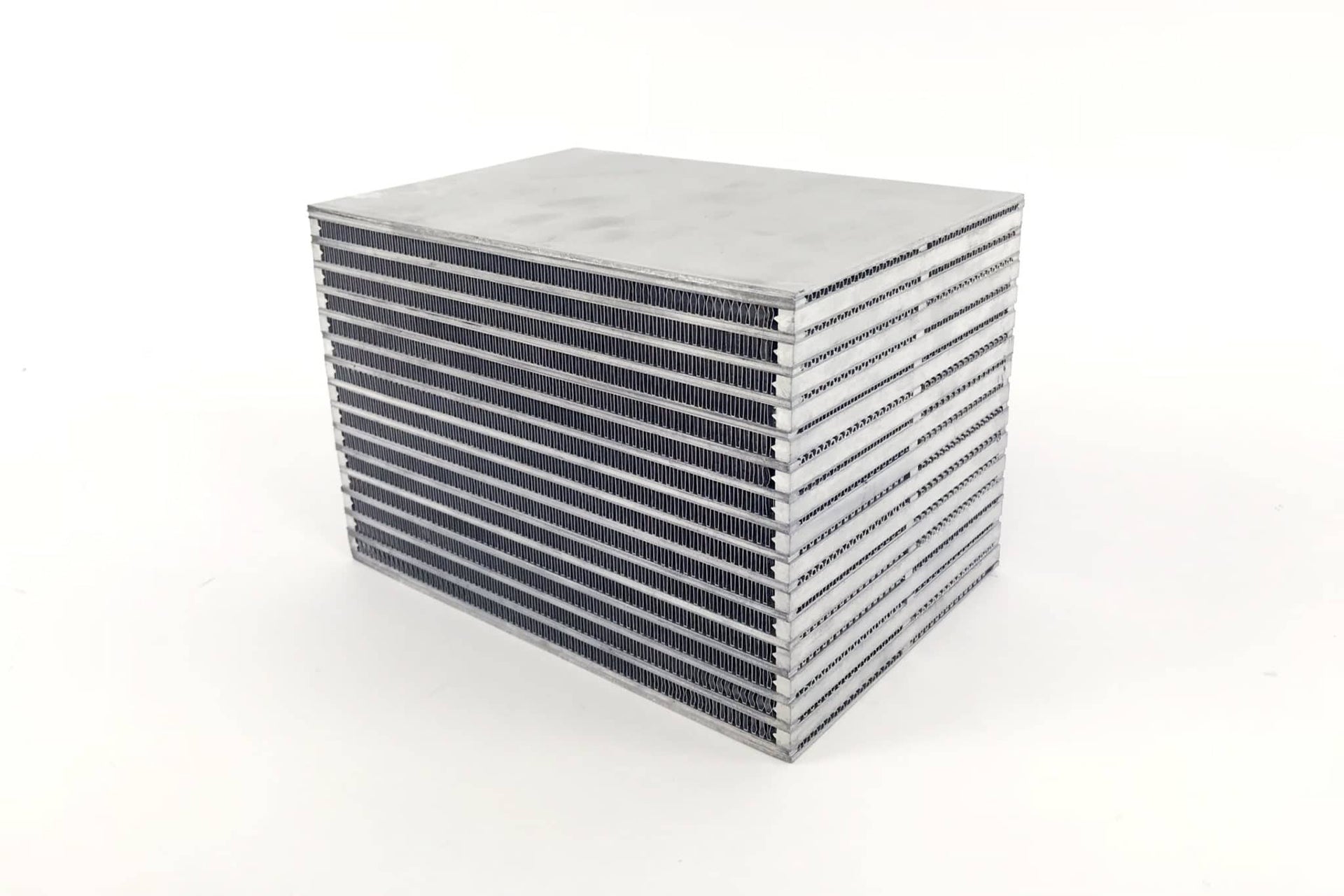

CSF Air-to-Water Bar & Plate Intercooler Core 8.5L x 6H x 6W

The CSF Air-to-Water Bar & Plate Intercooler Core, measuring 8.5" x 6" x 6" (215mm x 150mm x 150mm), represents a benchmark in high-performance cooling technology. Engineered to support up to 1000 WHP, this intercooler core is ideally suited for custom applications requiring superior heat dissipation and reliable operation under extreme boost conditions. Trusted by leading tuning and performance companies, the CSF intercooler core combines advanced manufacturing techniques with rigorous quality control to ensure optimal performance and durability.

Each intercooler core undergoes meticulous hand assembly within a controlled clean room environment, utilizing specialized jigs and fixtures to guarantee a perfectly straight and structurally sound core. The assembly process is performed with gloves to maintain a pristine surface, essential for effective brazing and future welding operations. This attention to detail ensures that the core meets the highest standards of precision and reliability, critical for demanding automotive applications.

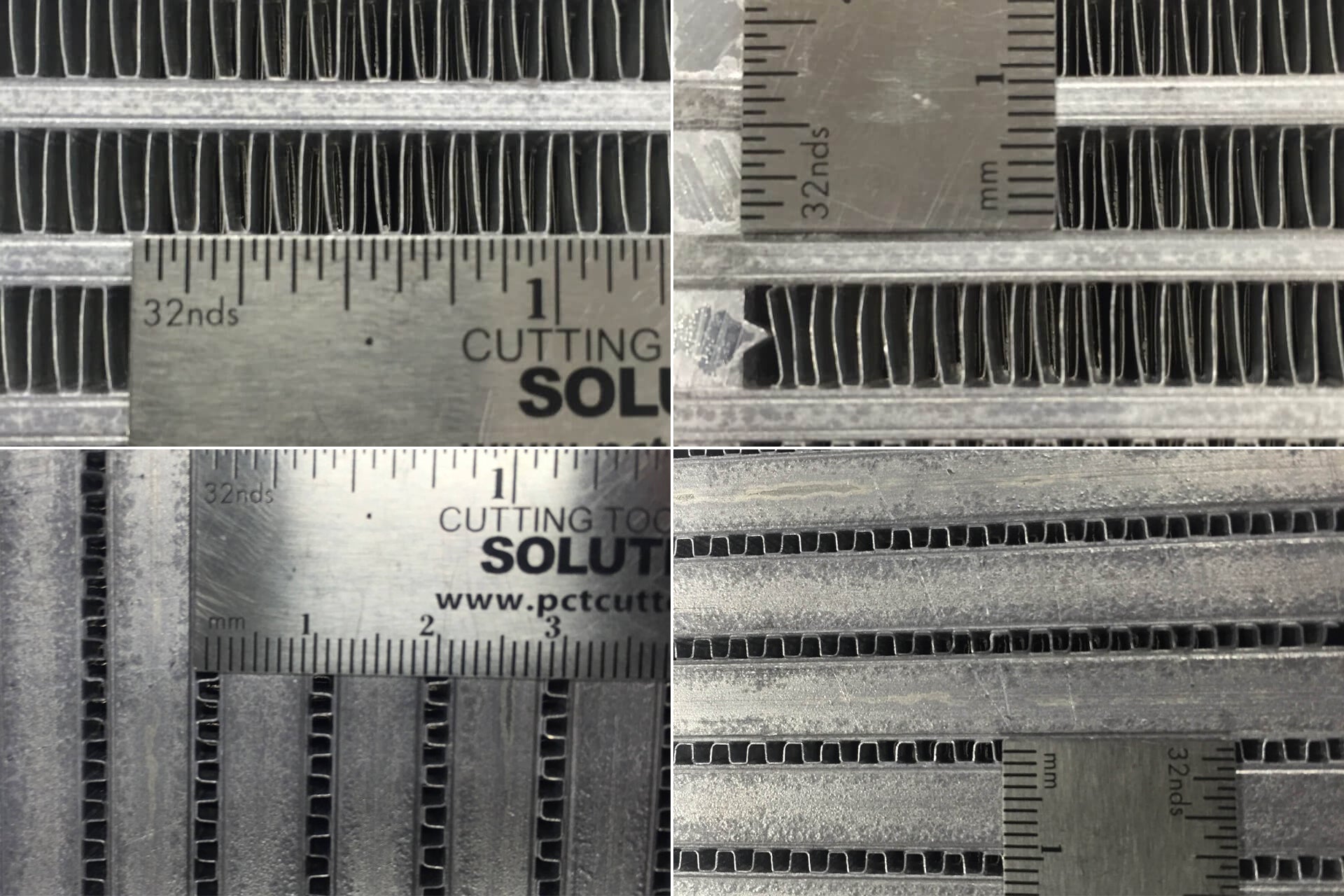

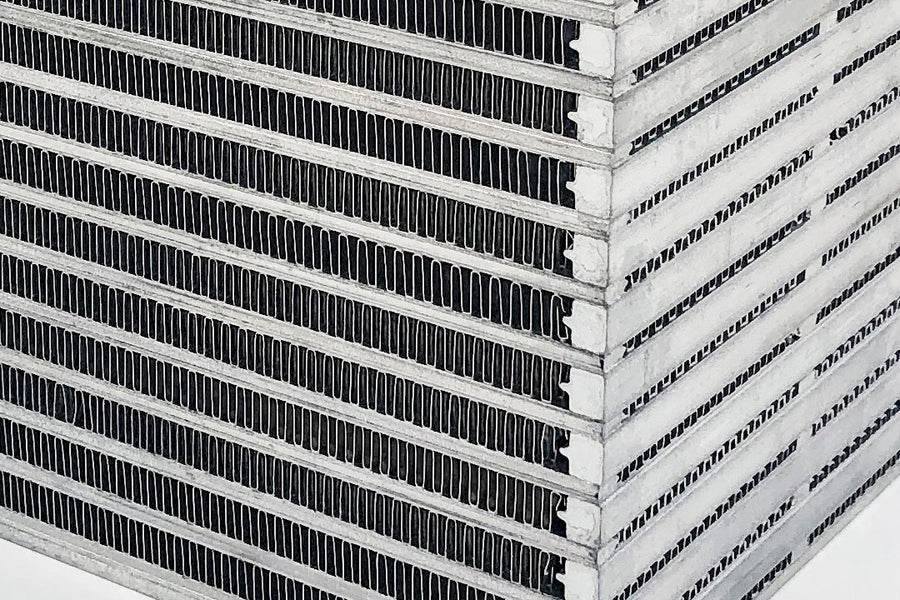

The core features a multi-louvered, high-precision staggered fin design on both the ambient and pressure sides. This innovative fin configuration maximizes heat transfer efficiency, enhancing the intercooler's ability to reduce intake air temperatures rapidly and consistently. The bar and plate construction further contributes to the core's robustness, providing excellent resistance to pressure and thermal cycling.

Manufactured using state-of-the-art batch brazing technology, each core is processed in one of CSF's twelve digital vacuum brazing ovens. This advanced brazing method ensures uniform bonding and structural integrity throughout the core, resulting in a product capable of withstanding the rigorous demands of high-performance engines. Post-manufacture, every unit is individually pressure tested at 120 psi to verify its ability to maintain integrity under extreme boost pressures, underscoring CSF’s commitment to reliability.

Features

• Heavy-Duty Bar & Plate Intercooler Core designed for high-performance applications
• Pressure Tested at 120 psi to guarantee maximum reliability in extreme boost environments
• Hand-Built with precision jigs and fixtures to ensure a perfectly straight core for seamless welding
• Manufactured in a clean room using gloves to maintain a contaminant-free surface for brazing and welding
• Multi-Louvered High Precision Staggered Fin Design on both ambient and pressure sides for superior heat transfer
• Batch Brazed in CSF’s advanced digital vacuum brazing ovens for consistent quality and durability
• Strict quality control protocols including individual pressure testing for each core
• Individually boxed and protected to ensure secure transport via single piece mail services
• Dimensions: 8.5" x 6" x 6" (215mm x 150mm x 150mm)
• HP Rating: 1000 WHP
• Air-to-Water intercooler core configuration

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) provides a comprehensive warranty on its High-Performance Cooling Systems. Under normal use and service conditions, the warranty covers the original purchaser of the vehicle in which the product was initially installed. This warranty reflects CSF’s confidence in the durability and quality of their products. For detailed information, please visit our Warranty Page.

SKU# 8113 Warranty Term: 2 years
