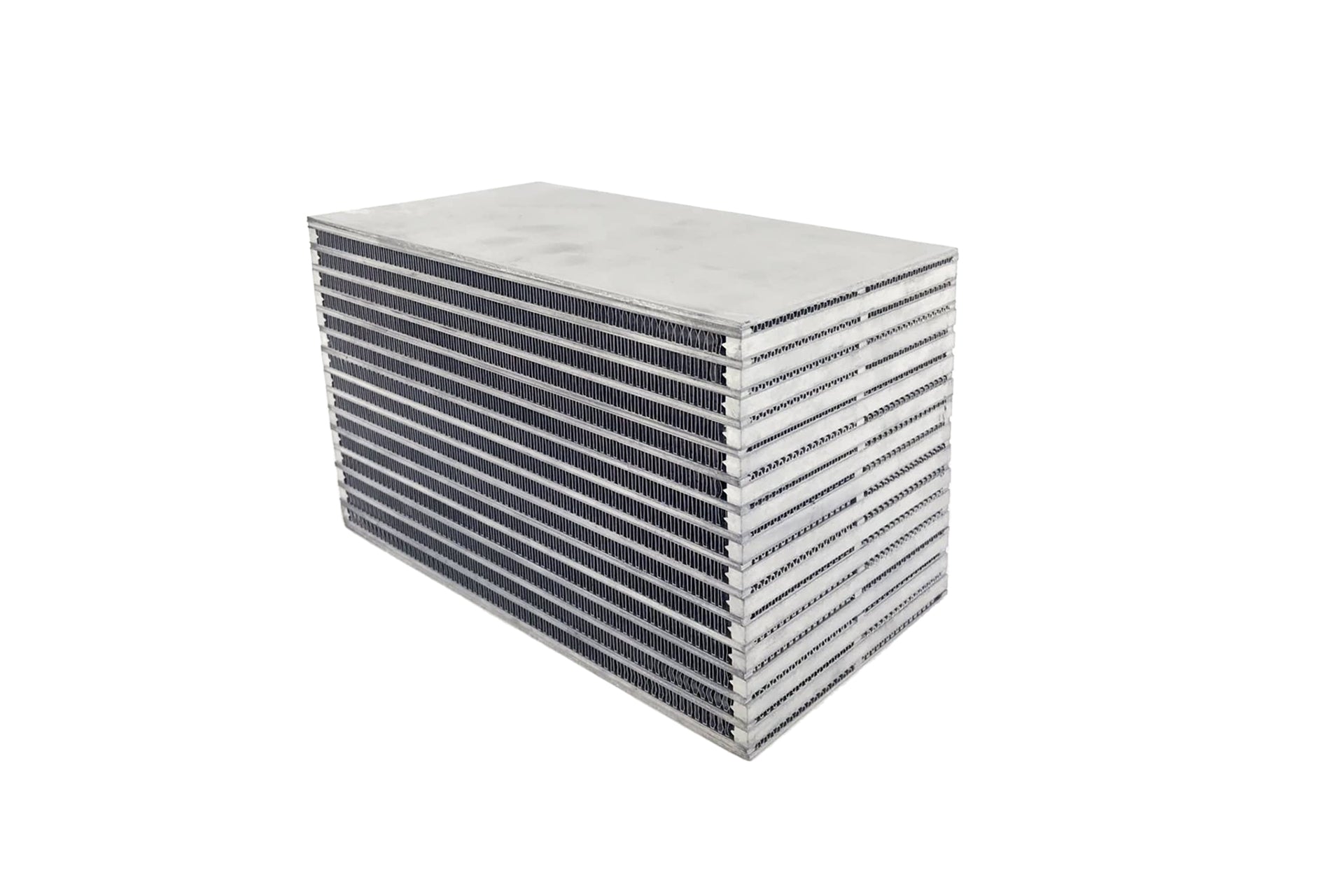

CSF Air-to-Water Bar & Plate Intercooler Core 8.5L x 4.5H x 6W

The CSF Air-to-Water Bar & Plate Intercooler Core measuring 8.5" x 4.5" x 6" (215mm x 115mm x 150mm) represents a pinnacle of engineering excellence designed for high-performance automotive applications. Engineered to support up to 800 wheel horsepower (WHP), this intercooler core is ideally suited for custom-built, high-boost setups requiring superior thermal management and durability. CSF’s commitment to quality and precision is evident in every aspect of this product, ensuring reliability and performance under the most demanding conditions.

Manufactured using a robust bar and plate construction, the core is pressure tested at 120 psi to guarantee maximum reliability in extreme boost environments. This rigorous testing protocol ensures that the intercooler core withstands the stresses of high-performance tuning without compromising structural integrity or cooling efficiency.

Each core is meticulously hand-built within a controlled clean room environment at the CSF factory. Skilled technicians utilize specialized jigs and fixtures to maintain perfect straightness, which facilitates precise and secure welding during installation. The use of gloves during assembly further ensures that the brazing surfaces remain uncontaminated, promoting optimal brazing quality and a clean surface for future welding operations.

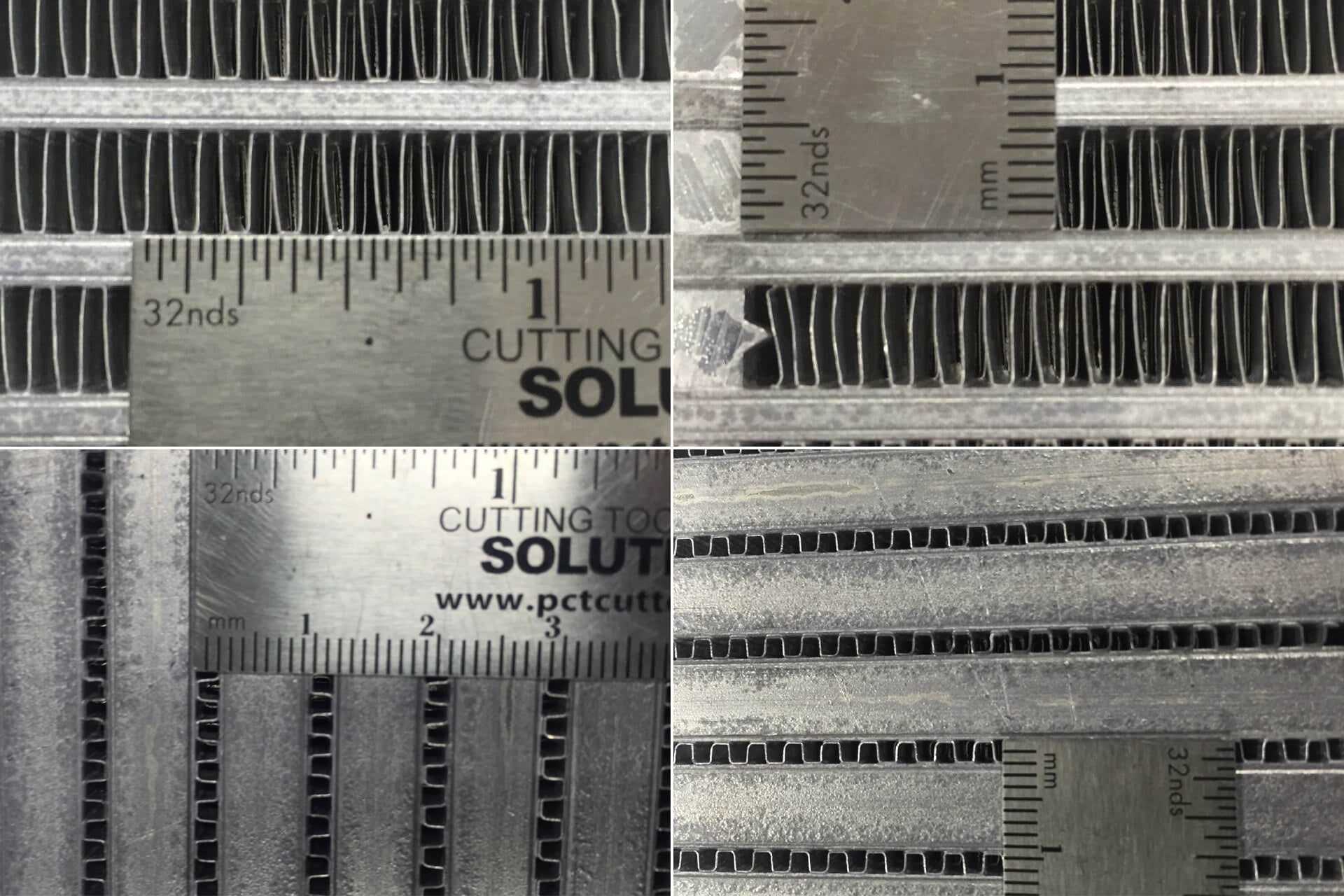

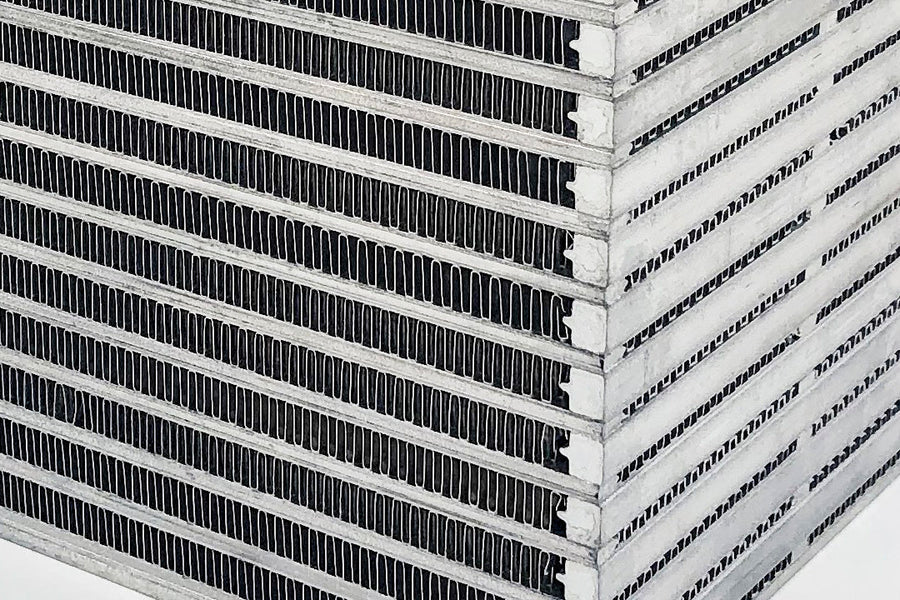

One of the defining features of this intercooler core is its advanced multi-louvered, high-precision staggered fin design. This design is applied to both the ambient and pressure sides of the core, maximizing heat transfer efficiency and thereby enhancing the cooling capacity of the system. This innovative fin configuration reduces air resistance while improving thermal exchange, directly contributing to improved engine performance and longevity.

The core undergoes batch brazing within CSF’s state-of-the-art digital vacuum brazing ovens—12 ovens in total—ensuring uniform brazing quality across every unit produced. This process not only strengthens the core’s structural components but also enhances its resistance to corrosion and thermal fatigue, critical factors in maintaining long-term performance.

Features

• Heavy-Duty Bar & Plate Intercooler Cores designed for high-performance applications
• Pressure Tested at 120 psi for maximum reliability in extreme boost environments
• Hand-Built using precision jigs and fixtures to ensure perfectly straight cores for easy and secure welding
• Manufactured in a clean room environment with gloves to guarantee proper brazing and clean surfaces for future welding
• Multi-Louvered High Precision Staggered Fin Design on both ambient and pressure sides for optimal heat transfer
• Batch Brazed in CSF’s advanced digital vacuum brazing ovens for consistent quality and durability
• Strict quality control and individual pressure testing to ensure product reliability
• Individually boxed and protected to secure transport and prevent damage during shipping
• Dimensions: 8.5" x 4.5" x 6" (215mm x 115mm x 150mm)
• Rated for 800 WHP
• Designed specifically for air-to-water cooling systems

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) provides a comprehensive warranty on its high-performance cooling systems, including this intercooler core. Under normal use and service, the warranty covers the original purchaser of the vehicle in which the product was installed. This warranty reflects CSF’s confidence in the durability and quality of their products. For detailed warranty terms and conditions, please visit the Warranty Page.

SKU# 8134 Warranty Term: 2 years

In summary, the CSF Air-to-Water Bar & Plate Intercooler Core is a premium solution for enthusiasts and professionals seeking reliable, high-capacity cooling performance. Its meticulous manufacturing process, rigorous testing, and advanced design features ensure that it meets the stringent demands of modern high-performance engines, making it an essential component for any custom intercooler system.
