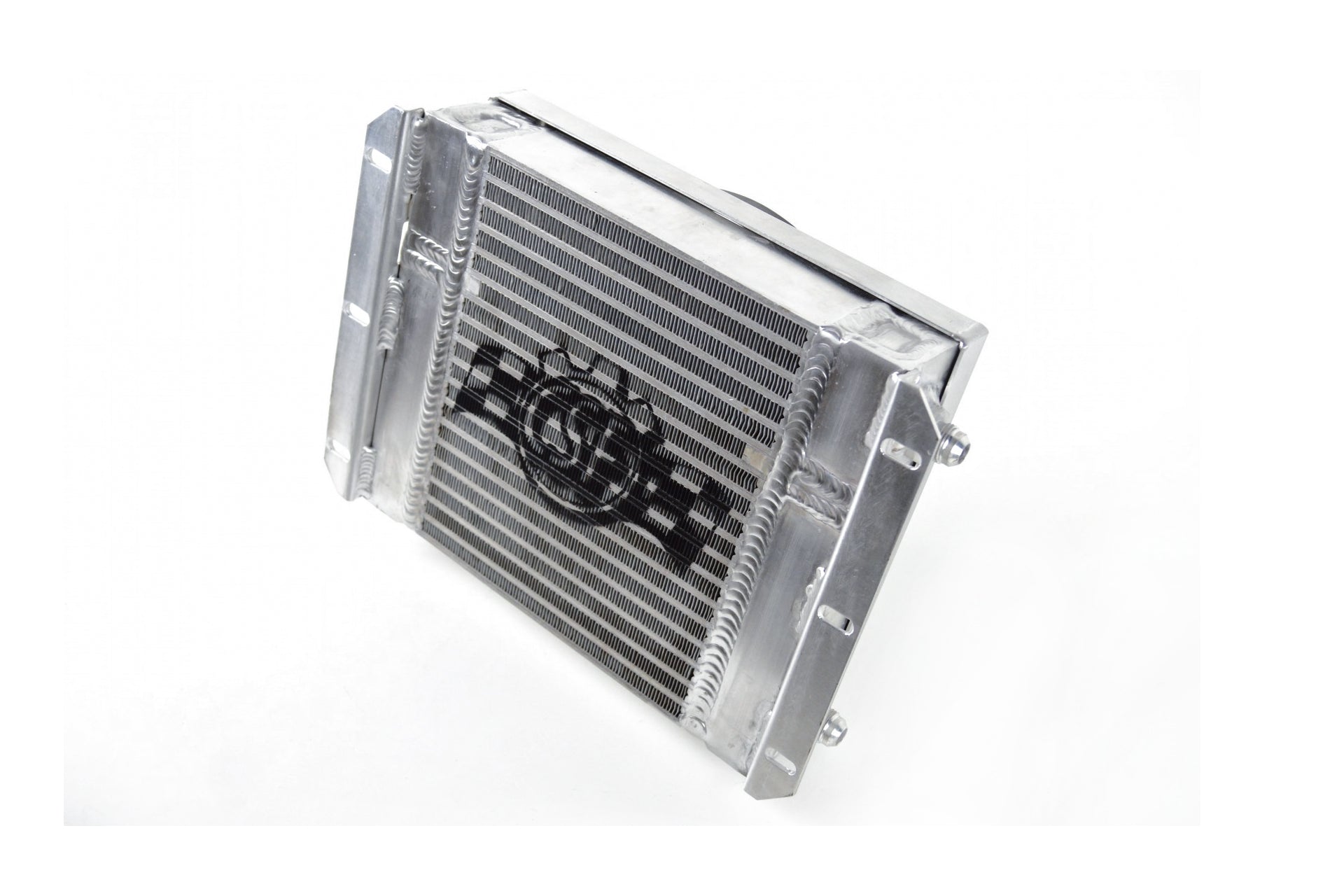

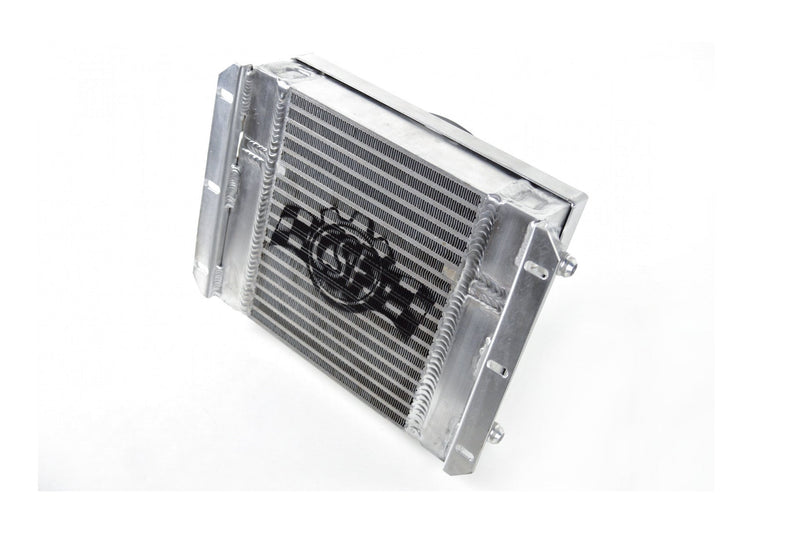

The CSF 13.8in x 10in Dual Fluid Bar & Plate HD Oil Cooler with 9in SPAL Fan represents a pinnacle of engineering in the realm of high-performance cooling solutions. Designed with versatility and durability in mind, this oil cooler is tailored to meet the rigorous demands of diverse applications including racing, drifting, marine environments, and sand sports, among others. Its universal-fit design ensures compatibility across a broad spectrum of vehicles and machinery, making it a reliable choice for professionals and enthusiasts alike.

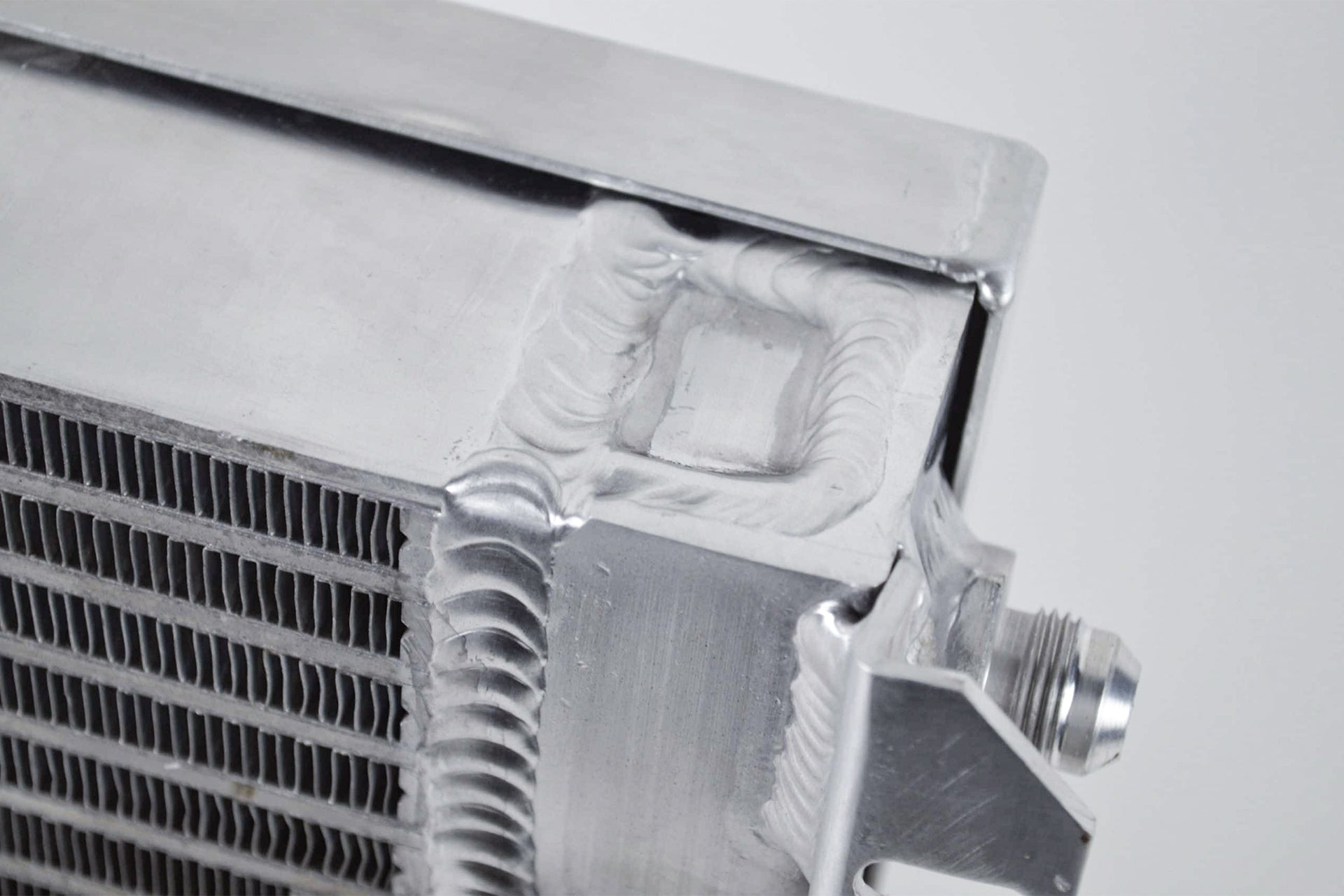

Constructed entirely from high-grade aluminum, the cooler is engineered to endure extreme operating conditions. The extruded aluminum end tanks provide structural integrity, while the precision TIG welds guarantee leak-free performance under pressure. The heavy-duty bar and plate core is pressure tested up to 120psi, underscoring the product’s robustness and reliability in demanding scenarios.

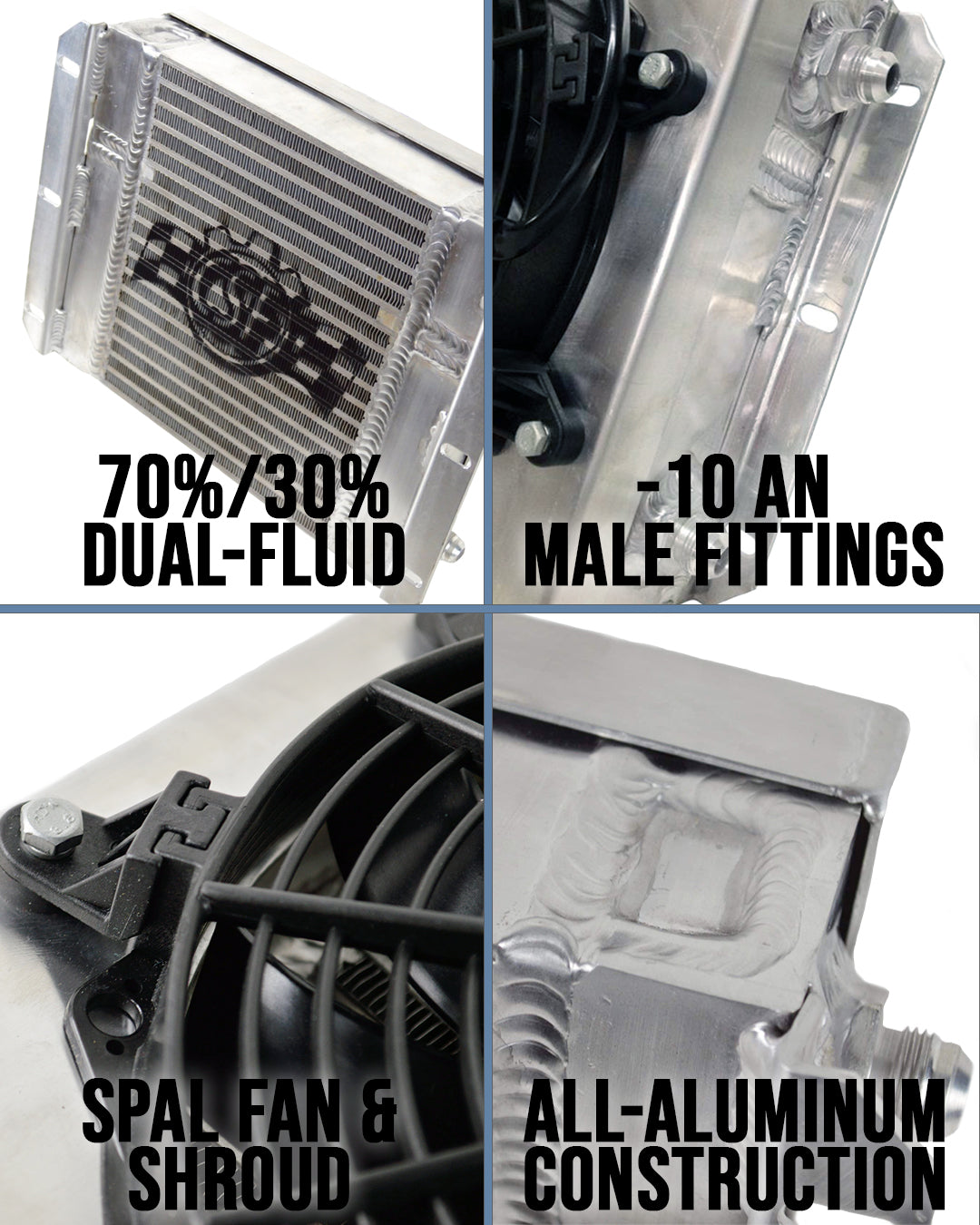

The core design incorporates 17 rows of cooling elements, thoughtfully divided into two sections: one with 5 rows (30%) and another with 12 rows (70%). This split configuration facilitates the simultaneous cooling of two distinct fluids within a compact footprint, enhancing efficiency without compromising space. The cooler supports virtually any type of oil, including engine oil, power steering fluid, transmission oil, and gearbox fluid, thereby offering exceptional flexibility for various system requirements.

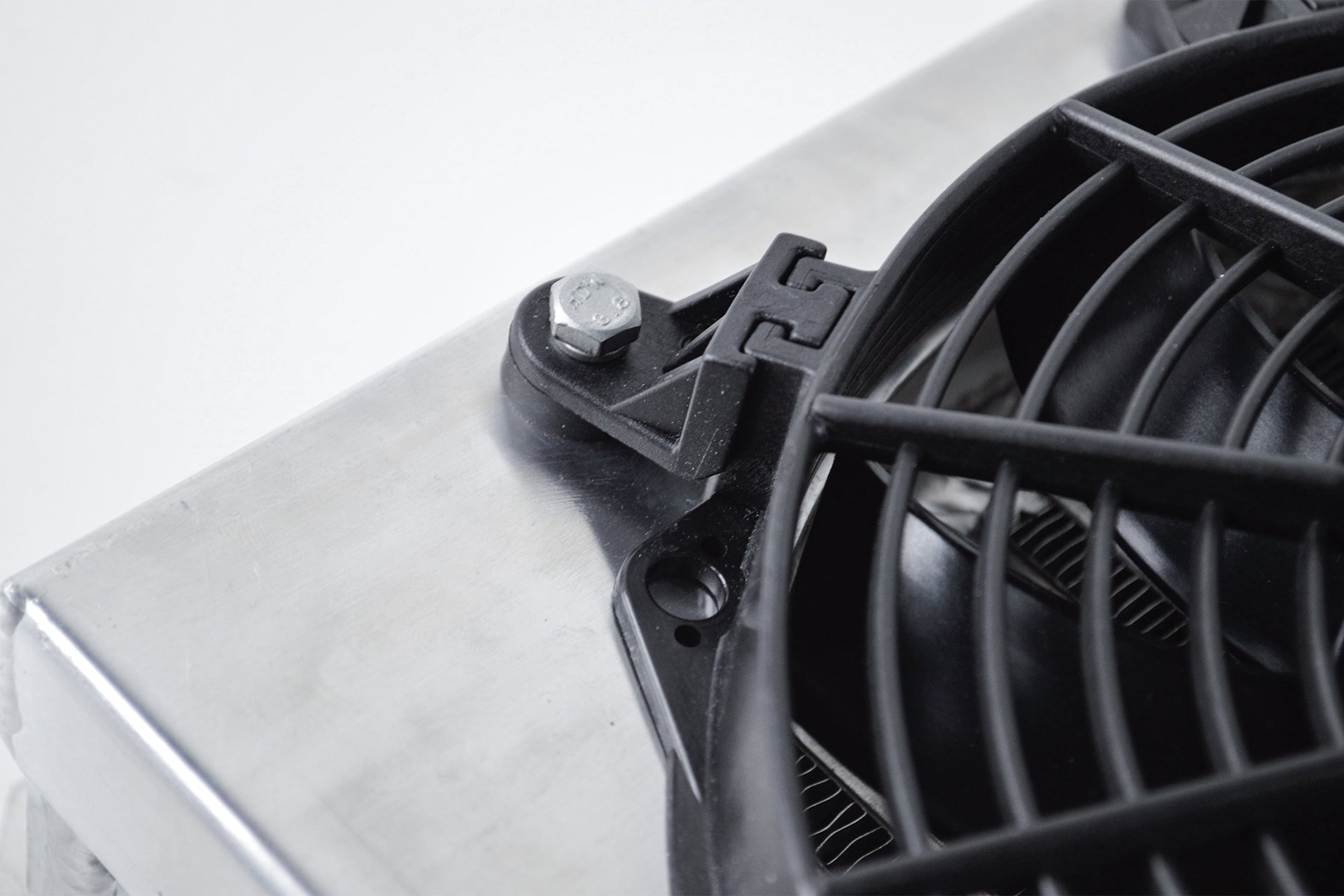

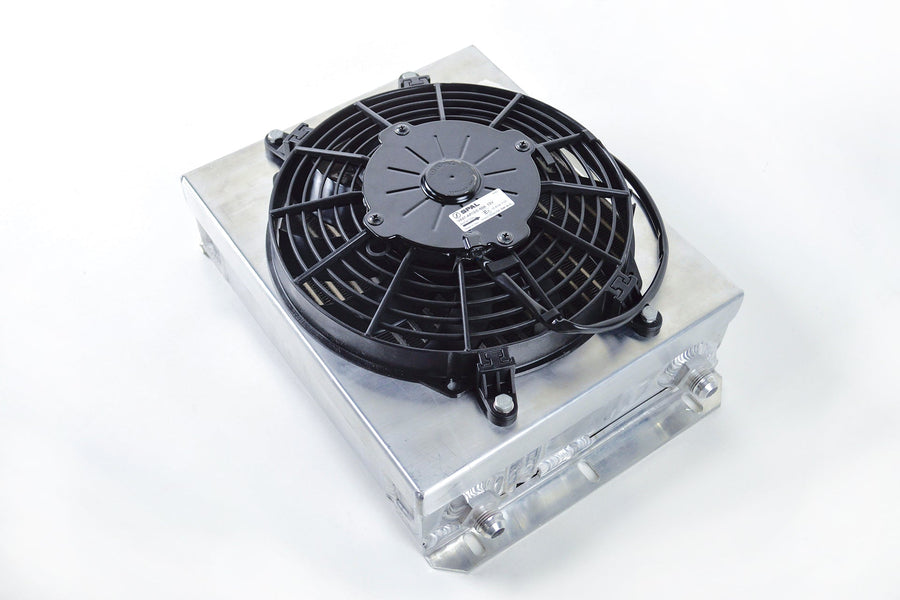

Included with the oil cooler is a 9-inch SPAL fan and shroud, equipped with isolator mounts engineered to absorb high levels of vibration. This feature ensures consistent airflow and cooling performance even under the most strenuous conditions. For installations where space constraints or specific configurations are a concern, the fan assembly can be easily removed to achieve a more compact setup.
Installation is streamlined by the inclusion of built-in AN -10 male fittings integrated into the end tanks. These fittings facilitate a plug-and-play experience, reducing installation time and complexity for aftermarket and racing applications.
Features
- Dimensions: 9.7" Tall x 13.8" Wide (With Brackets); 14" x 5.15" Thick (With Fan); 5.65" Thick With Bracket Overhang
- 17 Rows of Cooling Split into Two Sections: 5 Rows (30%) and 12 Rows (70%)
- Includes Removable 9" SPAL Fan & Shroud with Isolator Mounts for Vibration Resistance
- Built-in AN -10 Male Fittings for Easy Installation
- Pressure Tested to 120psi for Maximum Reliability
- Extruded Aluminum End Tanks for Enhanced Durability
- Heavy-Duty Bar and Plate Core Design for Superior Heat Dissipation
- Compatible with Various Fluids: Engine Oil, Power Steering Fluid, Transmission Oil, Gearbox Fluid
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 0 | Universal | - | - | - | - | - |
| 0 | - | - | - | - | - | Universal |
OEM Part Numbers
- *Universal
Warranty
Cooling Systems and Flexibles, Inc. (CSF) guarantees the quality and performance of its High-Performance Cooling Systems under normal use and service conditions. This warranty is extended to the original purchaser of the vehicle in which the product was initially installed. For comprehensive warranty details and terms, please refer to our Warranty Page.
SKU# 8026 Warranty Term: 2 years
