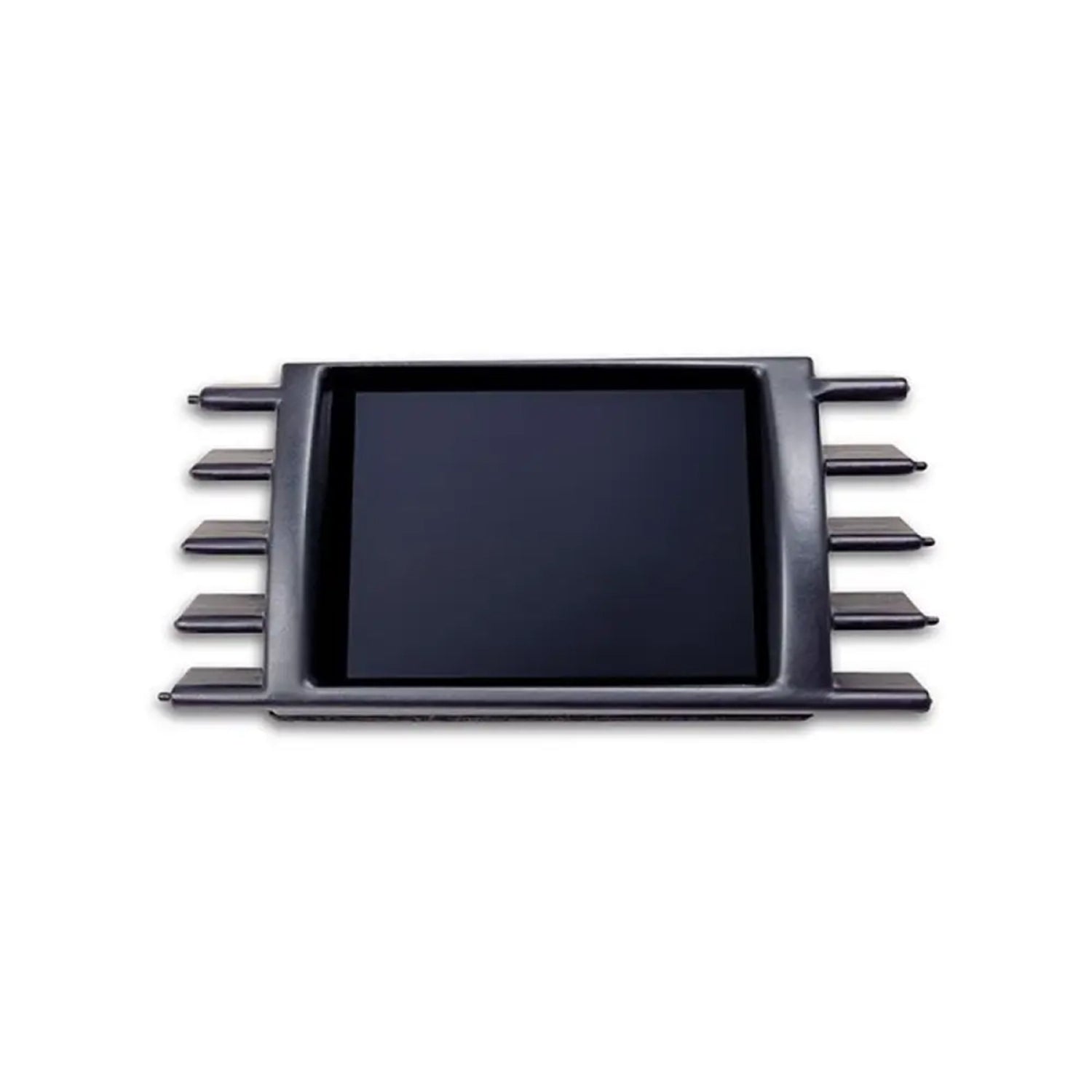

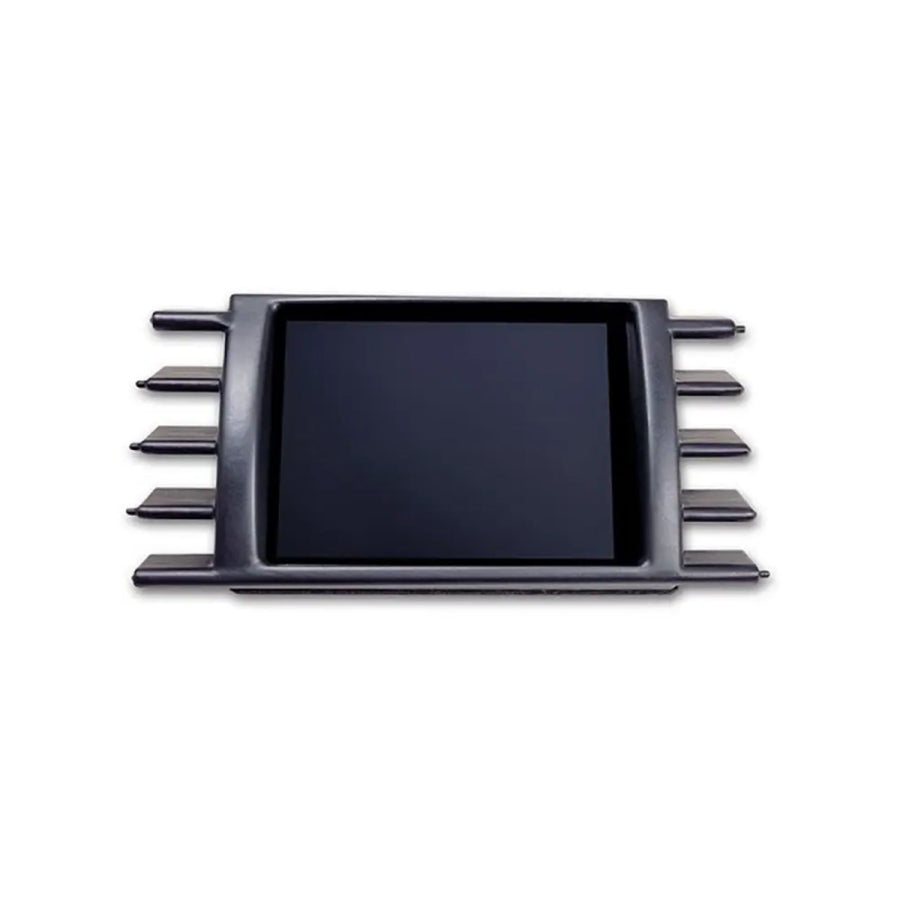

CANchecked MFD28 Gen2 for BMW F07/10/11/18 5 Series

The CANchecked MFD28 Gen2 is a premium digital display designed specifically for the BMW F07/F10/F11/F18 5 Series. Available in both left-hand drive (LHD) and right-hand drive (RHD) versions, it delivers professional-grade monitoring while blending seamlessly into the OEM interior.

At its core is a 3.2" TFT capacitive touchscreen with crystal-clear resolution and a highly responsive interface. Housed in a milled aluminium front frame, the MFD28 Gen2 not only looks at home in your BMW but is engineered for durability. Its symmetrical design also allows for 90° rotation, letting you optimise the display orientation to your preference.

Unlike fixed OEM displays, the MFD28 Gen2 is fully customisable through CANchecked’s DSS (Display Setup Software). You can configure up to 10 pages, each with up to 64 widgets, allowing full flexibility to display the data that matters most — from boost, AFR, oil/fuel pressure and temperatures to lambda and ignition timing.

With support for up to 128 sensors, including both CAN Bus and analogue inputs, this display provides real-time insights into your BMW’s performance. It also offers 4 analogue inputs for integrating additional sensors such as oil temp, oil pressure, fuel pressure, or EGT. For those chasing advanced setup, it can even act as a CAN Bus switch to control external functions and comes with a built-in CAN Bus Logger for data recording and reverse engineering.

Key Features

• 3.2" TFT capacitive touchscreen – crisp, clear, and highly responsive

• Premium build quality – milled aluminium frame for a factory-quality finish

• Symmetrical design – rotate 90° for optimal viewing position

• DSS software compatibility – fully customisable layouts and data pages

• Up to 128 sensors supported – CAN Bus and internal sensors for maximum data coverage

• 64 widgets per page / 10 customisable pages – create dashboards for road, dyno, or track use

• 4 analogue inputs – integrate extra sensors such as oil/fuel pressure, EGT, etc.

• Optional shift light integration – external LED shift light support

• CAN Bus switching – control external devices via the display

• CAN Bus Logger – log and analyse protocols, ideal for custom projects

• Compact installation – 95 x 69mm dimensions with 3x M4 threaded mounting points

Supported Protocols & Connectivity

The MFD28 Gen2 is compatible with ISO 11898-2 and SAE J2284 standards, offering compatibility with a wide range of BMW CAN Bus data streams. It also supports advanced manufacturer-specific protocols such as TP2.0 (VW/Audi) and UDS, ensuring wide adaptability for reverse engineering and custom CAN setups.

Connectivity can be expanded further with optional CANchecked modules, including:

• CANchecked Sensors – oil pressure, fuel pressure, water temperature

• CAN Bus Hub (CBD08) – for integrating multiple CAN devices

• CAN Bus Extension (MCE18) – for expanding functionality

Dimensions & Installation

• Dimensions: 95 x 69mm (compact fitment)

• Mounting: 3x M4 threaded sockets for secure and flexible installation

• Orientation: Can be mounted in landscape or portrait thanks to symmetrical design

Installation is straightforward, with vehicle-specific kits available to ensure seamless integration into the BMW F07, F10, F11 and F18 dashboards.

Compatibility

BMW F07/F10/F11/F18 5 Series (2010–2017)

• BMW F07 5 Series Gran Turismo

• BMW F10 5 Series Saloon

• BMW F11 5 Series Touring

• BMW F18 5 Series Long Wheelbase

Available for both LHD and RHD models.
