CANchecked MFD28 Gen2 for BMW E90/E91/E92/E93 3 Series

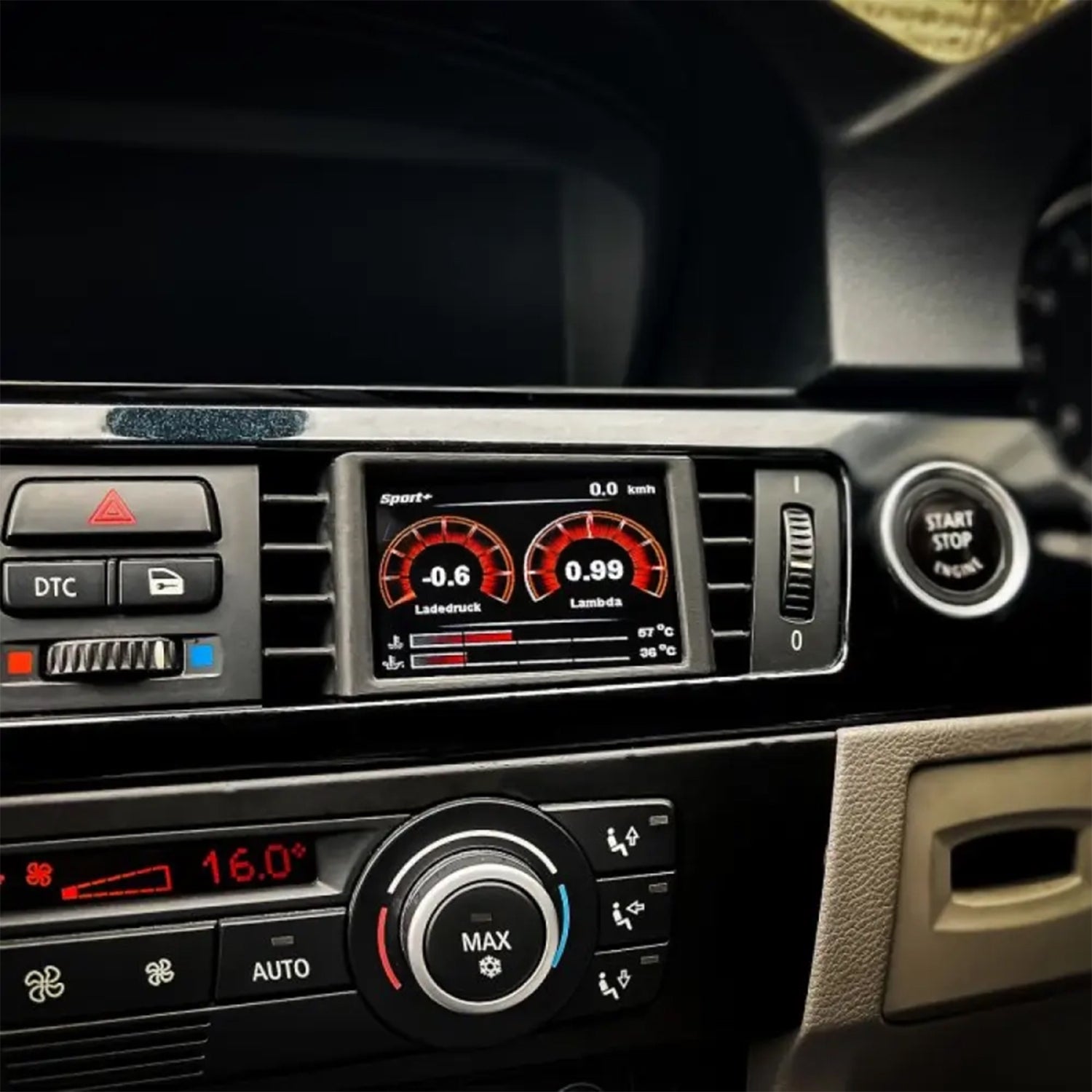

The CANchecked MFD28 Gen2 is a compact yet powerful digital display designed for the BMW E90, E91, E92 and E93 3 Series. Available in both left-hand drive (LHD) and right-hand drive (RHD) formats, it integrates seamlessly into your dashboard, delivering real-time data monitoring with an OEM-like fit and finish.

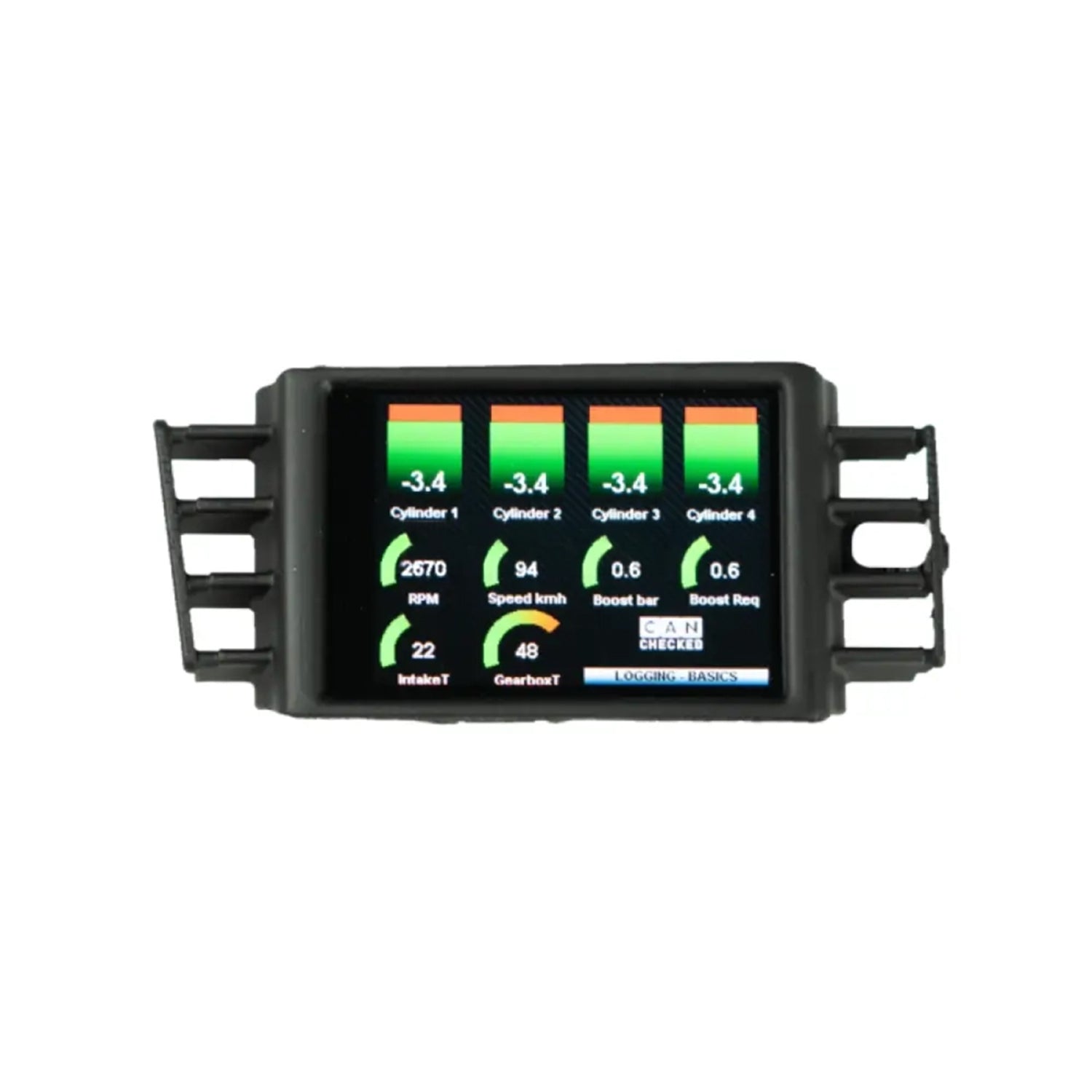

Featuring a crisp 2.8" TFT capacitive touchscreen encased in a milled aluminium front frame, the MFD28 combines durability with premium aesthetics. Its symmetrical design allows for 90° rotation, making it adaptable for both portrait and landscape installation.

With the DSS (Display Setup Software), the display is fully customisable. Create up to 10 pages, each supporting 64 widgets, and monitor up to 128 sensors from both the CAN Bus and internal inputs. It also includes 4 analogue inputs (0–5V) for additional sensors such as oil pressure, fuel pressure, boost, and exhaust gas temperature. An optional external shift light and CAN Bus Switching functionality further extend its versatility, making it suitable for both street and performance use.

The MFD28 supports a wide range of protocols including UDS, KWP2000, OBD, TP2.0, and standalone ECUs, ensuring compatibility with factory and aftermarket setups. With installation dimensions of 70.3 x 52mm and secure front mounting via four Torx screws, fitting is simple and precise.

Key Features

• 2.8" TFT capacitive touchscreen for sharp and responsive operation

• Premium aluminium front frame with symmetrical design for 90° rotation

• Supports up to 128 sensors via CAN Bus and internal sources

• Up to 10 configurable pages with 64 widgets per page

• 4 analogue inputs for additional 0–5V sensors (oil, fuel, EGT, boost, etc.)

• Optional external shift light for performance driving

• CAN Bus Switching functionality for controlling external devices

• Wide protocol support: UDS, KWP2000, OBD, TP2.0 & standalone ECUs

• Built-in CAN Bus Logger for advanced data capture and reverse engineering

• Compact fitment (70.3 x 52mm) with secure Torx screw mounting

Connectivity & Extensions

Expand the capabilities of your MFD28 Gen2 with CANchecked accessories:

• CANchecked water/oil temperature sensors

• CANchecked oil/fuel pressure sensors

• CAN Bus Extension (MCE18)

• CAN Bus Hub (CBD08)

Compatibility

BMW 3 Series (2005–2013)

• E90 – Saloon

• E91 – Touring

• E92 – Coupe

• E93 – Convertible

Available for LHD & RHD models.
