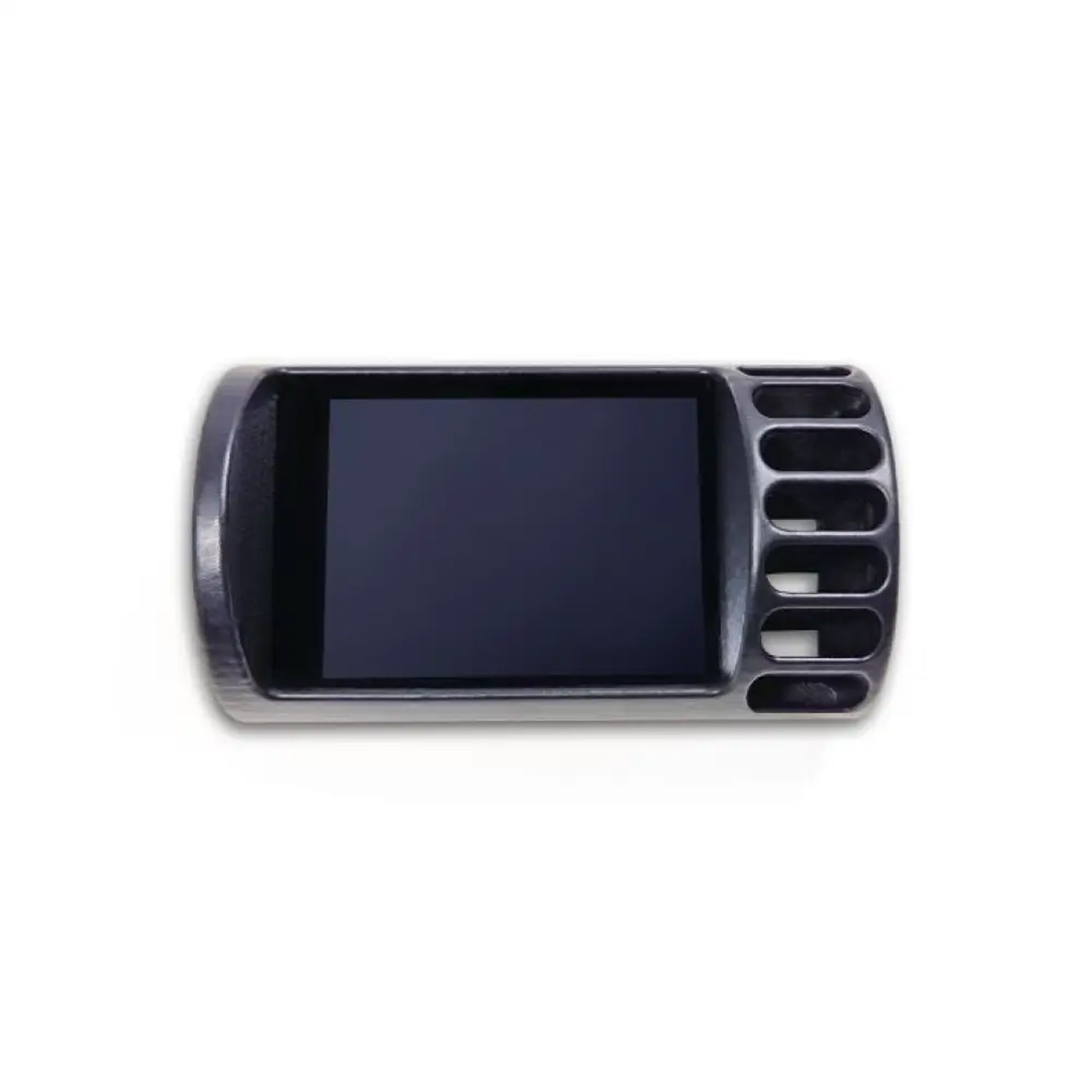

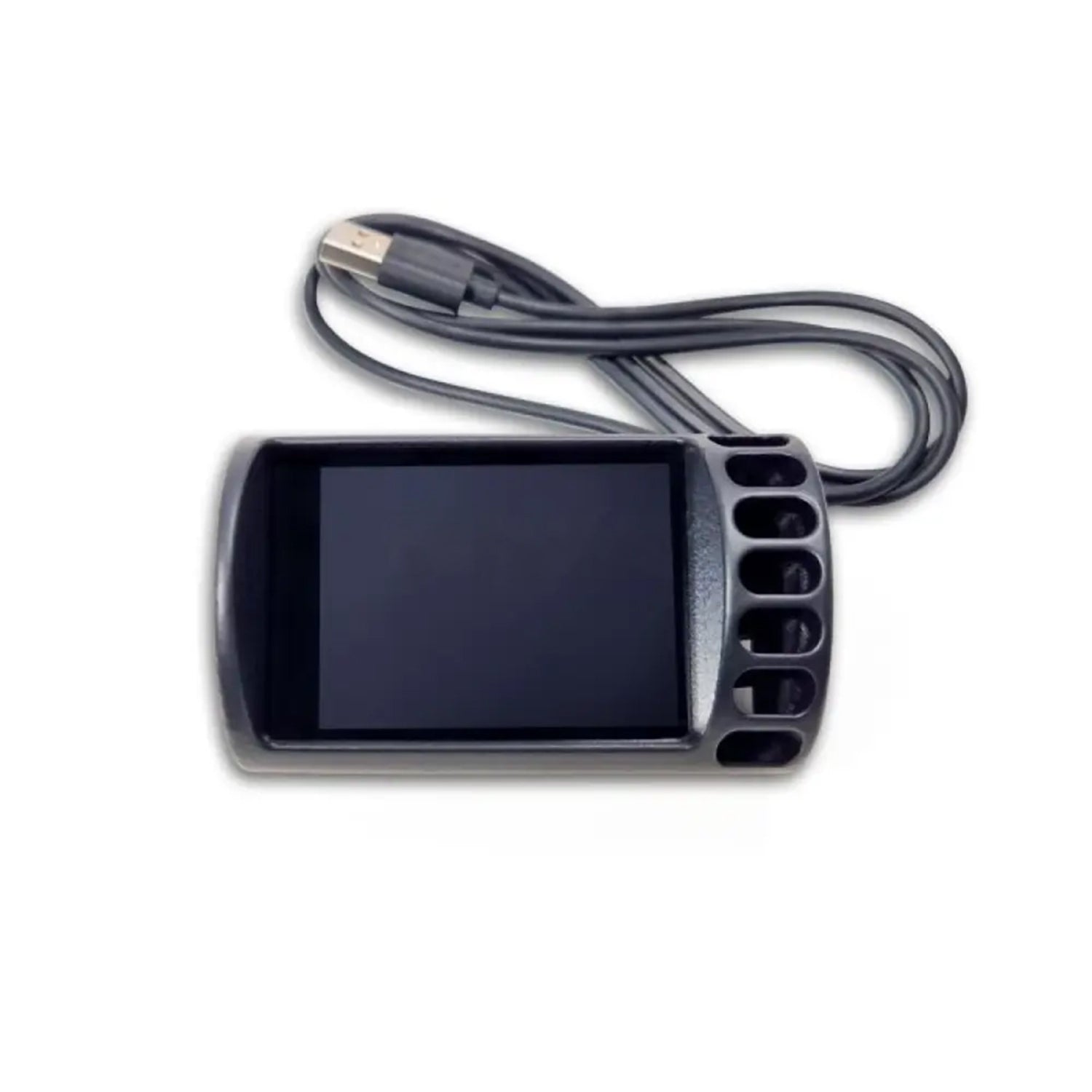

CANchecked MFD28 Gen2 for BMW E34 5 Series

Bring modern digital data monitoring to your BMW E34 5 Series with the CANchecked MFD28 Gen2. This compact 2.8" TFT capacitive touchscreen display is designed to integrate seamlessly into the E34 dashboard, giving you real-time access to vital engine and performance data.

Available in two versions — for vehicles without AC and for vehicles with AC — the MFD28 ensures a perfect fit for your specific setup. Its high-quality milled aluminium front frame and symmetrical design allow both portrait and landscape orientation, while the customisable Display Setup Software (DSS) lets you configure up to 10 pages with 64 widgets per page to suit your needs.

Supporting up to 128 sensors via CAN Bus and internal inputs, plus 4 analogue 0–5V channels for additional sensors (such as oil pressure, boost, or fuel pressure), the MFD28 is one of the most versatile display solutions available for classic BMWs. Protocols such as UDS, KWP2000, OBD, TP2.0 and even standalone ECU integration are supported, making it an excellent choice whether you’re running a stock engine or a fully modified setup.

Compact in size (70.3 x 52mm), the MFD28 is easy to install using the included black Torx screws, with secure front-side mounting for a clean factory-style look. For advanced tuning and diagnostics, the built-in CAN Bus Logger allows for protocol analysis and reverse engineering of unknown CAN systems.

Key Features

• 2.8" TFT capacitive touchscreen with sharp visuals and responsive control

• Aluminium milled front frame for premium durability

• Symmetrical 90° rotation for flexible mounting

• Supports up to 128 sensors (CAN Bus and internal inputs)

• 4 analogue 0–5V inputs for additional sensors (oil, boost, fuel pressure, etc.)

• 10 configurable pages with up to 64 widgets per page

• CAN Bus Switching functionality

• Supports UDS, KWP2000, OBD, TP2.0 & standalone ECUs

• Optional external shift light for motorsport use

• Built-in CAN Bus Logger for advanced analysis

• Compact size: 70.3 x 52mm with front-mount installation

Connectivity & Extensions

Expand your system with CANchecked accessories:

• Oil & water temperature sensors

• Fuel & oil pressure sensors

• CAN Bus Extension (MCE18)

• CAN Bus Hub (CBD08)

Compatibility

BMW E34 5 Series (1988–1996)

• Versions available:

  • Without AC

  • With AC
