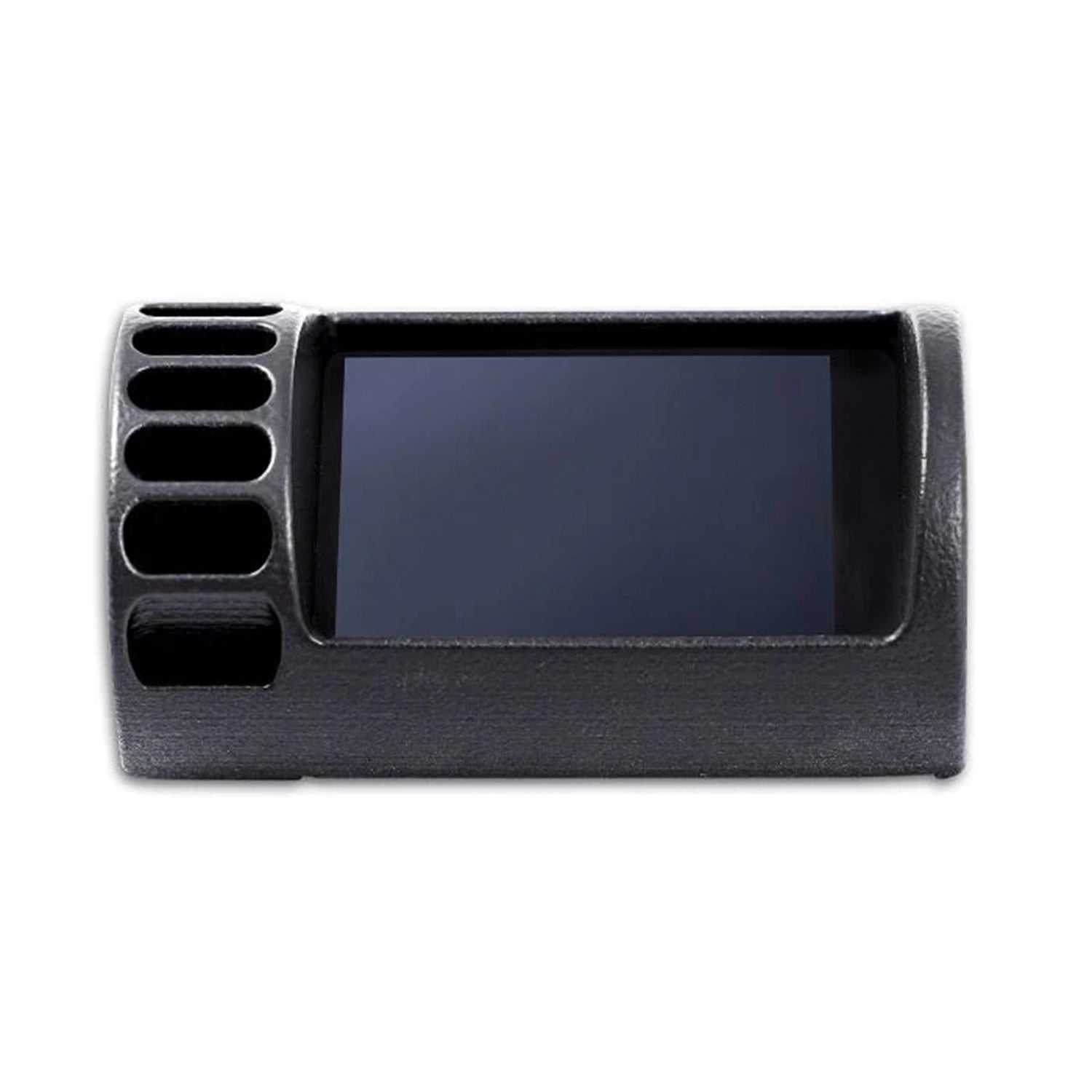

CANchecked MFD28 Gen2 for BMW E30 3 Series

Upgrade your BMW E30 3 Series with the CANchecked MFD28 Gen2, a compact 2.8" TFT digital display that integrates seamlessly into the dashboard and provides live engine and performance data. Designed for both left-hand drive and right-hand drive vehicles, this advanced display unit brings modern monitoring technology to your classic 3 Series while retaining a clean OEM-style fit.

The milled aluminium front frame gives a premium look and feel, while the symmetrical design allows for flexible 90° rotation. Using the DSS Display Setup Software, you can fully customise up to 10 pages with 64 widgets per page, tailoring the display to show exactly the data you need.

Supporting up to 128 sensors via CAN Bus and internal inputs, plus 4 analogue 0–5V inputs for additional sensors (oil pressure, fuel pressure, boost, exhaust temperature, etc.), the MFD28 provides a huge amount of flexibility for both stock and modified cars. With support for protocols including UDS, KWP2000, OBD, TP2.0, and standalone ECUs, it works across a wide range of setups.

At just 70.3 x 52mm, the MFD28 is compact and simple to mount, using four front-side holes and the included black Torx screws for a secure, flush installation. For more advanced users, the built-in CAN Bus Logger makes it possible to analyse and reverse-engineer unknown CAN protocols.

Whether used for everyday driving, diagnostics, or performance monitoring, the MFD28 Gen2 gives your E30 the modern functionality it deserves.

Key Features

• 2.8" TFT capacitive touchscreen for clear and responsive control

• Milled aluminium front frame for strength and premium finish

• Symmetrical design with 90° rotation for flexible mounting

• Supports up to 128 sensors (CAN Bus and internal inputs)

• 4 analogue 0–5V inputs for extra sensors such as oil, fuel, or boost pressure

• 10 configurable pages, up to 64 widgets per page

• Supports UDS, KWP2000, OBD, TP2.0 & standalone ECUs

• Optional external shift light available

• CAN Bus Switching functionality

• Built-in CAN Bus Logger for in-depth protocol analysis

• Compact size (70.3 x 52mm) with easy, secure mounting

Connectivity & Extensions

Expand your system with CANchecked accessories:

• Sensors for water/oil temperature

• Sensors for oil/fuel pressure

• CAN Bus Extension (MCE18)

• CAN Bus Hub (CBD08)

Compatibility

BMW E30 3 Series (1982–1994)

• Fits both LHD & RHD vehicles
