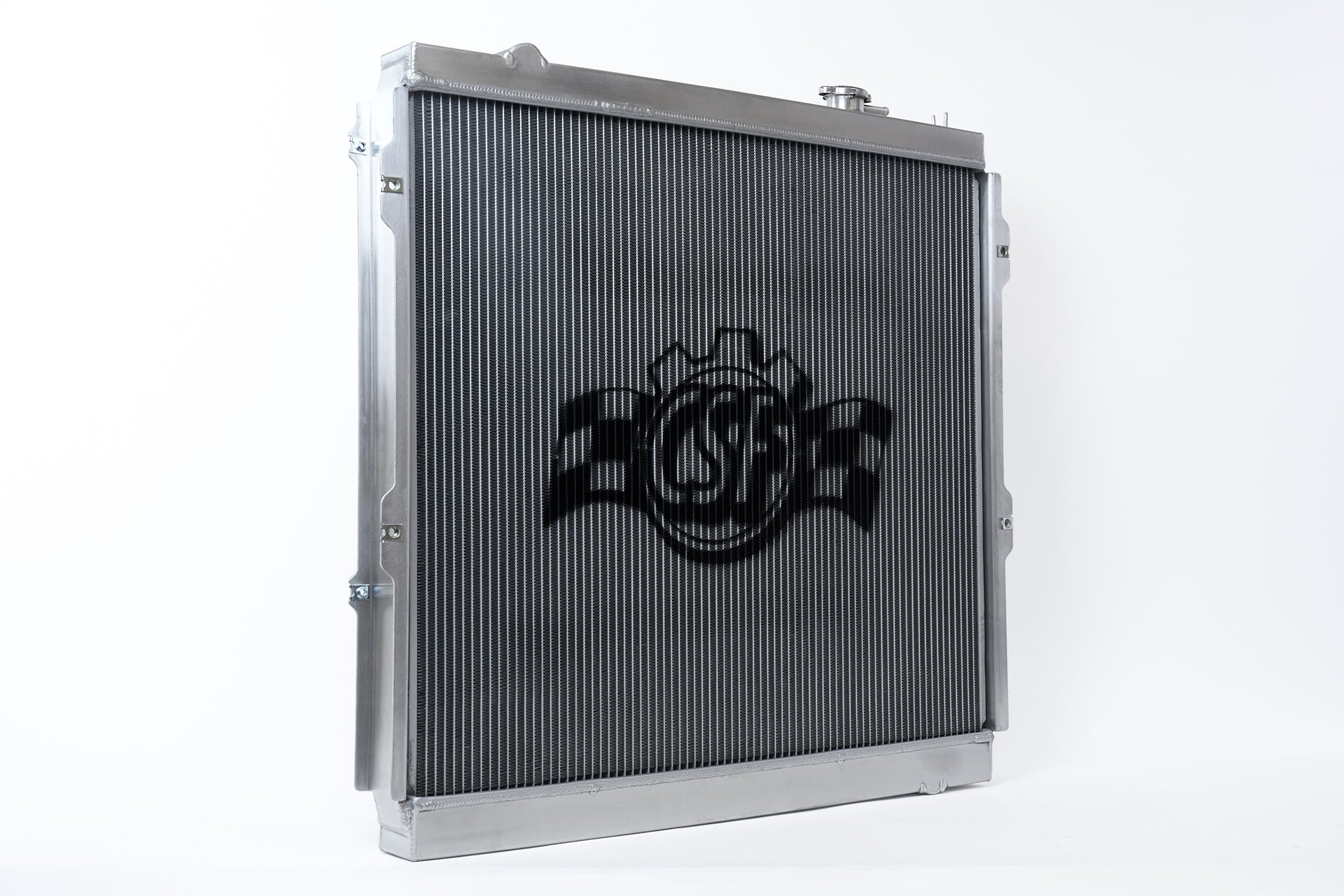

CSF 1st Gen Toyota Tacoma Heavy-Duty All-Aluminum Radiator

The Toyota Tacoma has established itself as the best-selling small pickup truck for nearly two decades, largely due to the exceptional reliability and durability of the 1st generation model produced from 1995 to 2004. This generation of Tacoma is renowned for its robust construction, with many vehicles still performing reliably after surpassing 200,000 miles. Its combination of dependability and affordability has made it a favored choice within off-road and overland communities. Despite the inherent toughness of the 1st Gen Tacoma, there remains potential for enhancement, particularly in supporting systems that complement the engine's longevity.

While the original equipment manufacturer (OEM) cooling system is designed to handle the demands of most daily driving scenarios, its performance can be challenged when the vehicle is subjected to more strenuous conditions, such as the installation of larger tires or intensive off-road use. Recognizing these limitations, CSF has engineered the Heavy-Duty All-Aluminum Radiator specifically for the 1995-2004 Toyota Tacoma models equipped with automatic transmissions, delivering a significant upgrade in cooling efficiency and durability.

This radiator features a 2-row, 42mm thick aluminum core that not only increases the overall fluid capacity but also enhances heat dissipation capabilities. Central to its advanced design is CSF's proprietary B-Tube Technology, which improves heat transfer efficiency by approximately 15% compared to conventional oval welded tubes commonly found in other aluminum radiators. Complementing this technology, the radiator incorporates multi-louvered fins that maximize airflow through the core, ensuring optimal cooling performance under demanding conditions.

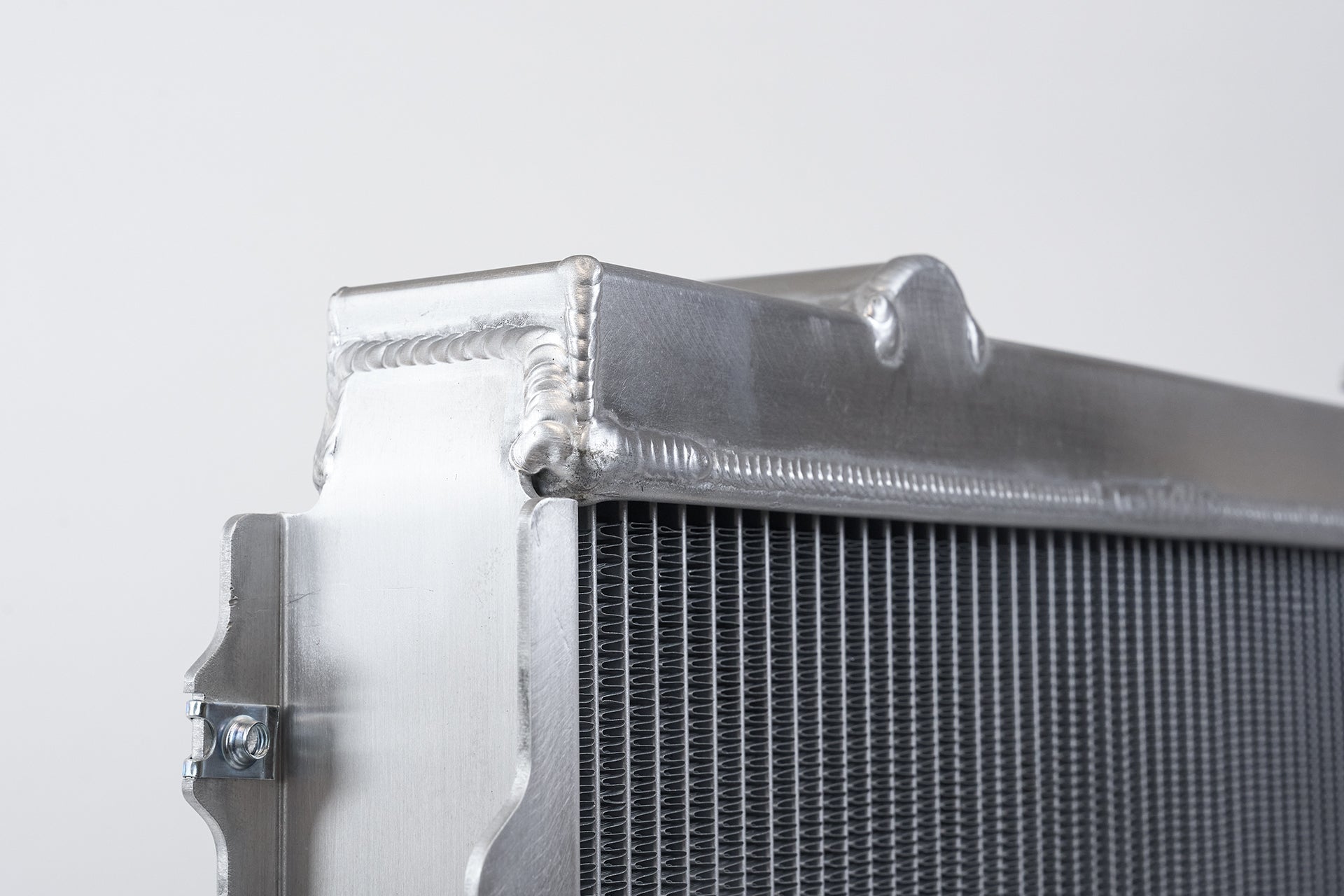

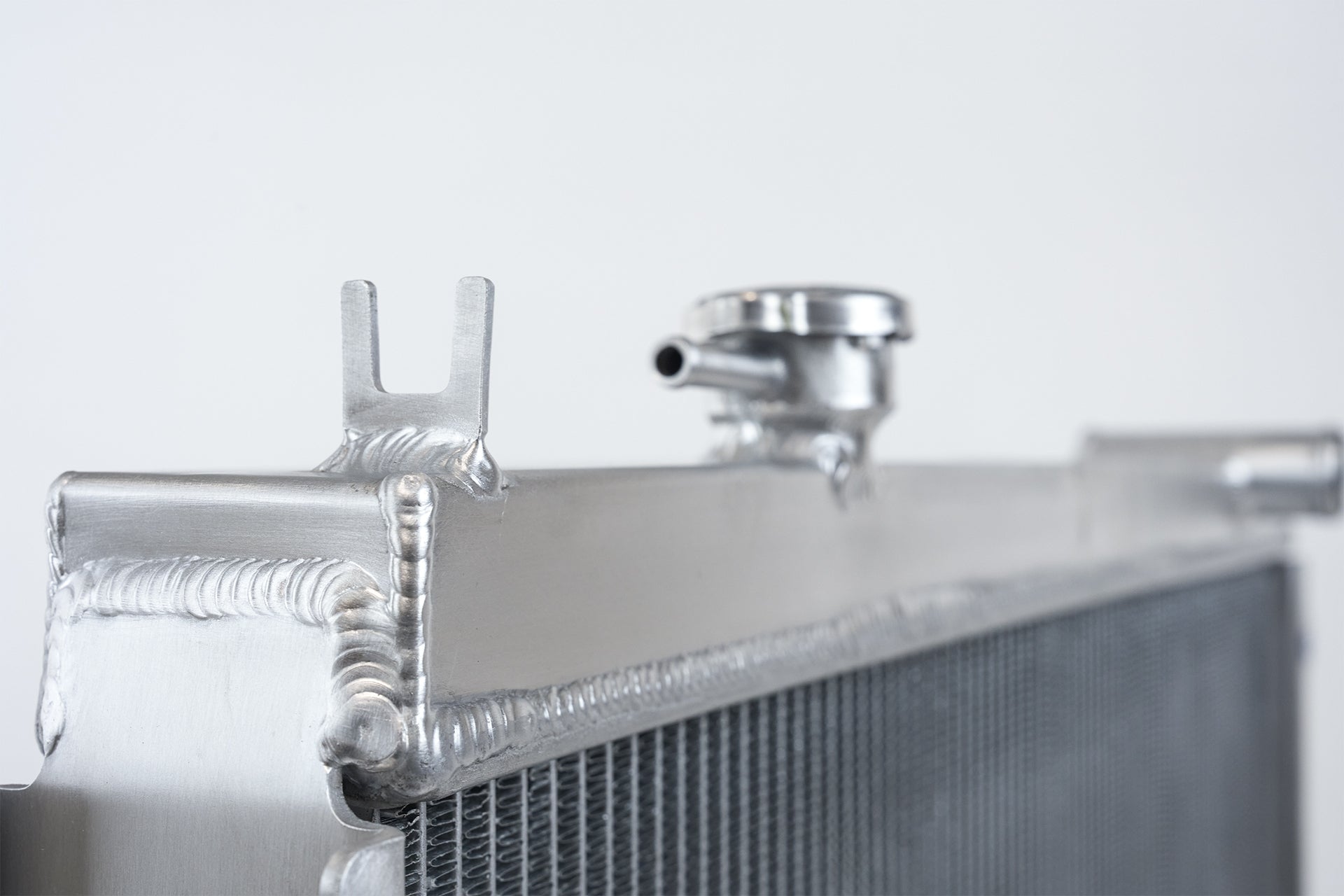

The end tanks of the CSF radiator are constructed from high-grade aluminum and are TIG welded to the core, providing superior strength and resistance to failure. This contrasts with the OEM design, which utilizes plastic end tanks crimped onto the core, a configuration more susceptible to damage and leaks. The CSF radiator is engineered as a true plug-and-play drop-in replacement, requiring no modifications, trimming, or cutting during installation. To further enhance installation quality and airflow efficiency, CSF includes pre-cut double-sided adhesive foam strips designed to seal the fan shroud against the radiator, reducing air bypass and improving cooling effectiveness.

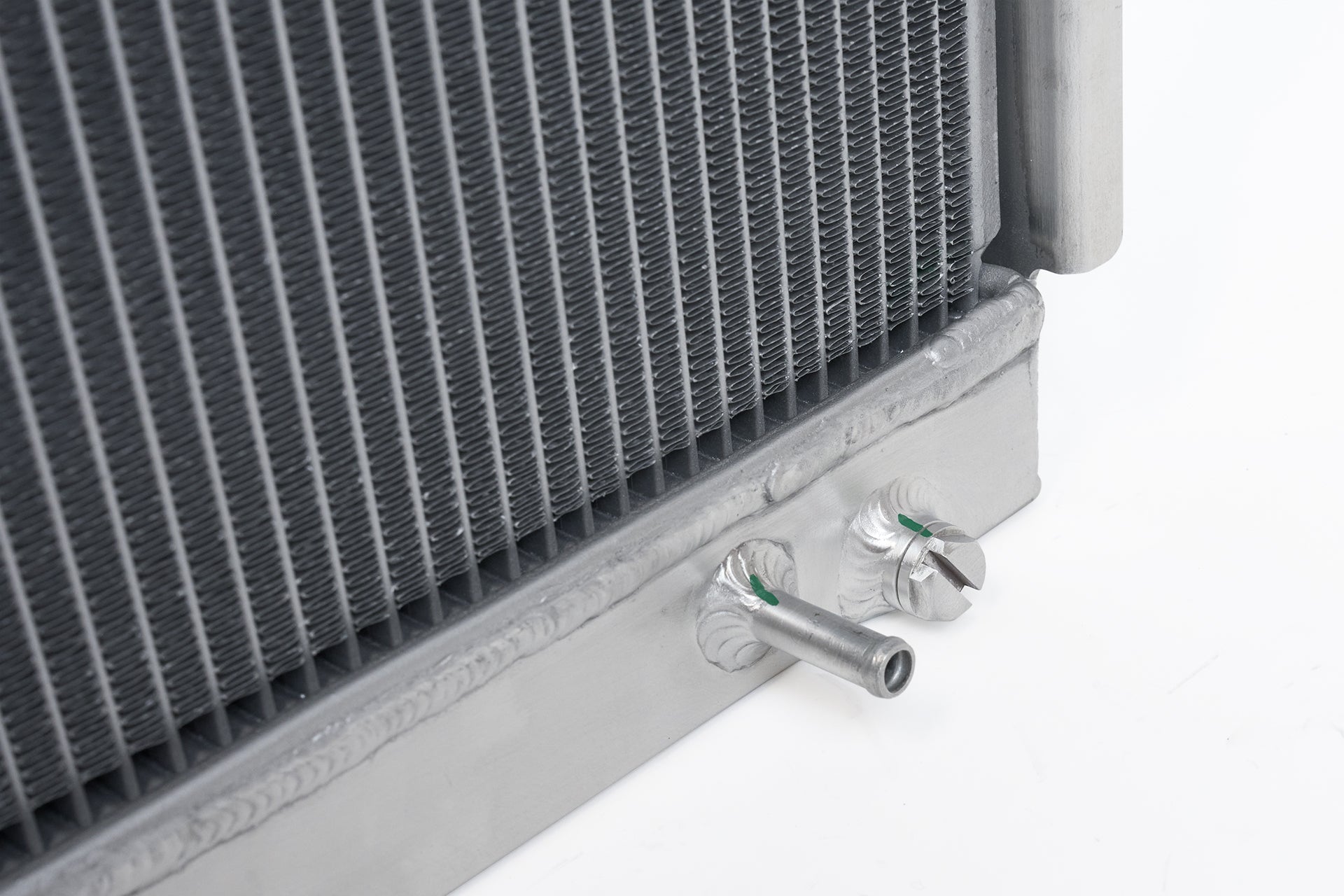

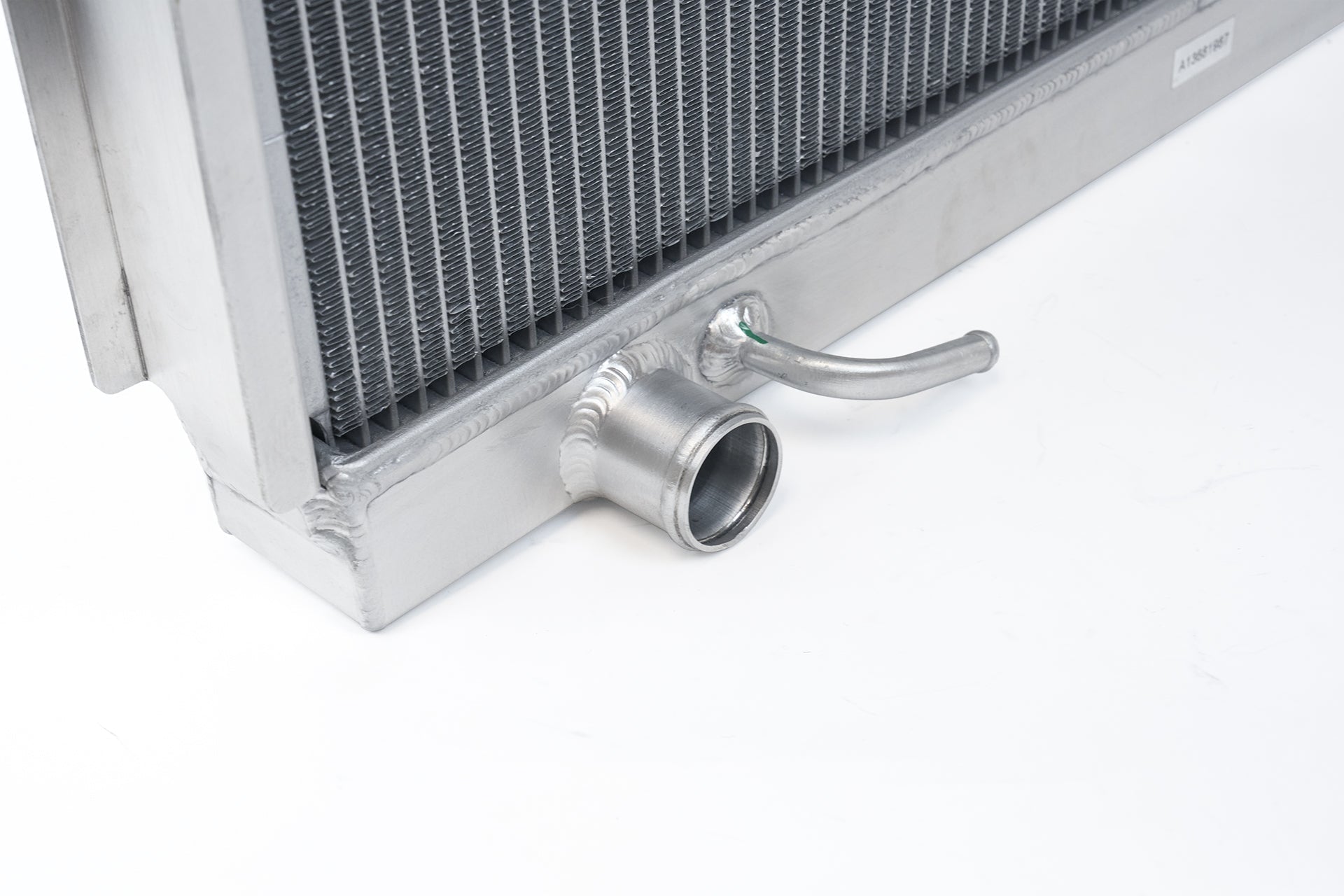

In addition to its superior core design, the CSF radiator integrates a built-in heavy-duty, high-performance 5-plate transmission fluid cooler located in the bottom tank. This cooler connects directly to the OEM transmission hoses and is engineered to manage the increased thermal load associated with towing, low-gear crawling, and vehicles equipped with oversized tires. The presence of larger tires effectively lowers the vehicle’s gear ratio, causing the engine and transmission to exert more effort to maintain movement, which in turn generates additional heat. The CSF radiator’s enhanced cooling capacity addresses this challenge, ensuring reliable operation even under increased mechanical stress.

Features

• 2-Row - 42mm Ultra-High-Performance Core for increased cooling capacity
• Cooling Tubes featuring CSF's Exclusive B-Tube Technology for enhanced heat transfer
• 6.5mm Tall Ultra Efficient Fins with Multi-Louvered Design maximizing surface area contact and airflow
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet ensuring precise fitment
• Integrated Heavy-Duty High-Performance 5 Plate Transmission Oil Cooler within the bottom tank
• 100% All Aluminum TIG-Welded Construction providing superior strength and durability
• Smooth Satin Finish delivering corrosion resistance and aesthetic appeal
• True Plug-and-Play "Drop-in Fit" installation requiring no modifications
• Individually Leak and Pressure Tested to guarantee quality and reliability
• 2-Year Limited Warranty offering peace of mind and product assurance
