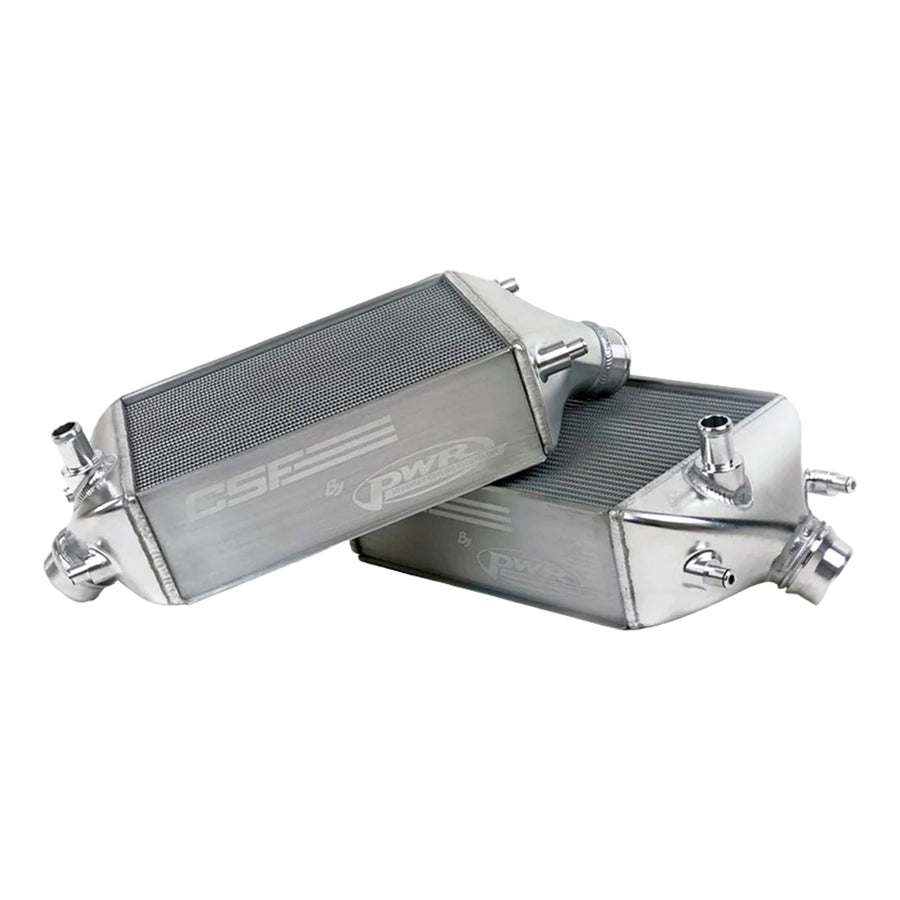

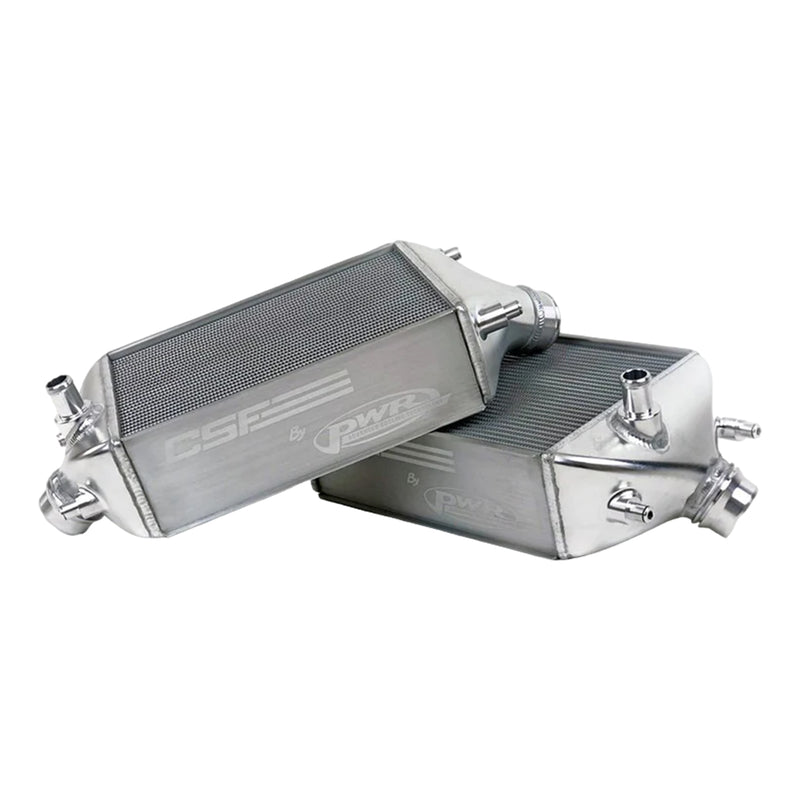

CSF Porsche 911 GT2 RS High Performance Intercoolers (991)
AVAILABLE TO ORDER | DESPATCHES IN 3-4 WEEKS.
Choose options
AVAILABLE TO ORDER | DESPATCHES IN 3-4 WEEKS.
AVAILABLE TO ORDER | DESPATCHES IN 3-4 WEEKS.
For a long time, the only solution for a Porsche 991 GT2 RS intercooler upgrade was not an upgrade, but a band-aid for the stock 1990's style water spray system which sprays water from a reservoir in the frunk and onto the intercoolers. The band-aid was to install a larger capacity water tank which simply delayed the inevitable running out of water and output to be automatically limited by the factory ECU to try to keep the engine safe. Until you refilled the reservoir again it's likely your 991 GT2 RS would struggle with charge temps and limited output.
Experts in cooling CSF and PWR have joined operations to deliver a High-Performance Intercooler Upgrade for the 991 GT2 RS which eliminates heat soak and lowers charge air temps on stock, tuned and tracked cars. CSF achieves this by using an F1 performance grade core which dramatically improves the efficiency of the intercoolers within the same space constraints.
The CSF High-Performance Intercoolers for the GT2 RS boasts 13 more cooling rows than the stock intercooler, boasting 28 rows in total vs. the stock 15. The tube height and fin height is also maximised with the CSF core boasting a dual-row 3mm rolled tube vs. the factory 7mm height and the CSF core uses a fin height of 4.85mm vs. the factory 7mm. As you can see, the CSF core maximises performance in every area.
The differences don't just end in performance. The CSF High-Performance Intercoolers for the GT2 RS also boast reliability and durability improvements. Customer feedback has reported numerous failures with the standard end-tanks which uses an un-secure and failure-prone crimped and gasketed mechanism which can leak over time with numerous boost cycles and increased boost pressure with tuned cars, whereas the CSF High-Performance Intercoolers for the GT2 RS is 100% TIG welded for maximum reliability and durability.
Stock Porsche Intercooler Specification
- # of Tubes = 15
- Tube Height = 7mm
- Fin Height = 7mm
- Weight = 8.146KG
- Cast End Tanks, Crimped with Gaskets
CSF High-Performance GT2 RS Intercooler Specification
- # of Tubes = 28
- Tube Height = 3mm Rolled Tube
- Fin Height = 4.85mm
- Weight = 8.146KG
- Billet End Tanks with TIG Welding
We get a large number of custom orders and requests everyday, so as a result it is not always possible for us to keep every item in stock at all times in our warehouse. If you require the item urgently please contact our sales team here to check the stock before you make your purchase.
Unless explicitly stated otherwise, all products sold by R44 Performance Limited are designated RACE ONLY and are solely for competition or off-road use limited to racing formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, may violate local, state, and Federal laws. R44 Performance Limited does not implicitly or explicitly confirm the legality of using any products it sells on public roads; that is entirely the responsibility of the consumer.
It is the responsibility of the customer to check with all federal, state local and environmental laws before ordering and installing a product. R44 Performance Limited is not responsible for any fees, fines or costs that a customer may incur as a result of failing to check with federal, state, local or environmental laws before ordering and installing a product.
CSF Radiators
Ultimate Performance Cooling
CSF aims to lead the cooling system industry by introducing new technologies and manufacturing processes that allows them to be on the cutting edge of heat transfer innovation.
CSF Radiator FAQs
Common questions we get about CSF Radiators & cooling products.
Performance
The aim of upgrading your vehicles cooling system with CSF Radiators is to improve efficiency, reliability and reduce heat soak. Whilst you waon't see a direct horsepower increase, your vehicle's tuning potential will increase and you'll be able to drive harder for longer without losing horsepower.
Yes. Vehicle manufacturers often try to reduce production costs by cutting corners and using poor materials. CSF Radiators use the highest-quality materials and are built to last for longer than OEM components.
Installation
Unless noted in the listing, this radiator does not require any modifications to be made to fit. CSF Radiators are generally a straight swap for the OEM item and use the same mounting points/fittings.
Installation is the reverse of removal. Installation will require some competence and skills to carry out . Manufacturers provide paid access to manuals whereby you can find detailed instructions on how to replace radiators, the tools required and any other specific notes.
We recommend using the manufacturer specified coolant with CSF Radiators.
