CSF BMW M2 Race Spec Oil Cooler (F87)

Sale price£432.00GBP

Tax included. Shipping calculated at checkout

SKU: 8104

PRE-ORDER NOW FOR DESPATCH IN 3-4 WEEKS

Pickup available at R44 Performance HQ Usually ready in 4 hours

CSF BMW M2 Race Spec Oil Cooler (F87)

R44 Performance HQ

Pickup available, usually ready in 4 hours

Latif House, First Way, Wembley
Unit 4
London HA9 0JD
United Kingdom

+442080040441

CSF BMW F87 M2 Race Spec Oil Cooler is designed to keep engine oil temperatures consistently low for prolonged periods of fast or spirited driving. If you've ever pushed your M2 hard at the track, you'll be very familiar with the M2's high oil temperature limp mode. The OEM engine oil cooler is not capable of keeping oil temperatures low at the track or even when driving spiritedly on the road in high temperatures. High oil temperatures also cause premature oil deterioration, reducing its lubricating effect on your N55 engine.

With the CSF upgraded race-spec engine oil cooler, this isn't an issue. After testing the CSF oil cooler in extreme 46-degree temperatures, it has proven to lower your oil temperatures and prevent your vehicle from entering limp mode at the track.

PRODUCT SPECIFICATION

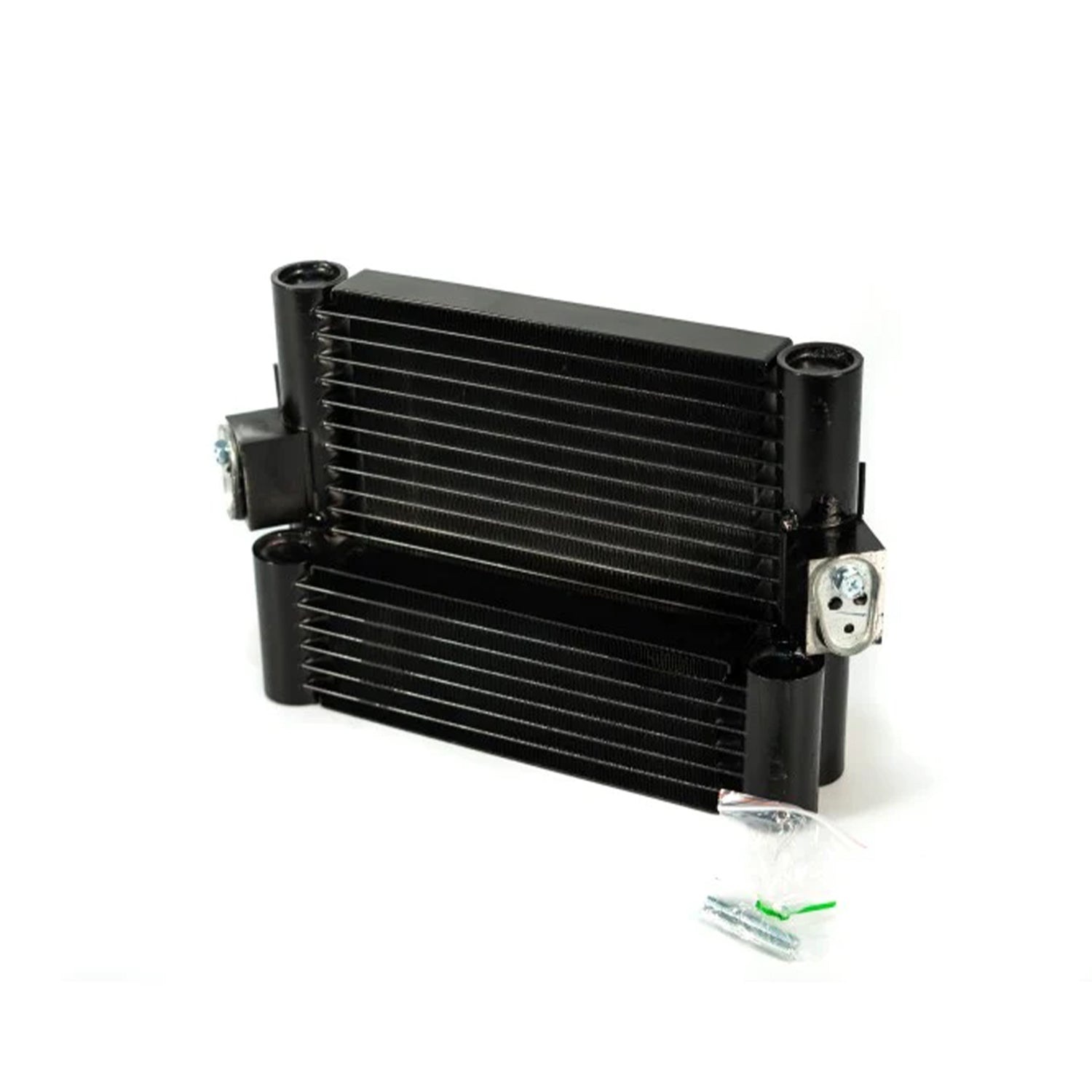

  • Innovative 2-core in-series system.
    • Front full-size core has 17 cooling tubes versus OEM 15 tubes
    • Secondary in-series backside cooler has an additional 6 rows of cooling
    • Made with CSF’s AC condenser technology using a 1-row super-high pressure 26mm multi-channel microtube.

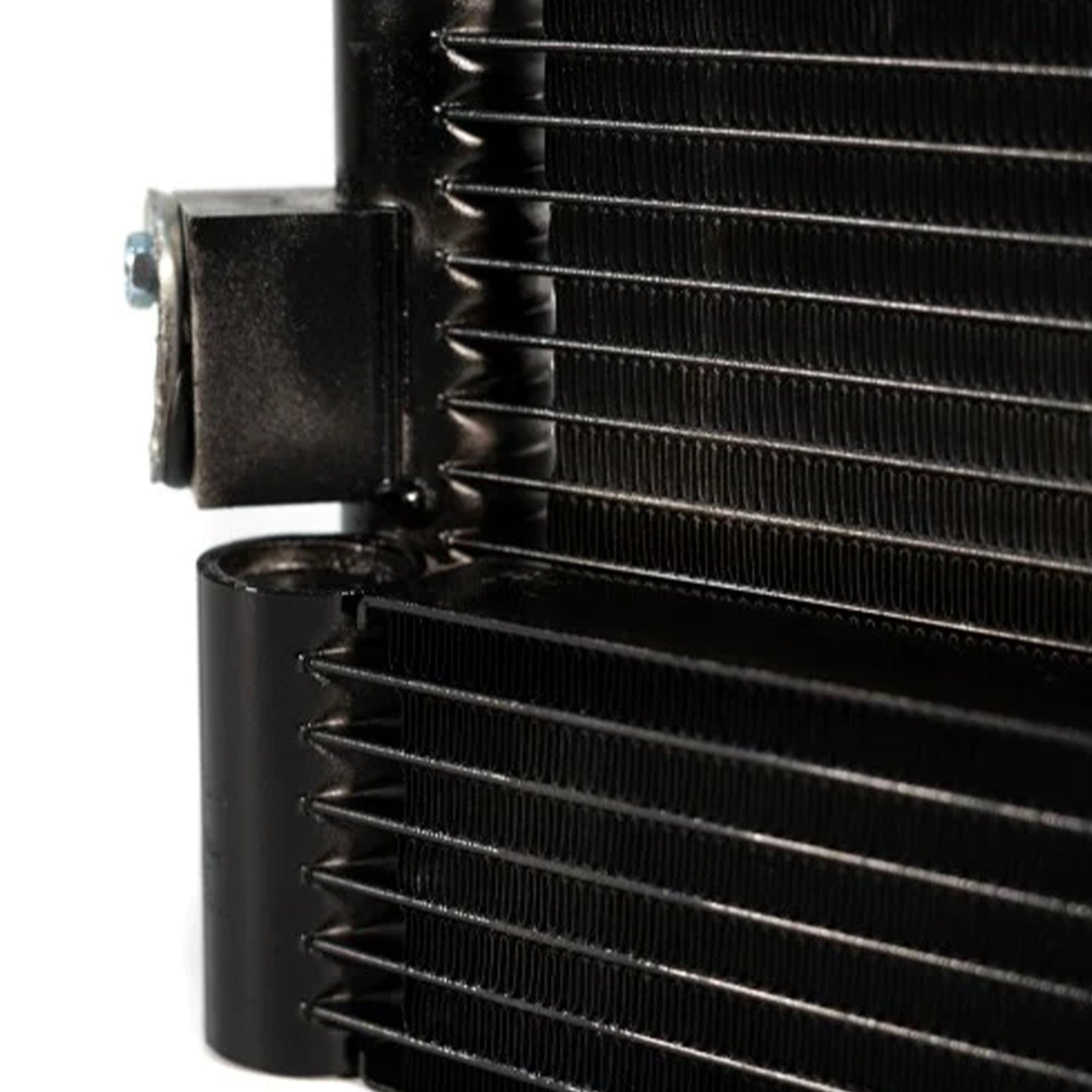

    • High-density multi-louvered fin design for maximum surface area contact.
    • “Drop-in fit” requires no modifications to install. Accepts all attaching OEM components including oil-line connections, mounting brackets, and shroud/ducting
  • World’s 1st and only true “plug-and-play” upgraded engine oil cooler for the BMW N55 engine in the BMW F87 M2 (2016+)
  • Track tested in 39C (46C heat index) – max oil temperature achieved 115C.
    • This is a reduction from 135C/137C track oil temperatures (limp mode) when testing with the upgraded CSF cooler on the vehicle versus the OEM cooler.
    • Need additional ½ quart for proper fill-up during installation (OEM cooler is 7 quarts. CSF’s upgrade Race-Spec M2 oil cooler required ~7.5 quarts to fill up properly.

TECHNOLOGY

CSF manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry-leading testing methods to maximise airflow and heat dissipation. These techniques allow CSF to stay ahead of the pack when it comes to radiator technology!

COMPATIBILITY

CSF-8104 Race Spec Engine Oil Cooler fits the following vehicles:

- BMW F87 M2 N55 Coupe (2016-2018)

*NOT SUITABLE for BMW F87 M2 Competition (2018-2020)

Shipping & Returns

Place your order before 2pm GMT to have it dispatched the same day.

Shipping rates are calculated during checkout based on weight, box dimensions and destination of the items in your order.

Unfortunately due to the nature of shipping goods both domestically and internationally, these rates displayed at checkout serve only as an estimate and are reviewed by us regularly to make sure they are as accurate as possible.

You can read more about our shipping and returns policy here.

Shipping & Returns

Place your order before 2pm GMT to have it dispatched the same day.

Shipping rates are calculated during checkout based on weight, box dimensions and destination of the items in your order.

Unfortunately due to the nature of shipping goods both domestically and internationally, these rates displayed at checkout serve only as an estimate and are reviewed by us regularly to make sure they are as accurate as possible.

You can read more about our shipping and returns policy here.

Warranty

All of our products come with a standard warranty of 1-3 years. This is dependant on the type of product however. For more details please see our warranty page here.

Warranty

All of our products come with a standard warranty of 1-3 years. This is dependant on the type of product however. For more details please see our warranty page here.

Finance Available

We accept a wide range of payment types including various finance options. You can read more about finance the options available to you here.

Finance Available

We accept a wide range of payment types including various finance options. You can read more about finance the options available to you here.

CSF Radiators Quality & Cooling Performance

CSF Radiators

Ultimate Performance Cooling

CSF aims to lead the cooling system industry by introducing new technologies and manufacturing processes that allows them to be on the cutting edge of heat transfer innovation.

CSF Radiator FAQs

Common questions we get about CSF Radiators & cooling products.

Performance

The aim of upgrading your vehicles cooling system with CSF Radiators is to improve efficiency, reliability and reduce heat soak. Whilst you waon't see a direct horsepower increase, your vehicle's tuning potential will increase and you'll be able to drive harder for longer without losing horsepower.

Yes. Vehicle manufacturers often try to reduce production costs by cutting corners and using poor materials. CSF Radiators use the highest-quality materials and are built to last for longer than OEM components.

Installation

Unless noted in the listing, this radiator does not require any modifications to be made to fit. CSF Radiators are generally a straight swap for the OEM item and use the same mounting points/fittings.

Installation is the reverse of removal. Installation will require some competence and skills to carry out . Manufacturers provide paid access to manuals whereby you can find detailed instructions on how to replace radiators, the tools required and any other specific notes.

We recommend using the manufacturer specified coolant with CSF Radiators.
