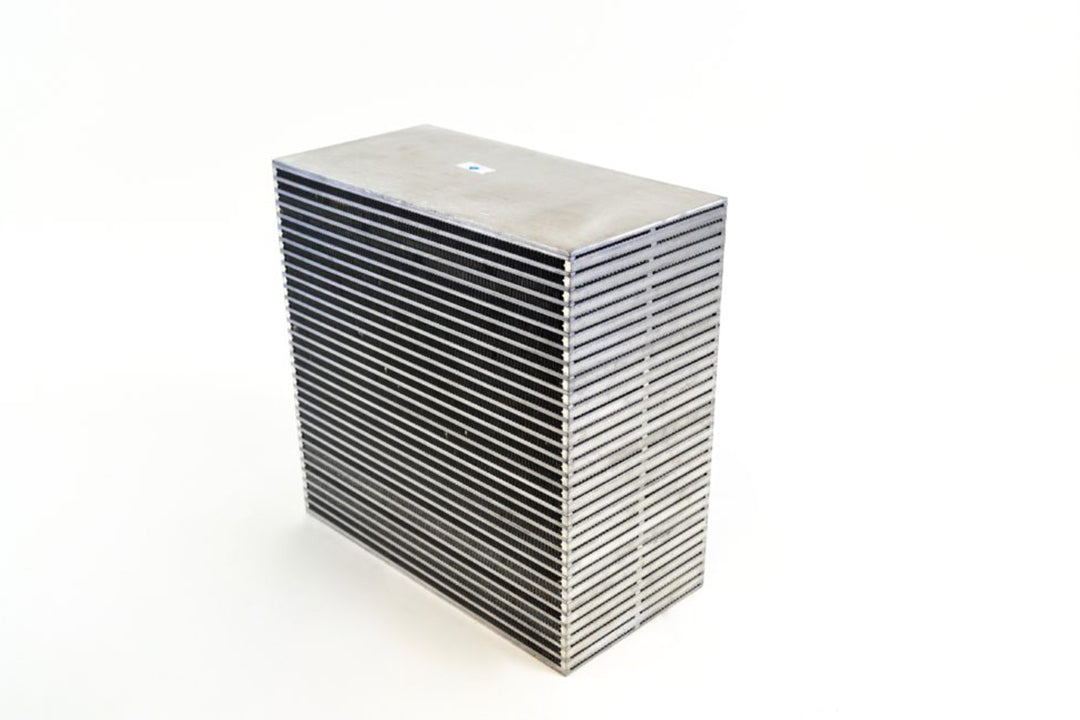

CSF Air-to-Water Bar & Plate Intercooler Core 12L x 12H x 6W

The CSF Air-to-Water Bar & Plate Intercooler Core, measuring 12" x 12" x 6", represents a pinnacle of engineering excellence designed for high-performance applications. Renowned among leading tuning and performance companies, this intercooler core is engineered to support up to 2000 WHP, making it an ideal choice for custom intercooler builds that demand superior thermal management and reliability under extreme conditions.

Each core undergoes rigorous pressure testing at 120psi to ensure maximum durability and leak-free performance in high-boost environments. The manufacturing process is meticulously controlled: every unit is hand-built using precision jigs and fixtures to guarantee a perfectly straight core, which facilitates seamless welding during installation. The assembly takes place in a clean room environment within the CSF factory, where technicians wear gloves to maintain the integrity of the brazing process and ensure a pristine surface, critical for subsequent welding operations.

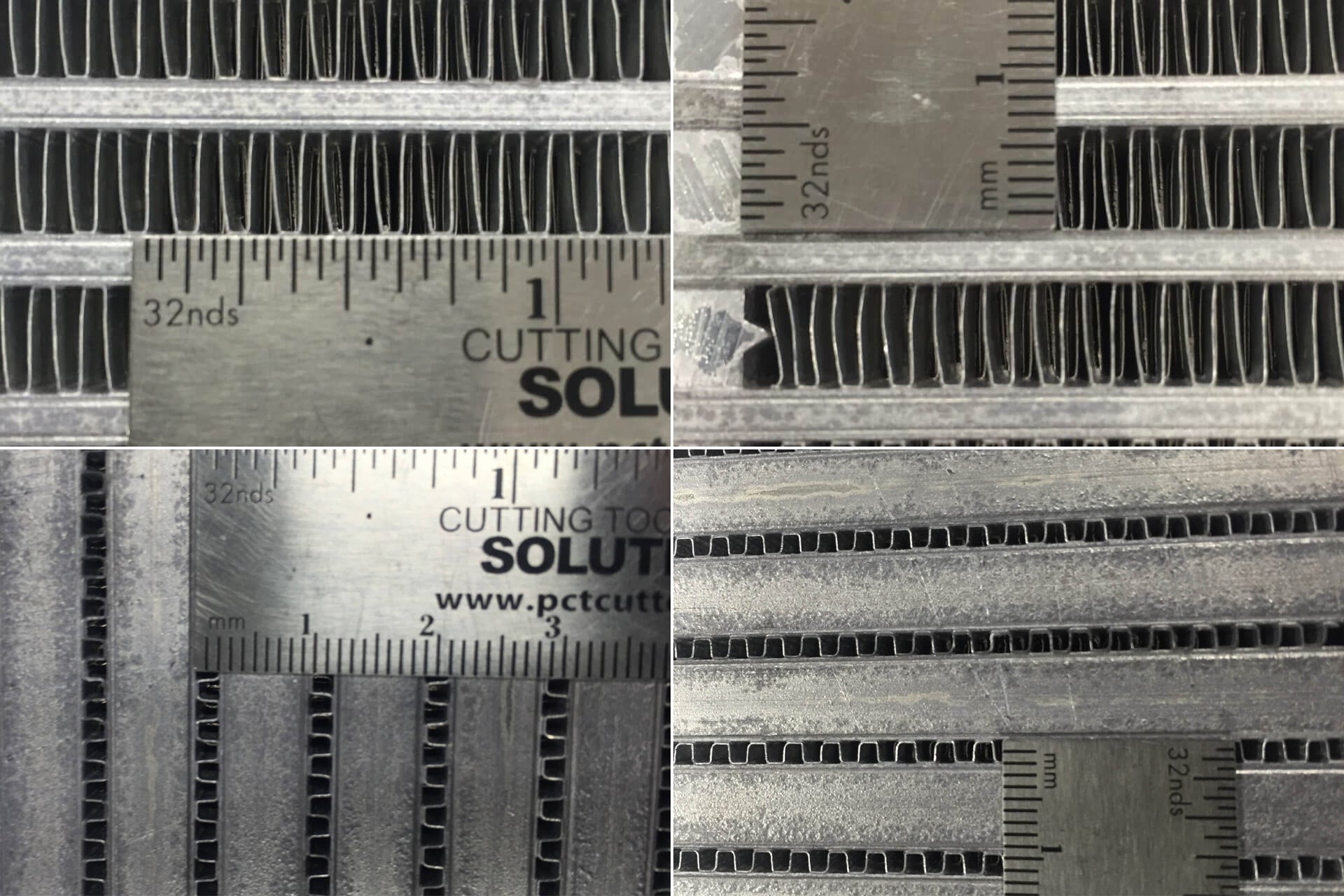

One of the defining features of this intercooler core is its advanced multi-louvered, high-precision staggered fin design. This configuration is applied to both the ambient and pressure sides of the core, optimizing heat transfer efficiency to maintain lower intake air temperatures and improve overall engine performance. The core is batch brazed in CSF’s state-of-the-art digital vacuum brazing ovens—12 ovens in total—ensuring consistent quality and structural integrity across every unit produced.

Features

• Heavy-Duty Bar & Plate Construction for Enhanced Strength and Durability
• Pressure Tested at 120psi to Guarantee Reliability in Extreme Boost Applications
• Hand-Built Using Precision Jigs & Fixtures for a Perfectly Straight Core, Facilitating Easy and Accurate Welding
• Manufactured in a Controlled Clean Room Environment with Glove Use to Ensure Proper Brazing and Clean Surfaces for Future Welding
• Multi-Louvered High Precision Staggered Fin Design on Both Ambient and Pressure Sides for Superior Heat Dissipation
• Batch Brazed in CSF’s Advanced Digital Vacuum Brazing Ovens, Ensuring Uniform Quality and Structural Strength
• Extensive Quality Control Including Individual Pressure Testing to Meet Rigorous Industry Standards
• Individually Boxed and Securely Packaged to Protect During Single Piece Mail Transport
• Dimensions: 12" x 12" x 6" (305mm x 303mm x 150mm)
• Rated for 2000 HP
• Air-to-Water Cooling Configuration

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) provides a comprehensive warranty on its High-Performance Cooling Systems, assuring the original purchaser of the product’s reliability under normal use and service conditions. This warranty underscores CSF’s commitment to quality and customer satisfaction. For detailed warranty information, please visit our Warranty Page.

SKU# 8086 Warranty Term: 2 years
