ARP Head Stud Kit For BMW S58 Engine
ARP Head Stud Kit For BMW S58 Engine
ARP Head Stud Kit For BMW S58 Engine

ARP

ARP Head Stud Kit For BMW S58 Engine

Sale price£379.99GBP
SKU: ARP-HSK-S58-S
Kit:

Kit

Upgrade the performance of your BMW S58B30T0 engine with our ARP Head Stud Kit. Specifically designed for the turbocharged inline 6-cylinder S58 engines found in high-performance models such as X3M F97, X4M F98, M3 G80, M4 G82, and M4 G83.

As you increase the power output of your engine beyond its factory specifications, the head and block may start to separate, causing factory bolts to stretch and fail. Our ARP Head Studs are designed to be stronger than factory bolts, ensuring your race engine stays together even under extreme conditions.

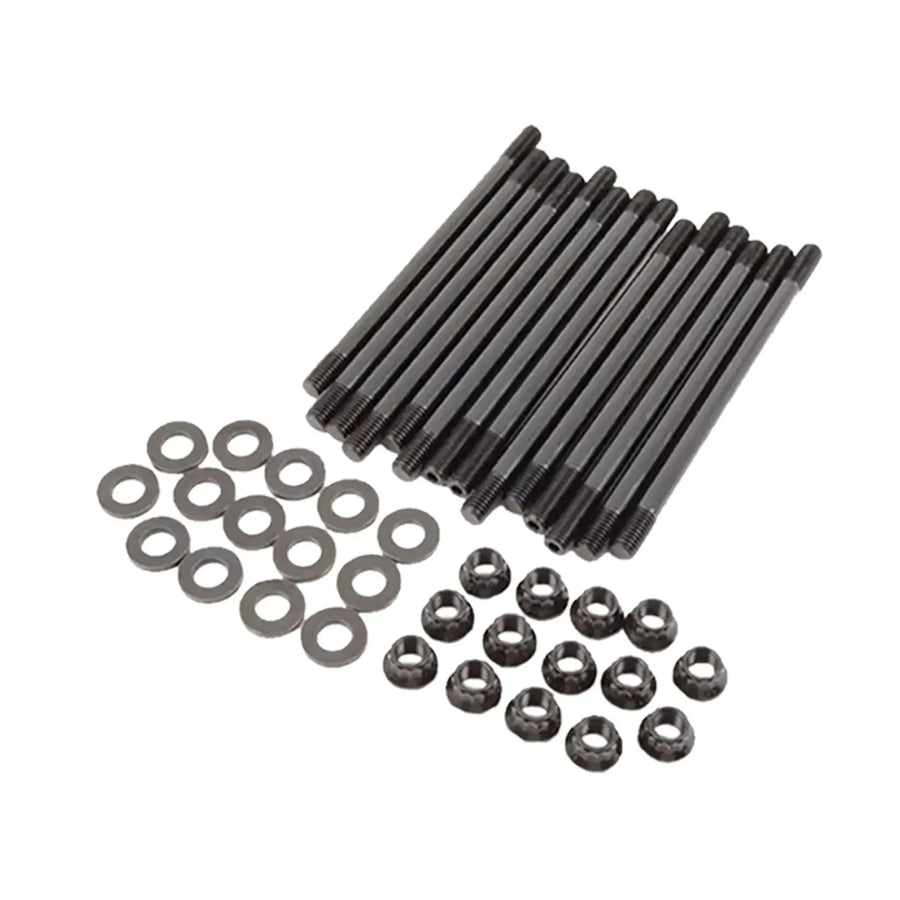

Our Custom Age 625+ kit is made from a material with a tensile strength of 260 ksi, substantially higher than the 190 ksi of the ARP 2000 head stud. It's an ideal choice for individuals who want to push the limits of their S58 builds.

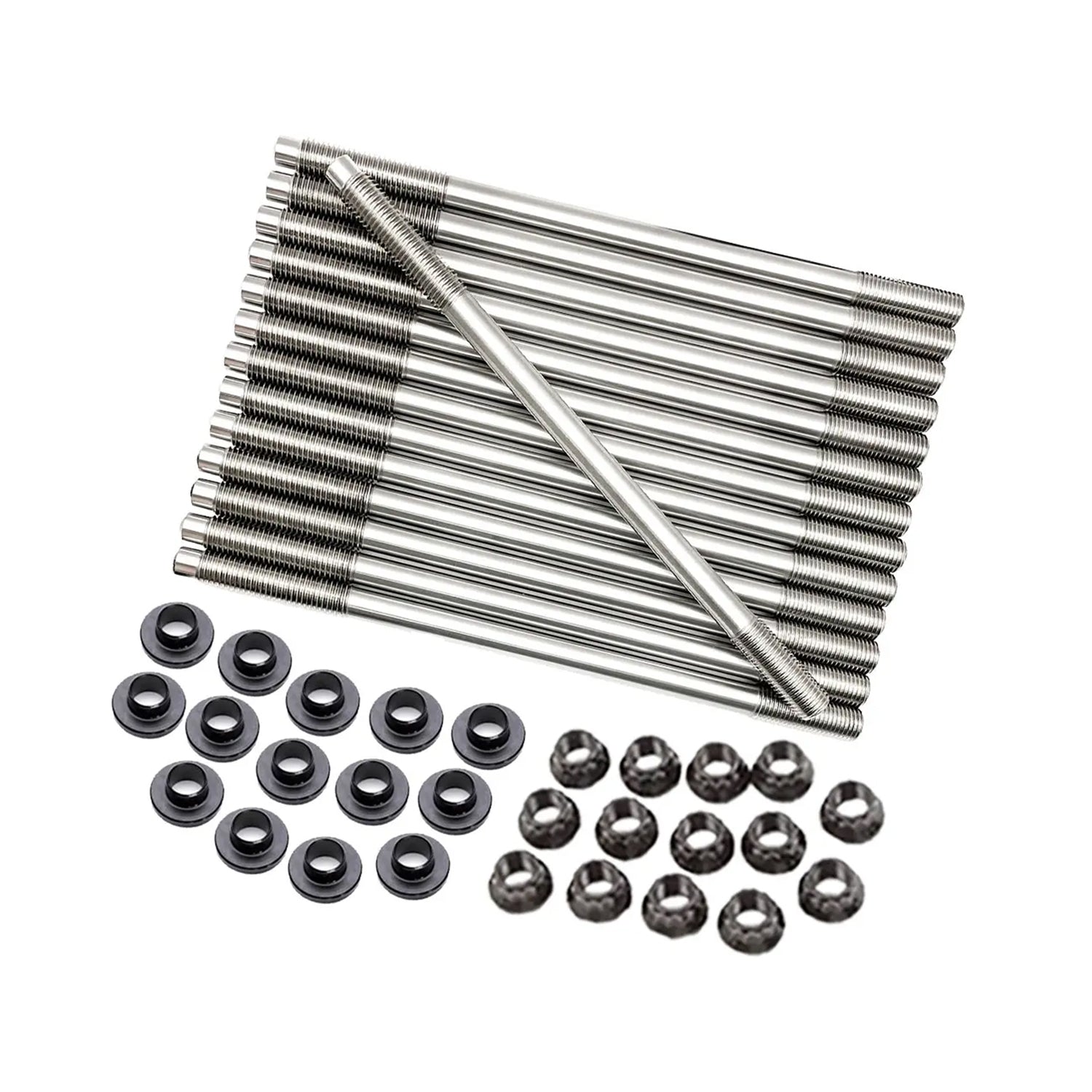

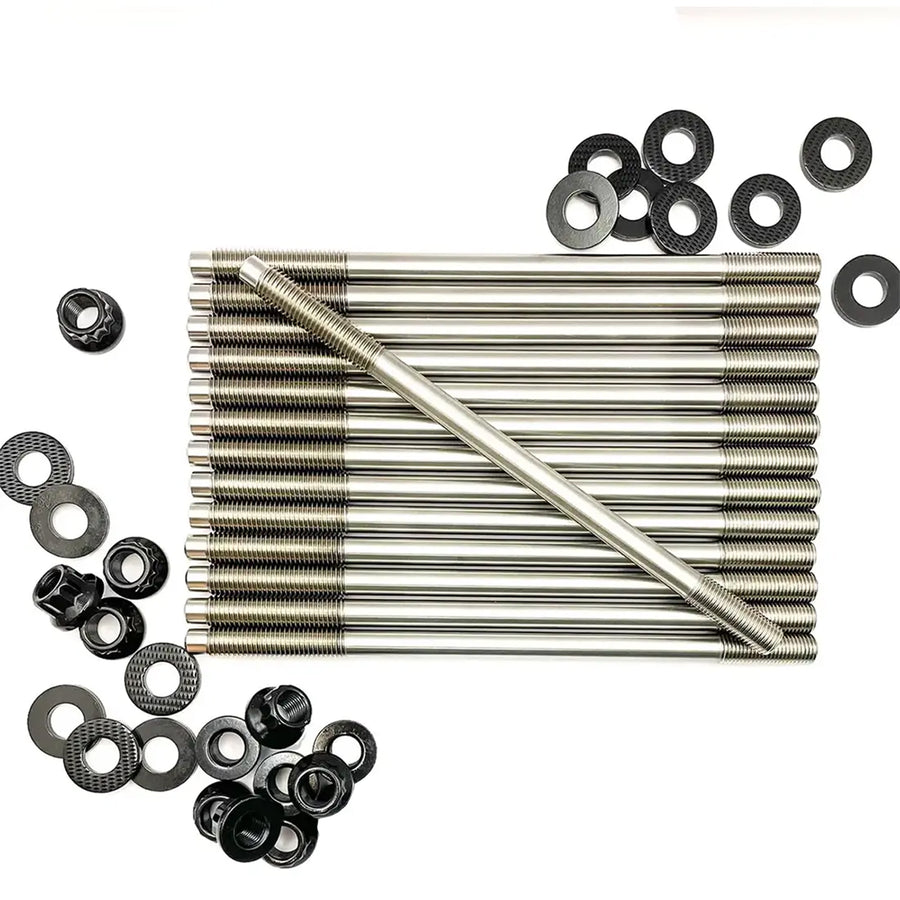

The 5150 Oversized Kit option utilises ARP's proprietary Custom Age 625+ material option combined with specialized insert washers for ultra-high boost applications. Please note that this kit requires that the cylinder head be clearanced and the engine block to be machined for the installation of insert washers. Don't have a machine shop up to the job? Submit your engine to 5150 AutoSport for our S58 Oversized Stud Installation Service.

Installation Instructions:

1. To ensure proper thread engagement and accurate torque readings, clean ALL threads in the block. Chase if necessary with ARP Thread Chaser.
2. Clean and inspect all hardware prior to installation. Look for obvious defects or shipping damages, plus proper fit, length and dimension.
3. If the cylinder head studs protrude into a water jacket, lubricate the block threads of the studs with ARP THREAD SEALER.
4. Screw studs into the block “HAND TIGHT ONLY”.
5. Install the cylinder head(s) and check for binding or misalignment.
6. Lubricate the stud threads, nuts and washers with ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT.
Then install the washers and the nuts onto the studs and tighten them hand tight.
ARP recommends using the ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT that is provided with each kit as opposed to motor oil. This is due to higher friction on the studs as well as inconsistencies in the clamping force of the fasteners when motor oil or other low quality lubricants are used.

PRELOAD (TORQUE) RECOMMENDATIONS

7. Following the manufacturers recommended torque sequence tighten the nuts steps 1-3

ARP2000
Step 1: Tighten to 30 ft-lbs.
Step 2: Tighten to 60 ft-lbs.
Step 3: Tighten to 90 ft-lbs.

Custom Age 625+
Step 1: Tighten to 30 ft-lbs.
Step 2: Tighten to 60 ft-lbs.
Step 3: Tighten to 110 ft-lbs.

with ARP Ultra-Torque fastener assembly lubricant

Bolt Torque Sequence

 12  10 4 2 6 8 14
13 7 5 1 3 9 11



Please note: After initial assembly, it is necessary to allow the engine to complete a full heat cycle, then re-torque your head studs to spec. This means allowing the engine to warm up to its normal operating temperature, remain at operating temperature for several minutes to ensure each component is uniformly heated, then turned off and cooled completely to ambient temperature.

BMW S58 Applications:

2 Series

2023-Present     G87     M2

3 Series

2021-Present     G80     M3

4 Series

2021-Present     G82/G83     M4

X3 Series

2019-Present     F97     X3M

X4 Series

2019-Present     F98     X4M
